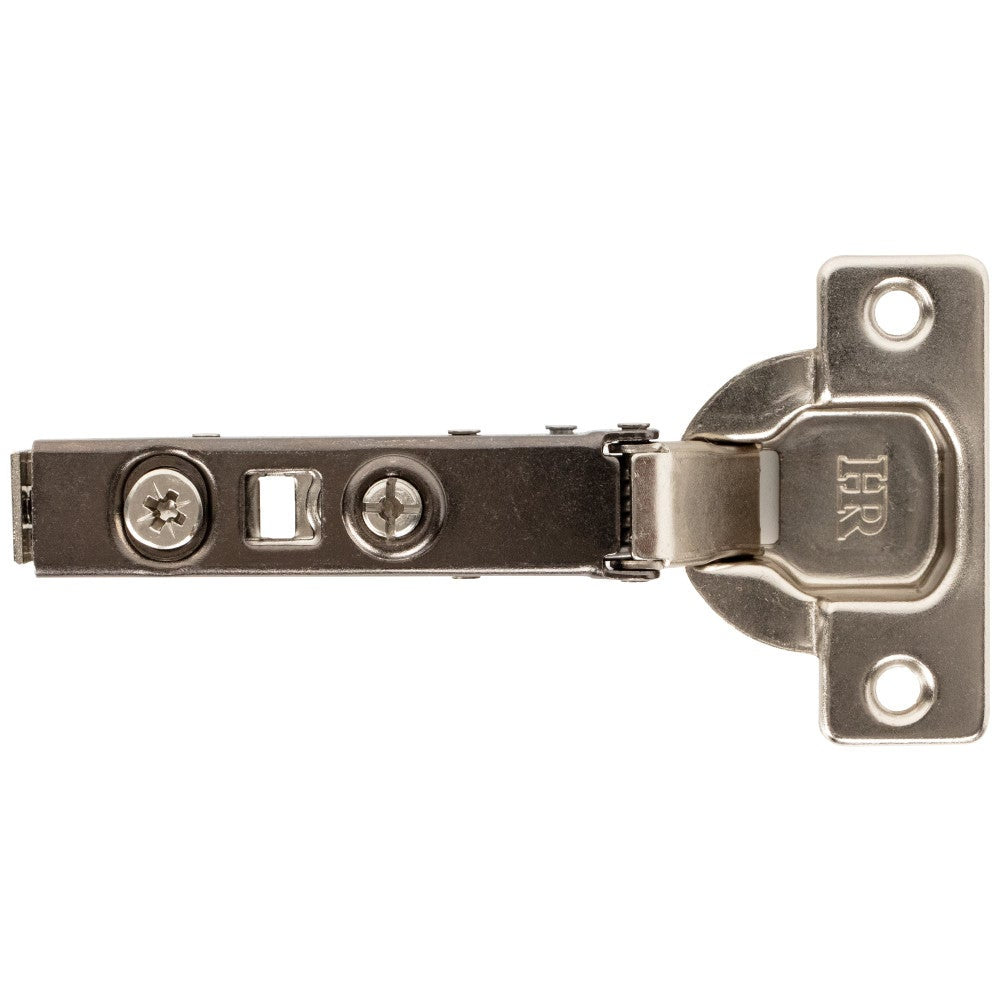

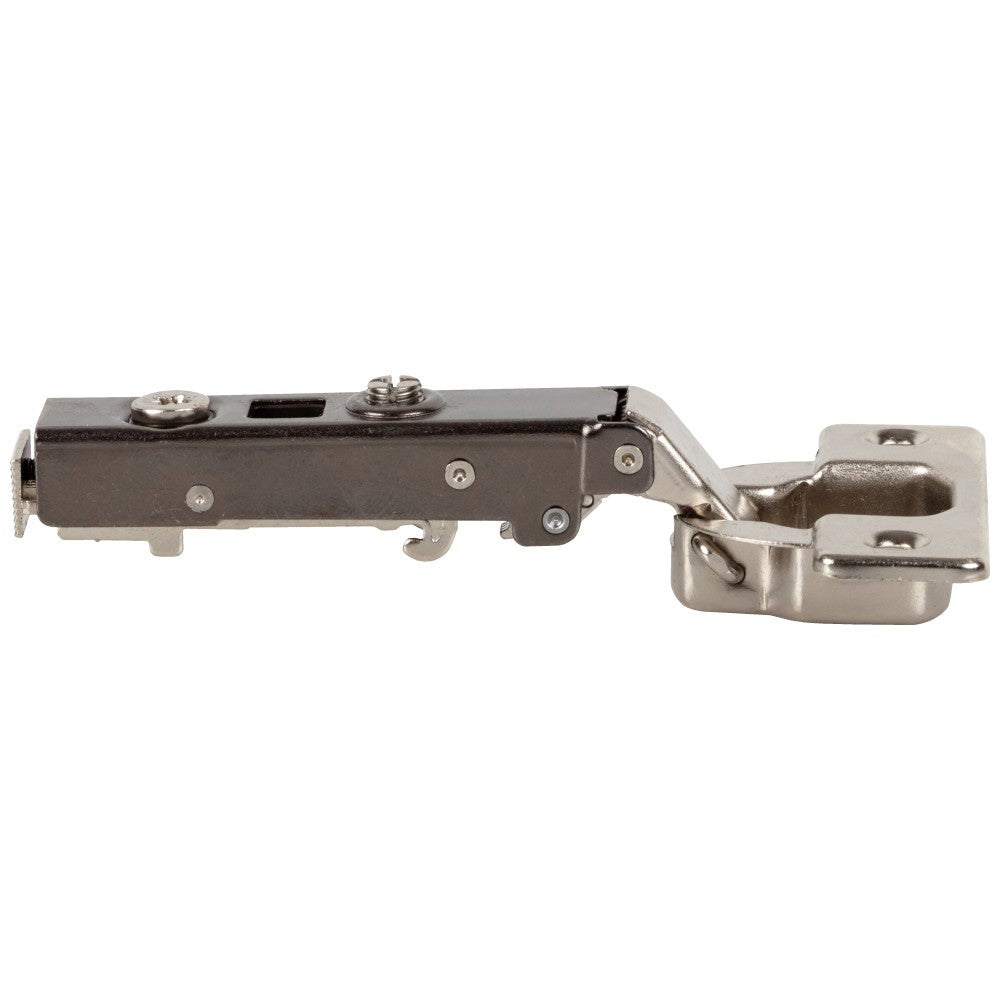

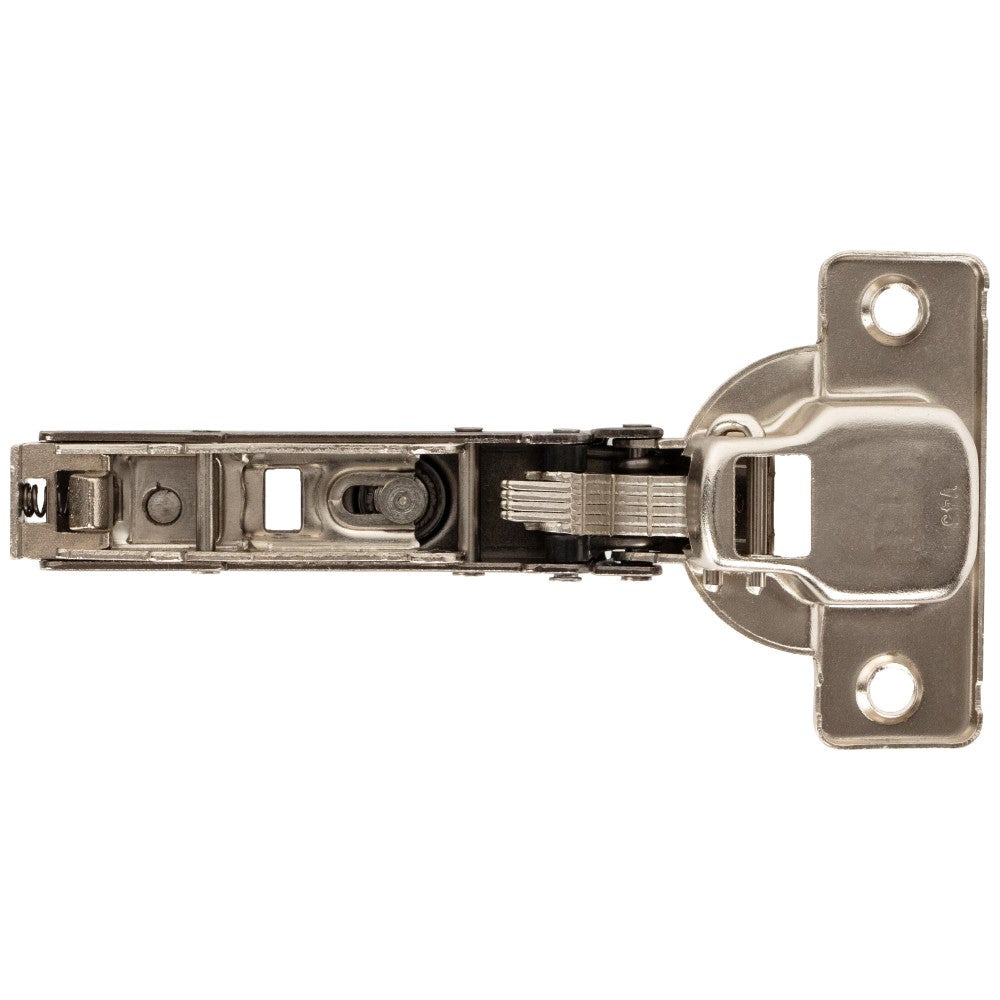

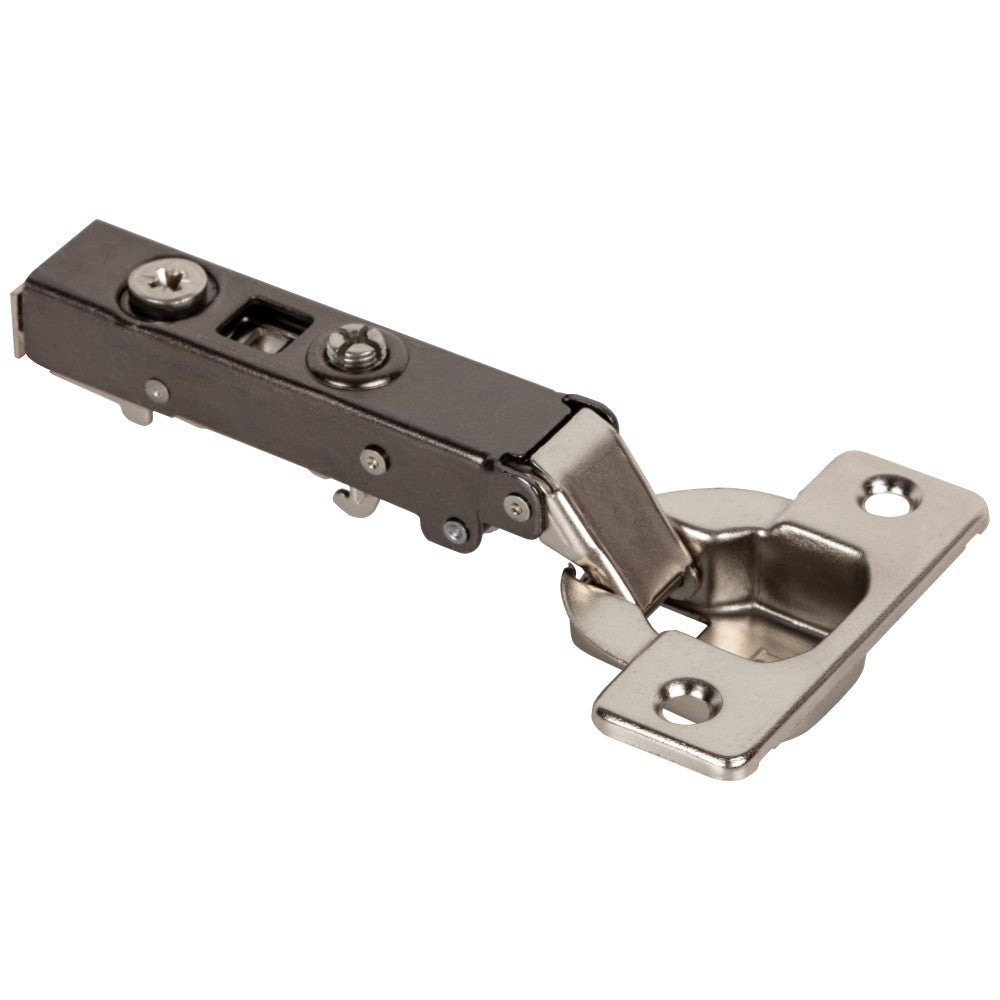

Hardware Resources 110° Commercial Grade Full Overlay Cam Adjustable Self-close Hinge without Dowels
Hardware Resources 110° Commercial Grade Full Overlay Cam Adjustable Self-close Hinge without Dowels
Regular price
$3.38
Sale price
$3.38
Regular price
$3.76
Shipping calculated at checkout.
🔥 12 sold this week
👀 18 people viewing this product
🛒 6 people added this to cart today
👀 18 people viewing this product
🛒 6 people added this to cart today
💰 Found it cheaper? We will beat most competitor pricing.
📞 Call 732-494-8670 for the best deal
📞 Call 732-494-8670 for the best deal
Available in stock (100)
Features:
- Heavy duty: ideal for larger doors, heavy usage, as well as standard residential applications
- Lever-top available: Provides toolless installation and removal
- Patented anti-sag stacked linkage: Reduces door sag & provides minimal side-to-side play
- 6-Way adjustability: Horizontal, depth and vertical with plate
- Cold rolled steel with stylish pewter plating
- 2 stop action
- Compatible with 600 Series Plates
Specifications:
| Closing | Self-close |
|---|---|
| Hinge Cup Bore Depth | 11.2 mm |
| Arm Type | Straight Arm |
| Hinge Type | European |
| Mount Centers | 45 mm |
| Cabinet Type | Faceframe or Frameless |
| Pivot Type | Dual |
| ADA Friendly | No |
| Packaging Type | Small Package |
| Degree of Opening | 110° |
| Overlay | Full Overlay |
| Hinge Crank Amount | 0 mm |
| Overlay Adjustment | +2 mm, -2 mm |
| Depth Adjustment | +3 mm, -2 mm |
| Adjustment Type | Cam |
| Sold By | Each |
| Brand | Hardware Resources |
| Series | 900 Series |
| Finish | Dark Nickel |
| Overall Length | 68 mm |
| Hinge Cup Diameter | 35 mm |
| Hinge Dowels | Without (no dowels) |
| Material | Steel |
| Patent | 8,819,897 B2 |
| Certification | ANSI/BHMA A156.9-2003, ANSI/KCMA A161.1-01 |
| Installation | No Dowels |
| Mount Type | Screw |
| Warranty Period | Limited Lifetime |
Download Data Sheets
