Delmar Supreme Linear Drain
Delmar Supreme Linear Drain
👀 18 people viewing this product
🛒 6 people added this to cart today
📞 Call 732-494-8670 for the best deal
Available in stock (100)
Description
Revolutionizing Installations with Ingenious Design. Supreme stands as an exceptional linear drain that tackles a common challenge faced by both installers and plumbers in construction and remodeling projects. This groundbreaking solution eliminates the need for relocating existing plumbing when the water outlet is situated slightly off center. An award-winning innovation, Supreme boasts an independent base housing an internal rail system. This ingenious setup empowers the grate to be positioned differently from the base and outlet, facilitating swift and effortless installation.
Designed with paramount emphasis on functionality and aesthetics. Its minimalistic yet refined design ensures a straightforward installation process, while offering a lasting solution to a significant industry obstacle.
Specifications
Flexibility: Supreme’s superior design provides a flexible 8" range from the center of the shower, allowing you to center your drain without moving the existing pipe.
Channel: houses an internal rail system which enables the grate to be in a different position than the base and the outlet allowing you to center your drain without moving the existing pipe.
Outlet: Drain base has an offset 2" outlet. This feature allows you to rotate the base to accommodate a left or right position and the sliders adjust to connect the grate in a different position than the outlet.

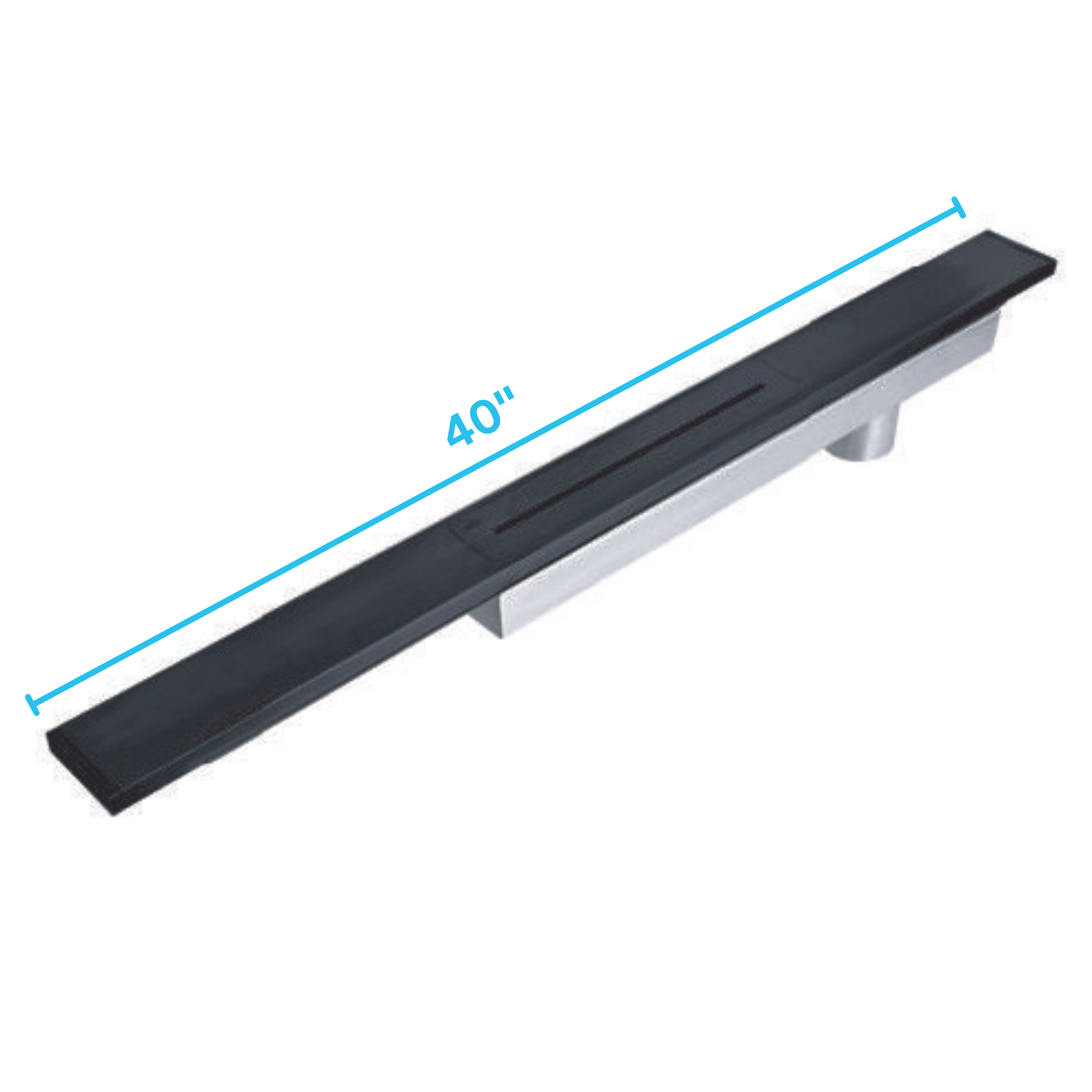

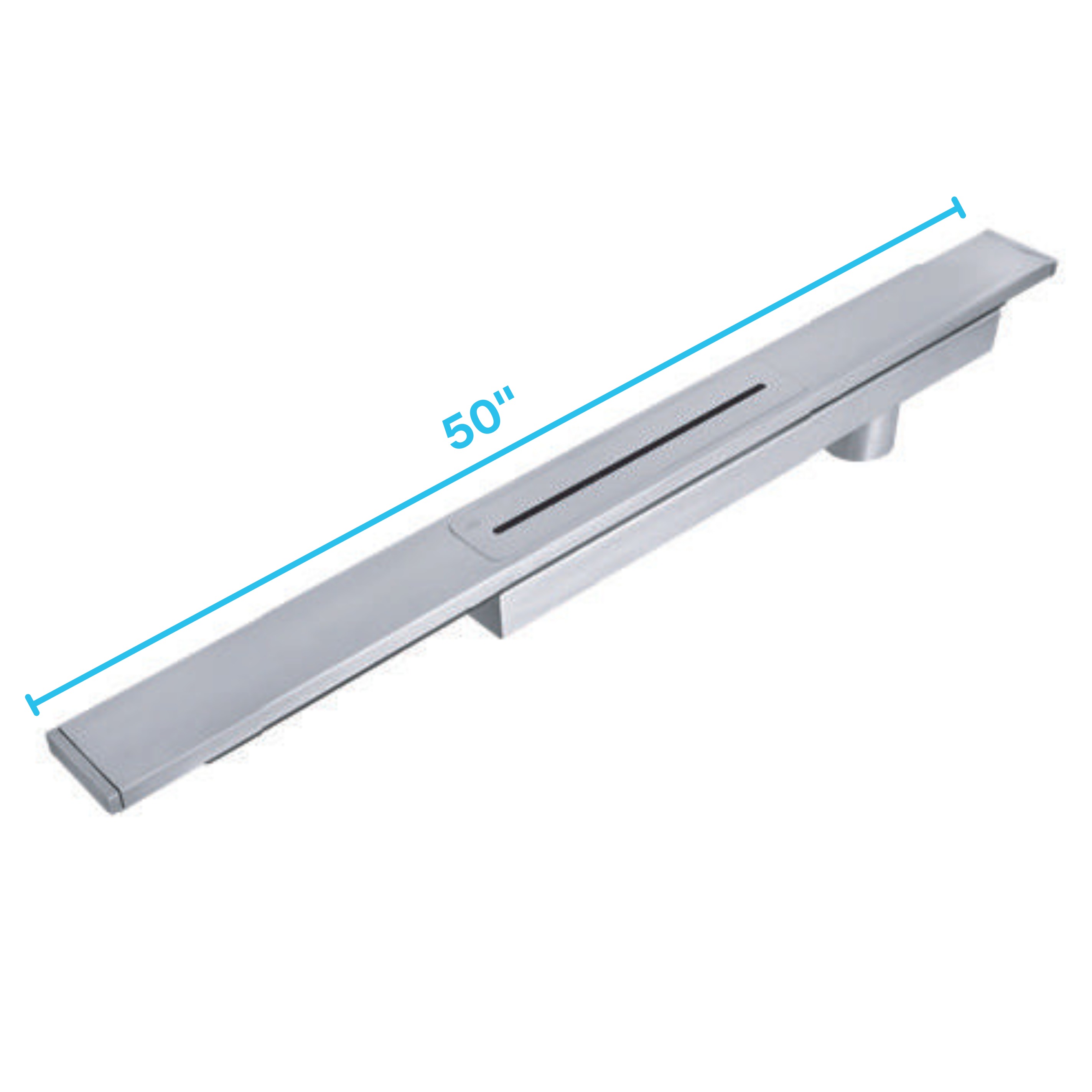

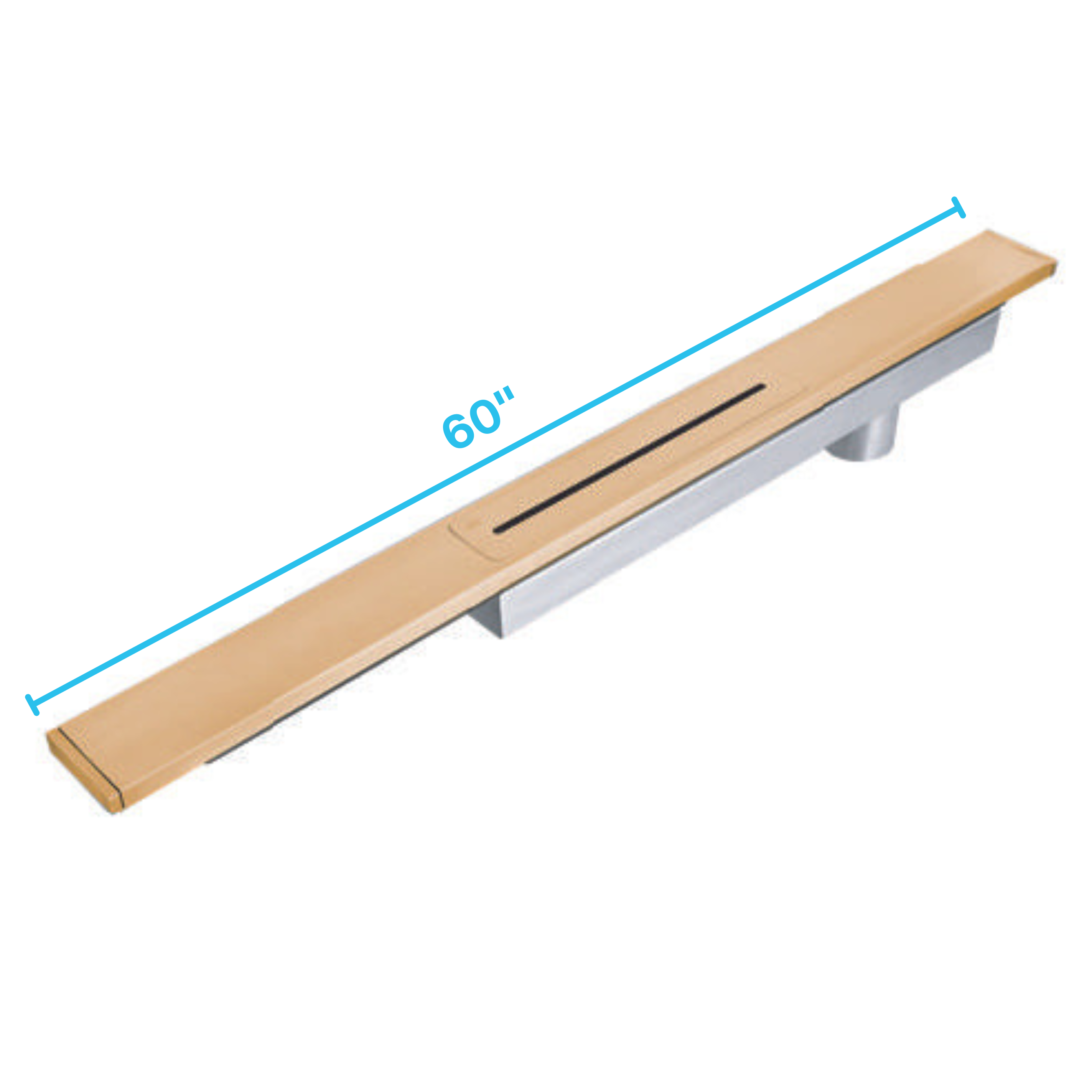

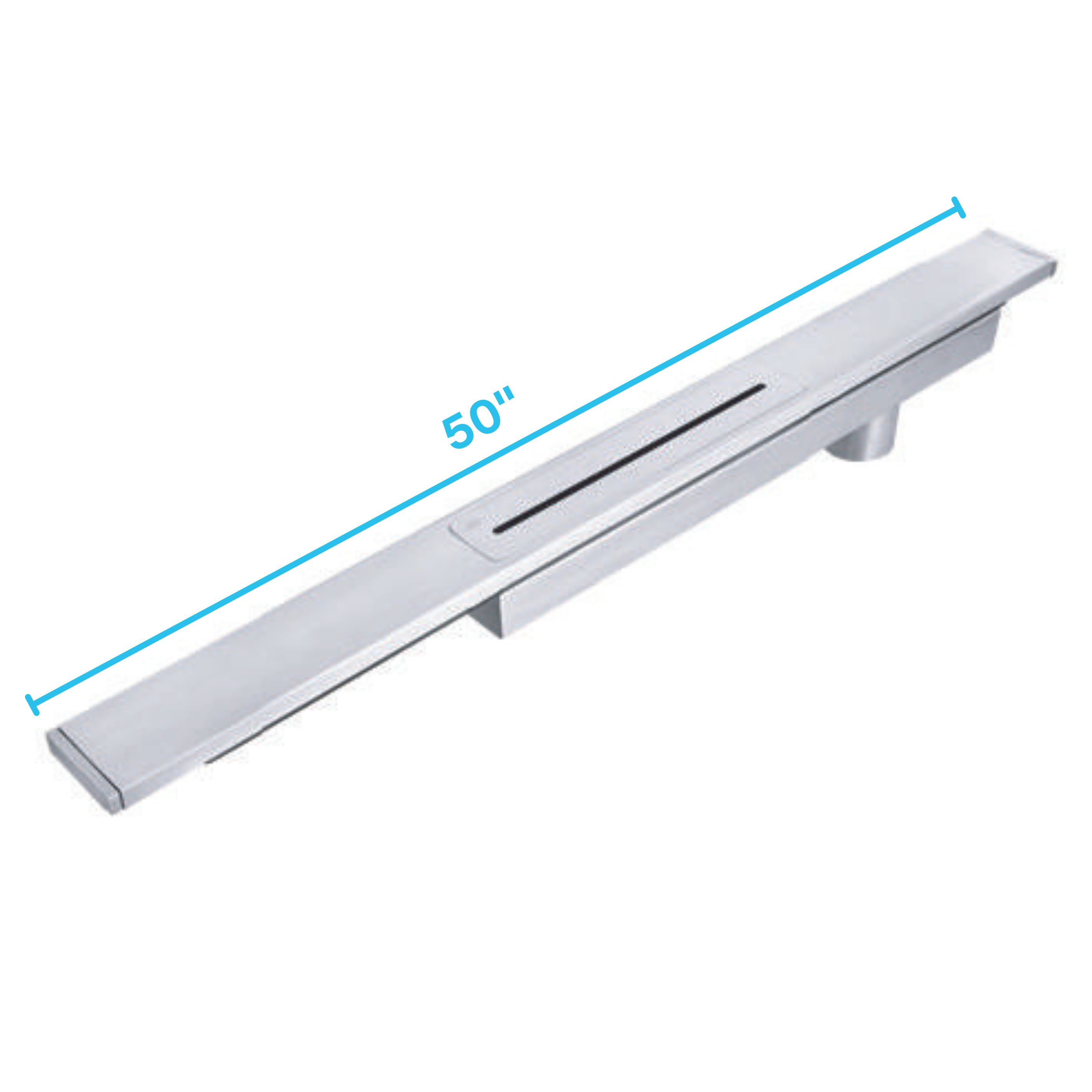

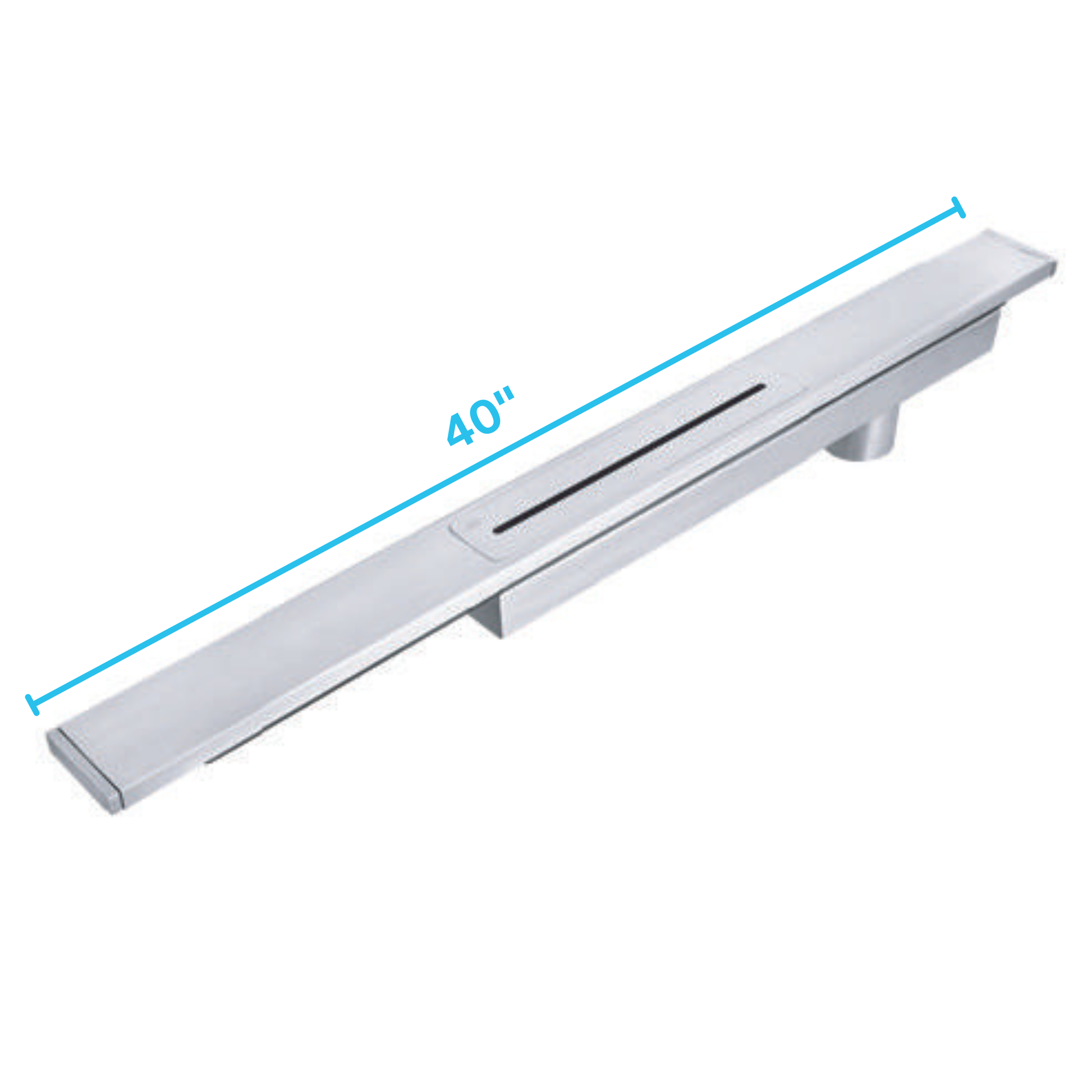

Variety of lengths: 30", 40", 50" & 60". The grate can be cut to your specific length and multiple drains can be aligned to accommodate multiple outlets.
Premium Material: 100% Stainless Steel Marine 316.
Easy installation: Designed for compatibility with standard waterproofing methods. A threaded adaptor with rubber O-ring enables height adjustment and secure attachment to the clamp-down drain.
For comprehensive installation guidance, please consult our detailed installation instructions and reference our installation video.
Kit Includes: Supreme Grate, Channel, Threaded Nipple/Adapter, Lifting Key, Level, Wedges, and Stainless Steel Cutting Blade for grinder.

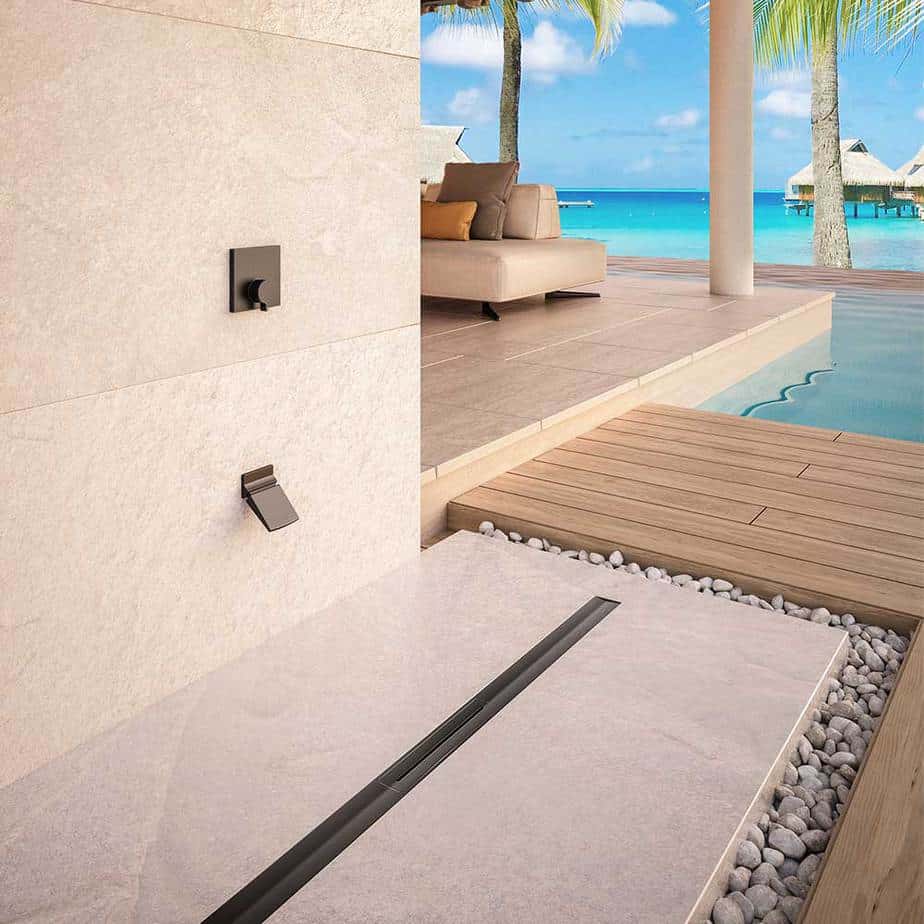

Versatile Application: Suitable for both indoor and outdoor showers, expanding its utility and adaptability.
