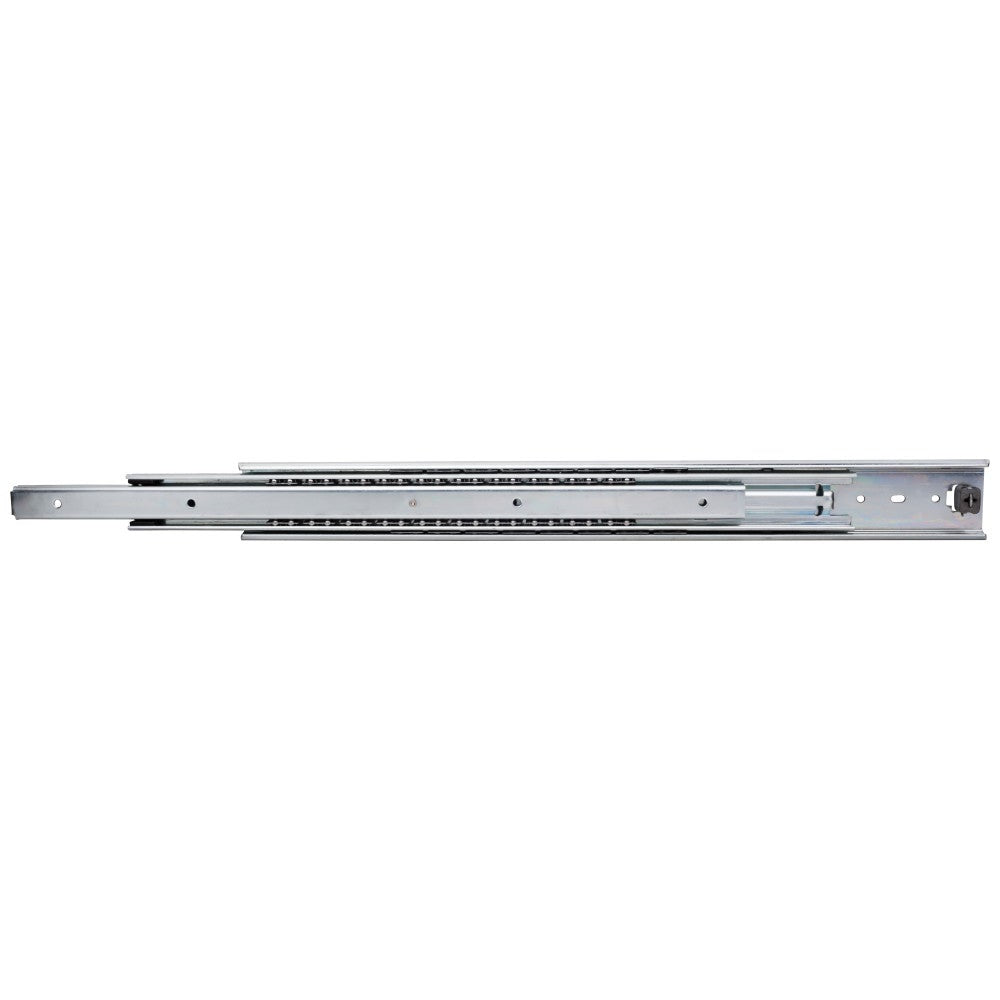

Hardware Resources HR MAX 225 lb Extra Heavy Duty Full Extension Side Mount Ball Bearing Slides with 1" Overtravel

Vendor: Hardware Resources

Type: Commercial

SKU: 209FU16

Barcode: 14993705

$65.56

$65.56 ~~$72.84~~

Shipping calculated at checkout.

Size: 16" (406 mm)

16" (406 mm) 18" (457 mm) 20" (508 mm) 22" (559 mm) 24" (610 mm) 26" (660 mm) 28" (711 mm) 30" (762 mm)

🔥 12 sold this week
👀 18 people viewing this product
🛒 6 people added this to cart today

💰 Found it cheaper? We will beat most competitor pricing.
📞 Call 732-494-8670 for the best deal

Nationwide Shipping — Trusted by Thousands
Prefer to order by phone? Call (732) 494-8670
Price Match Guarantee Against Major Retailers

Authorized Dealer
0% Financing available (Klarna/Shop Pay Installments)
Free Shipping | Ships Nationwide

Available in stock (100)

HR Max = Quality backed by Lifetime warranty

1" overtravel slide

Grade 1 ANSI/BHMA certified with 225 lb. load rating

Synthetic rubber hold-in detent prevents bounce back and roll out

Lubricated steel ball bearings

Features:

3/4" side spacing
Lubricated steel ball bearings
Non-handed trigger disconnect release
54 mm profile height
2.2 mm x 2.0 mm x 2.0 mm cold rolled steel material
Clear zinc electroplated finish
6.3 mm euro screw or #8 x 7/16" truss head screw is recommended

Specifications:

Minimum Cabinet Depth	16
Cabinet Type	Frameless
Drawer Box Length	16"
ADA Friendly	No
Adjustable	Yes
Packaging Type	Small Package
Load Rating	225 lb
Extension	1" Overtravel
Sold By	Pair
Brand	HR Max
Series	209FU Series
Finish	Zinc
Overall Length	16" (406 mm)
Material	Steel
Certification	ANSI/BHMA A156.9-2003
Mount Type	Side Mount
Warranty Period	Limited Lifetime
