Invisible Square Drain

Experience a seamless and modern look in your bathroom with our Invisible square invisible drain. Designed with a hidden drain system, water is received from four slopes, and is drained through the perimeter joints of the tile until reaching base level and the drain outlet.

Our invisible drains offer a unique and stylish solution for those who desire contrast-free with the rest of the floor, providing a sophisticated and elegant finish to your bathroom. Upgrade your space with our invisible drains and achieve the perfect balance between aesthetics and functionality.

Sophisticated Hidden Drain System: Our Invisible Linear Drains are engineered with a concealed system that utilizes the perimeter joints of tiles. This innovative design allows the water to invisibly flow through the base until it reaches the drain outlet, maintaining a seamless and elegant appearance in your bathroom.

Streamlined Easy Installation: The modern waterproofing process of our invisible drains includes our premium Superdry waterproof membrane, simplifying the installation.
For a flush, curbless shower finish, consider our Recess Floor Bracket Kit, which allows for effortless recessing of the wood subfloor. Alternatively, for a curb shower, our prefabricated curbs integrate smoothly, offering flexible design options.

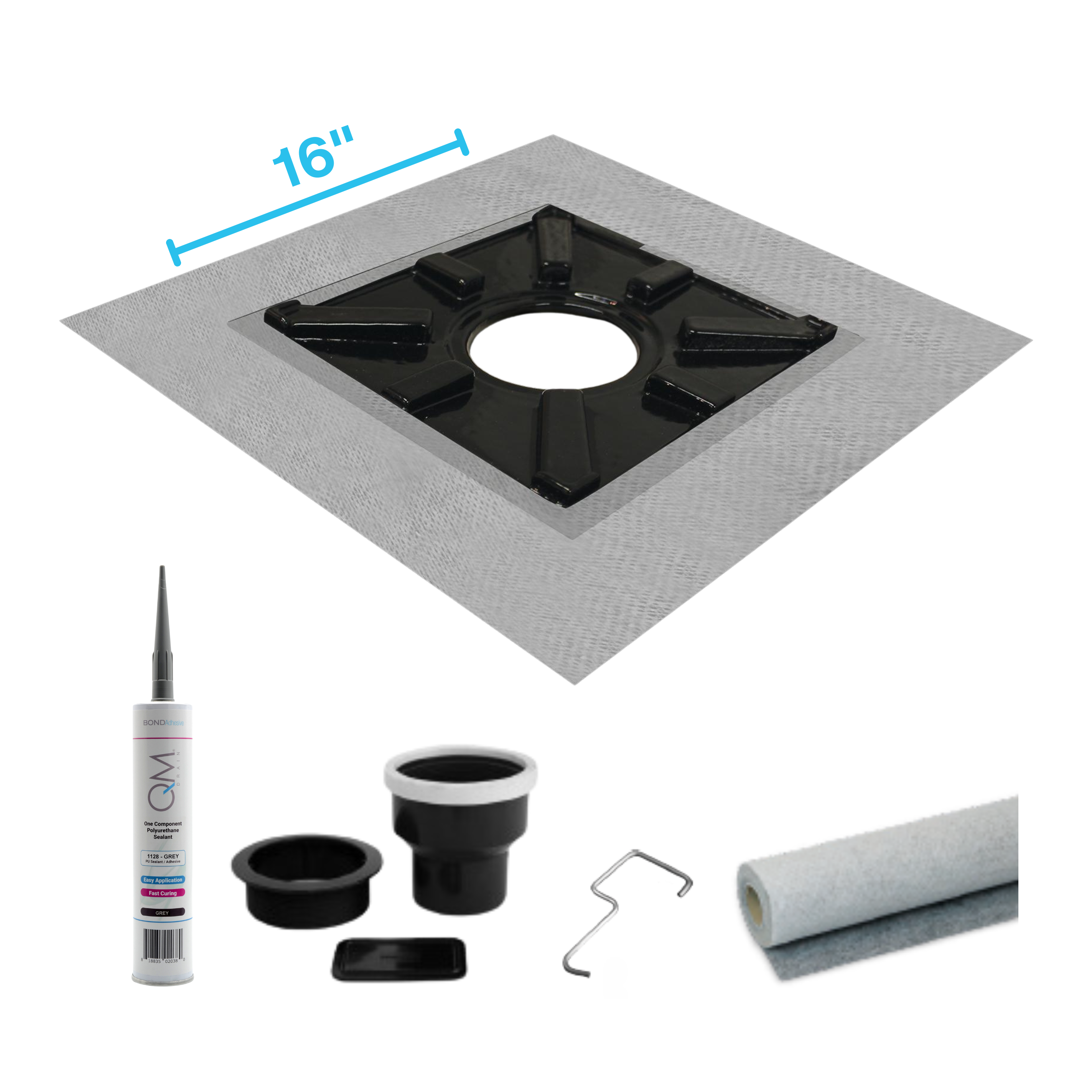

Complete Installation Kit: Our kit provides everything needed for installation
– Invisible Square Drain Base
– Drain Body
– 32 ft² of QM Superdry Waterproofing Membrane
– Cleaning/Lifting Key for Maintenance

Material: High-performance Polyurethane coated with Polyurea with a compressive strength of 290 psi.

Seamless Step-Free Experience: Enjoy an uninterrupted and barrier-free shower experience with our invisible drains, designed for a homogeneous tile flow. And for those who prefer a curbed shower, our design is adaptable to include a curb without compromising the integrity of your shower’s design.

Enhanced Thermo-Sealed Waterproofing:

We’ve fortified our drains with thermo-sealed waterproofing along the edge, ensuring complete sealing at the most vulnerable points. This additional layer of protection contributes to the longevity and water resistance of your shower system.

Optimal Cleanliness: Our invisible drains are not only self-cleaning but also treated with antibacterial and fungicidal agents, ensuring the highest sanitary standards. The surface allows for easy lifting of the tiles, providing access for thorough cleaning as needed.

Designed for Large-Format Tiles: To achieve a uniform and attractive finish, our invisible linear drains are compatible with large-format tiles that span the entire drain area. This compatibility ensures a continuous and visually appealing look for your shower floor.

Low-Profile Design for Versatility: With a slim height of just 0.78 inches (20mm), our drains are perfect for installations on various subfloor types, including wood and concrete. This low profile design ensures that integrating an invisible drain doesn’t necessitate raising your bathroom floor, preserving the sleek aesthetics of your space.

Technical specifications: Invisible Square Drain Vertical Outlet

Technical specifications: Invisible Square Specifications

Installation Instructions Diagram: Invisible square Drain

Installation Instructions Diagram: Invisible Linear & Installation Instructions
