Hardware Resources "No Wiggle" Base Cabinet Soft-close Pullout
Hardware Resources "No Wiggle" Base Cabinet Soft-close Pullout
👀 18 people viewing this product
🛒 6 people added this to cart today
📞 Call 732-494-8670 for the best deal
Available in stock (100)

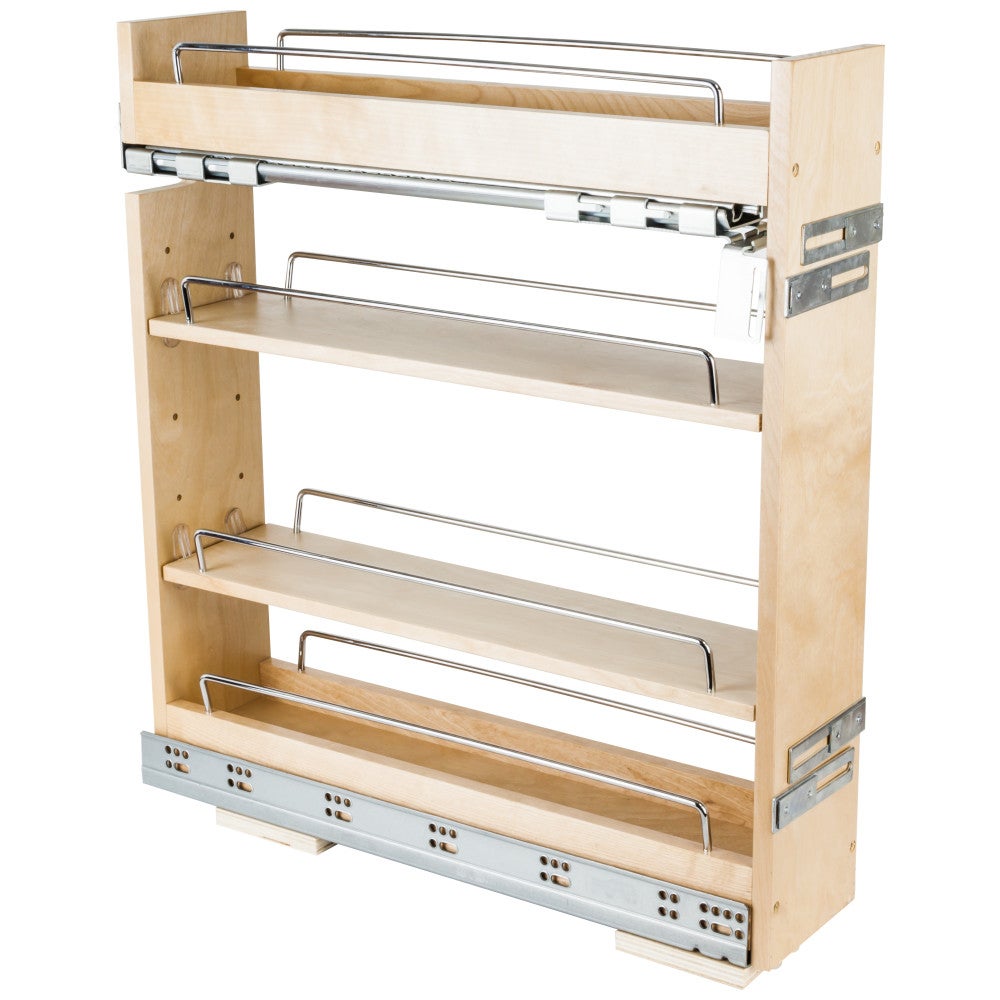

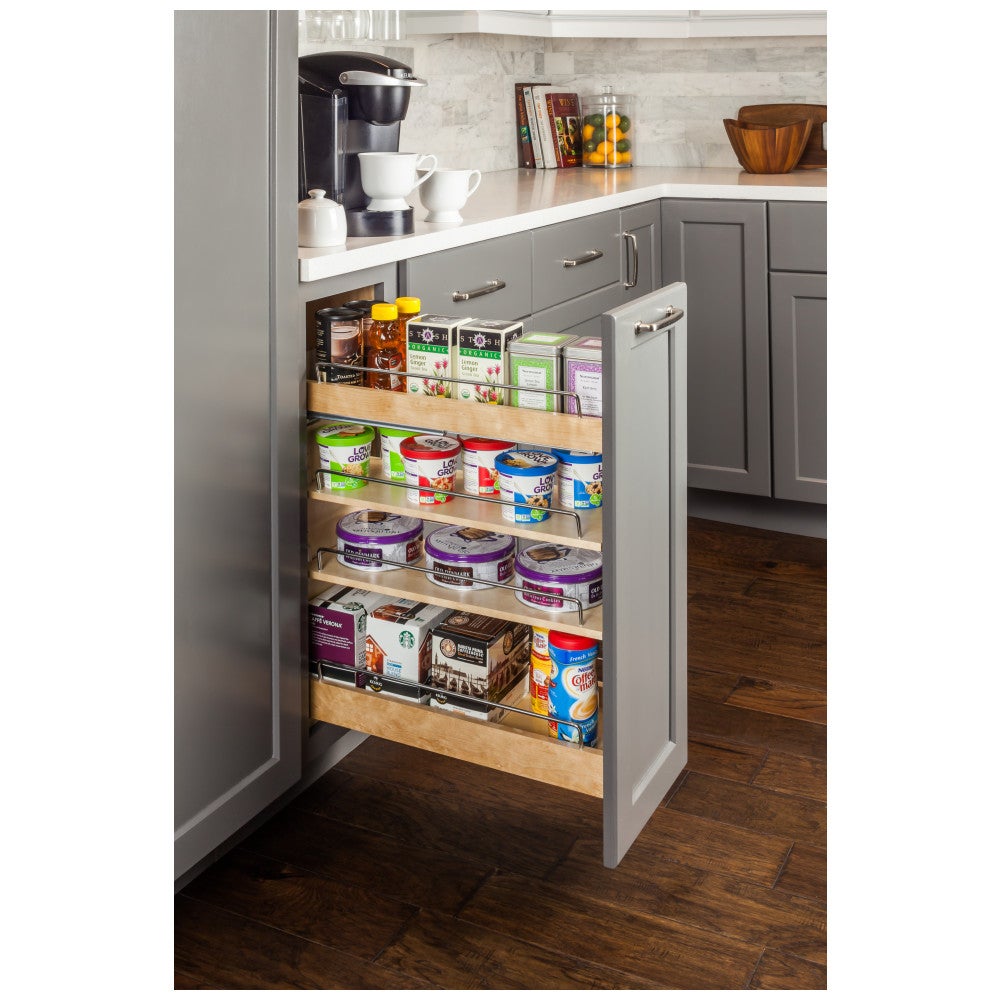

Maximize your cabinet storage with our award-winning pullout for 6" cabinet opening, featuring premium soft-close undermount slides and patented "No Wiggle" top-mounting bracket with heavy-duty slide. Eliminates side-to-side movement and sag commonly seen in other pullouts. Ships fully assembled with two adjustable shelves and two fixed shelves. Slides are pre-installed for quick and easy installation. To view available specifications and installation instructions select all product options.
Features:
- Bottom slides are 300 series concealed undermount slides, and the top is a 225 lb. ball bearing slide for added support and weight bearing
- Patented integrated 6-way adjustable door-mounting brackets allow for easy and precise door mounting
- Ships fully assembled, with slides attached making installation quick and easy
- Frameless Friendly! Works in both face frame and frameless applications
- Requires full door cabinet
- 100 lb. weight capacity
Specifications:
| Closing | Soft-close |
|---|---|
| Minimum Cabinet Opening?The distance between the left and right edges of the cabinet opening | 5-1/2" |
| Weight Capacity in Pounds | 100 |
| Cabinet Type | Base Cabinet |
| Door Mountable | Yes |
| ADA Friendly | No |
| Recommended Screws | #8 flat head |
| Packaging Type | Small Package |
| Soft Close | Yes |
| Sold By | Each |
| Brand | Hardware Resources |
| Finish | UV Coated |
| Number of Shelves | 4 |
| Fits Cabinet | 9" Base |
| Width | 5-1/2" |
| Depth | 22" |
| Material | White Birch |
| Patent | 9,661,924 & 9,723,922 & 10,028,581 & 10,251,480 |
| Mount Type | Bottom Mount |
| Warranty Period | Limited Lifetime |
Download Data Sheets
| Specifications |
| Installation Instructions |
| Warranty |
