Pedestal System for Porcelain Pavers and Decking

Pedestal System for Porcelain Pavers and Decking

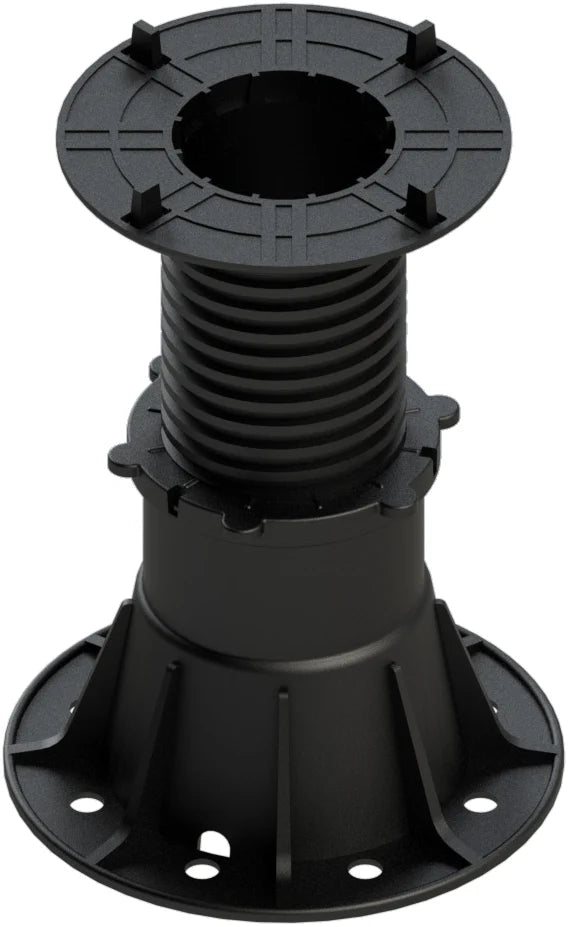

Option 1 : Model SP-4 :  5.11" Lowest - Up to 8.66" Max Height

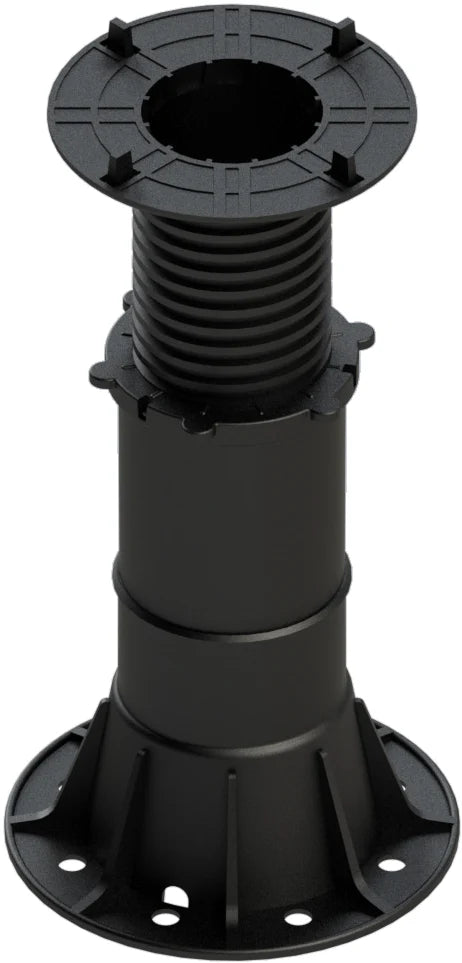

Option 2 : Model SP-3 : 8.8" Lowest  - Up to 12.2" Max Height (with Extension Joint )

Origin:  SPAIN

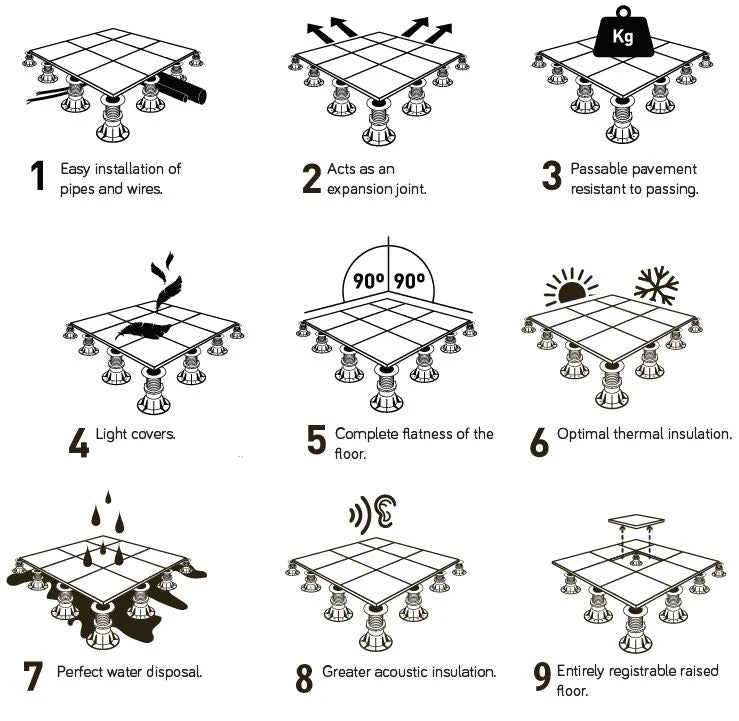

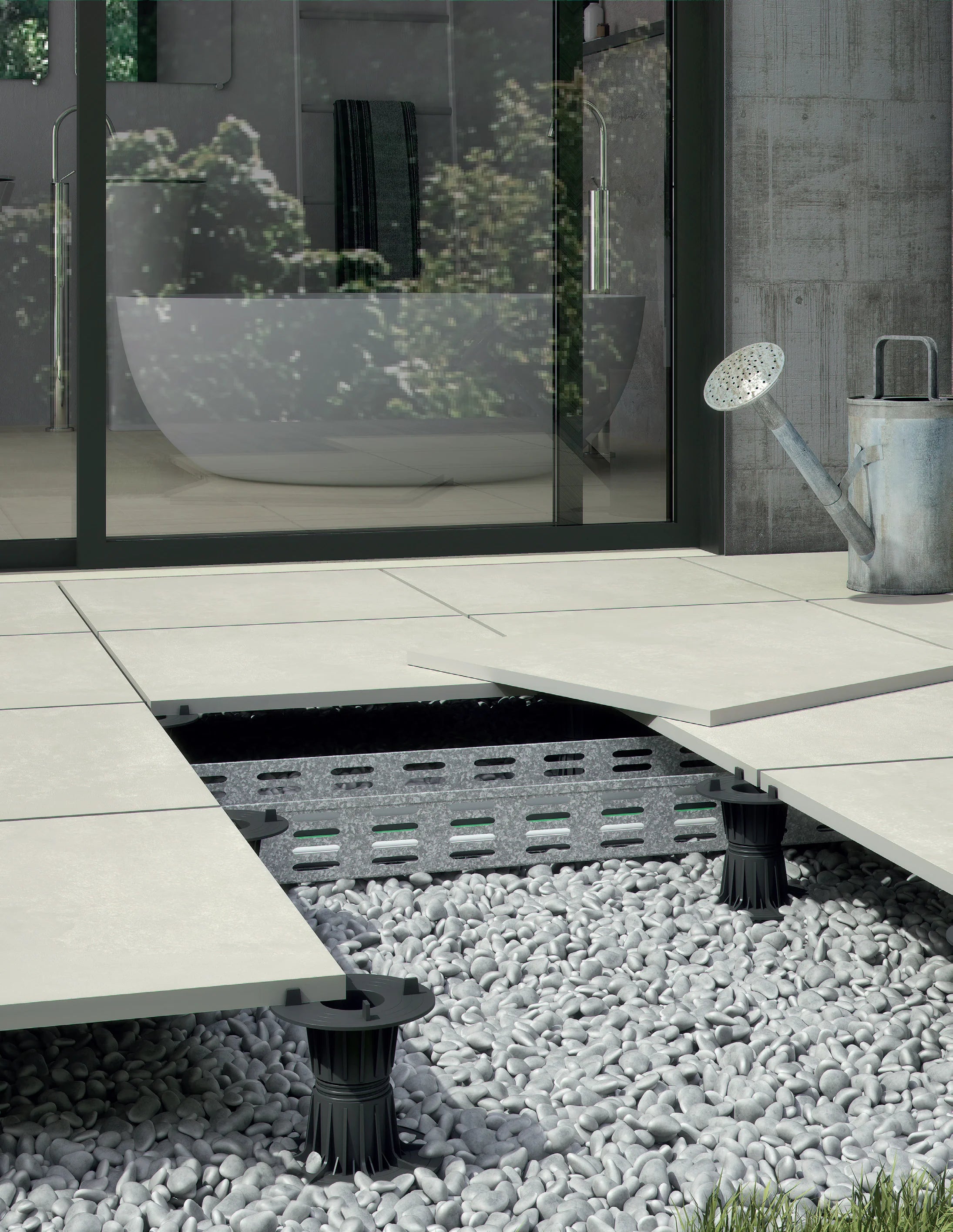

Application: Approved for any Indoors & Outdoor Application . Technical floors, Pools, Patio, Decks,  steps & Stairs & etc.  Frost resistant .

Characteristics : High Pressure absorbent Polypropylene with load of talcum at 40%

Compressive strength Per unit : 3307 LB (1500 KG )

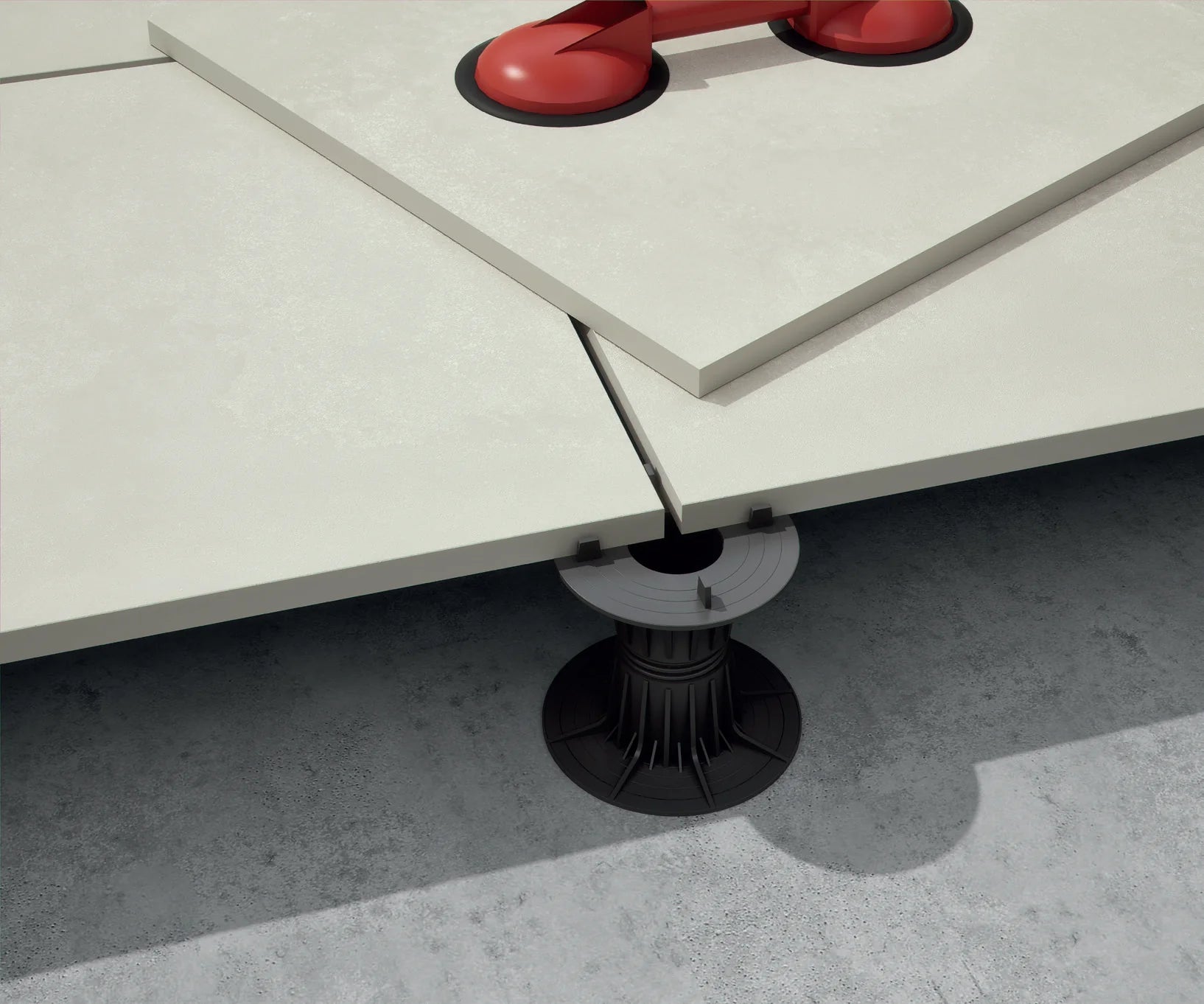

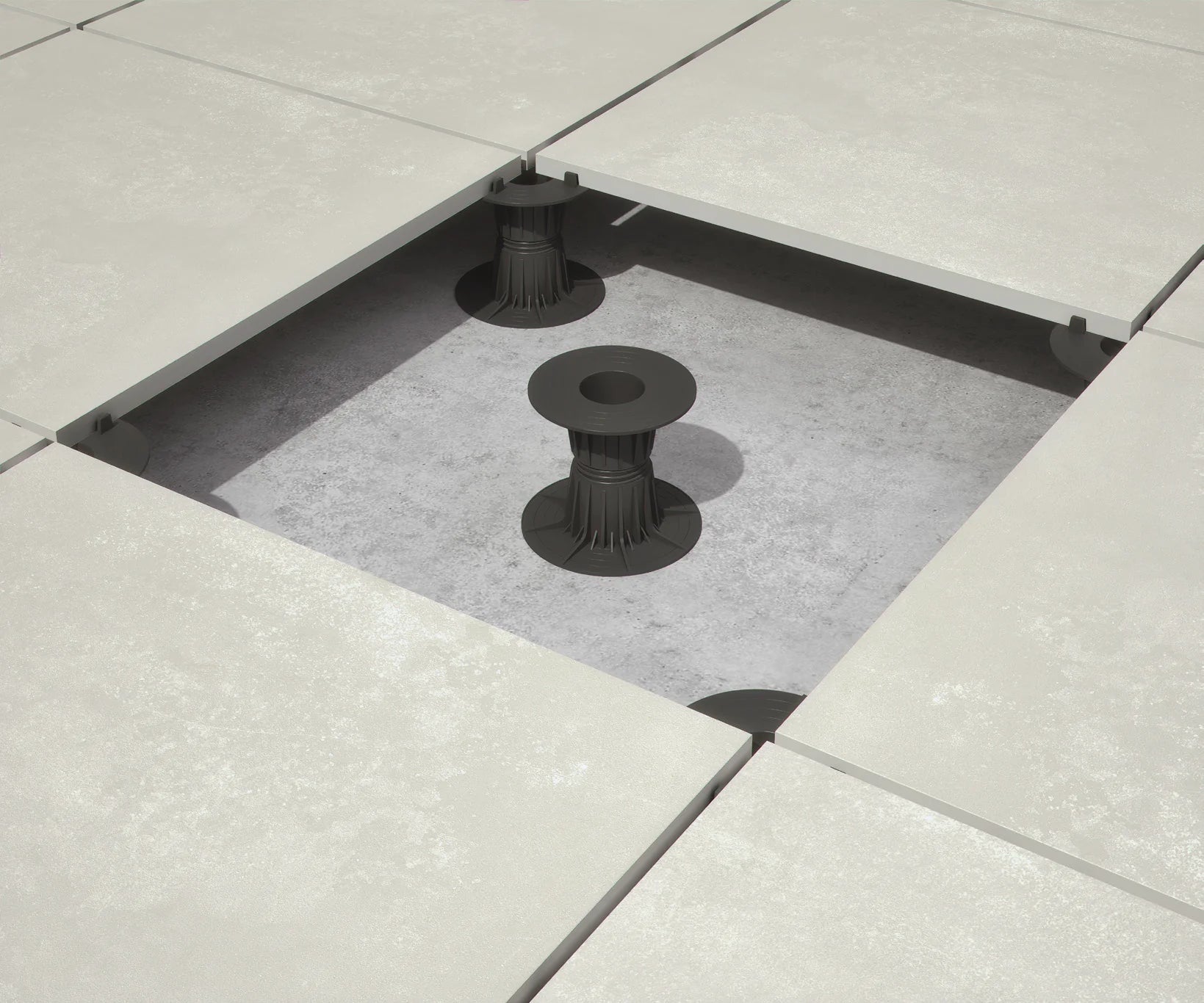

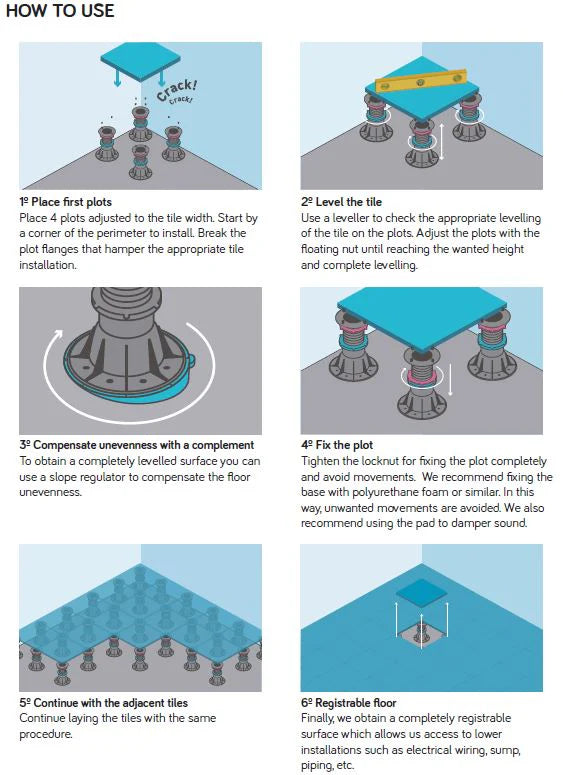

Installation: : Please see item pictures

Use: Approved for high Traffic Commercial use

How Many Pedestals do you need ?

Formula :

For Every 10.764 Sq/Ft of the Pavers you need to us following formula: Example : If you have Paver size of 24" x 24" and total Job Size is 1000 Sq Ft. Then ( 1000 Sq/Ft : 3.3 Units ) = 303 Pedestals are needed

Formula Units Per size :

1) Paver Size 24" x 24" You will need multiplier of 3.3 Pedestals for every 10.764 Sq/Ft

2) Paver Size 18" x 18" You will need multiplier of 5.5 Pedestals for every 10.764 Sq/Ft

3) Paver Size 24" x 48" You will need multiplier of 5 Pedestals for every 10.764 Sq/Ft
