Hardware Resources Pre-assembled 110degree Hinge (Screw Adjust) with 3mm Face Frame Plate.
Hardware Resources Pre-assembled 110degree Hinge (Screw Adjust) with 3mm Face Frame Plate.
Regular price
$2.39
Sale price
$2.39
Regular price
$2.65
Shipping calculated at checkout.
🔥 12 sold this week
👀 18 people viewing this product
🛒 6 people added this to cart today
👀 18 people viewing this product
🛒 6 people added this to cart today
💰 Found it cheaper? We will beat most competitor pricing.
📞 Call 732-494-8670 for the best deal
📞 Call 732-494-8670 for the best deal
Available in stock (100)

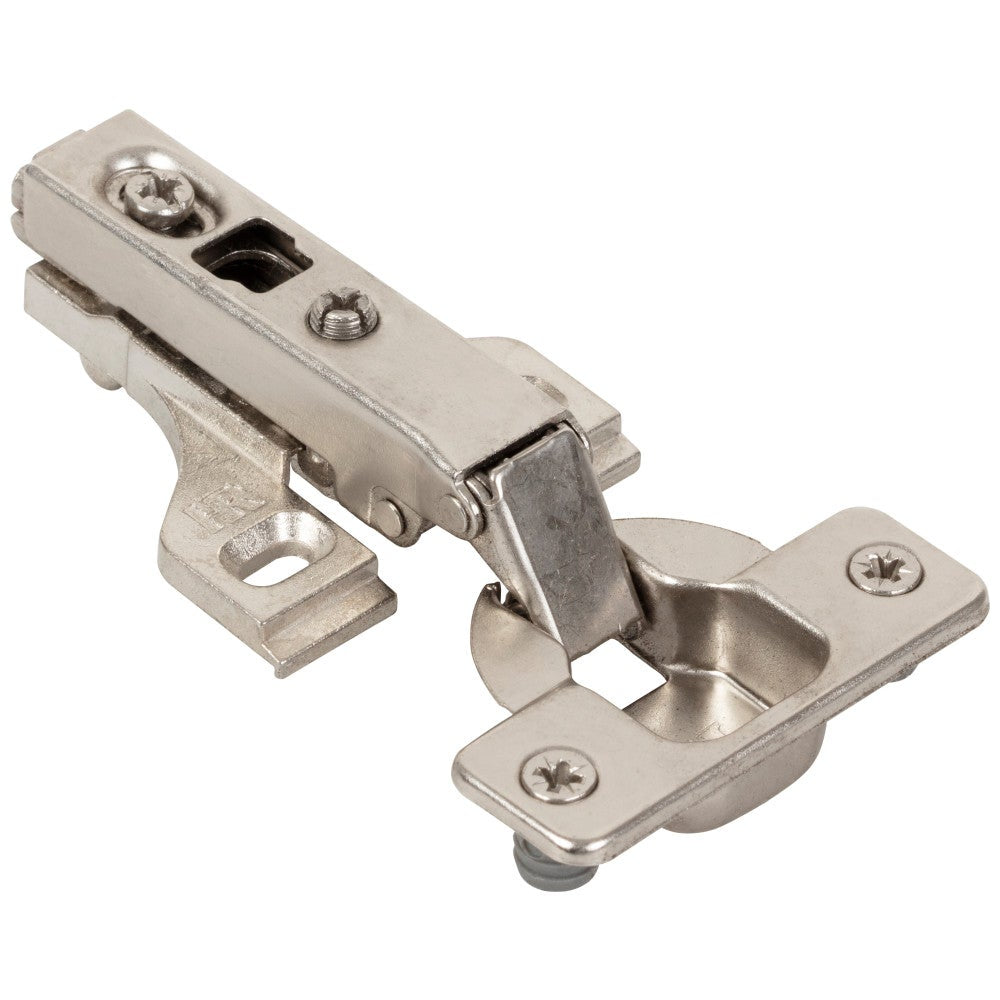

Pre-assembled 110degree Hinge (Screw Adjust) with 3mm Face Frame Plate. Includes hinge 500.0171.05 with plate 400.3454.65.
Features:
- 6-Way adjustability: Horizontal, depth and vertical with plate
Specifications:
| Closing | Self-close |
|---|---|
| Hinge Cup Bore Depth | 11.2 mm |
| Arm Type | Straight Arm |
| Hinge Type | European |
| Mount Centers | 45 mm |
| Recommended Screws | #6 x 5/8” flat head wood screws |
| Cabinet Type | Faceframe or Frameless |
| Plate Height | 3 mm |
| Pivot Type | Dual |
| ADA Friendly | No |
| Packaging Type | Small Package |
| Degree of Opening | 110° |
| Overlay | Full Overlay |
| Hinge Crank Amount | 0 mm |
| Overlay Adjustment | +2 mm, -2 mm |
| Vertical Adjustment | +/- 3.5 mm |
| Depth Adjustment | +3 mm, -2 mm |
| Adjustment Type | Screw |
| Sold By | Each |
| Brand | Hardware Resources |
| Series | 500 Series |
| Finish | Polished Nickel |
| Hinge Cup Diameter | 35 mm |
| Hinge Dowels | Press-in |
| Material | Steel |
| Installation | Press-in 8 mm Dowels |
| Mount Type | Press-in |
| Warranty Period | Limited Lifetime |
