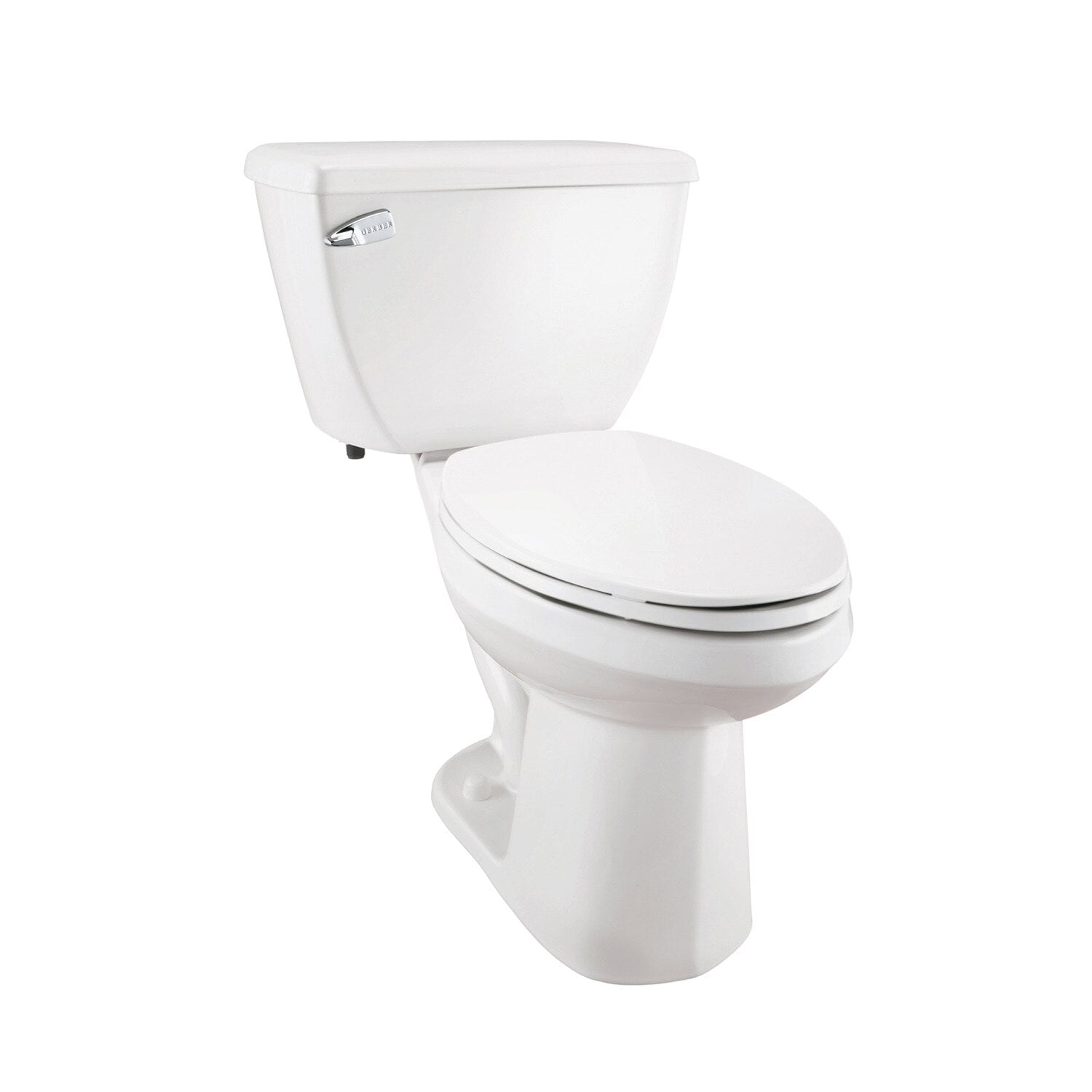

Ultra Flush® 1.6 gpf 10" Rough-In Two-Piece Elongated ErgoHeight™ Toilet

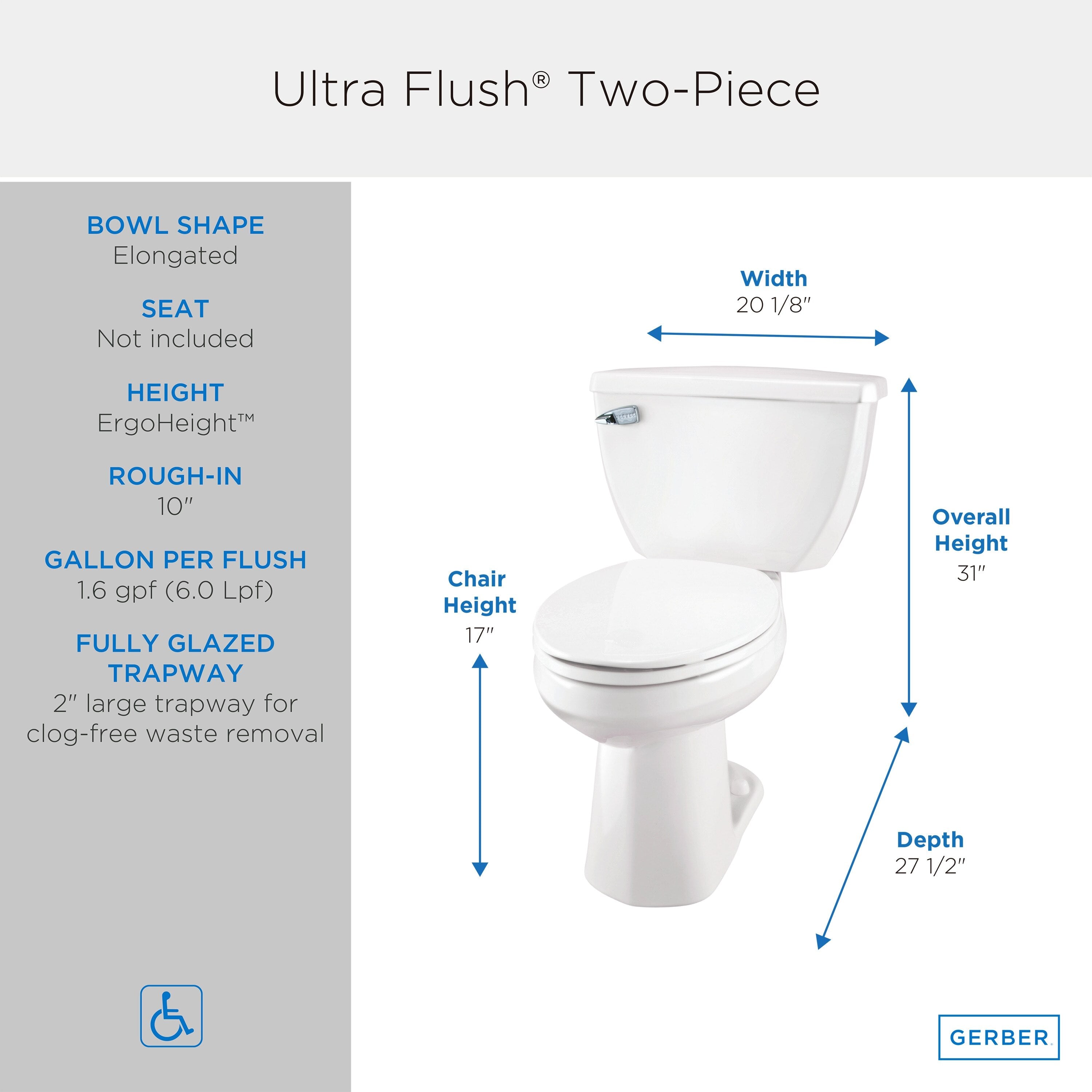

• Rough-In: 10" Rough-In
• Flushing Method: Pressure-Assisted
• Bowl Shape: ADA Elongated
• Bowl Height: ErgoHeight™
• Flush Valve: Pressure Vessel
• Flush Volume: 1.6gpf
• Brand: Gerber

Features

• 1.6 gpf (Gallons per Flush) Save Up to 13200 Gallons per Year (vs 3.5 gpf Toilet)
• Chrome Metal Tank Lever
• Corrosion Resistant Fluidmaster® Flapper for Long Lasting Operation and Easy Replacement
• Double Nut Multi-Point Tank-to-Bowl Mounting System for Easy Tool-Free Installation
• Large 2" Fully Glazed Trapway for Clog-Free Waste Removal
• Large Dual Fed Siphon Jet Increases the Speed of the Flush for a Quick and Clean Bowl Everytime
• Large Water Surface to Thoroughly Rinse Bowl with Each Flush
• Insulation around pressure vessel prevents exterior condensation on tank
• Sloan Flushmate Pressure Vessel Inside
• Standard Height Round Front Bowl
• Toilet Seat not Included
• Two-Piece Toilet

Description

Harness the power of the ultimate flushing machine with an Ultra Flush® 1.6 gpf (6 Lpf) Pressure Assist Toilet. Boasting top of the line professional performance, its unique rim provides complete rinsing coverage with every flush. The tank uses a Sloan Flushmate® pressure vessel which releases compressed air in a downward path and forces water into the bowl, pushing waste out of the bowl and down the drain line. An exclusive six-point tank to bowl mounting system creates precise contact for superior stability and is designed to be tightened without tools.

Components

• Bowl Item Number: GUF21377
• Tank Cover Item Number: GTC28385
• Tank Item Number: G0028385
• Tank Lever Item Number: G0099571KT

Download Data Sheets

Spec Sheet Tech Doc

Installation Manual Tech Doc

Illustrated Parts List Tech Doc
