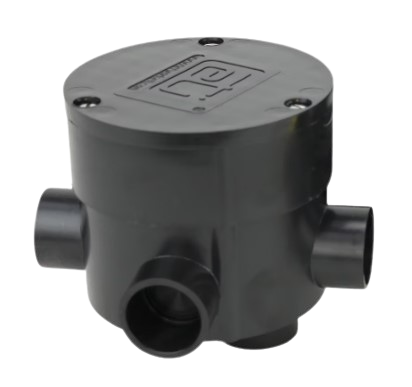

Warmup ODC-PRO-G-H Surface-Mounted Snow & Ice Sensor

The Warmup ODC-PRO-G-H is a precision-engineered, surface-mounted snow and ice sensor designed for use with Warmup SNOPRO snow melting control panels. It reliably detects snow and ice conditions directly on pavement surfaces by sensing both moisture and temperature, activating deicing heaters only when conditions require.

This intelligent control minimizes energy consumption while maintaining effective snow melting performance. A built-in one-hour heater hold-on timer ensures heaters continue operating after snowfall stops, helping guarantee complete ice and snow removal.

---

How the PRO-G-H Sensor Works

The ODC-PRO-G-H detects moisture in combination with temperatures below 38°F (3.3°C). By operating in the critical 32°F to 38°F temperature range, the sensor prevents slow melting conditions and ensures efficient system activation.

The sensor accurately measures pavement temperature by compensating for its own internal heating, eliminating the need for a separate pavement temperature sensor. For maximum efficiency, the PRO-G-H mounts close to the deicing heaters so the pavement and sensor dry at approximately the same time.

---

Key Features & Advantages

• Surface-mounted snow & ice detection for pavement applications
• Detects moisture and temperature below 38°F (3.3°C)
• One-hour heater hold-on timer after snowfall ends
• Control based directly on pavement conditions
• Eliminates need for a separate pavement temperature sensor
• Low-voltage NEC Class 2 device for simplified installation
• Rugged construction for long-term outdoor use
• Field-replaceable sensor sub-assembly
• Six conduit entry locations for installation flexibility
• Precision-machined brass, epoxy, and stainless steel components

---

Typical Applications

• Heated driveways
• Sidewalks & walkways
• Ramps & entryways
• Commercial and residential snow melting systems
• SNOPRO-controlled deicing installations

---

Technical Specifications

Model	ODC-PRO-G-H
Product Type	Surface-Mounted Snow & Ice Sensor
Area of Use	Pavement
Activation Temperature	38°F (3.3°C)
Operating Temperature Range	32°F to 38°F (0°C to 3.3°C)
Heater Hold-On Time	1 Hour
Supply Voltage	24 VAC (Supplied by Control Panel)
Circuit Type	NEC Class 2 (Low Voltage)
Bus-Wire Type	3-Wire Jacketed Cable
Lead Extension	Up to 2,000 ft (609 m) using 12 AWG Up to 500 ft (152 m) using 18 AWG
Operating Temperature	−40°F to 160°F (−40°C to 71°C)
Storage Temperature	−50°F to 180°F (−45°C to 82°C)

---

Installation & Important Notes

• Designed for surface-mounted pavement installation
• Compatible with Warmup SNOPRO control panels
• Low-voltage design simplifies wiring and installation
• Professional installation recommended
• Housing included

GS Design Center supplies Warmup snow melting sensors, controllers, and heating systems nationwide, providing expert guidance and fast, reliable shipping.
