WhisperFit® DC Fan, 50-80-110 CFM
WhisperFit® DC Fan, 50-80-110 CFM
👀 18 people viewing this product
🛒 6 people added this to cart today
📞 Call 732-494-8670 for the best deal
Hurry up, only 15 items left in stock.

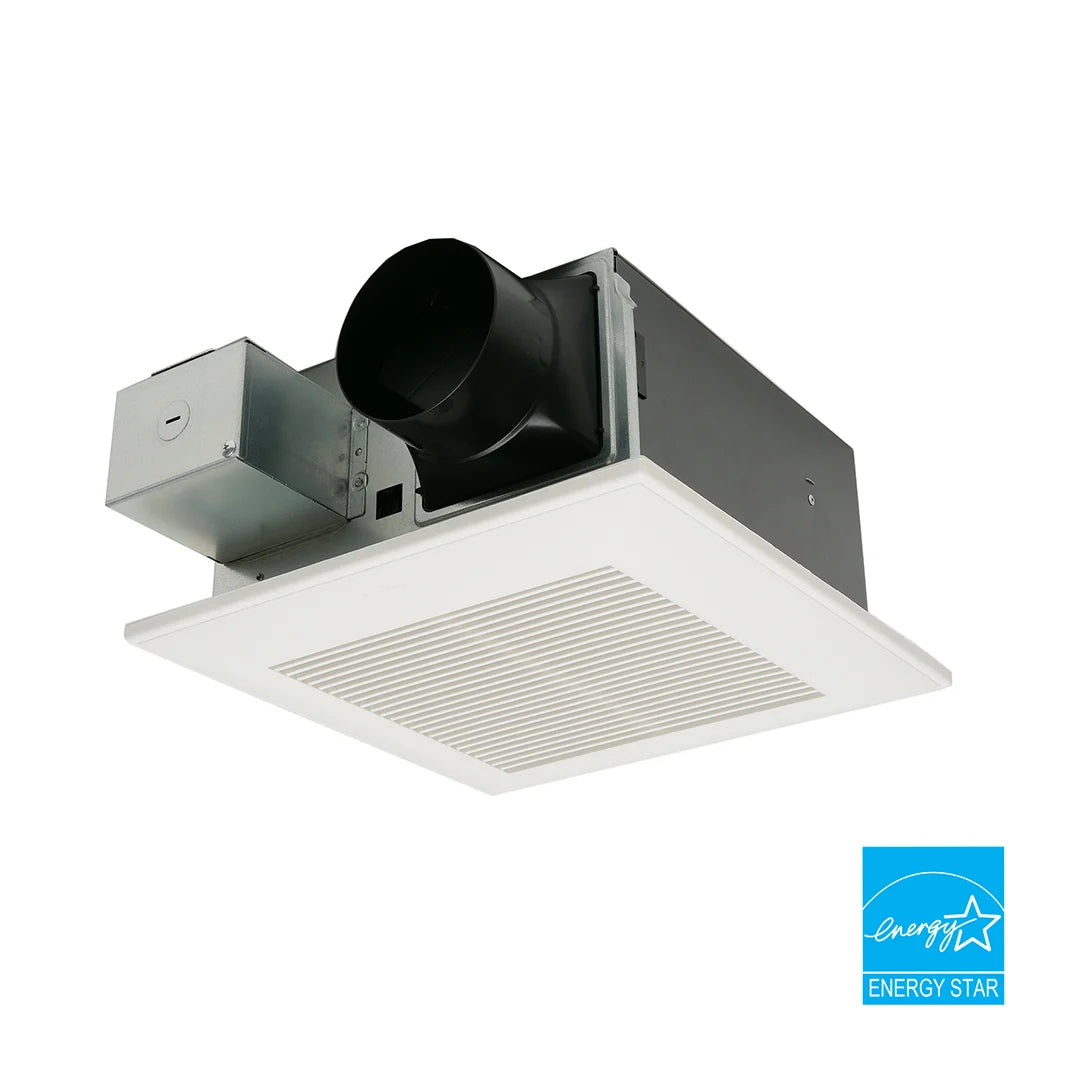

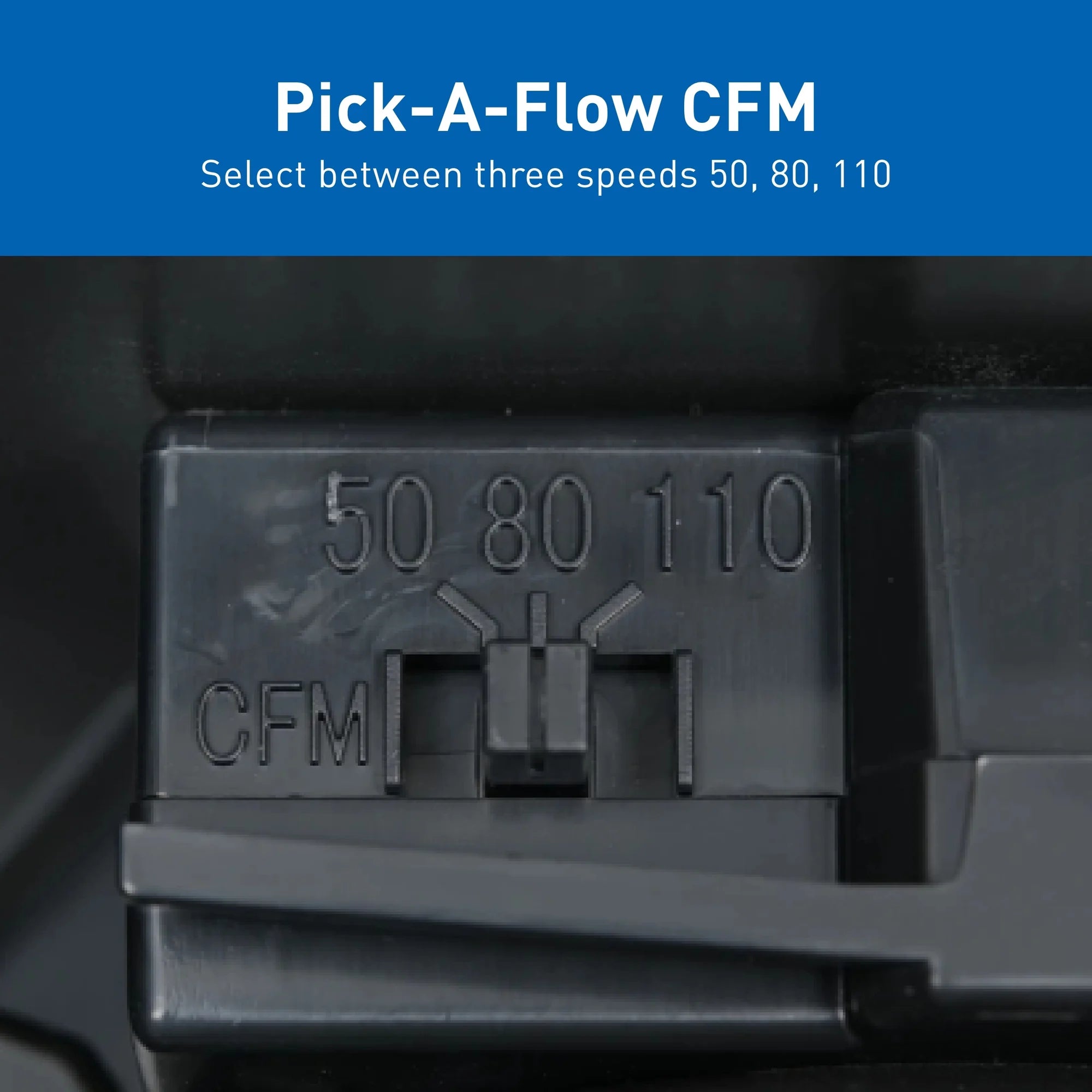

The WhisperFit® DC Fan is an ideal retrofit solution. Built-in, energy-efficient ECM (DC) motor with Pick-A-Flow® airflow selector allows you to select required airflow (50, 80 or 110 CFM). Single-hinged Flex-Z Fast® bracket, pre-installed alignment guides, and temporary clip allows for flexible, fast and easy installation. This fan is perfect for bathroom ventilation. It can be used to comply with the latest codes and standards.
Features:
- The ECM DC Motor with SmartFlow Technology ensures optimal CFM output & desired airflow

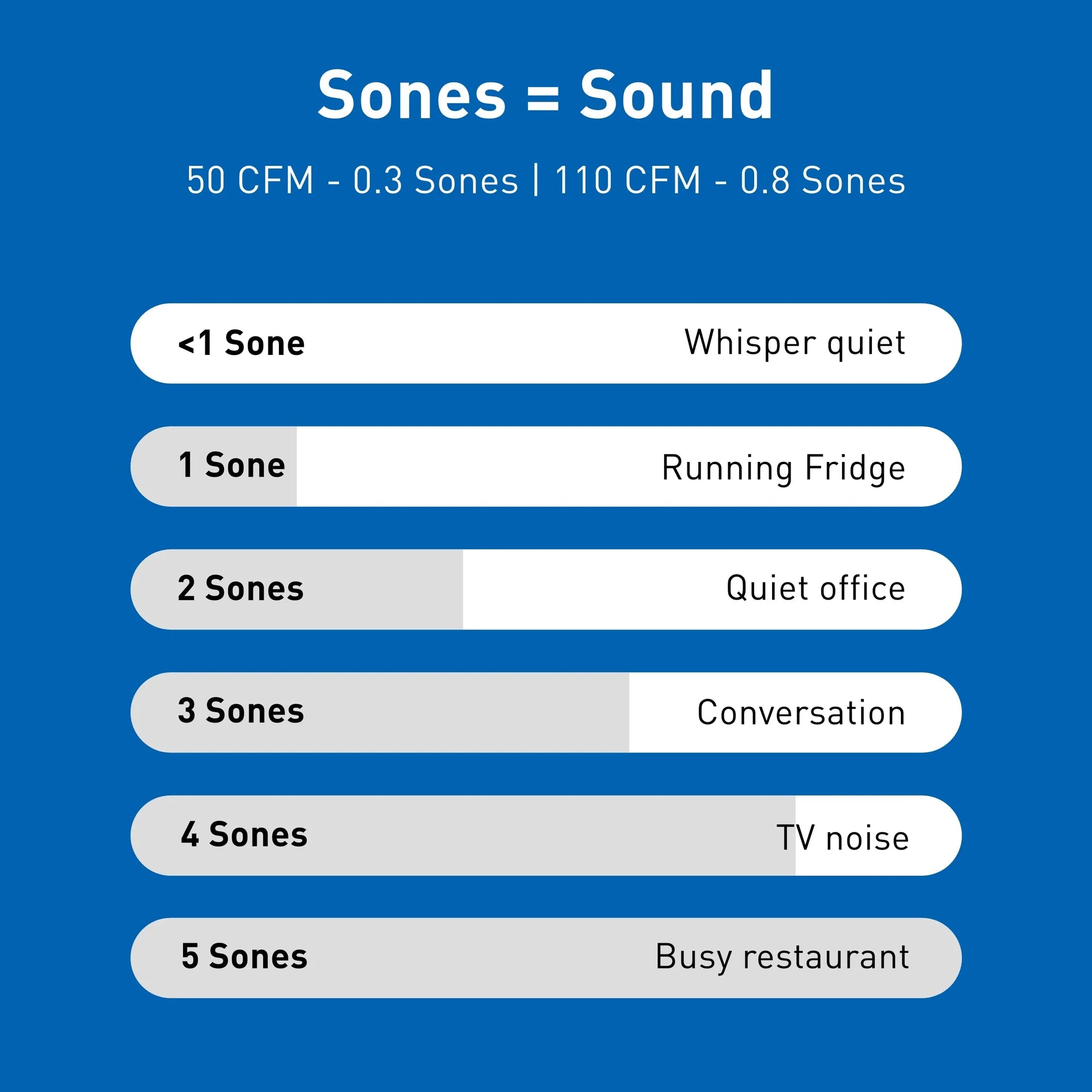

- Extremely quiet less than 0.3 sones at 50 CFM, 0.3 sones at 80 CFM and 1.0 sones at 110 CFM when using 4 in. duct

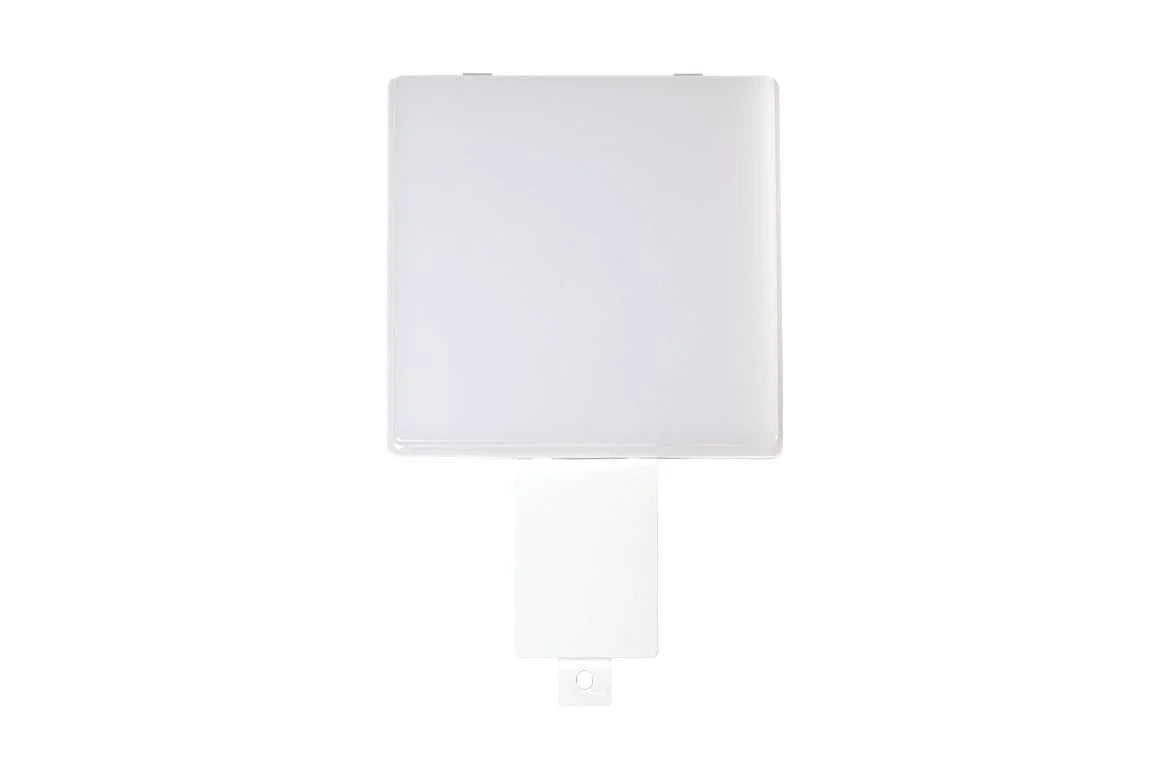

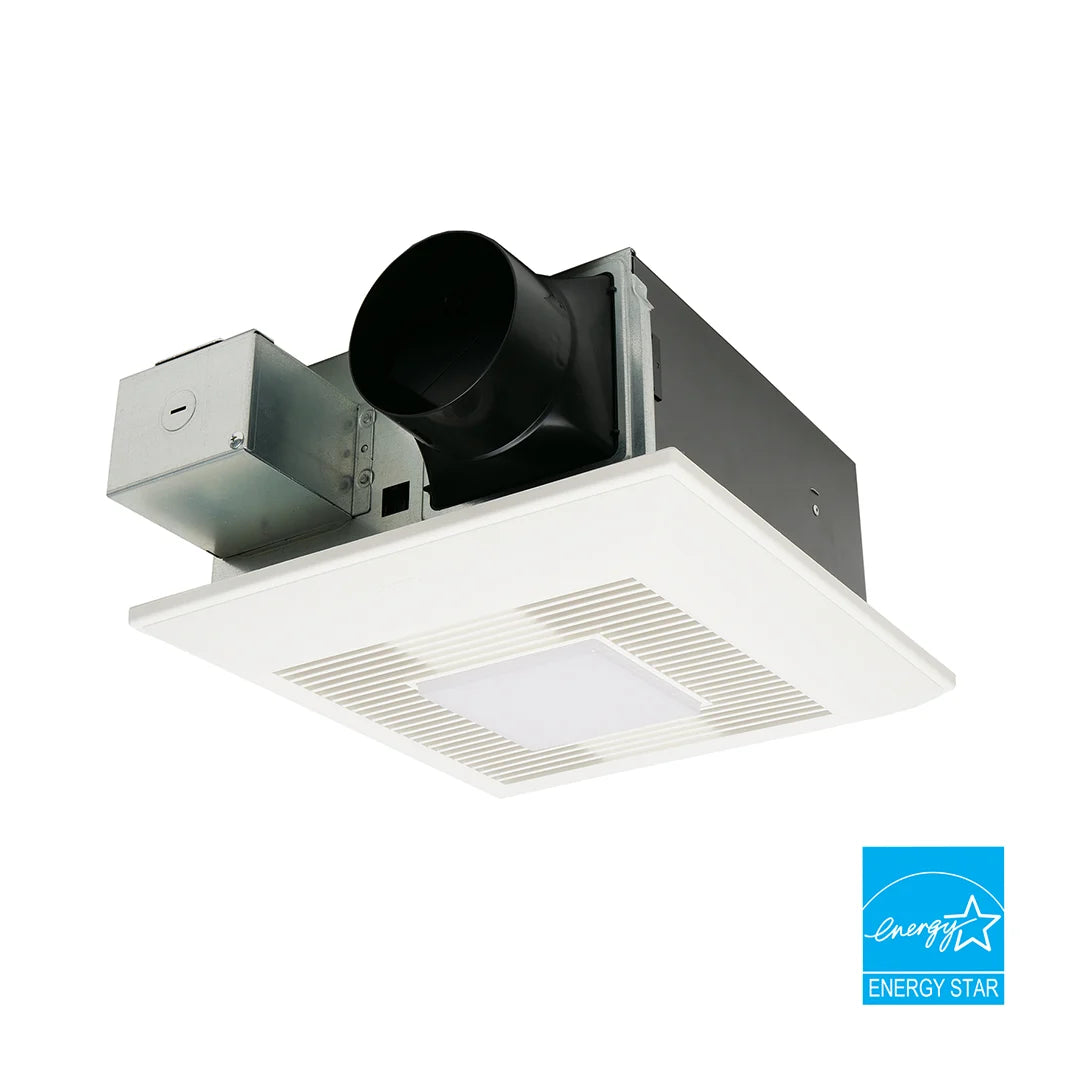

- Includes 1 – 10W dimmable LED chip panel with 1 less than 1W LED Night Light (Night Light must be wired separately). The LED lamp offers a warm white illumination with 3000K (Kelvins) and 700 Lumens (70 lumens/watt) for a long-life energy efficient operation and 50,000 hours rated average life. It is ENERGY STAR 2.0 certified and JA-9 compliant for CA title 24 (Light Model Only)

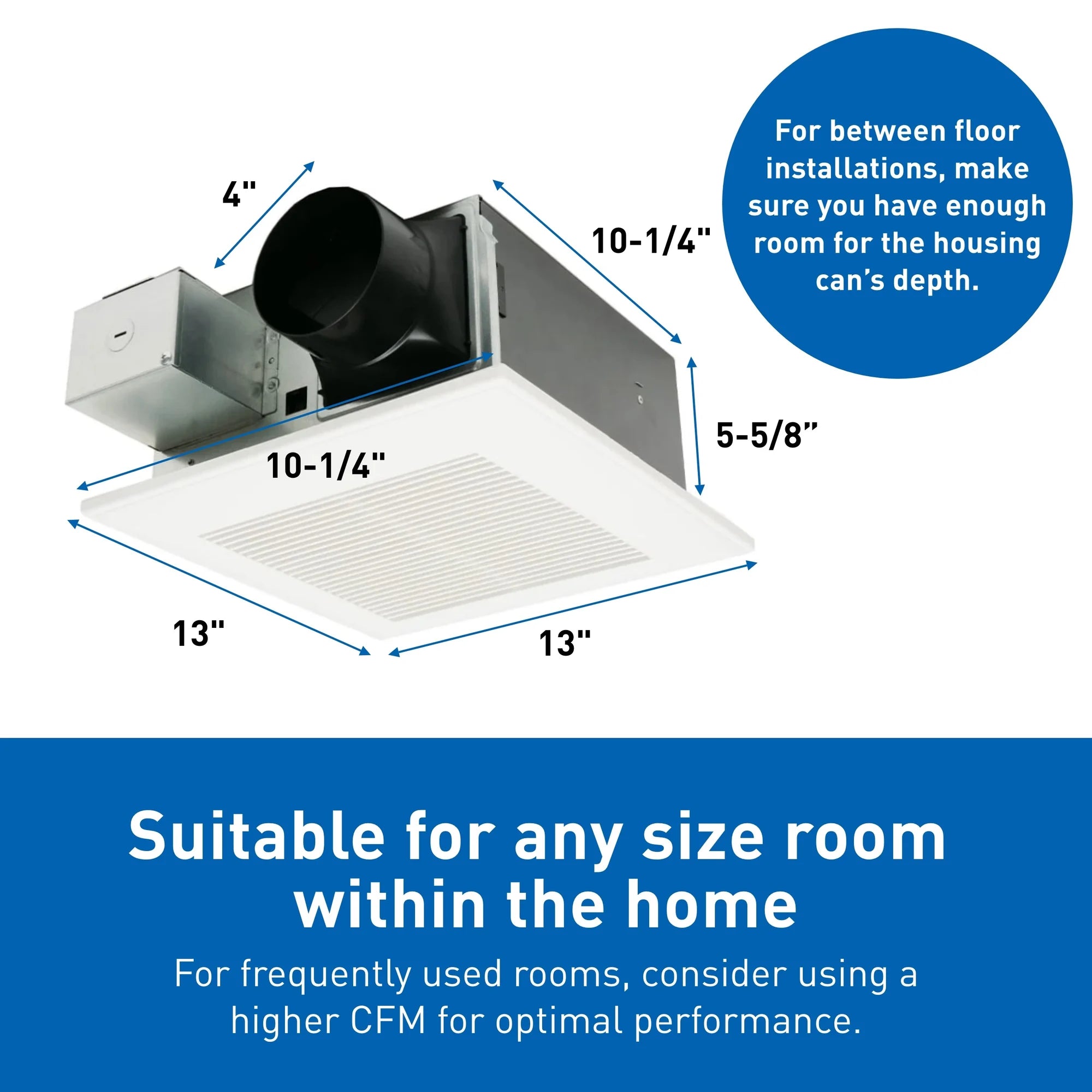

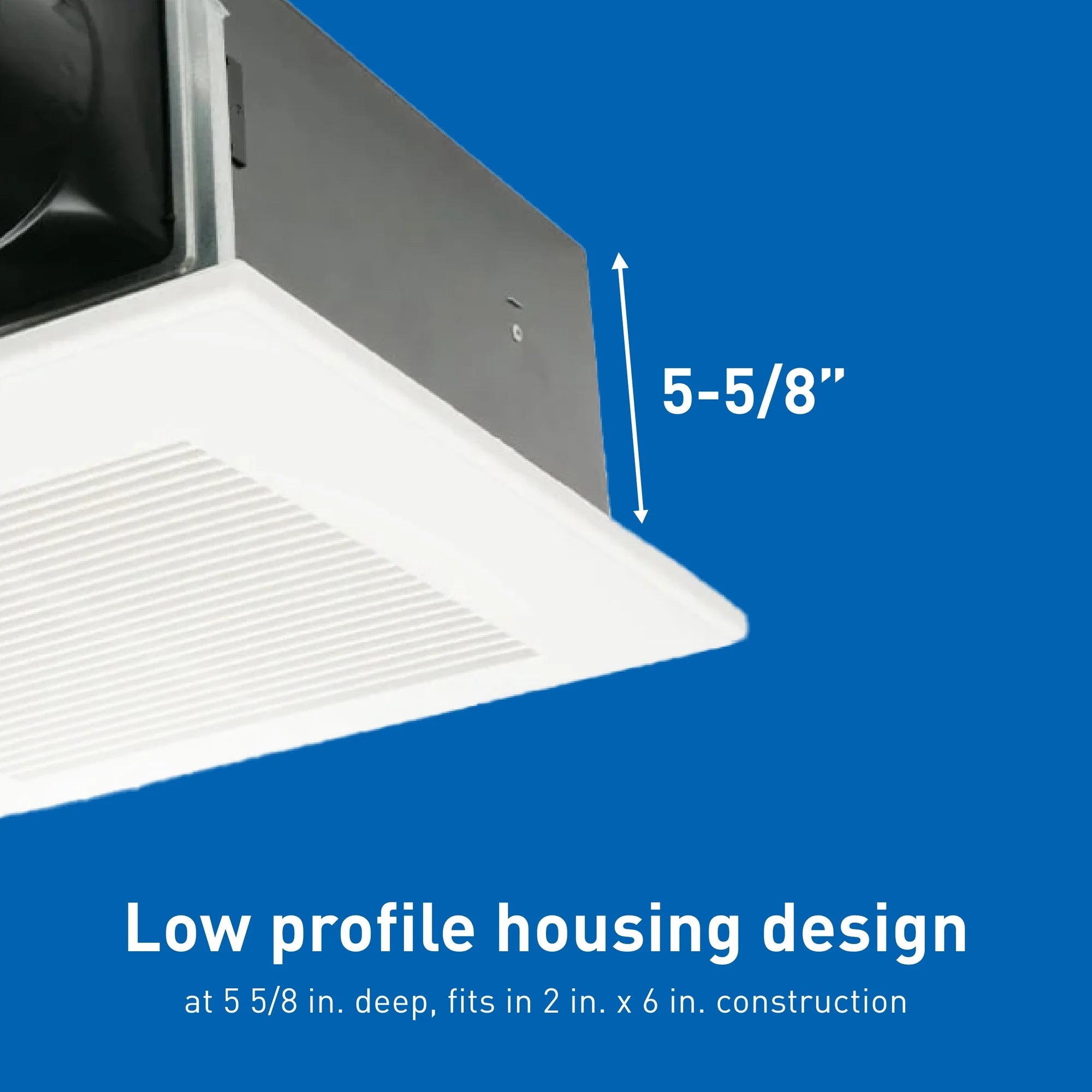

- Low profile housing design at 5 5/8 in. deep, fits in 2 in. x 6 in. construction

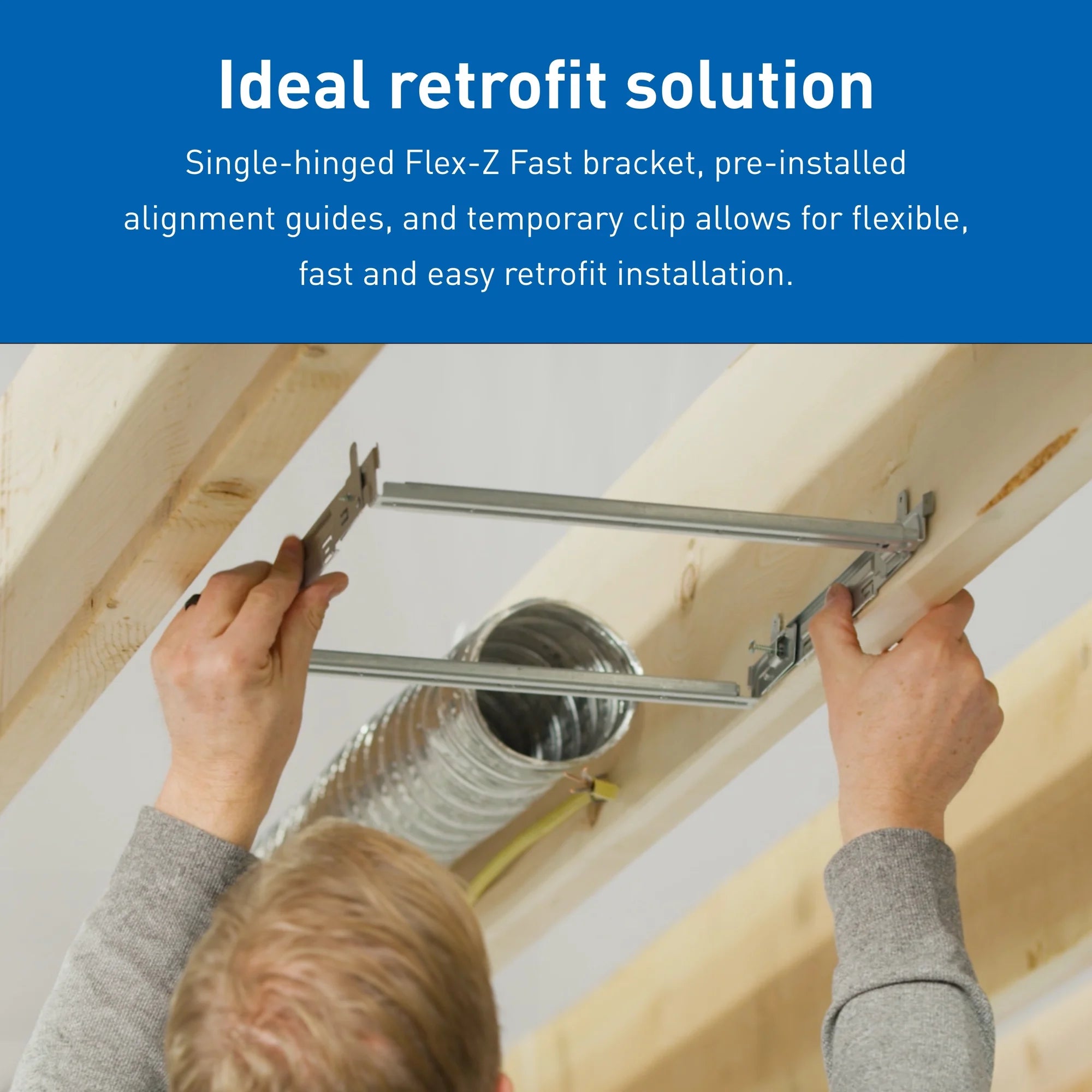

- Alignment guide slides housing in place for a tight fit; temporary clip holds fan in place so installer has 2 hands free to insert motor; templet to assure hole size & protect parts from dust; & slide & snap-in junction box & duct collar
- UL listed for tub/shower enclosure when GFCI protected and Home Ventilating Institute (HVI) Certified
- Can be used to comply with ASHRAE 62.2, LEED, IAP, and California Title 24
- Covered under a 3 year parts and a 6 year motor warranty
Specifications:
- CFM: 50, 80, 110
- Sones: 0.4, 0.7, 1.3
- Bulb Type: LED (Light Model Only)
- Duct Size: 4" Round
- Grille Width: 13"
- Grille Length: 13"
- Housing Width: 10-1/4"
- Amperage: 0.17, 0.22, 0.27A
- Voltage: 120V
- Wattage: 16.4W
Manufacturer Resources
Dimensions and Measurements
|
CFM
|
110, 50, 80 |
|
Depth
|
7.1 in. |
|
Duct Size
|
4" Round |
|
Grille Length
|
13 in. |
|
Grille Width
|
13 in. |
|
Housing Depth
|
5.6 in. |
|
Housing Length
|
10.25 in. |
|
Housing Width
|
10.25 in. |
|
Length
|
13 in. |
|

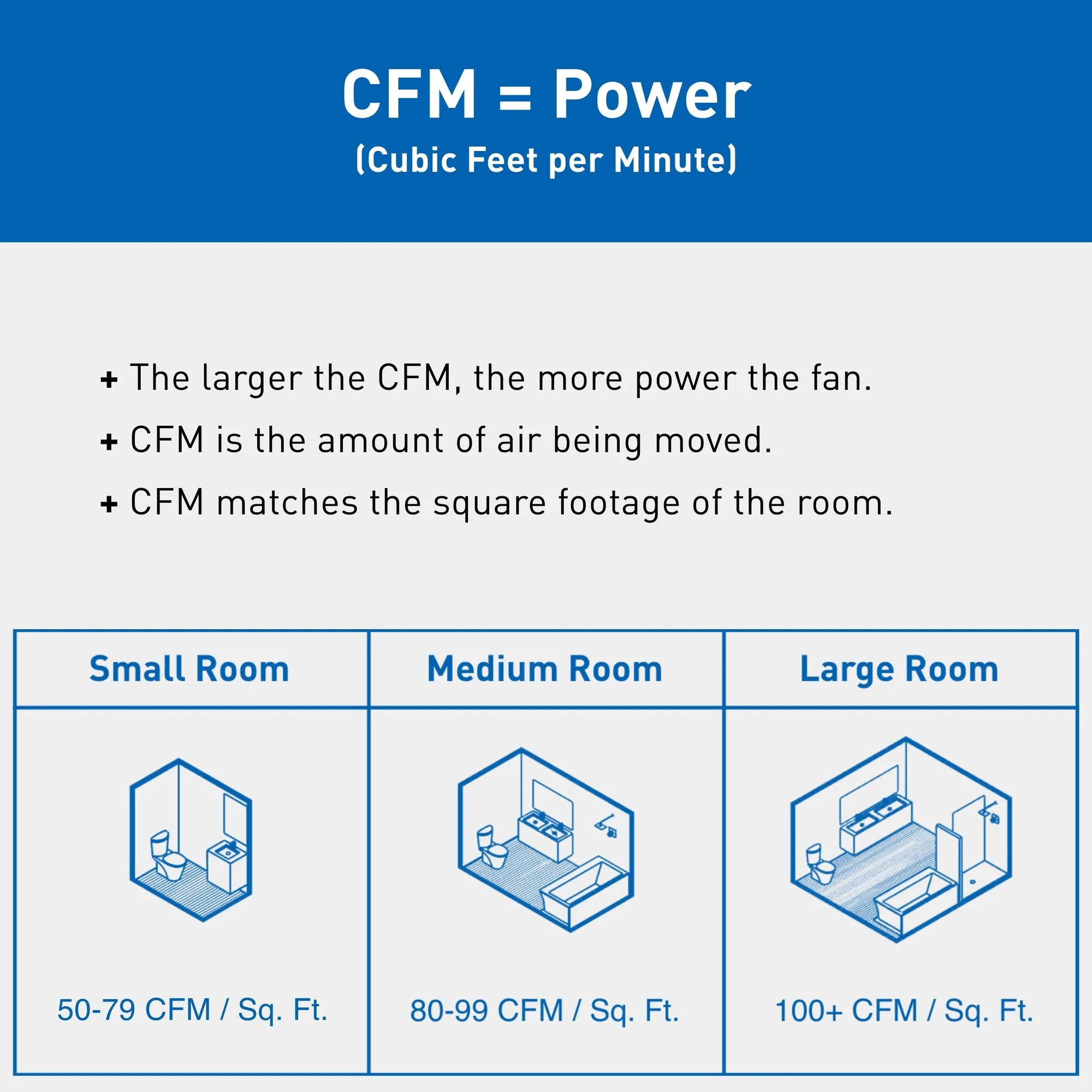

Max Ventilation Area
|
110 sq. ft. |
|
Product Weight
|
8.45 lbs. |
|
Width
|
13 in. |
Included Components
|
Bulb Included
|
Yes (Light Model Only) |
|
Fan Only
|
No |
|
Heater Included
|
No |
|
Includes Remote
|
No |
|
Includes Thermostat
|
No |
|
Light Included
|
Yes (Light Model Only) |
|
Motion Sensor
|
No |
Characteristics and Features
|
Bulb Type
|
LED (Light Model Only) |
|
Decorative
|
No |
|
Duct Discharge
|
Vertical |
|
Fan Type
|
Bath Fan |
|
Grille Shape
|
Square |
|
Housing Shape
|
Square |
|
Humidity Sensing
|
No |
|
Installation Type
|
Full Install |
|
Material
|
Galvanized Steel |
|
Mount Type
|
Ceiling |
|
Night Light
|
Yes (Light Model Only) |
|
Smart Home
|
No |
Electrical and Operational Information
|
Amperage
|
0.17, 0.22, 0.27 |
|
Frequency
|
60 Hertz |
|
Power Source
|
Hardwired |
|
Sones
|
0.4, 0.7, 1.3 |
|
Speeds
|
3 |
|
Voltage
|
120 |
|
Wattage
|
16.4 |
|
Watts Per Bulb
|
10 |
Warranty and Product Information
|
Approved for Commercial Use
|
Yes |
|
CALGreen
|
Yes |
|
Certifications
|
ASHRAE, HVI, UL |
|
Collection
|
WhisperFit DC |
|
Country Of Origin
|
Mexico |
|
Energy Star
|
Yes |
|
Manufacturer Warranty
|
3 Year Parts, 6 Year Motor |
|
Title 24
|
Yes |
