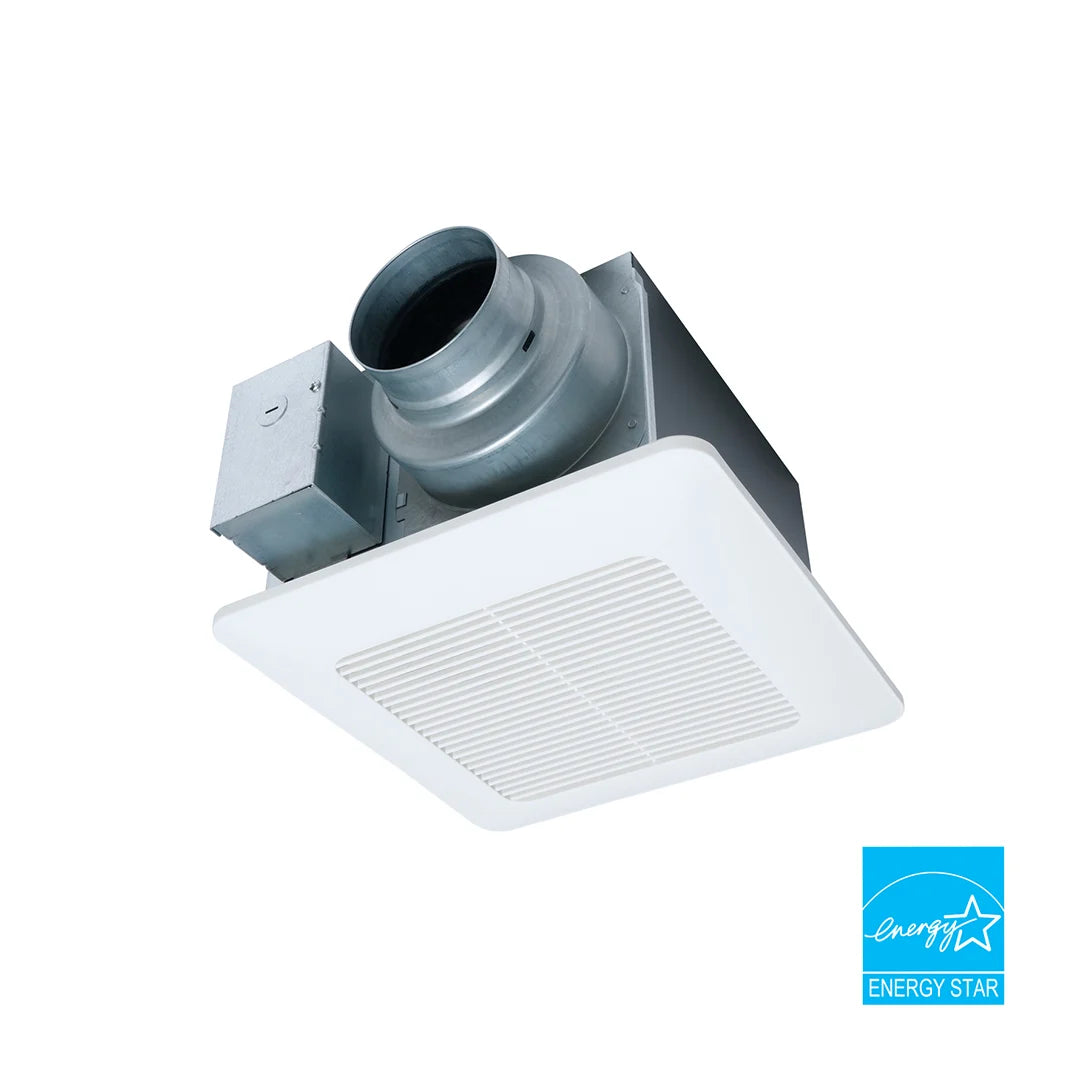

WhisperCeiling® DC Fan with SmartFlow™, 50-150 CFM
WhisperCeiling® DC Fan with SmartFlow™, 50-150 CFM
Regular price
$160.99
Sale price
$160.99
Regular price
Shipping calculated at checkout.
Available in stock (15)
WhisperCeiling® DC Precision Spot Ventilation Fan with built-in Pick-A-Flow® speed selector switch allows you to select your required airflow (50-80-110 CFM). It features a ECM Motor with SmartFlow™ technology and a Flex-Z Fast® installation bracket. This fan is perfect for bathroom ventilation. It can be used to comply with the latest codes and standards.
Features:
- ECM motor with SmartFlow™ Technology simplifies the selection process and ensures optimum performance to meet all your exhaust fan needs
- Pick a Flow 3 speed motor gives you access to 50, 80 and 110 CFM for faster clearing speeds
- Flex-Z Fast installation bracket snaps into place for easy installation and can be used to comply with the latest standards and codes
- Built-In metal flange provides an air barrier, blocking penetrations from other areas
- Integrated 4 or 6" dual duct adapter provides more installation options to suit your needs
- Elegant grille design compliments any room it is installed in and provides a seamless look
- This unit can be used to comply with ASHRAE 62.2, Energy Star, CA Title 24 and WA state code
- Manufacturer warranty includes 3 year parts and 6 years for the ECM motor
Specifications:
- CFM: 50 / 80 / 110
- Sones: <0.3, 0.4, 0.6, 0.9
- Duct Size: 4" / 6" Round
- Grille Length: 13"
- Grille Width: 13"
- Housing Height: 7-3/8"
- Housing Length: 10-1/4"
- Housing Width: 10-1/4"
- HVI Certified: Yes
- Amperage: 0.27 A
- Voltage: 120 V
- Wattage: 10.6 W
Manufacturer Resources
Installation Manual Non- Light 50-110Dimensions and Measurements
|
CFM
|
50, 80, 110 |
|
Duct Size
|
4" Round, 6" Round |
|
Grille Length
|
13 in. |
|
Grille Width
|
13 in. |
|
Housing Height
|
7.375 in. |
|
Housing Length
|
10.25 in. |
|
Housing Width
|
10.25 in. |
|
Product Weight
|
11 lbs. |
|
Rough Opening Length
|
10.5 in. |
Included Components
|
Heater Included
|
No |
|
Light Included
|
No |
|
Motion Sensor
|
No |
Characteristics and Features
|
Decorative
|
No |
|
Duct Discharge
|
Horizontal |
|
Fan Type
|
Bath Fan |
|
Humidity Sensing
|
No |
|
Installation Type
|
Full Install |
|
Mount Type
|
Ceiling |
|
Smart Home
|
No |
Electrical and Operational Information
|
Amperage
|
0.27 |
|
Frequency
|
60 Hertz |
|
Power Source
|
Hardwired |
|
Sones
|
0.3, 0.4, 0.6, 0.9 |
|
Speeds
|
3 |
|
Voltage
|
120 |
|
Wattage
|
10.6 |
Warranty and Product Information
|
Approved for Commercial Use
|
No |
|
Certifications
|
ASHRAE, HVI, UL |
|
Energy Star
|
Yes |
|
Location Rating
|
Damp Location |
|
Manufacturer Warranty
|
3 Year Parts, 6 Year Motor |
|
Quick Ship
|
Yes |
|
Series
|
WhisperCeiling, WhisperCeiling DC |
