Delta Delmar Flange Edge Linear Drain
Delta Delmar Flange Edge Linear Drain
👀 18 people viewing this product
🛒 6 people added this to cart today
📞 Call 732-494-8670 for the best deal
LOW STOCK, PLEASE CALL 732-494-8670
The Delmar Delta Flange Edge Linear Drain is a stainless steel linear drain designed for modern tile showers. Features a sleek, modern grate and integrated Superdry waterproofing membrane for secure, long-lasting installations.
Key Features
- Complete Kit: Drain channel with pre-attached waterproofing collar, wedgewire grate, 32 sq. ft. Superdry membrane, and coupling
- Faster Installation: One sloped mortar layer, waterproof, and apply tile
- Watertight Fit: Superdry membrane pre-sealed to the drain flange
- High-Quality Material: 316 Marine-grade stainless steel for corrosion resistance
- Delta Grate: Modern design • 6 lengths • 7 finishes
- Code Compliant: Meets UPC, National Plumbing Code of Canada, and ANSI A118.10
Features:
Built for modern waterproofing installation, the Delta Delmar Flange-Edge Linear Drain all-in-one kit is for new builds, renovations, commercial, or residential spaces.
What's in the Kit
- Vertical outlet drain channel with pre-attached waterproofing collar
- Delta linear grate
- 32 sq. ft. of Superdry waterproofing membrane
- Coupling
Optional Add-On
Tile Guard - Protects exposed tile edges for a clean finish
Easy to Install
The waterproofing collar comes pre-attached and sealed to the channel at the factory. Connect directly to your plumbing with the included coupling, finish waterproofing with the Superdry membrane, and tile on top.
Low Profile
Only 1" high - fits flush with any shower floor without raising the floor height.
2" Center Side Outlet
Fast, efficient water removal. Connects to plumbing with the included coupling.

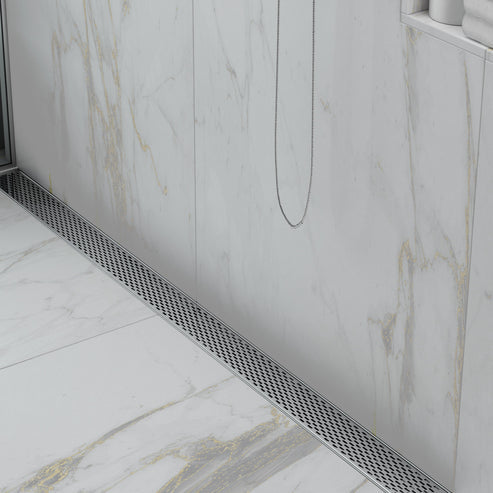

Versatile Placement
Can be positioned anywhere in the shower area. Compatible with all tile sizes and formats, including large-format tiles.
Marine-Grade 316 Stainless Steel
Superior corrosion resistance for long-lasting performance indoors and outdoors.
Easy to Clean
Removable grate for quick access and easy maintenance.
Sizes: 24" | 28" | 32" | 36" | 48" | 58"
Dimensions: Width 3.25" | Height 1"

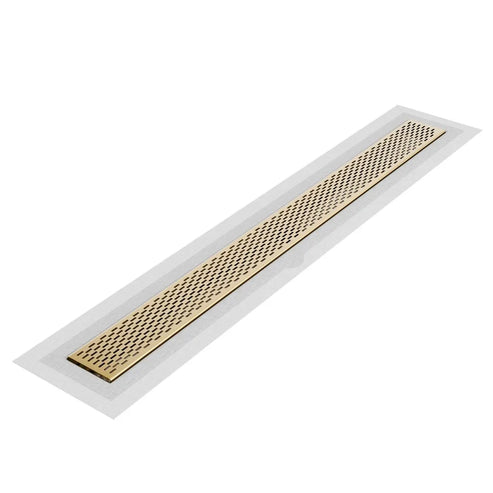

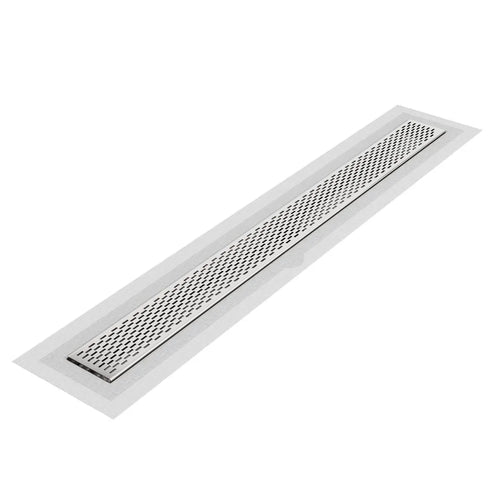

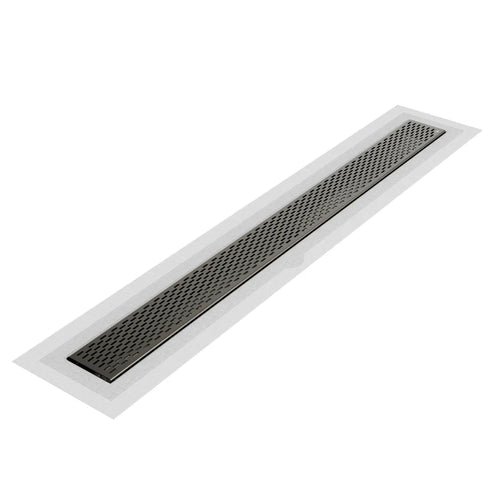

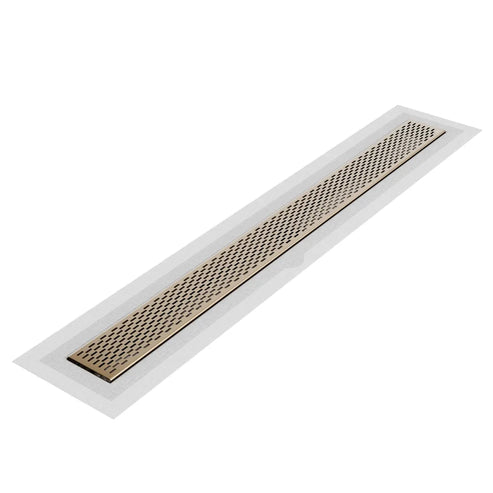

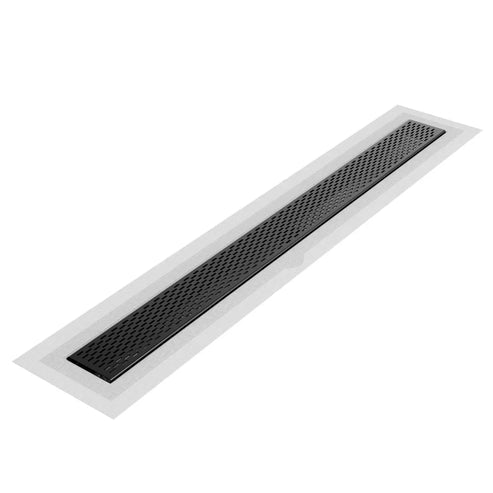

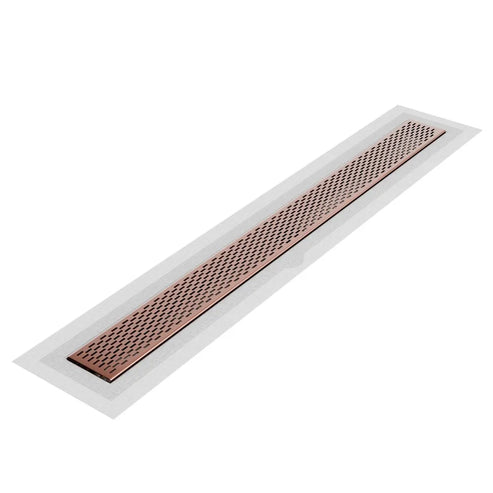

Finishes: Satin | Polished | Black | Gold | Bronze | Champagne | Luxe Gray
Specifications & Installations:

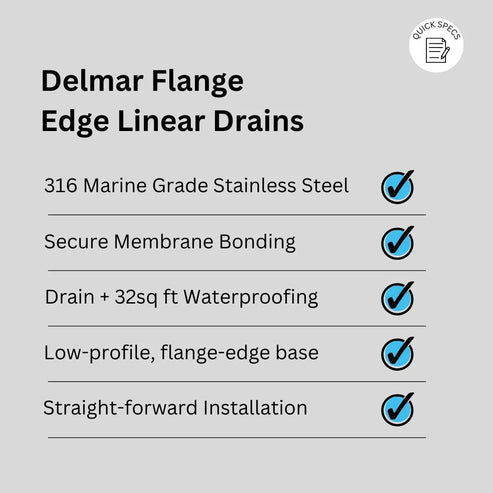

Quick Specs
Dimensions: Width: 3.25" | Height: 1" (low profile)
Resources (PDFS & Videos)
Click below to view and download:
Technical Specifications: Delta Flange Edge Linear Drain
Download the drain specs PDF with dimensions, materials, SKU numbers, and performance data.
Installation Instructions: Standard Flange Edge & Side Outlet Linear Drain
A complete installation guide covering tools, preparation, and waterproofing.
Video: Modern Waterproofing Installation for Side Outlet Linear Drains
Watch the full video tutorial showing the installation process from start to finish.
