DreamLine Aqua Fold 56-60" W Bi-Fold Tub Door
DreamLine Aqua Fold 56-60" W Bi-Fold Tub Door
👀 18 people viewing this product
🛒 6 people added this to cart today
📞 Call 732-494-8670 for the best deal
Hurry up, only 10 items left in stock.

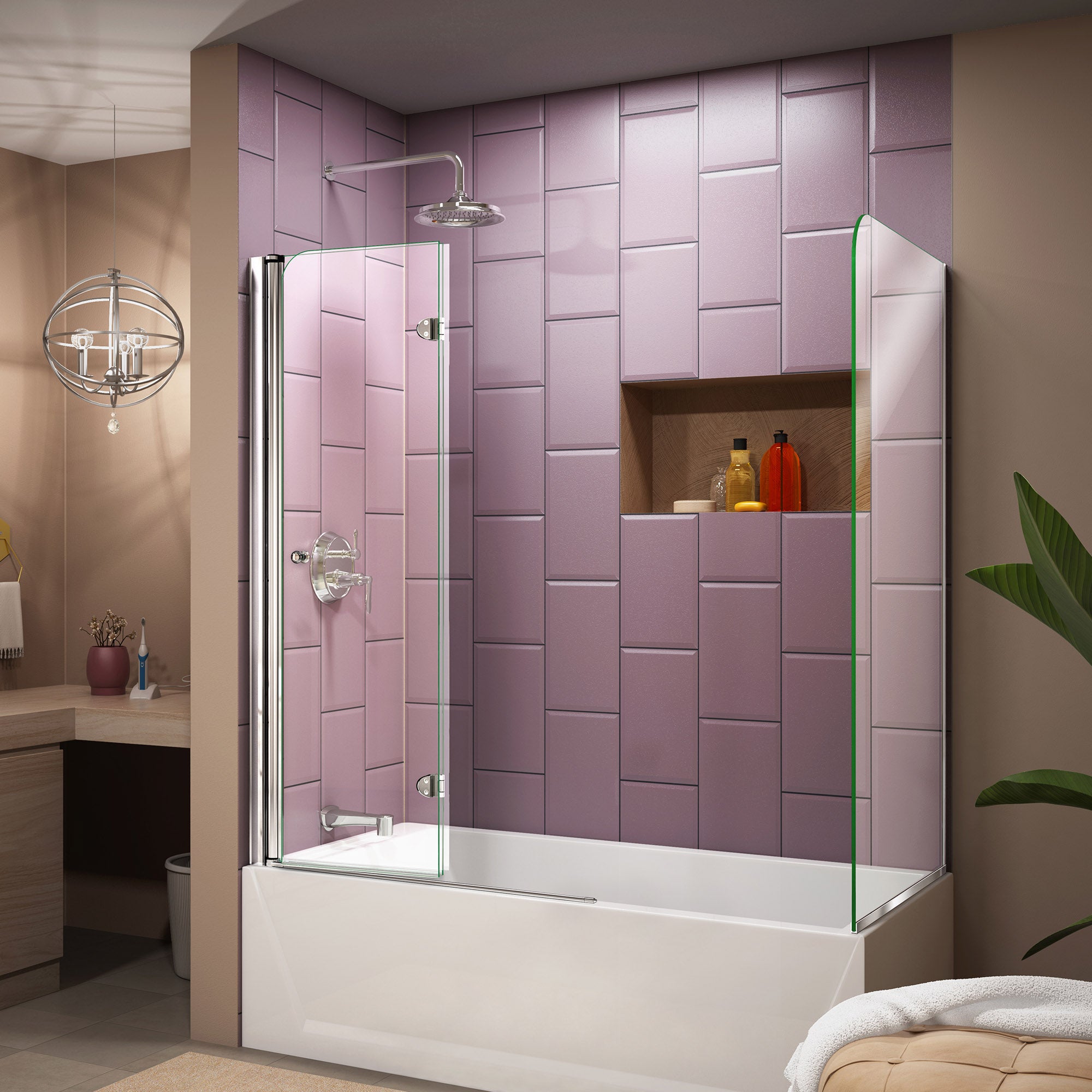

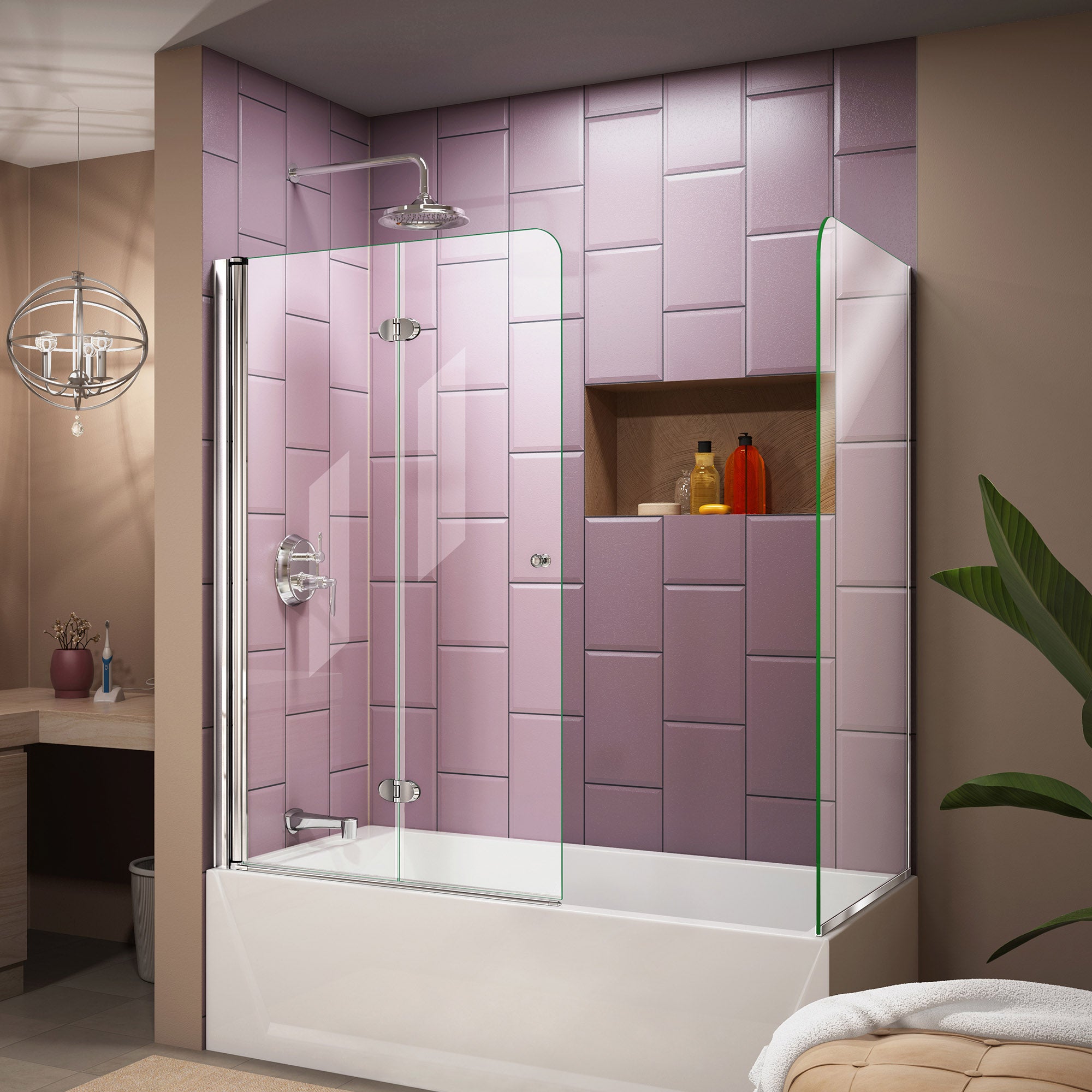

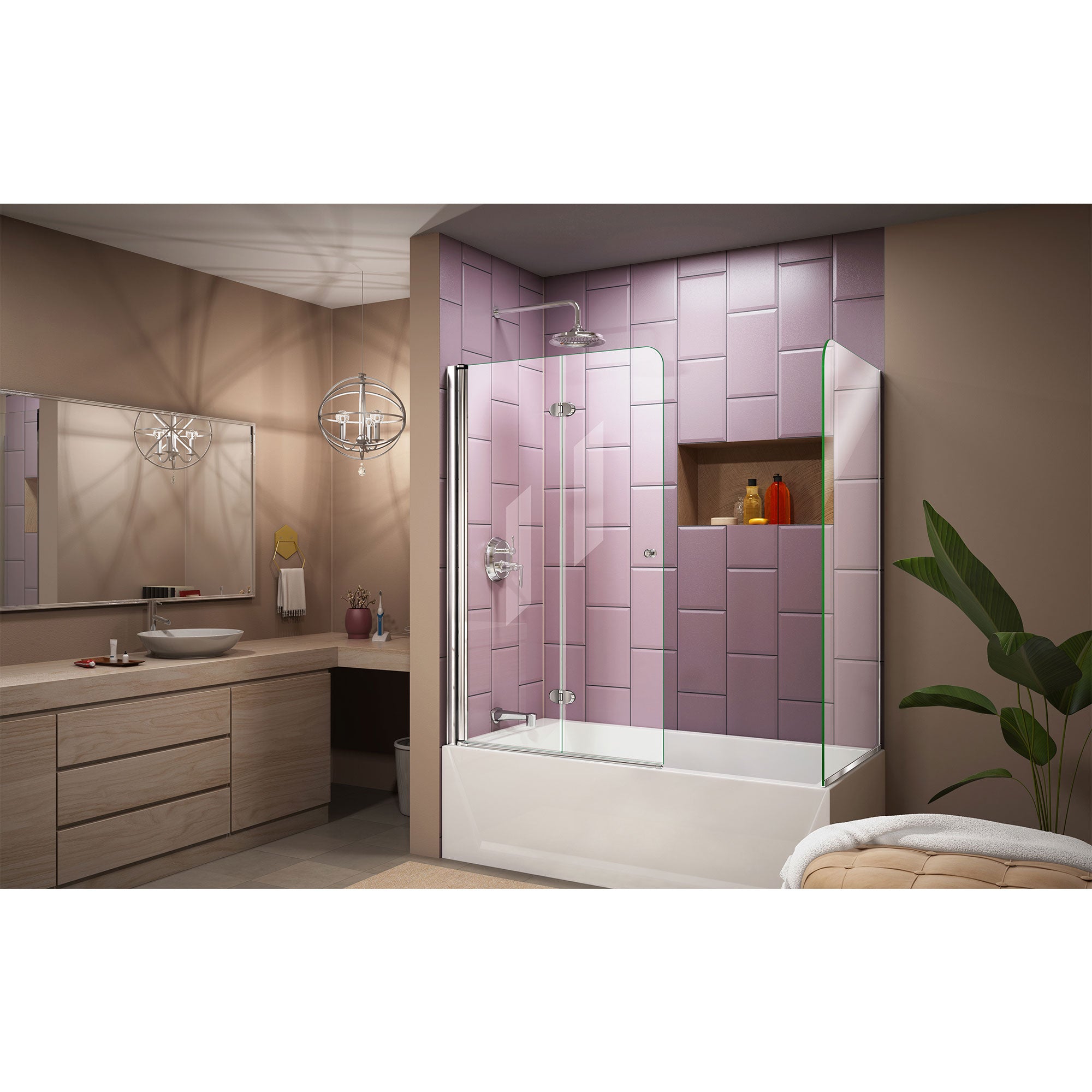

The Aqua Fold Tub Door with Return Panel creates a beautiful bathtub enclosure for an amazing value. This model is the perfect combination of function and style. The door makes a statement with a sophisticated curved silhouette, while the practical feature of the bi-fold action offers convenience. The Extender Panel provides additional splash coverage. Choose the Aqua Fold tub door for a unique and modern look at an attractive price point.
Features:
- Model Size: 56-60 in. W x 30 in. D x 58 in. H; Walk-in Opening: 57 in.; Hardware Finish: Chrome

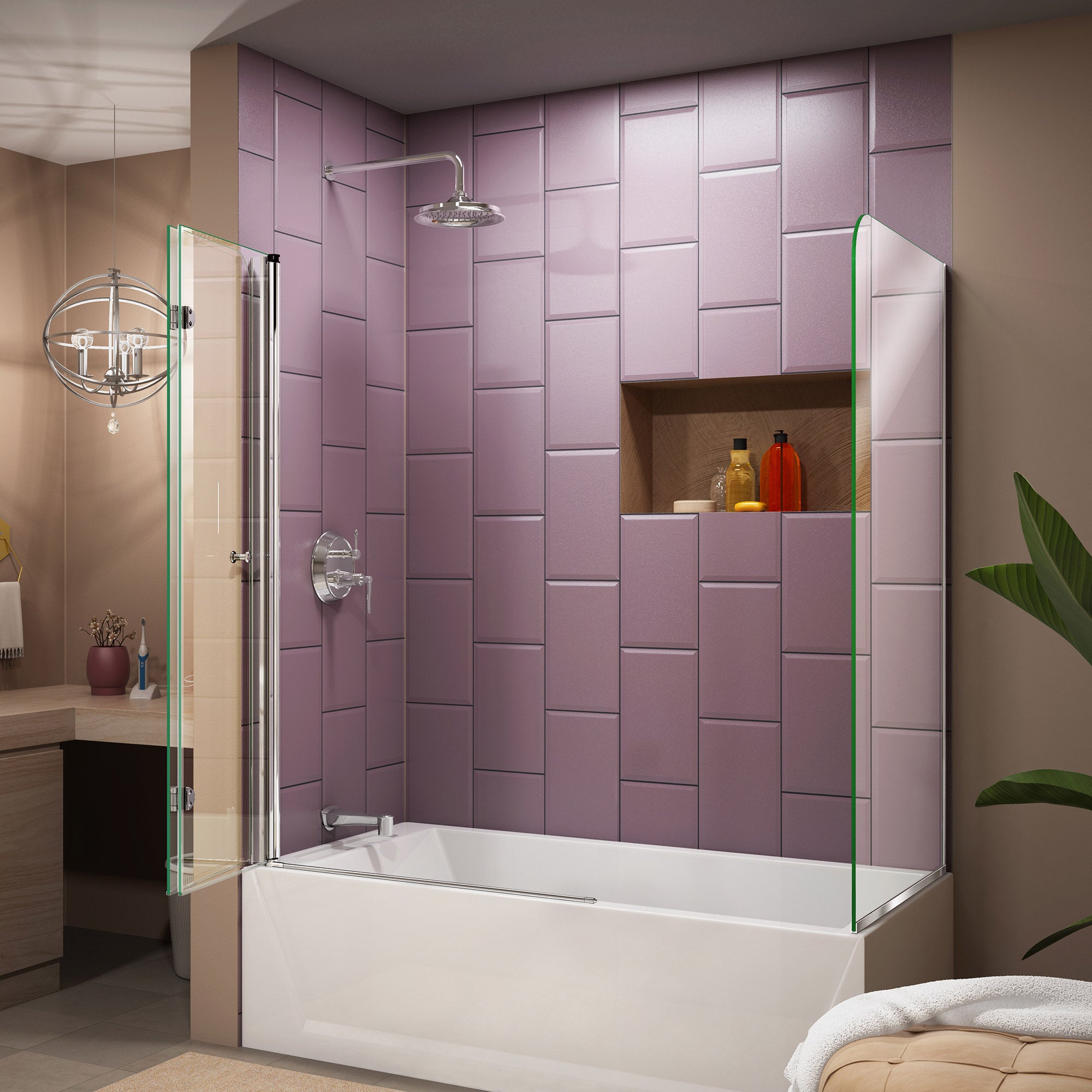

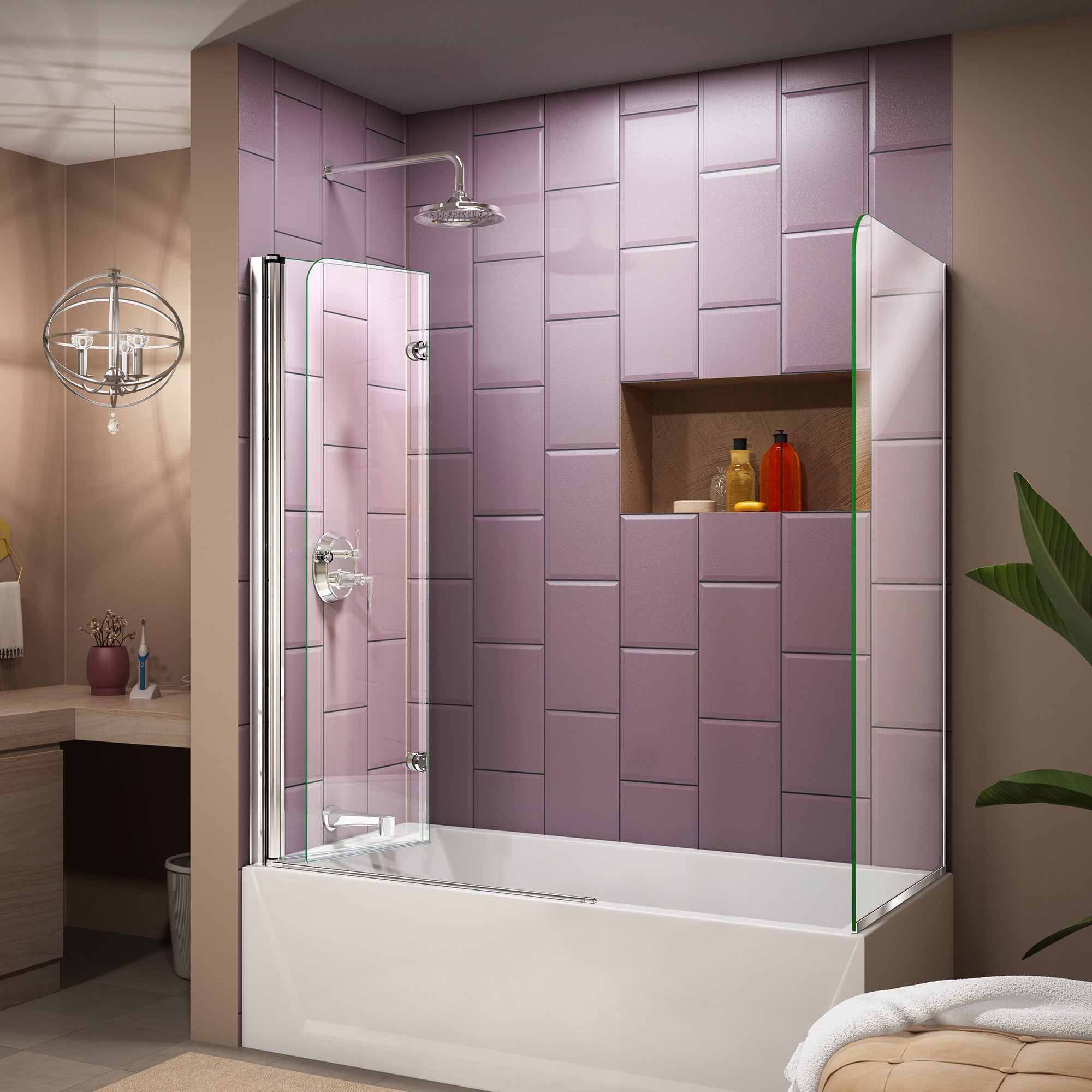

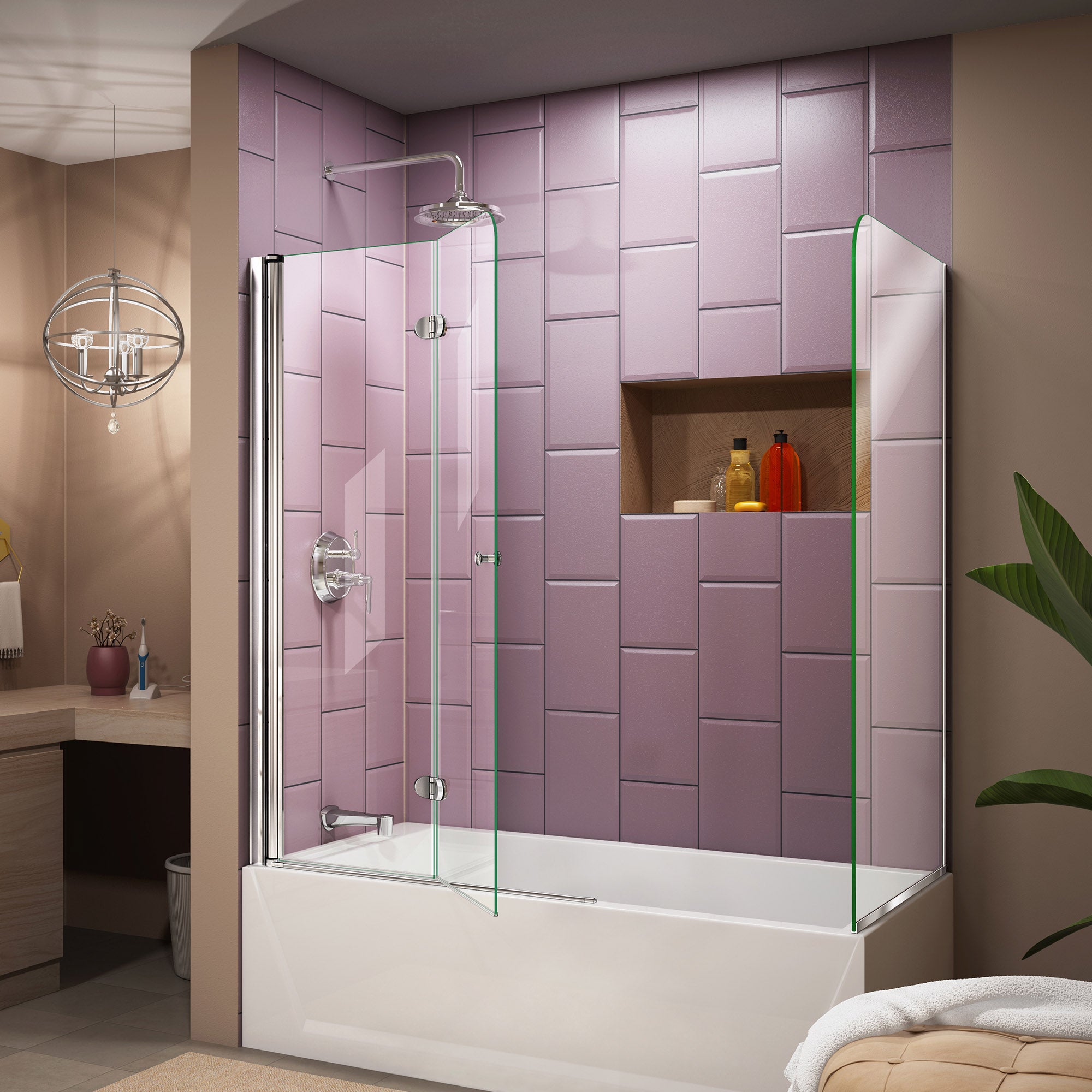

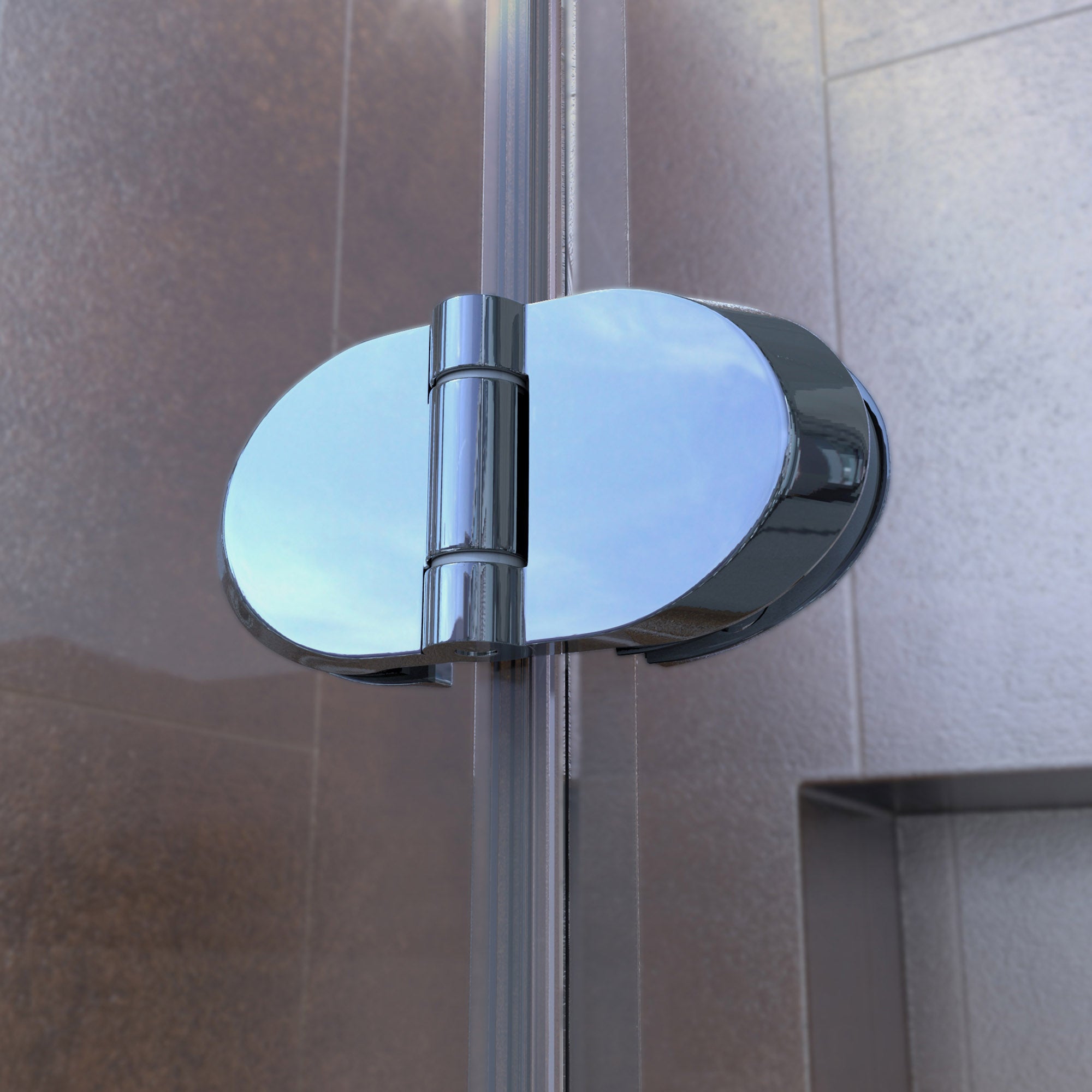

- Bi-Fold Tub Screen allows for a wide entry, while using minimal space; Continuous self-centering pivot rotates into and out of the shower
- Great choice for smaller bathrooms, where a swing or sliding door will not work; Frameless curved glass design with a European style

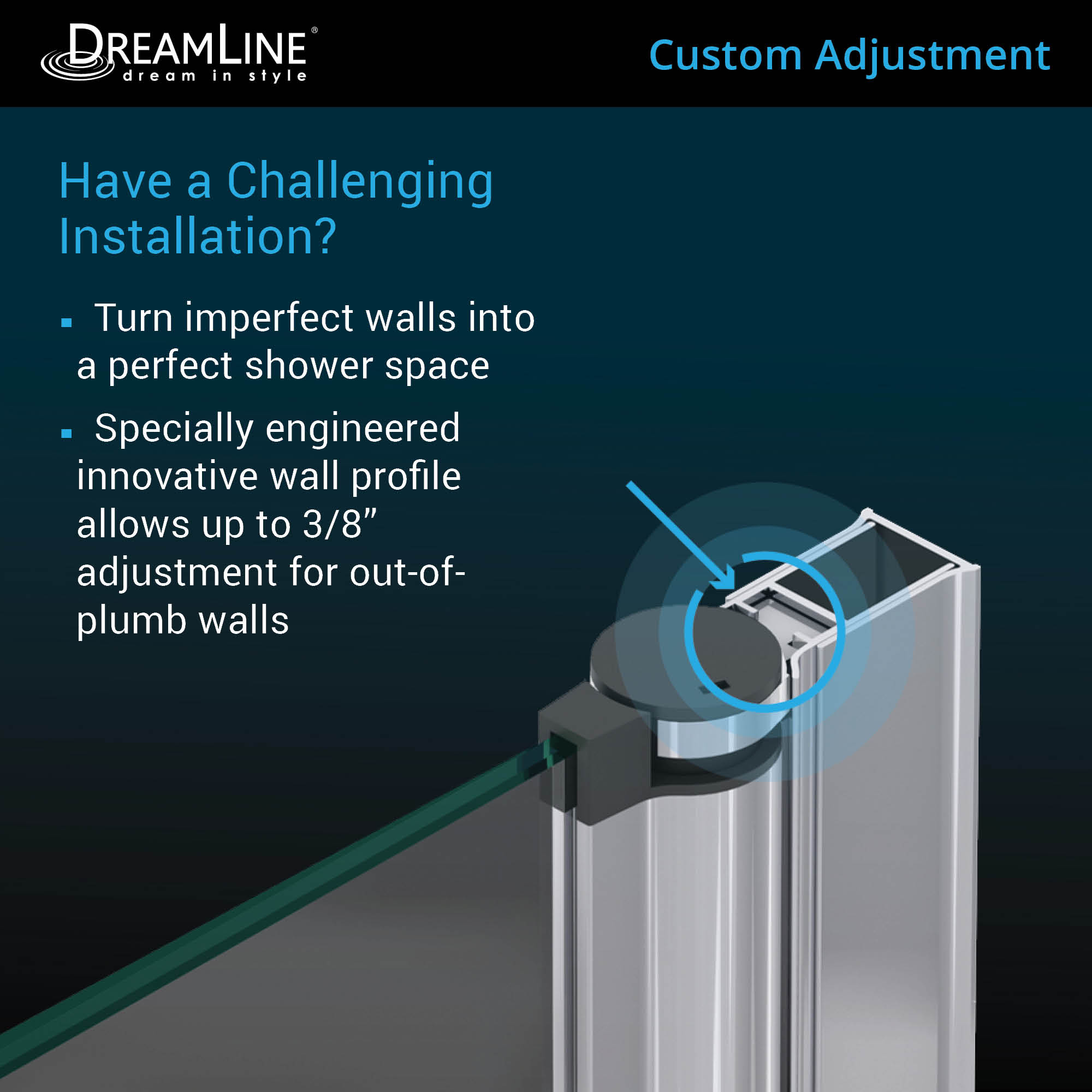

- Quality 1/4 in. (6mm) thick certified clear tempered glass; Anodized aluminum wall profile allows up to 3/8 in. adjustment for out-of-plumb

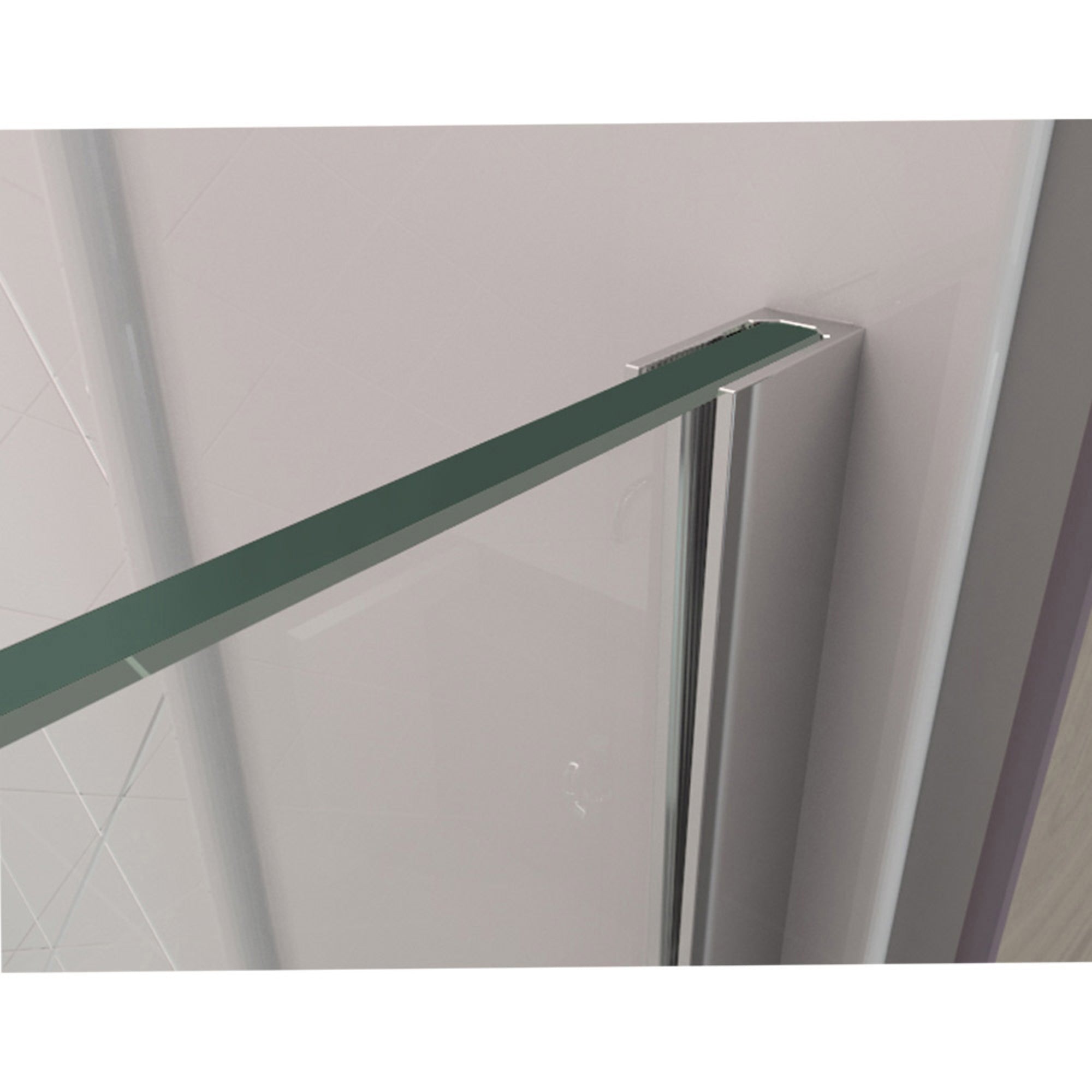

- Return Panel attached to the wall and tub with U-channels that allow up to 1/2 in. adjustment for width or out-of-plumb (uneven walls)
- Frameless curved glass design with a European style; Tub Screen is suitable for installation on any straight (not curved) bathtub
- Lifetime Limited Manufacturer Warranty; Three (3) Year All Hardware Finishes Warranty.
Specifications:
| Collection | Aqua Fold |
| Product Depth (in.) | 30 |
| Product Width (in.) | 56 - 56 |
| Product Height (in.) | 58 |
| Materials | Tempered Glass |
| Frame Type | Frameless |
| Door Type | Bi-fold |
| Glass Pattern | Clear |
| Glass Type | Clear |
| ClearMax Glass Treatment | No |
| Glass Thickness (in) | 1/4 |

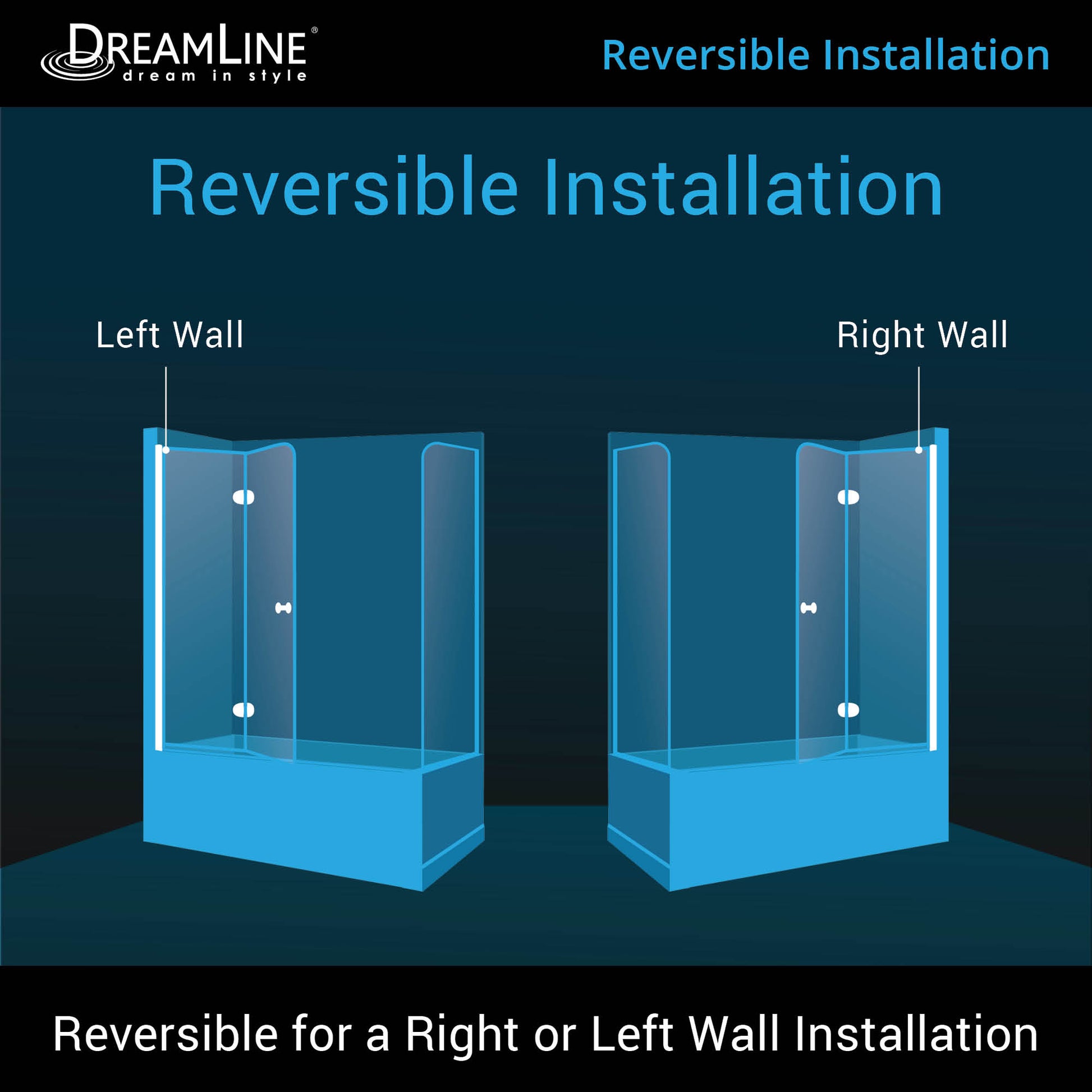

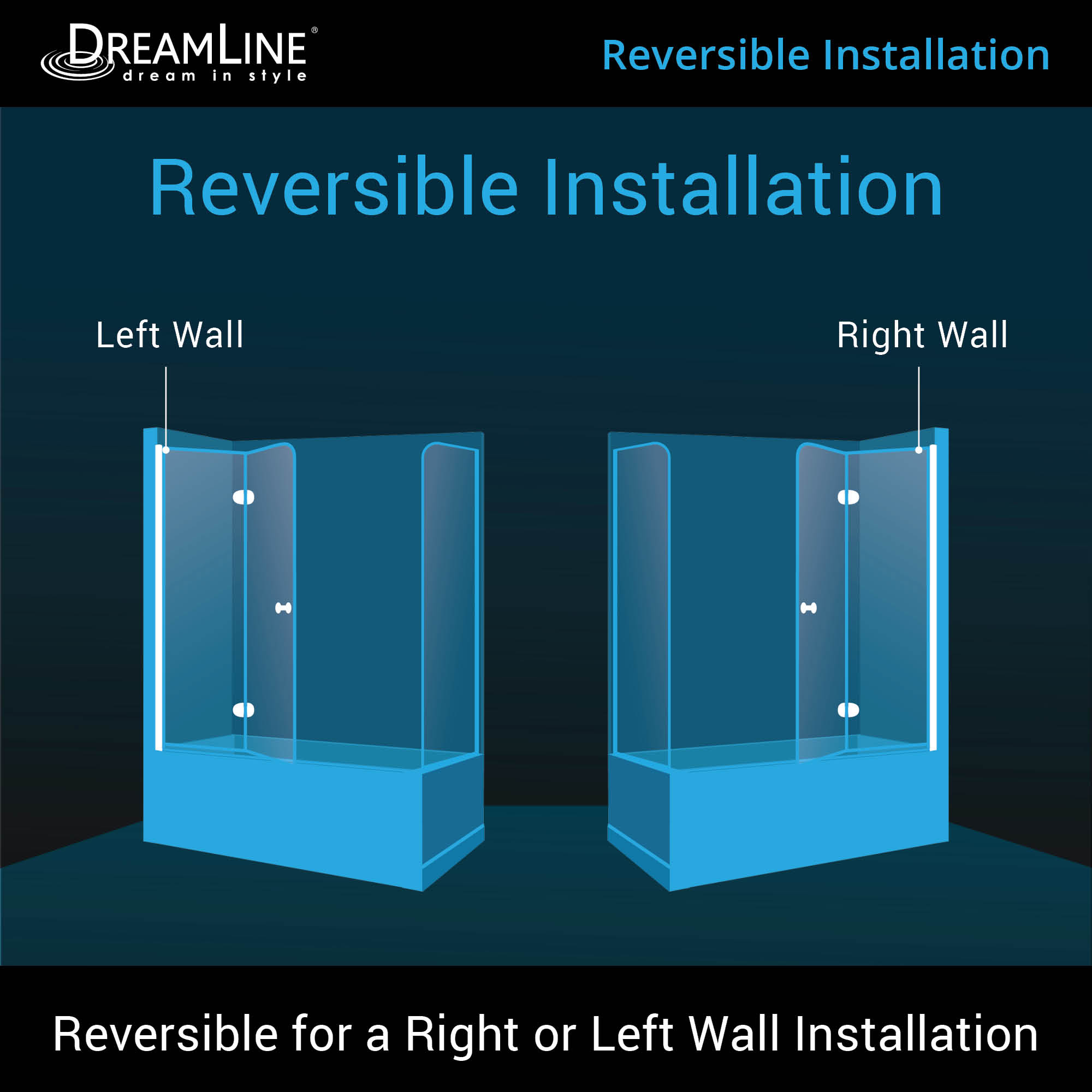

| Door Configuration | Reversible |

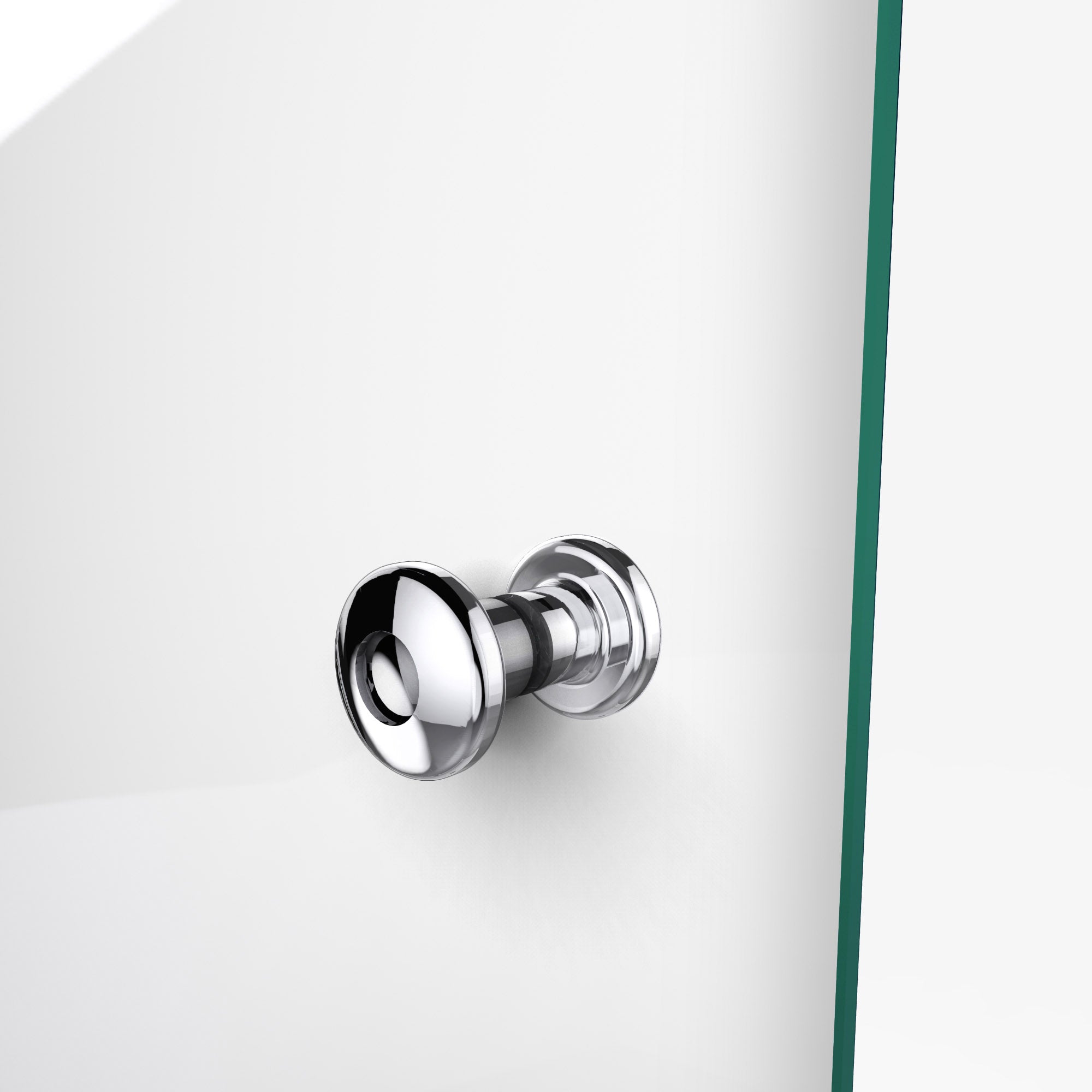

| Handle Style | Knob |
| Number Of Handles | 2 |
| Walk-In Opening Height | 100 |
| Walk-In Opening Width | 57 |
| Walk-In Min Width | 57 |
| Walk-In Max Width | 57 |
| Adjustable For Out-Of-Plumb | true |
| Maximum Out-Of-Plumb Adjustability | up to 3/8 in. within wall profile, and up to 1/2 in. on Return Panel side |
| Adjustable Width | No |
| Minimum Threshold Depth Required | 5/8 |
| Door Panel Width | 15 7/8 |
| Hinge Panel Width | 16.9375 |
| Return Panel Width | 30 |
| Installation Type | Alcove |
Download Instructions Manual
Download Technical Drawing
