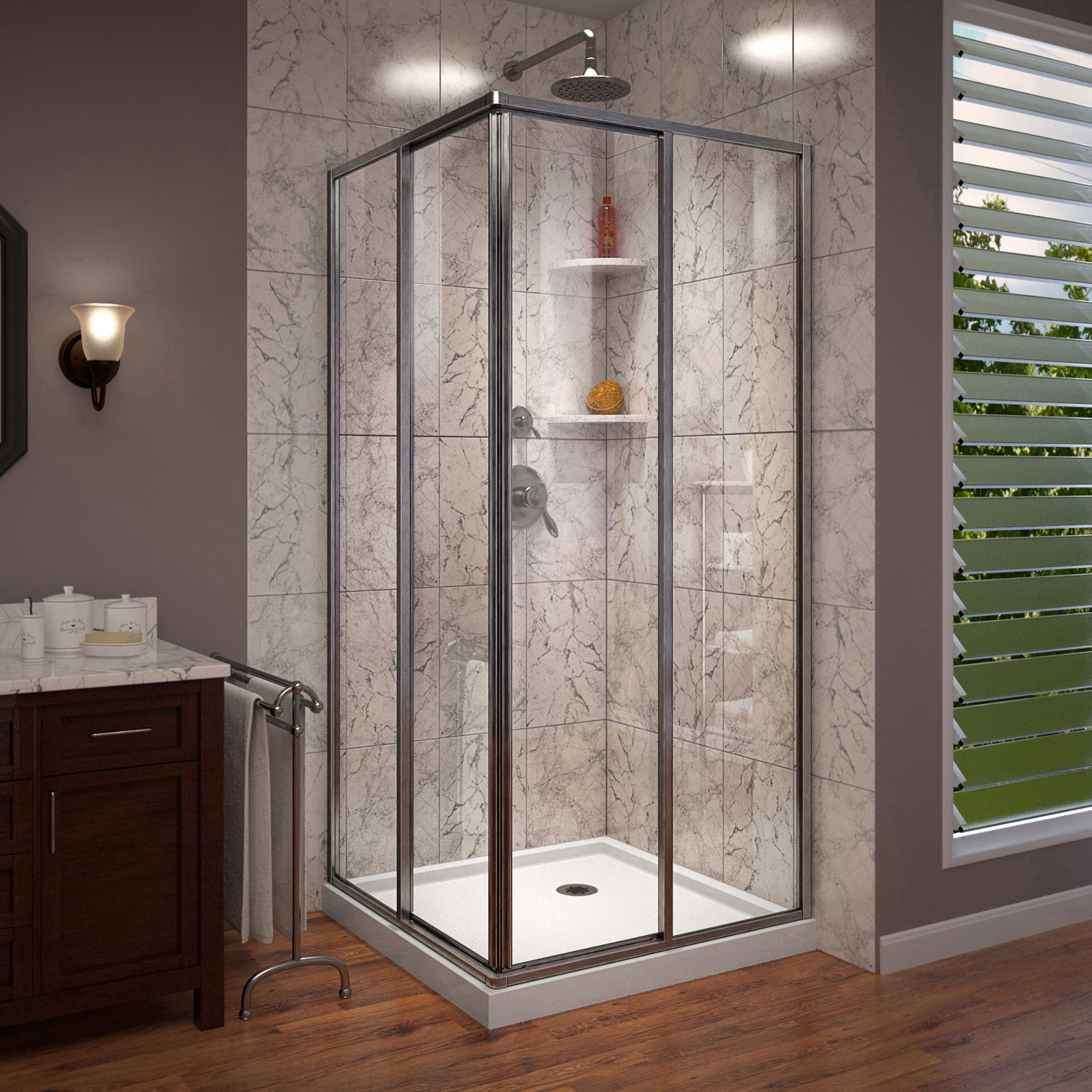

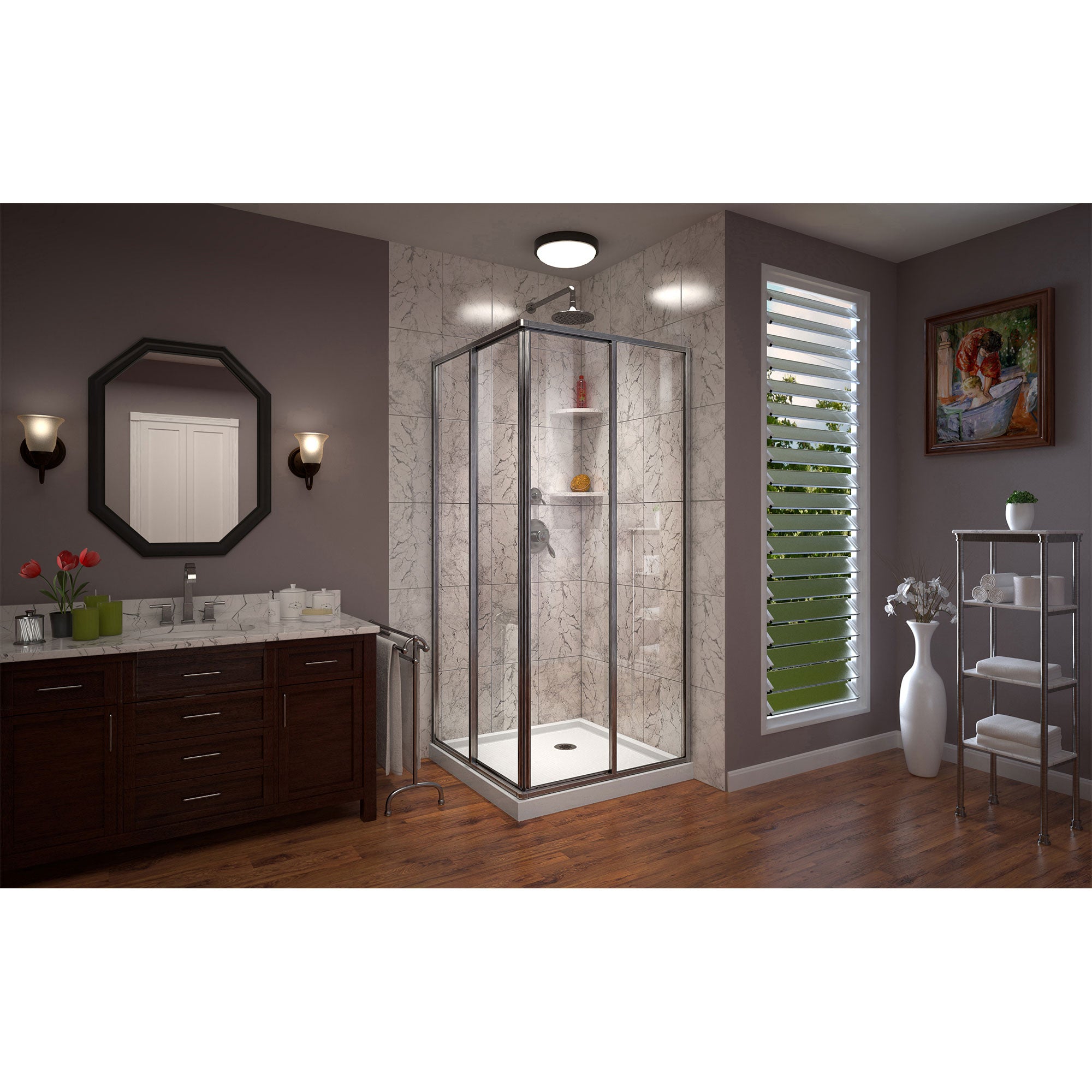

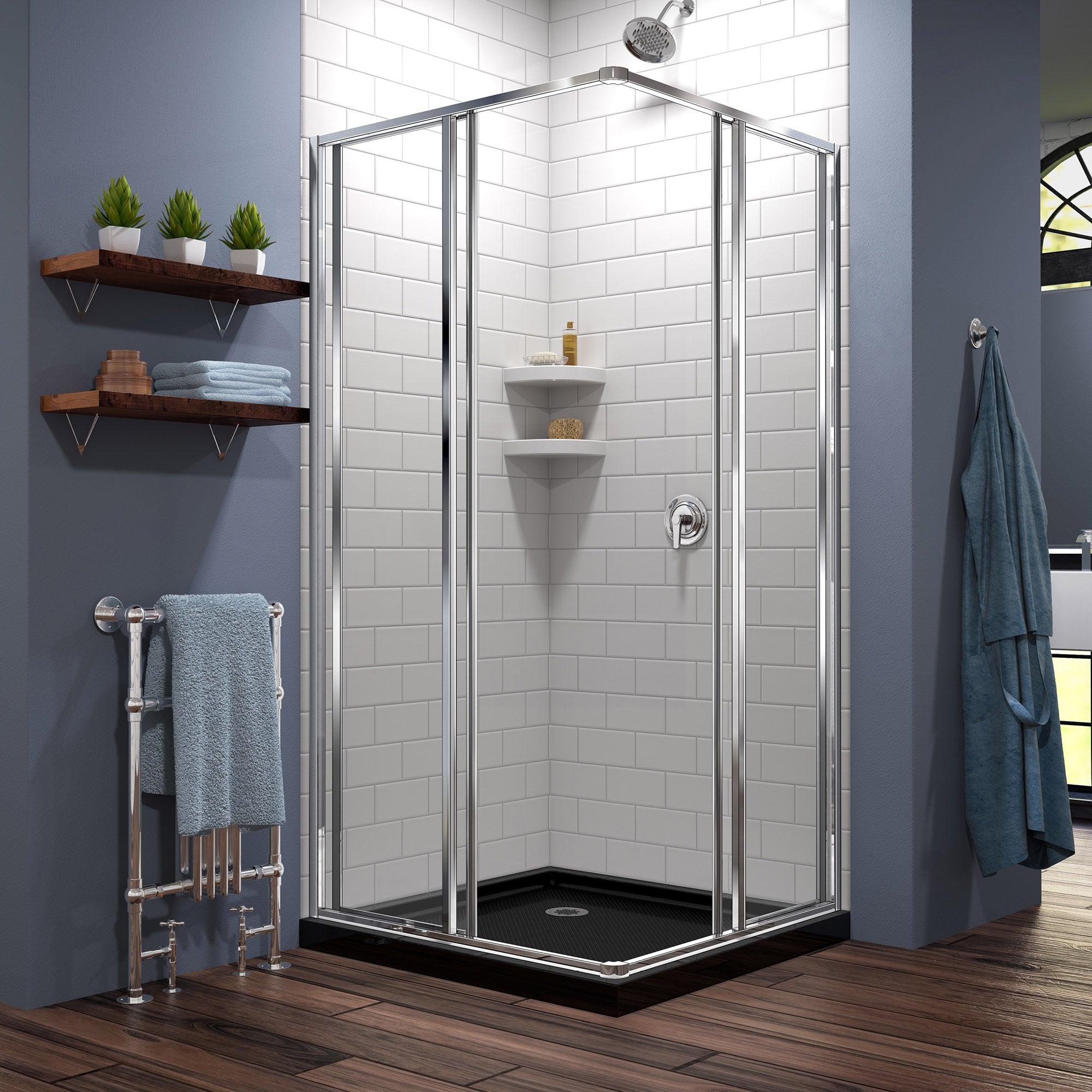

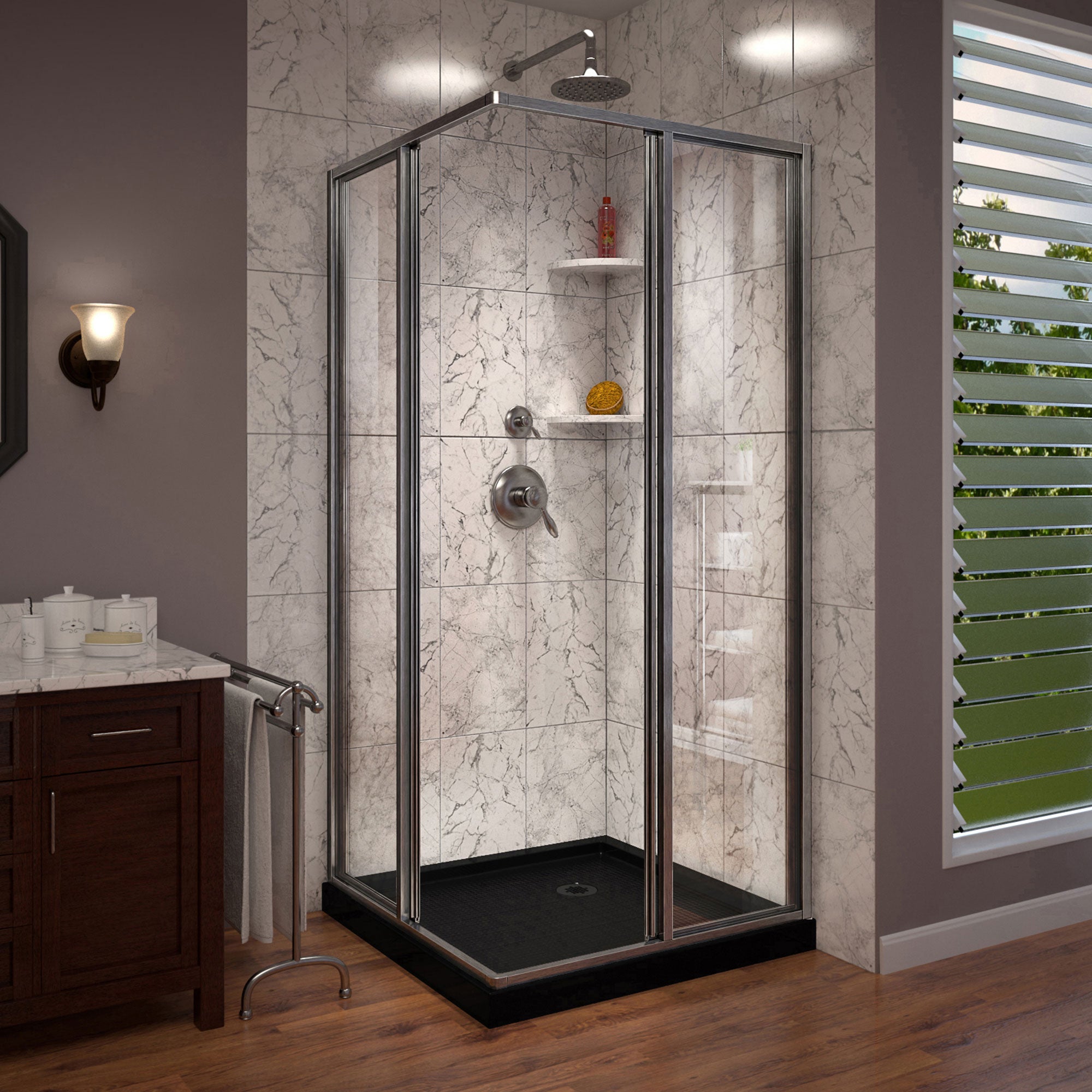

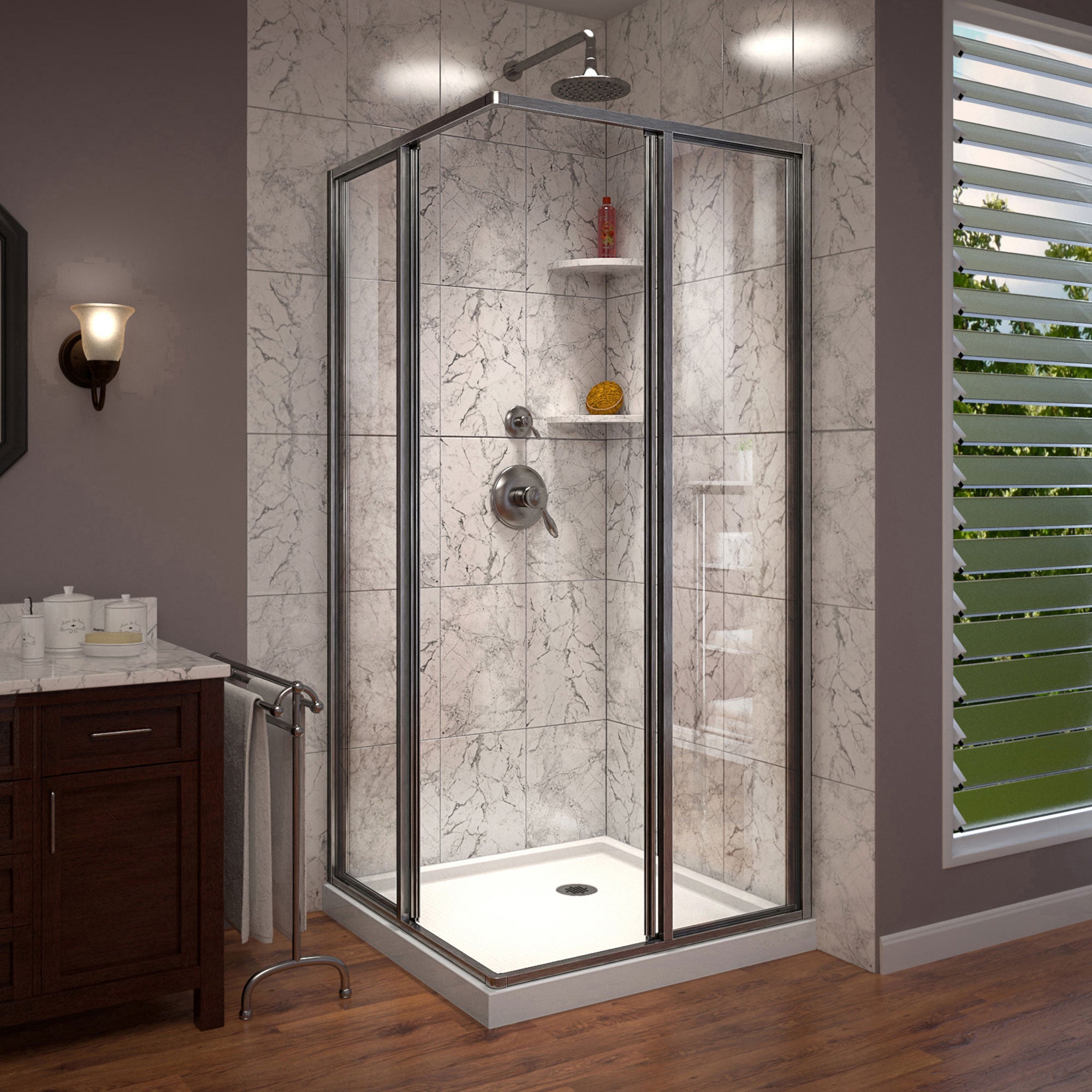

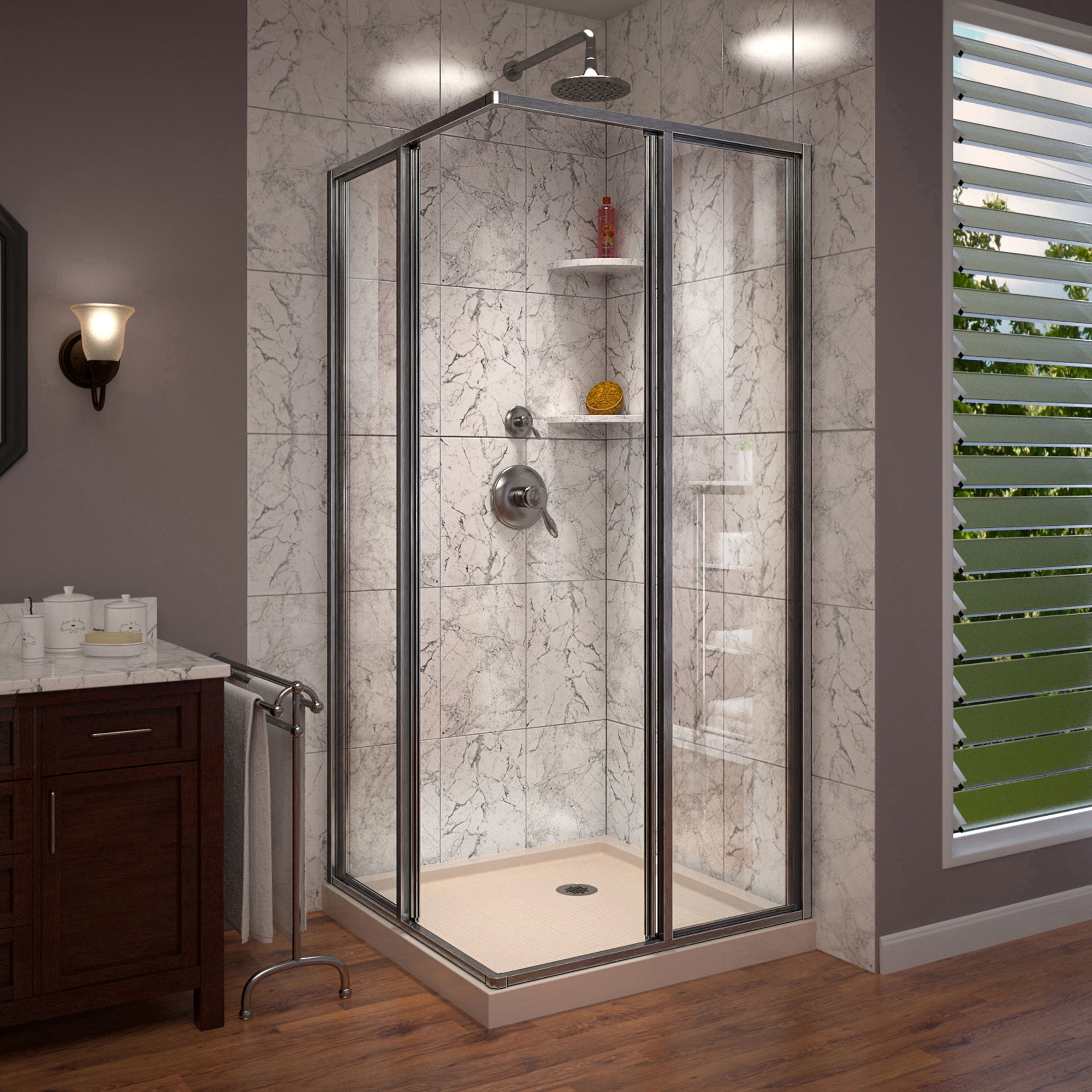

DreamLine Cornerview 36" W Shower Enclosure Kit
DreamLine Cornerview 36" W Shower Enclosure Kit
👀 18 people viewing this product
🛒 6 people added this to cart today
📞 Call 732-494-8670 for the best deal
Hurry up, only 10 items left in stock.

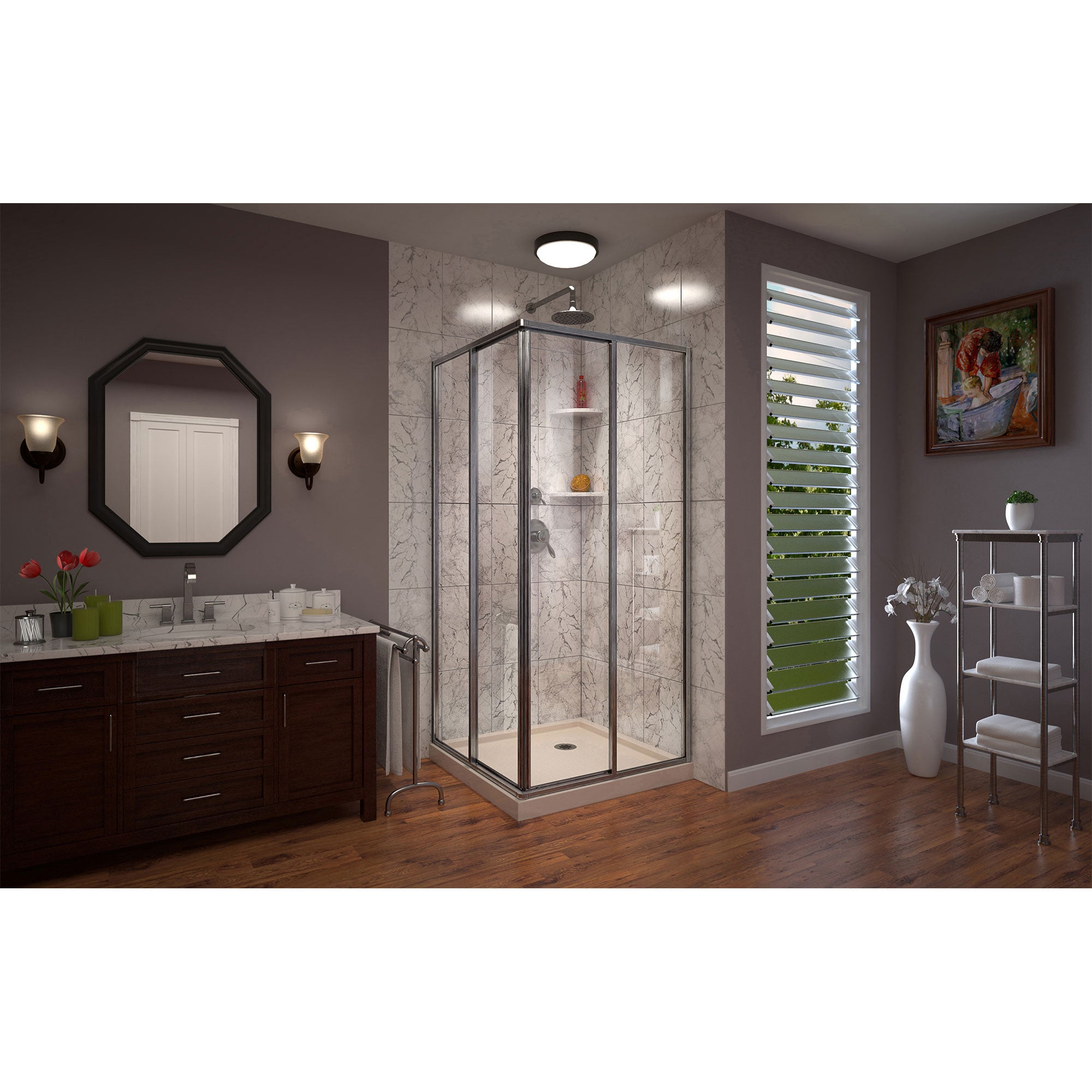

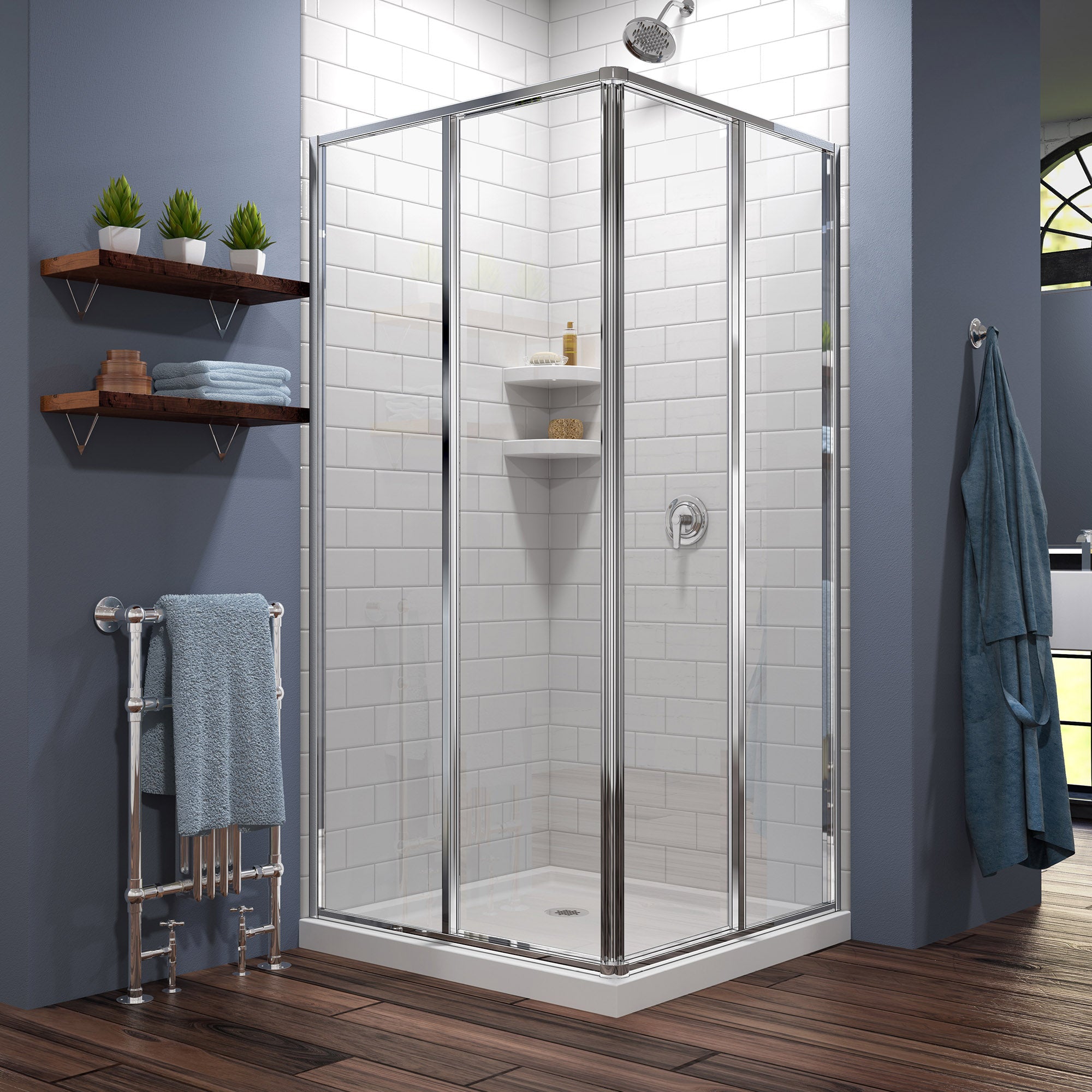

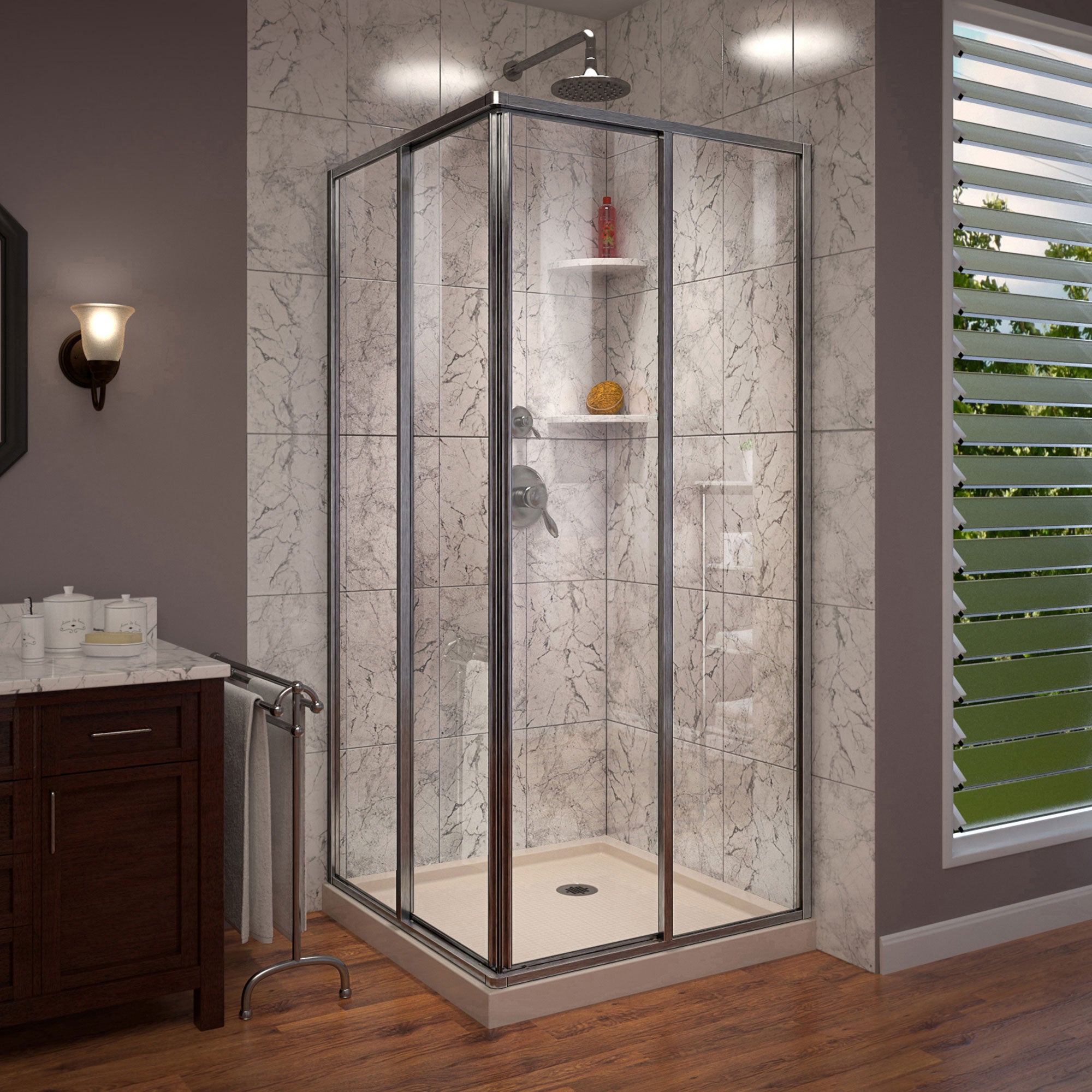

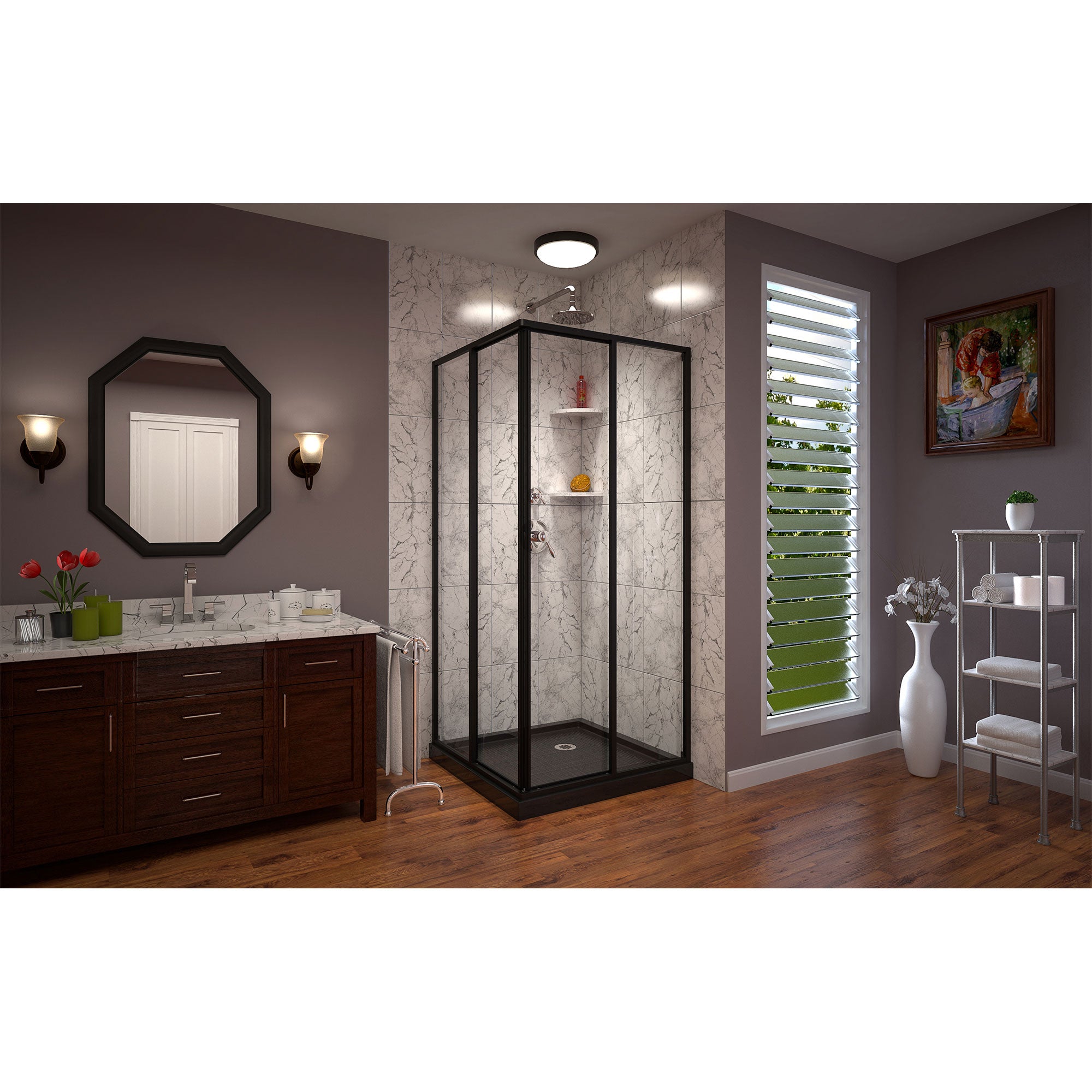

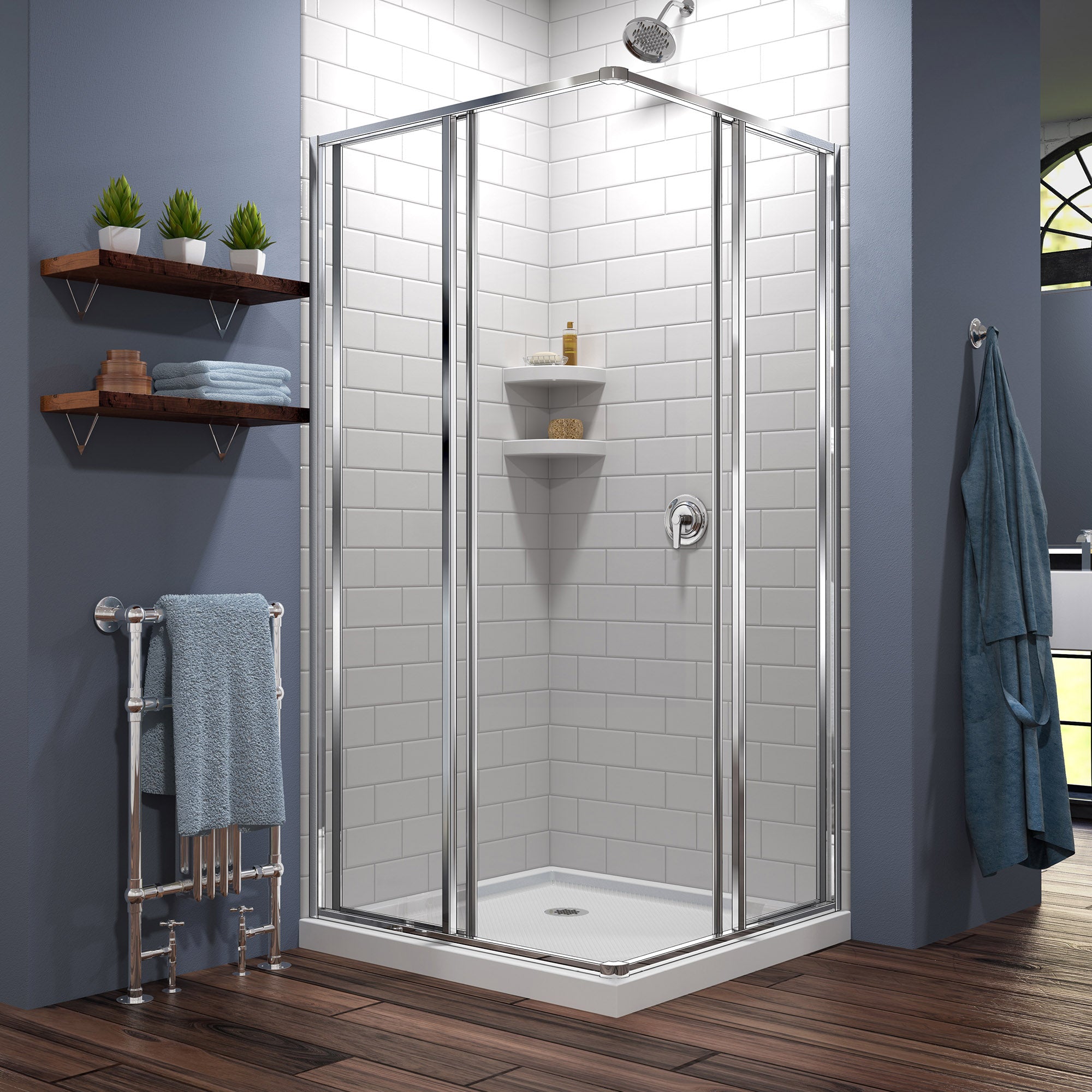

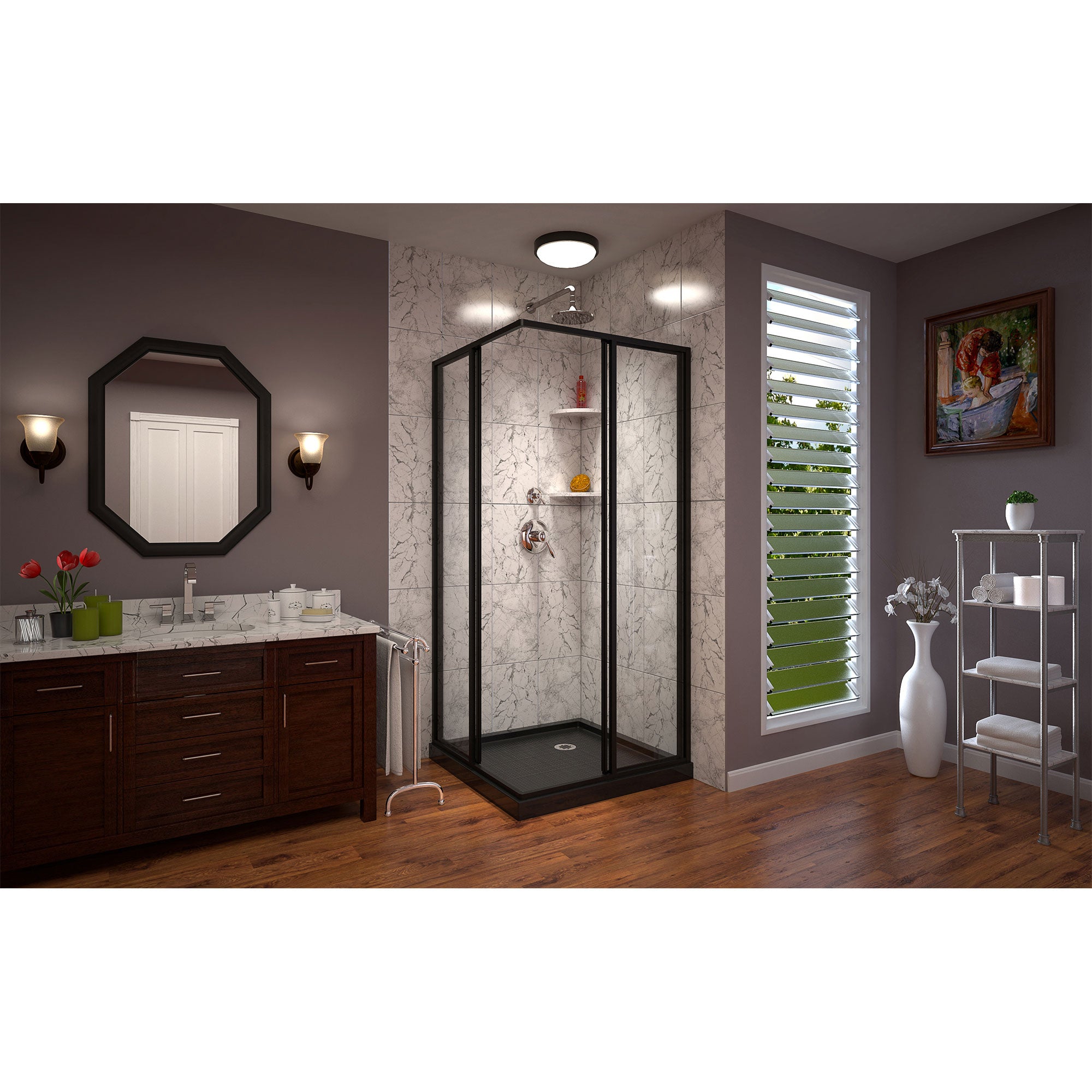

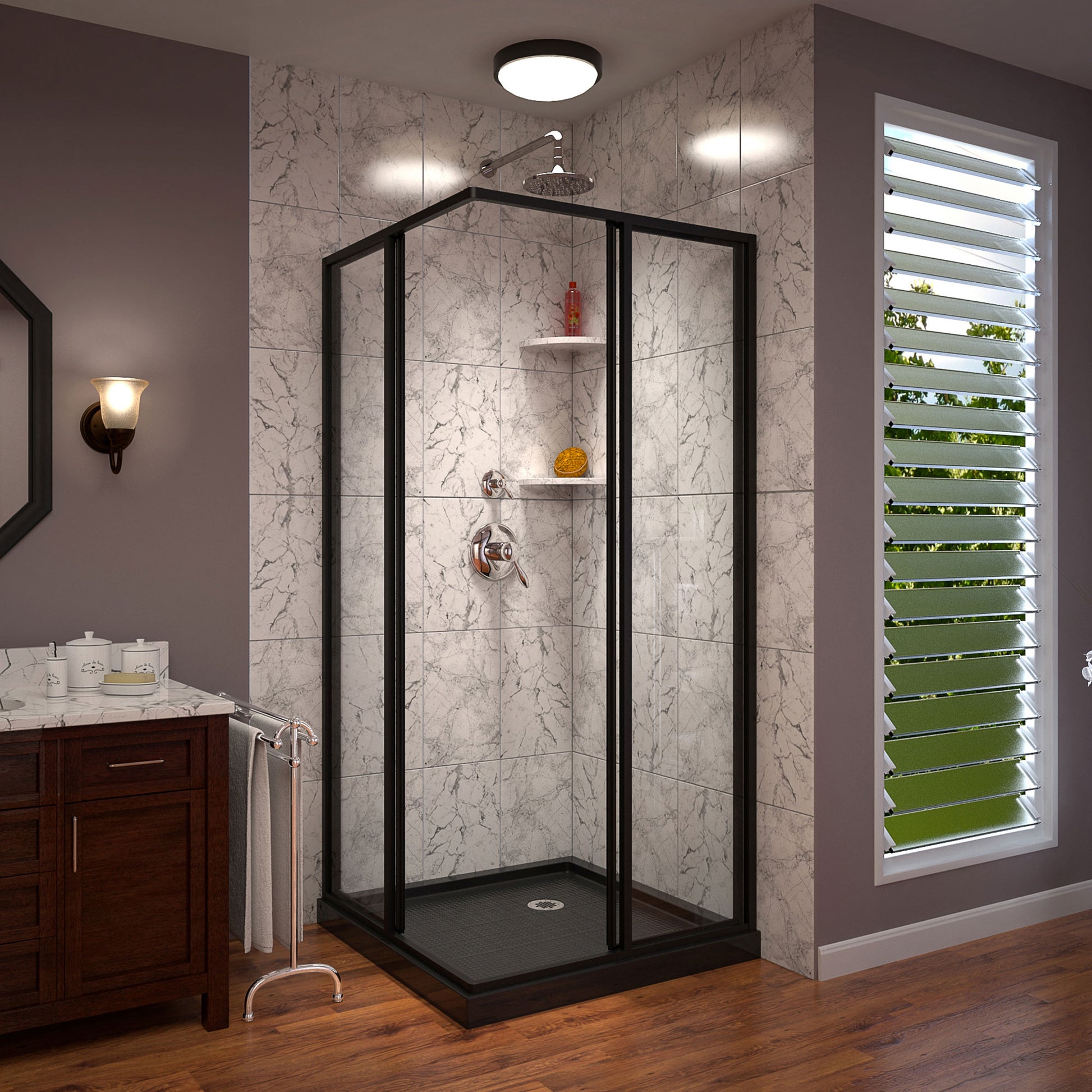

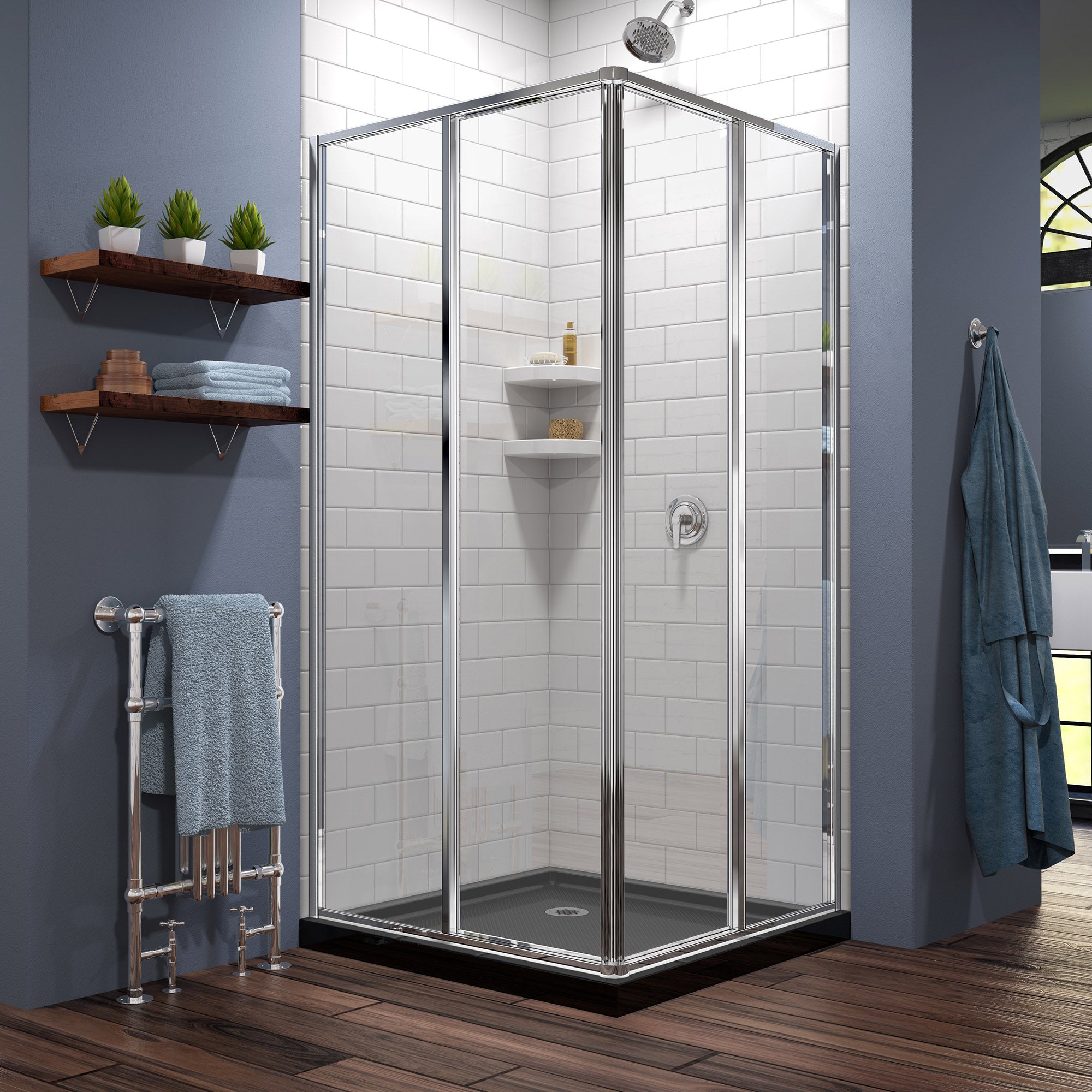

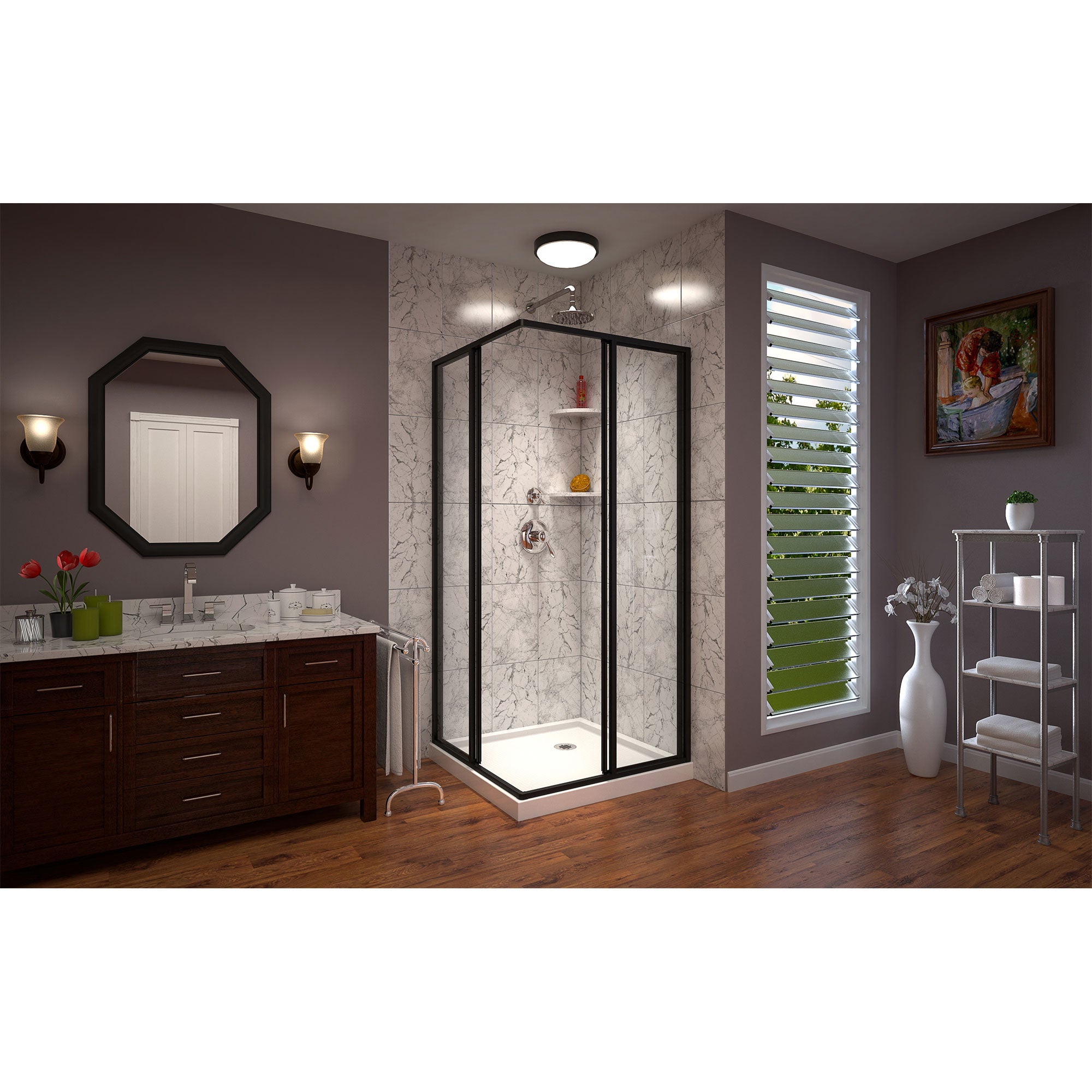

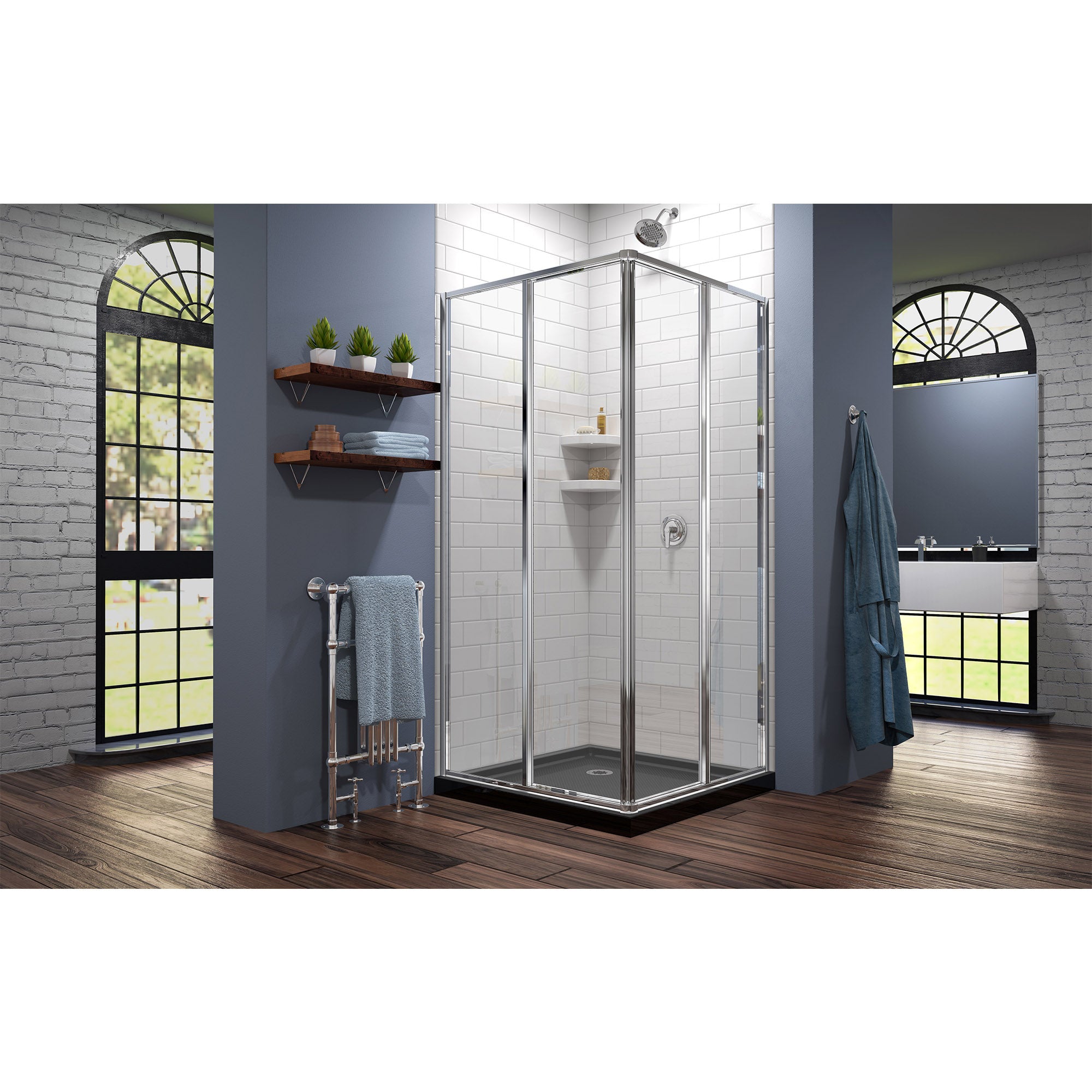

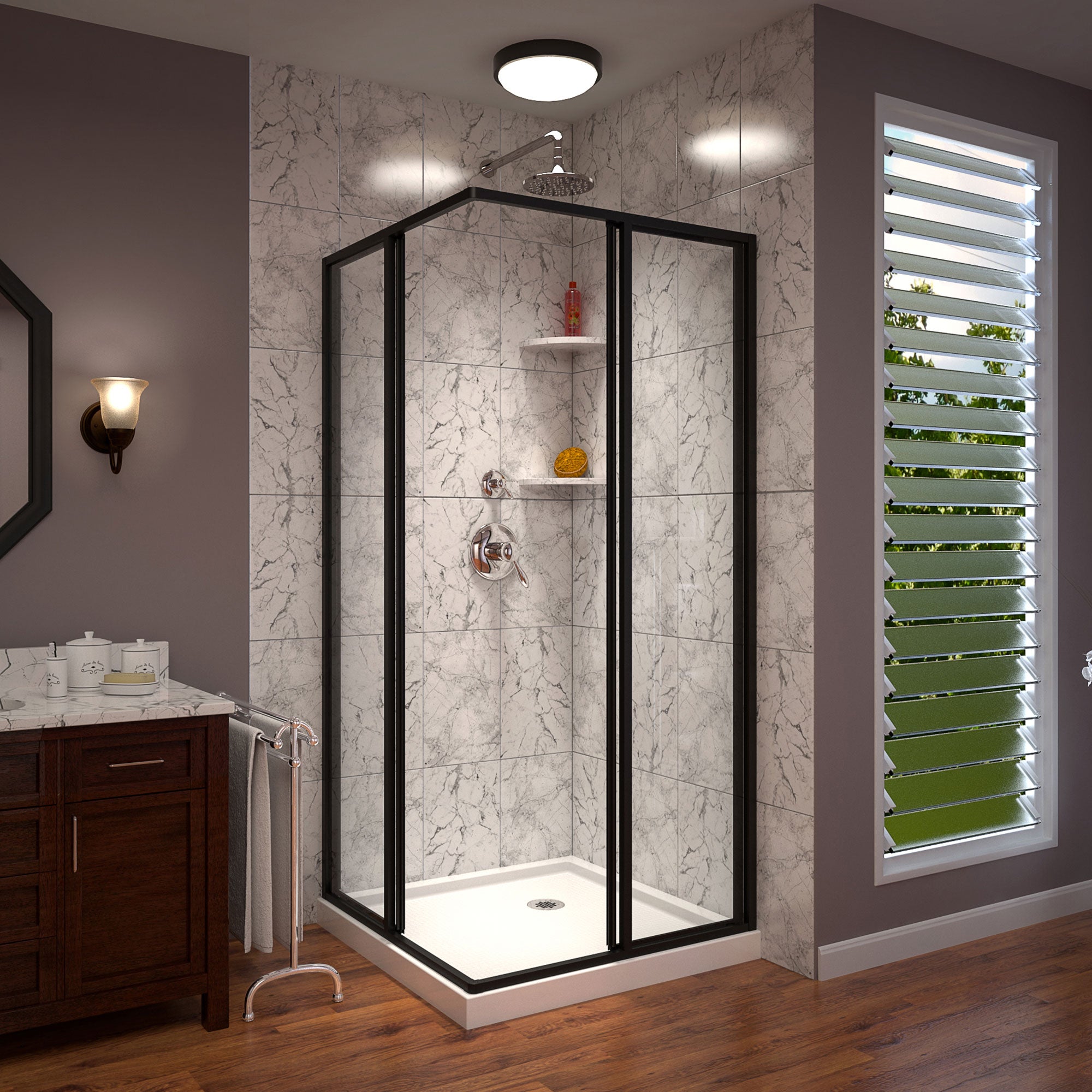

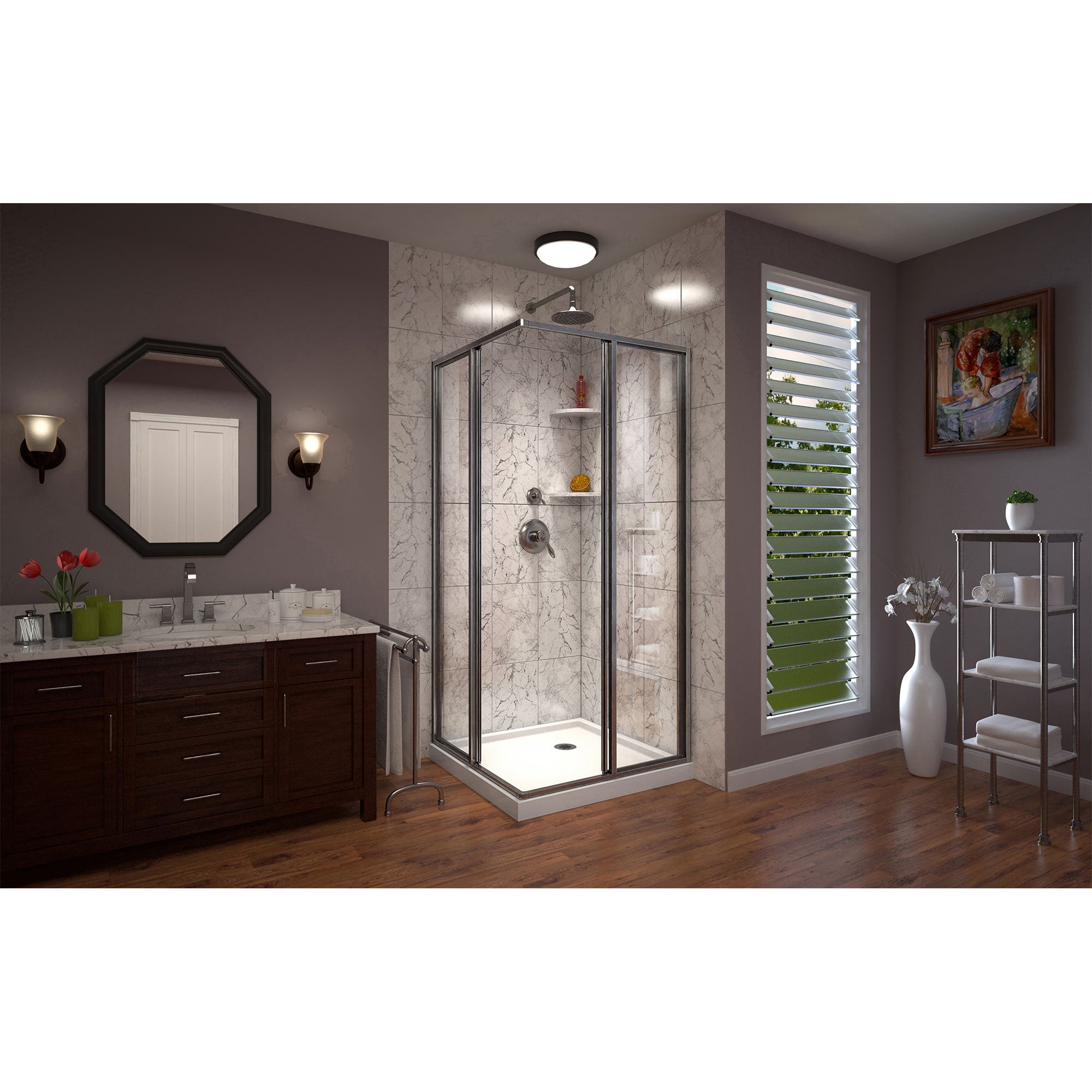

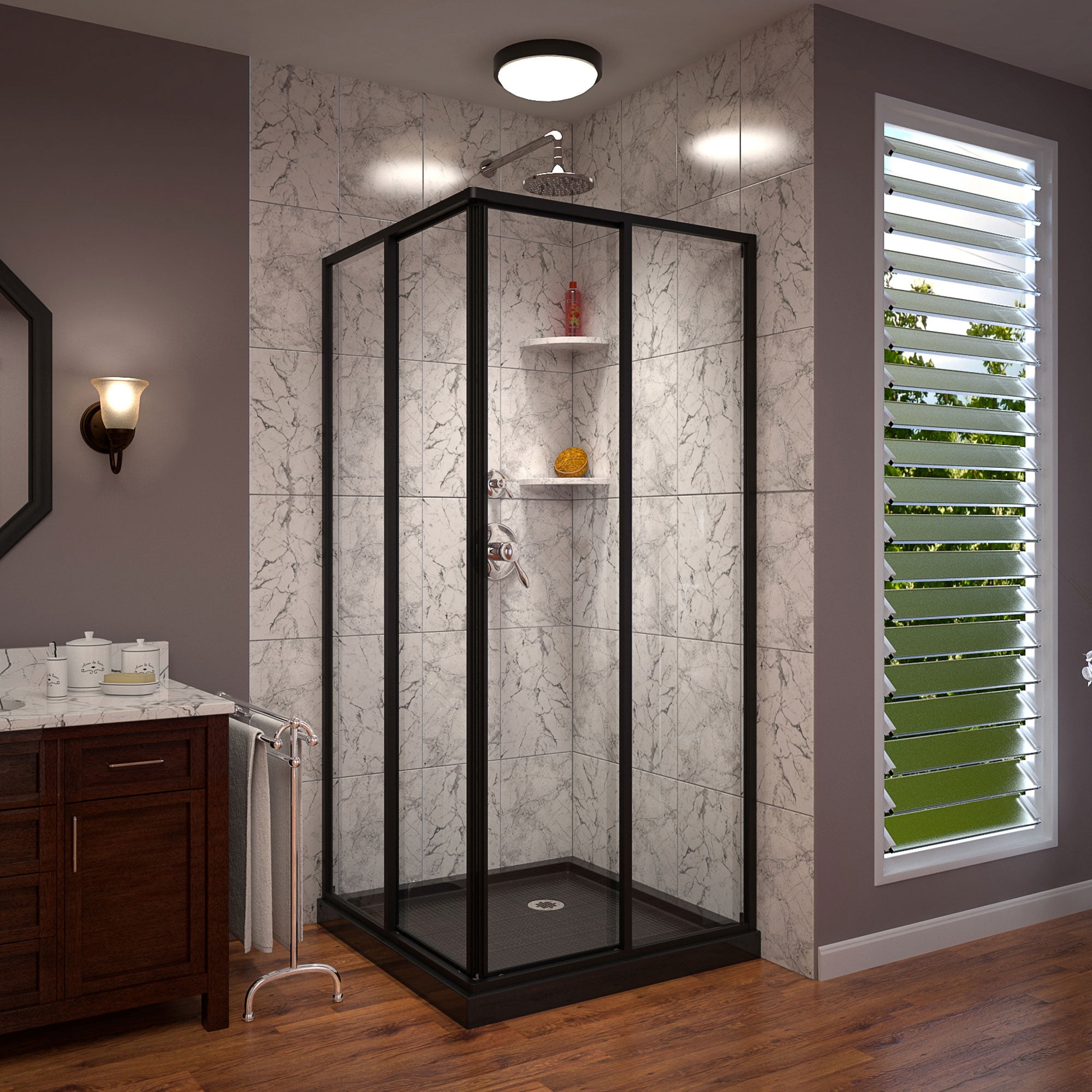

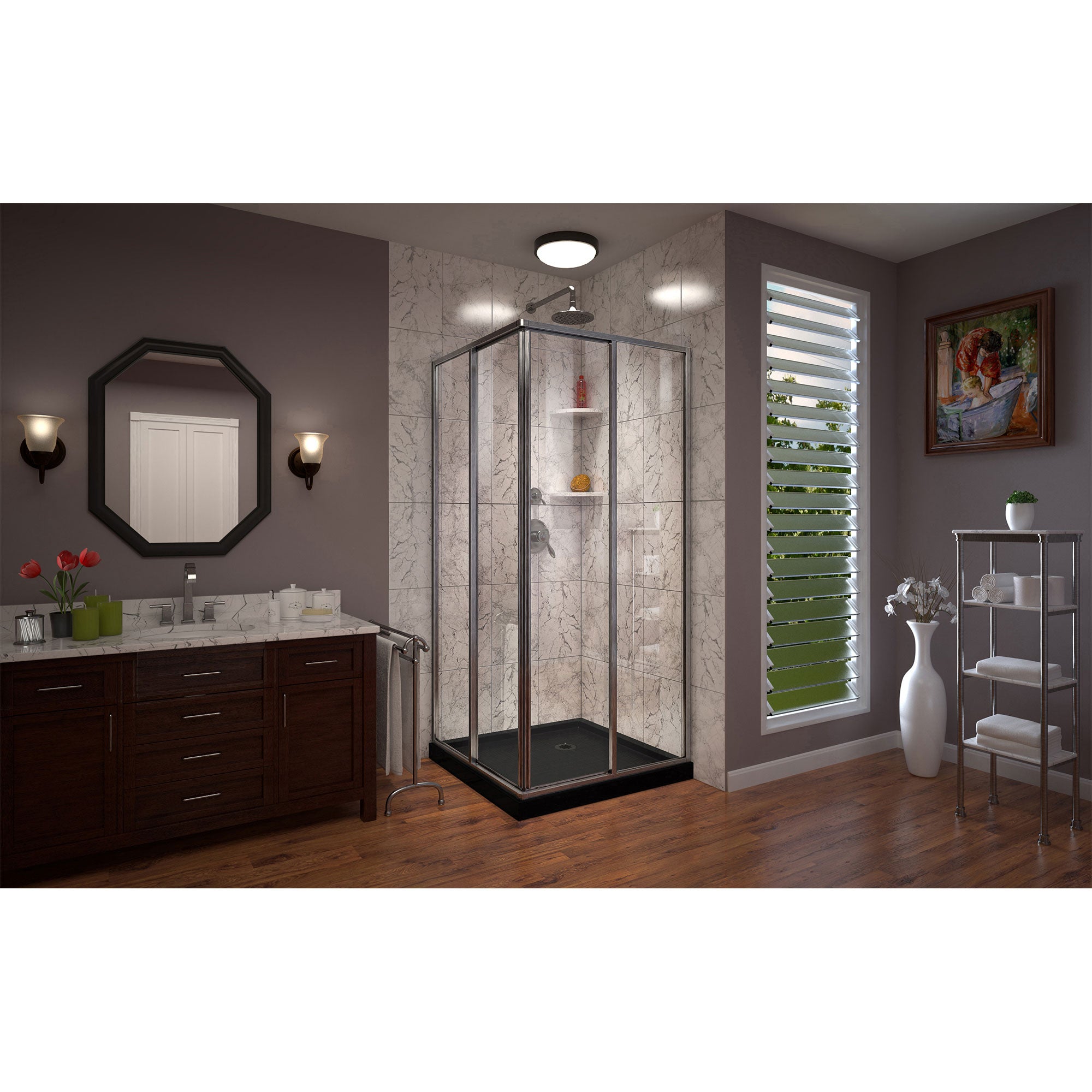

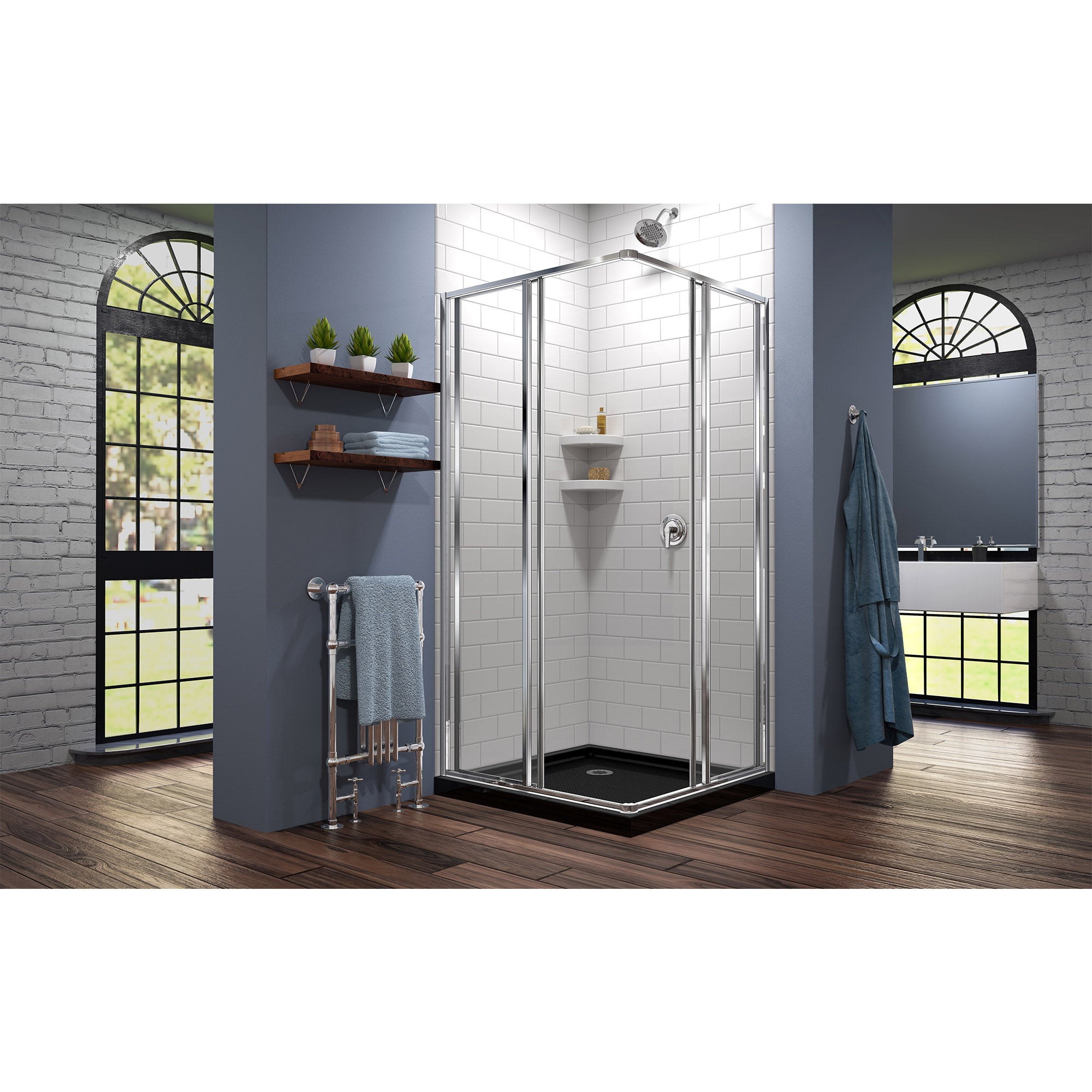

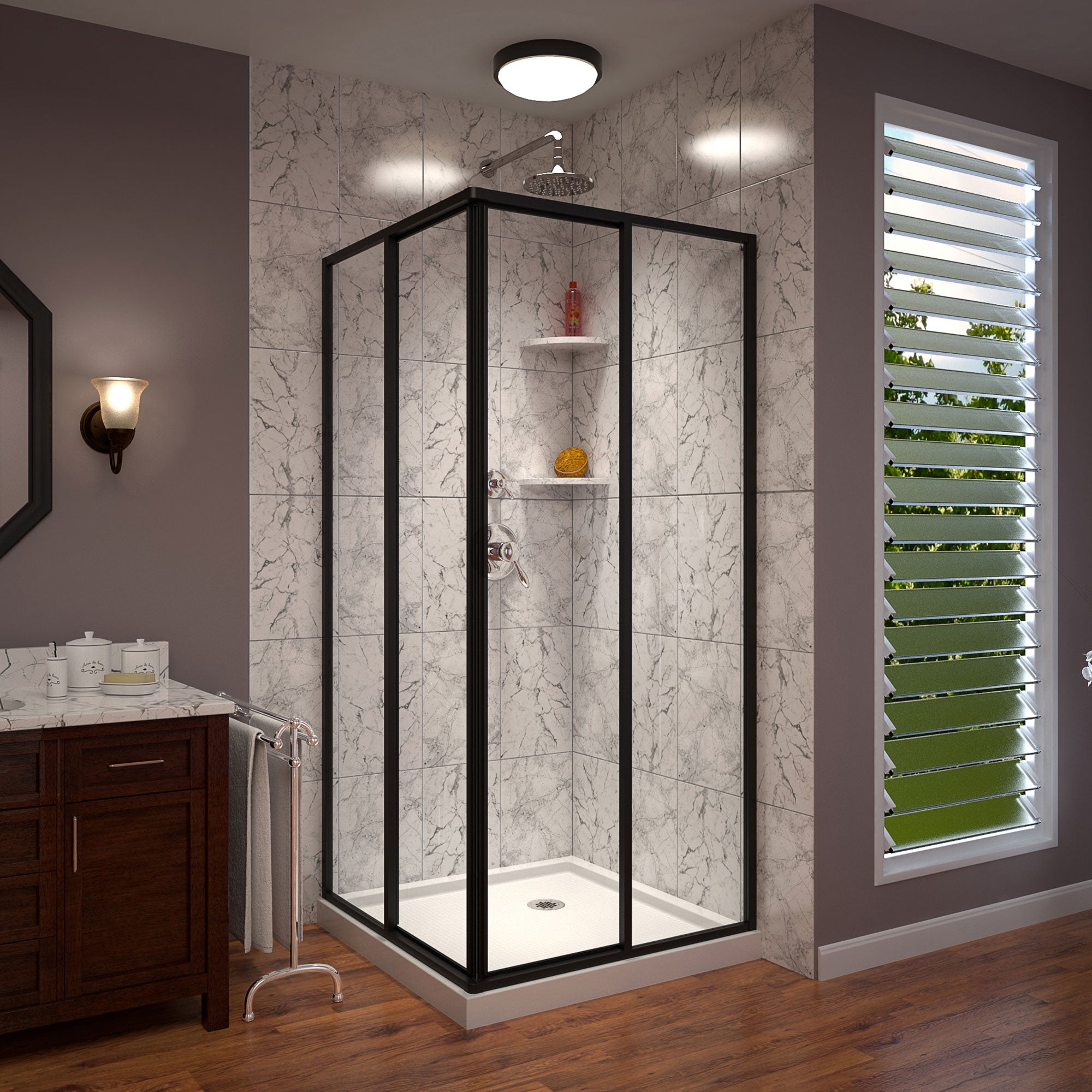

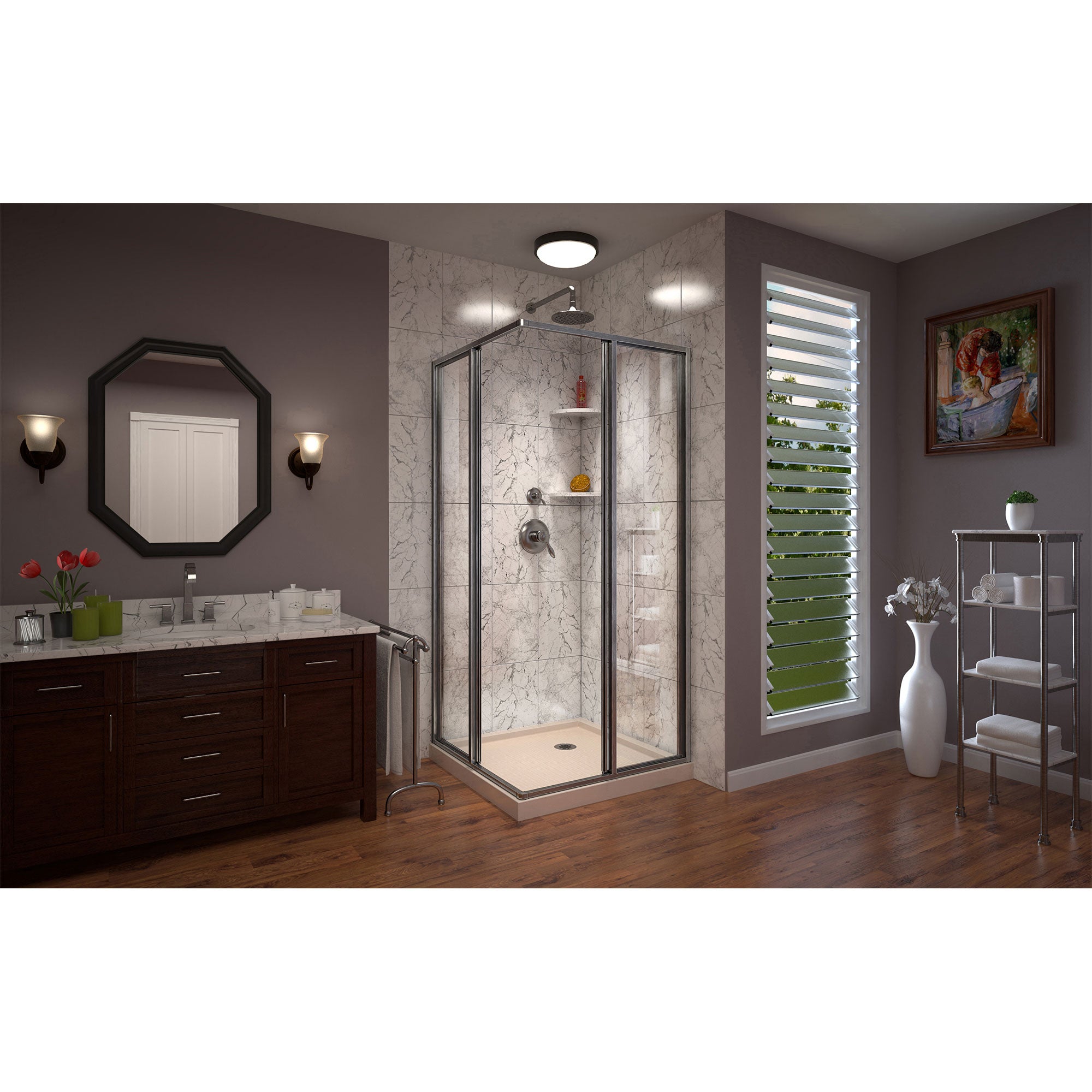

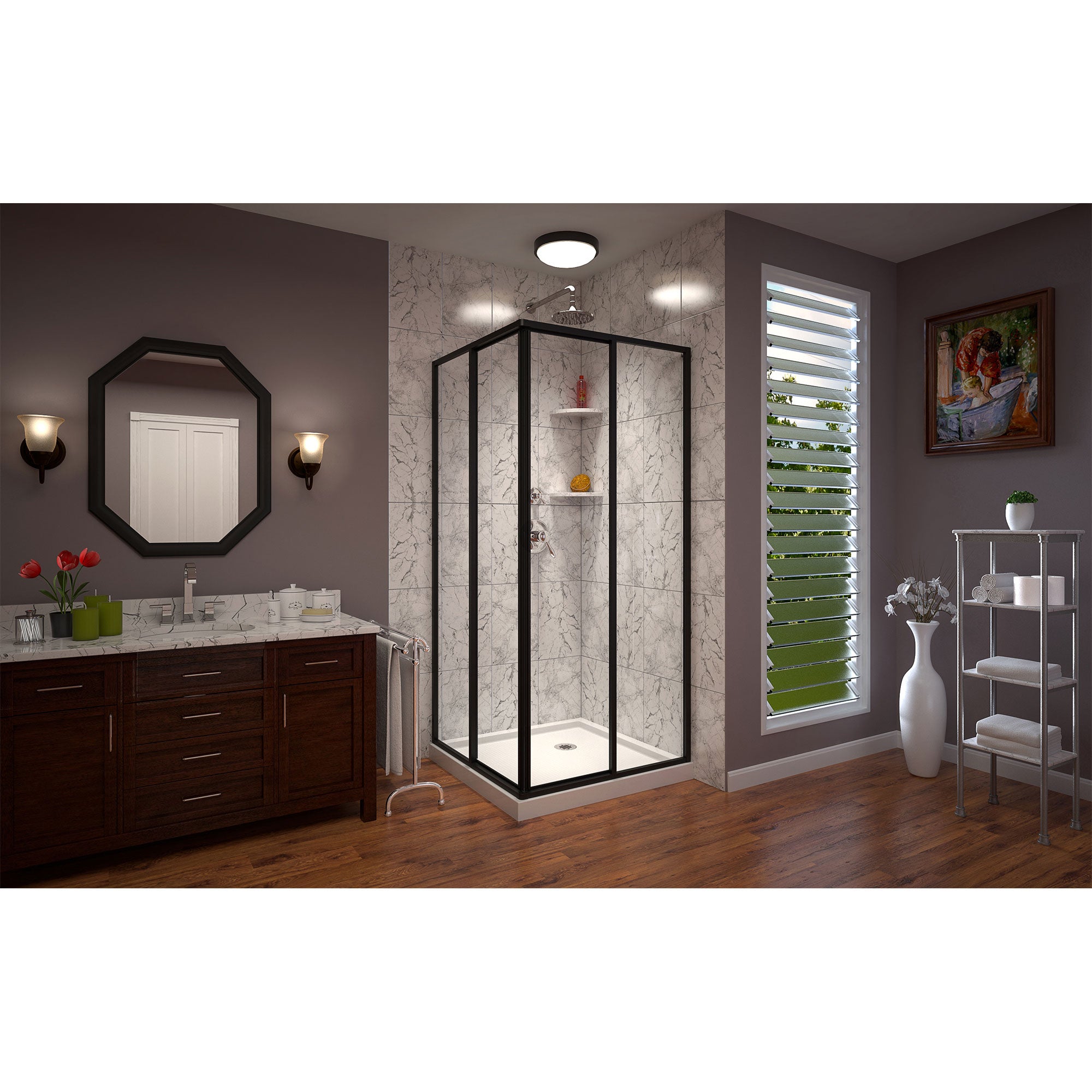

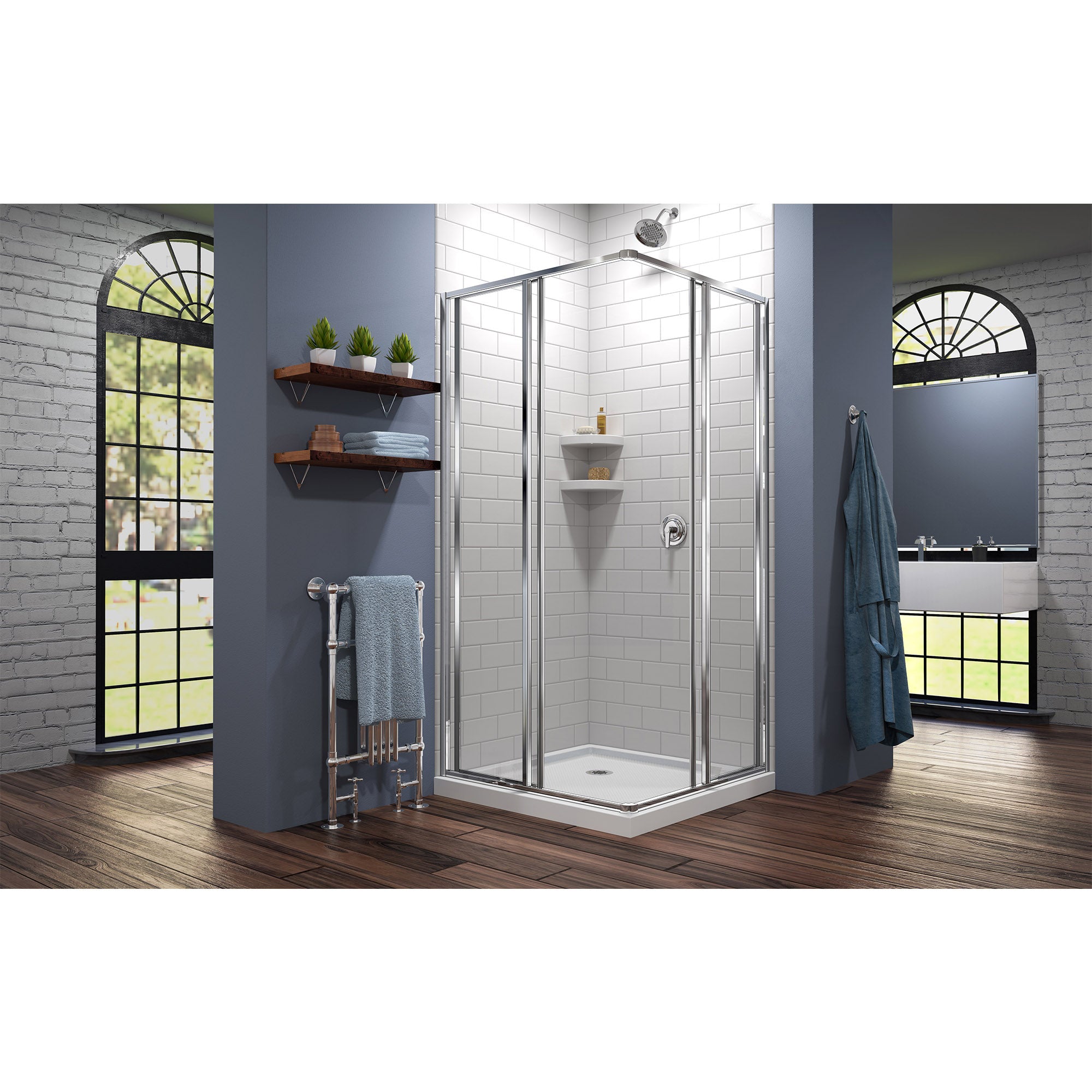

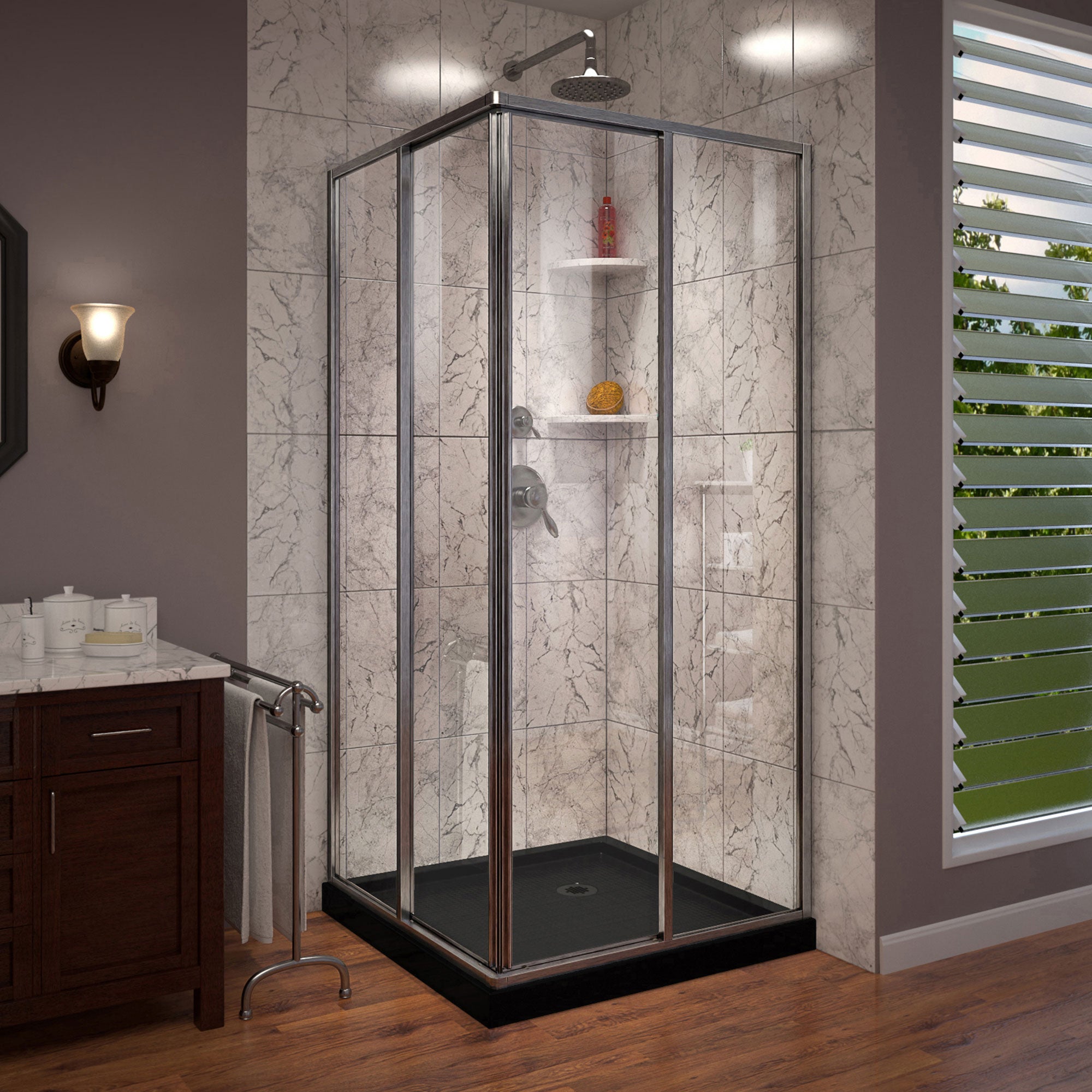

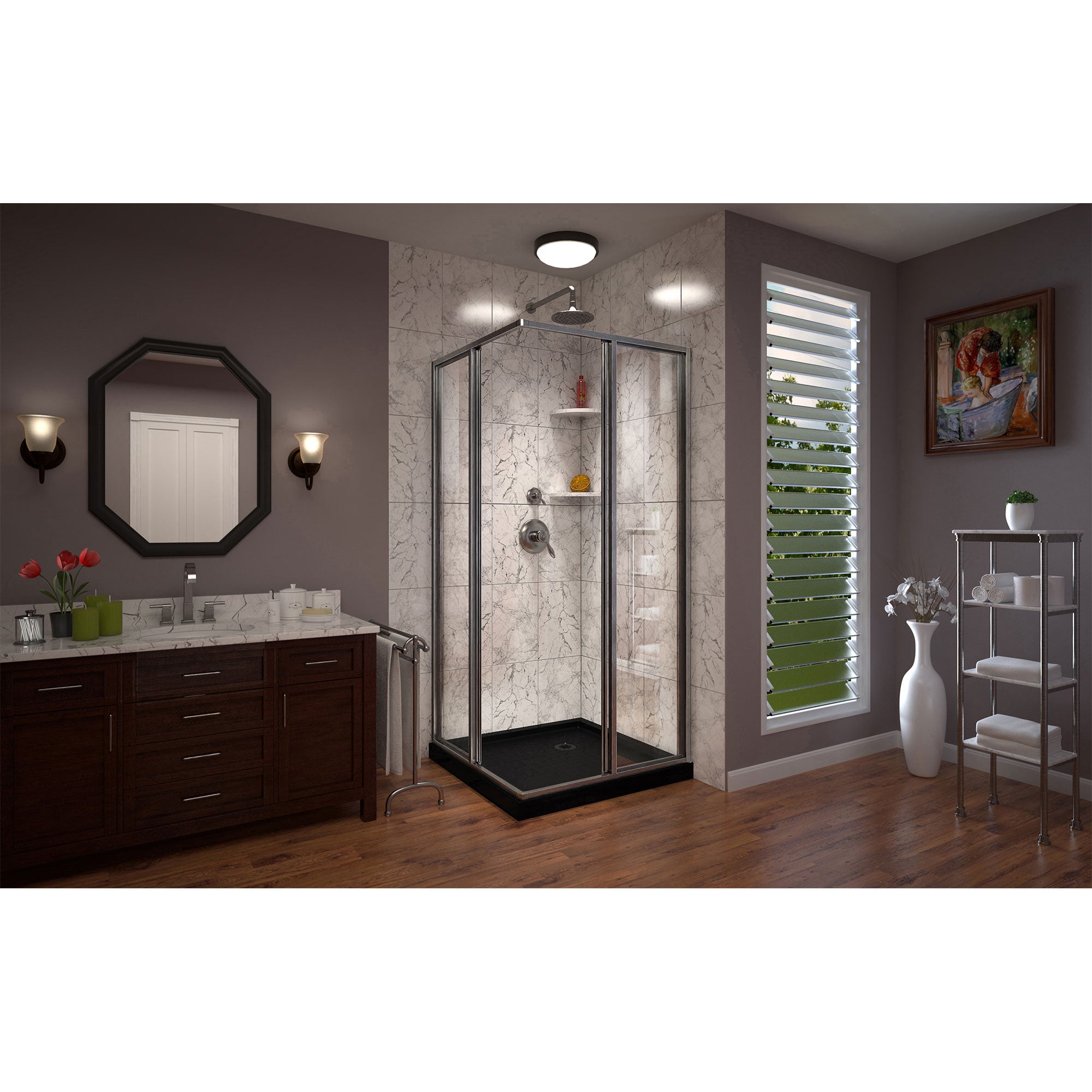

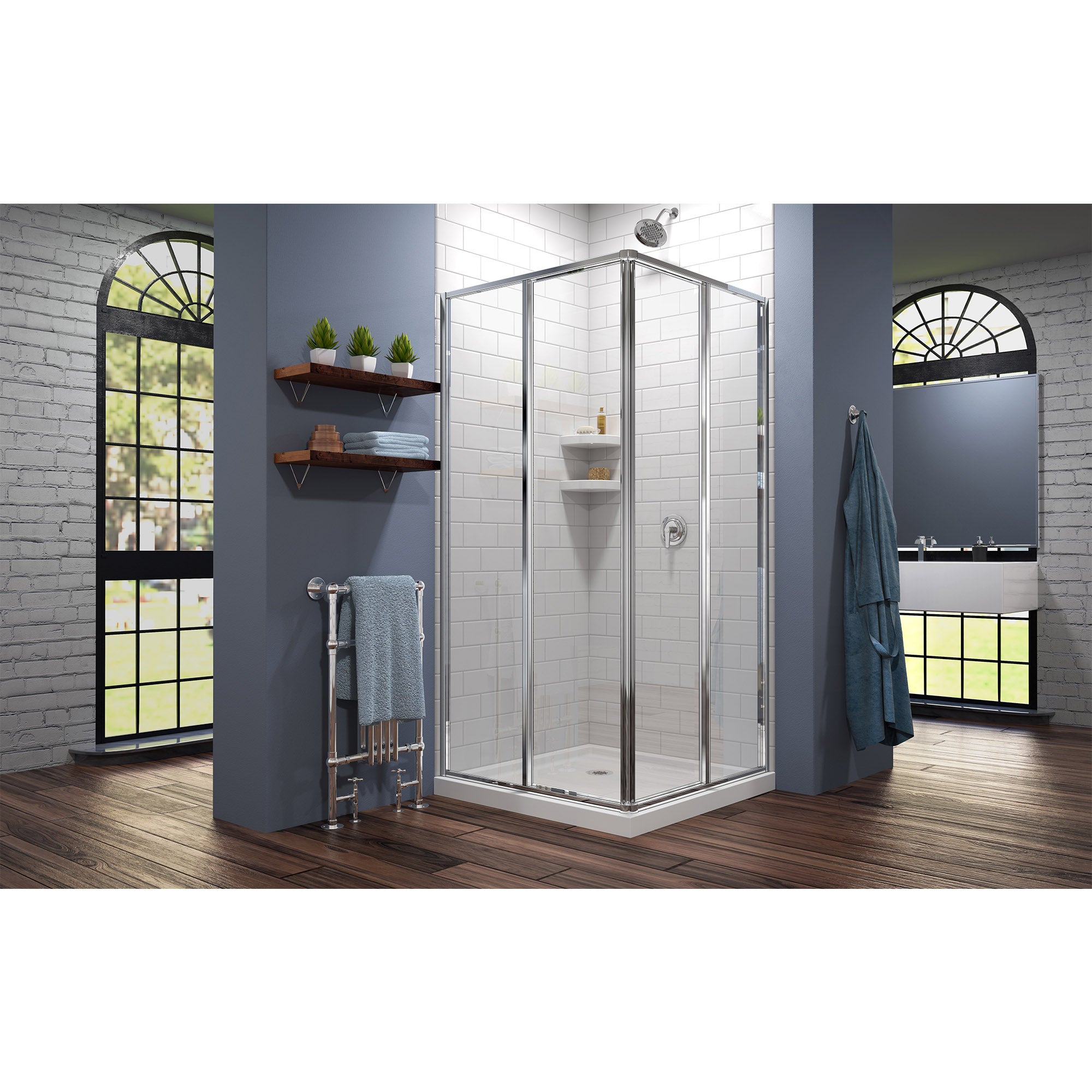

This kit combines a CORNERVIEW shower enclosure with a coordinating SlimLine shower base. The CORNERVIEW shower enclosure is a perfect combination of solid construction and timeless design. The corner installation provides an effective solution to maximize space. A SlimLine shower base completes the transformation with a modern low profile design. DreamLine shower kits provide a complete solution to makeover a shower space.
Features:
- Kit Includes: Cornerview Enclosure and SlimLine Shower Base

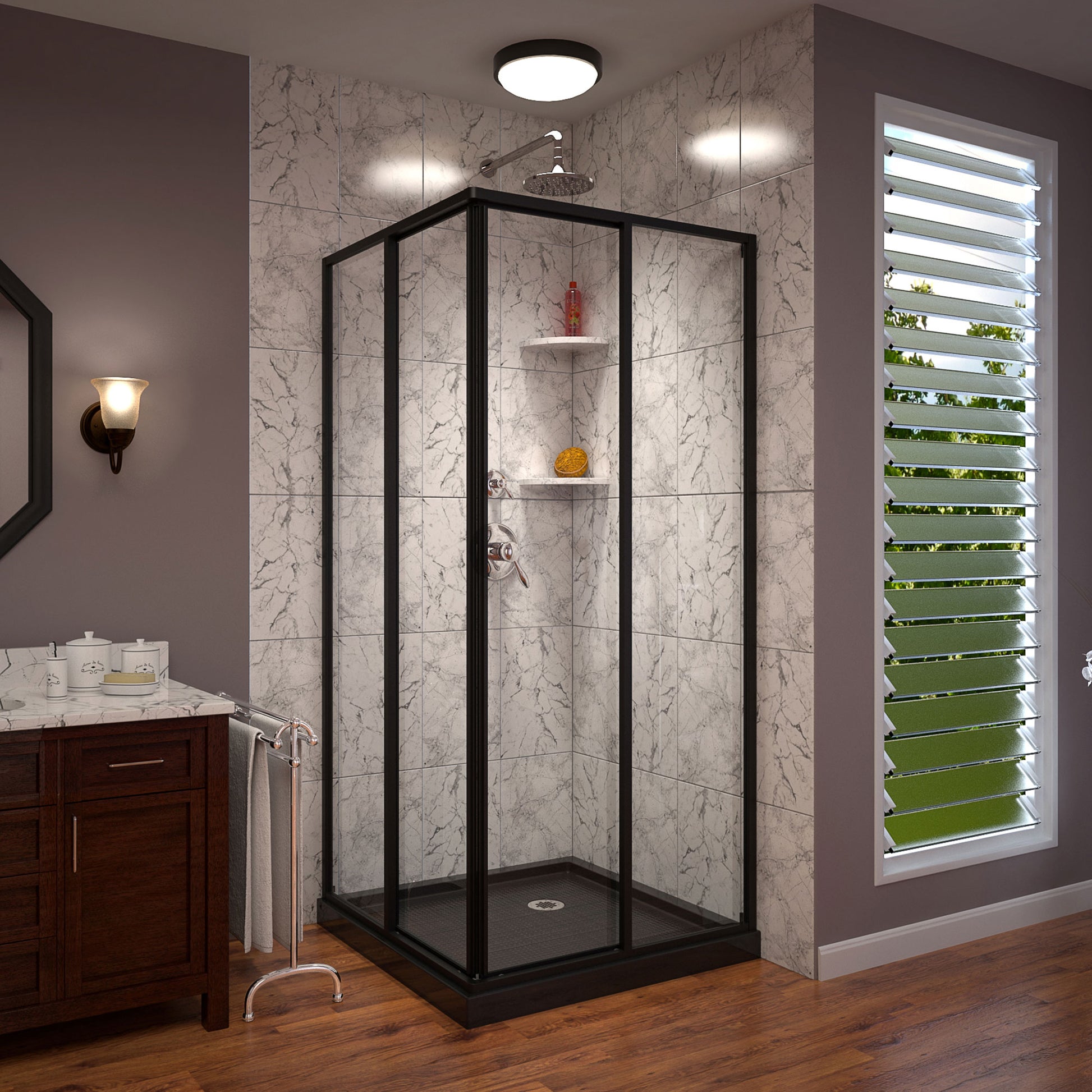

- Kit Size: 36 in. D x 36 in. W x 74 3/4 in. H; Walk-in Opening: 20 3/4 in.; Hardware Finish: Matte Black; Base Color: Black

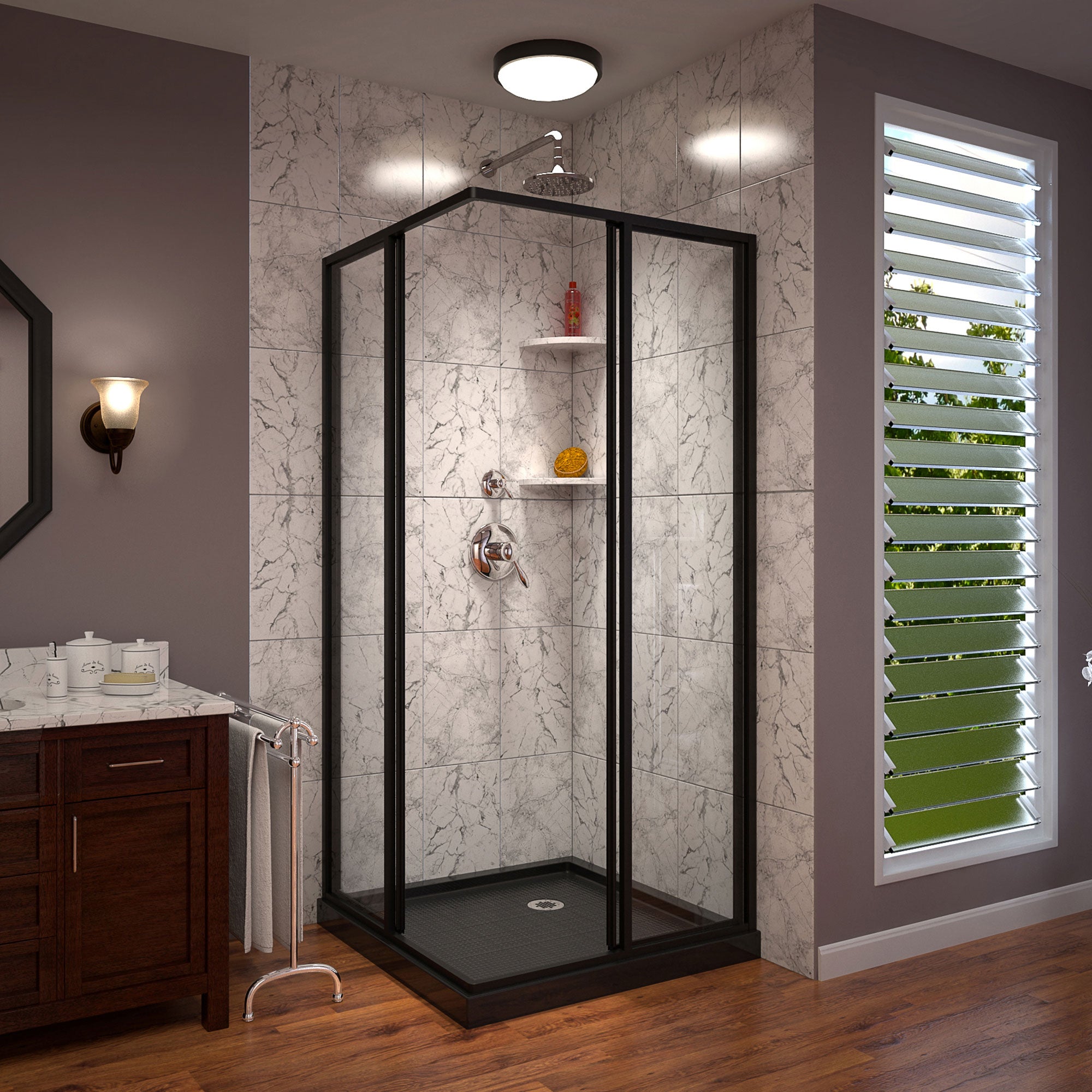

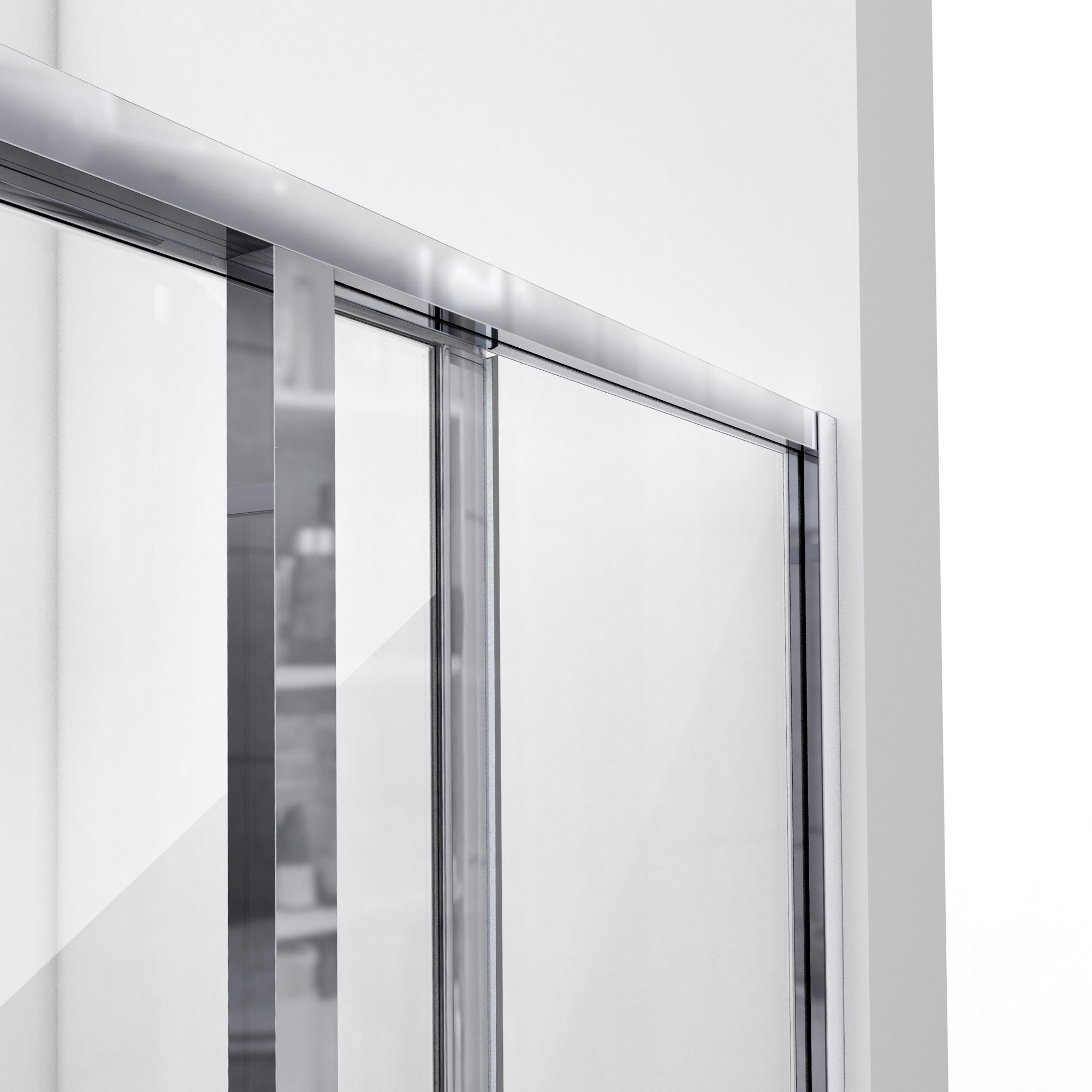

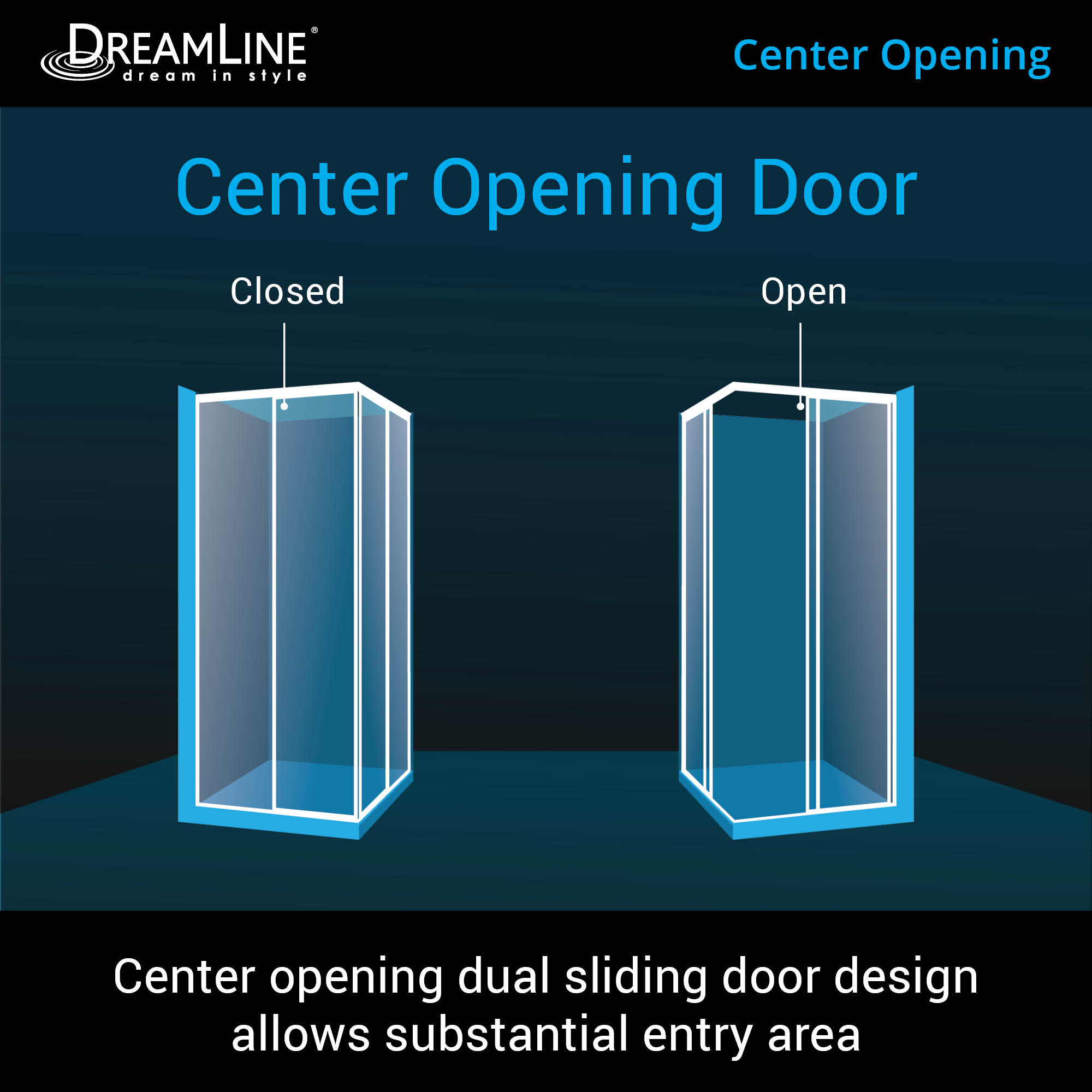

- Two sliding panels, with two stationary panels on sides meet to create corner walk through

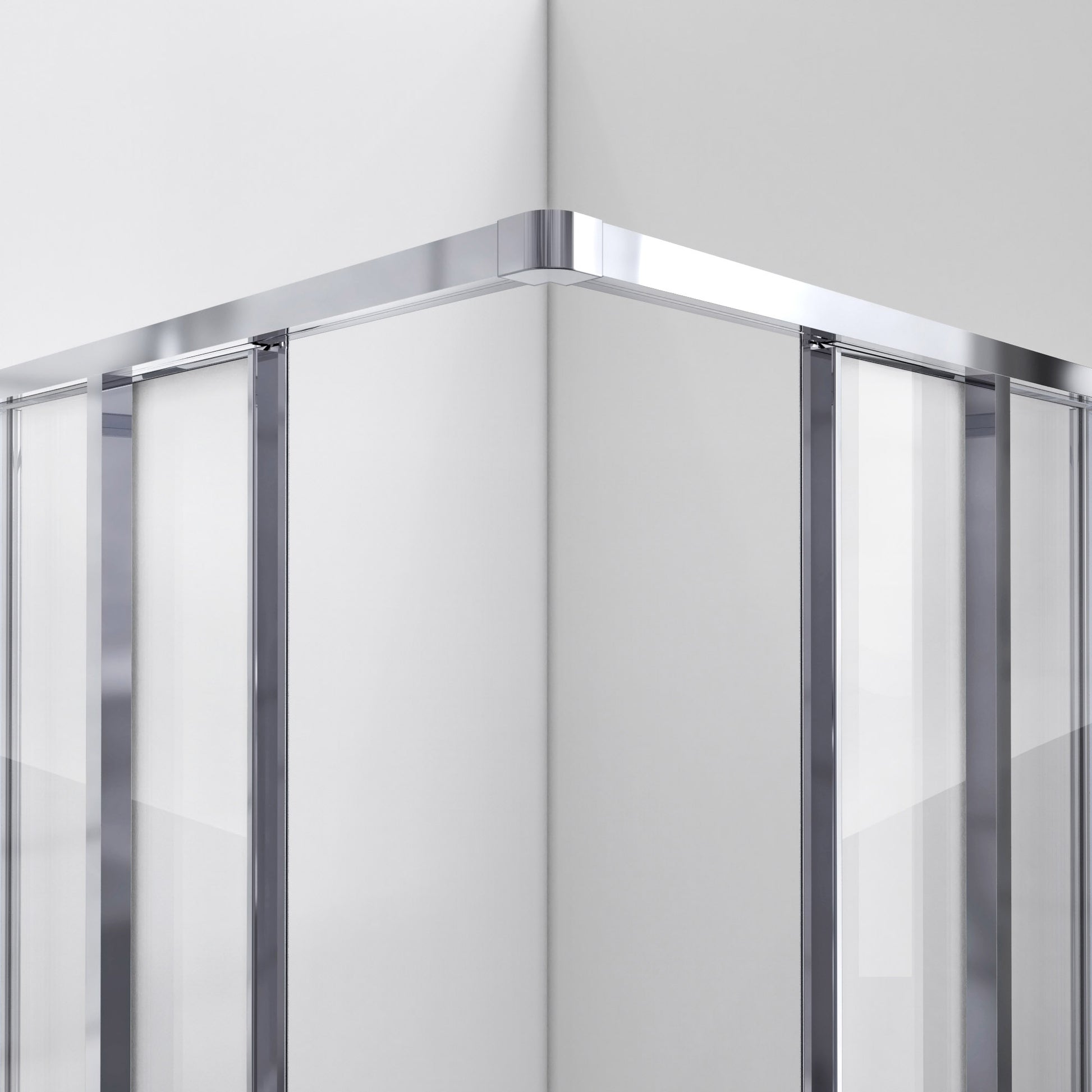

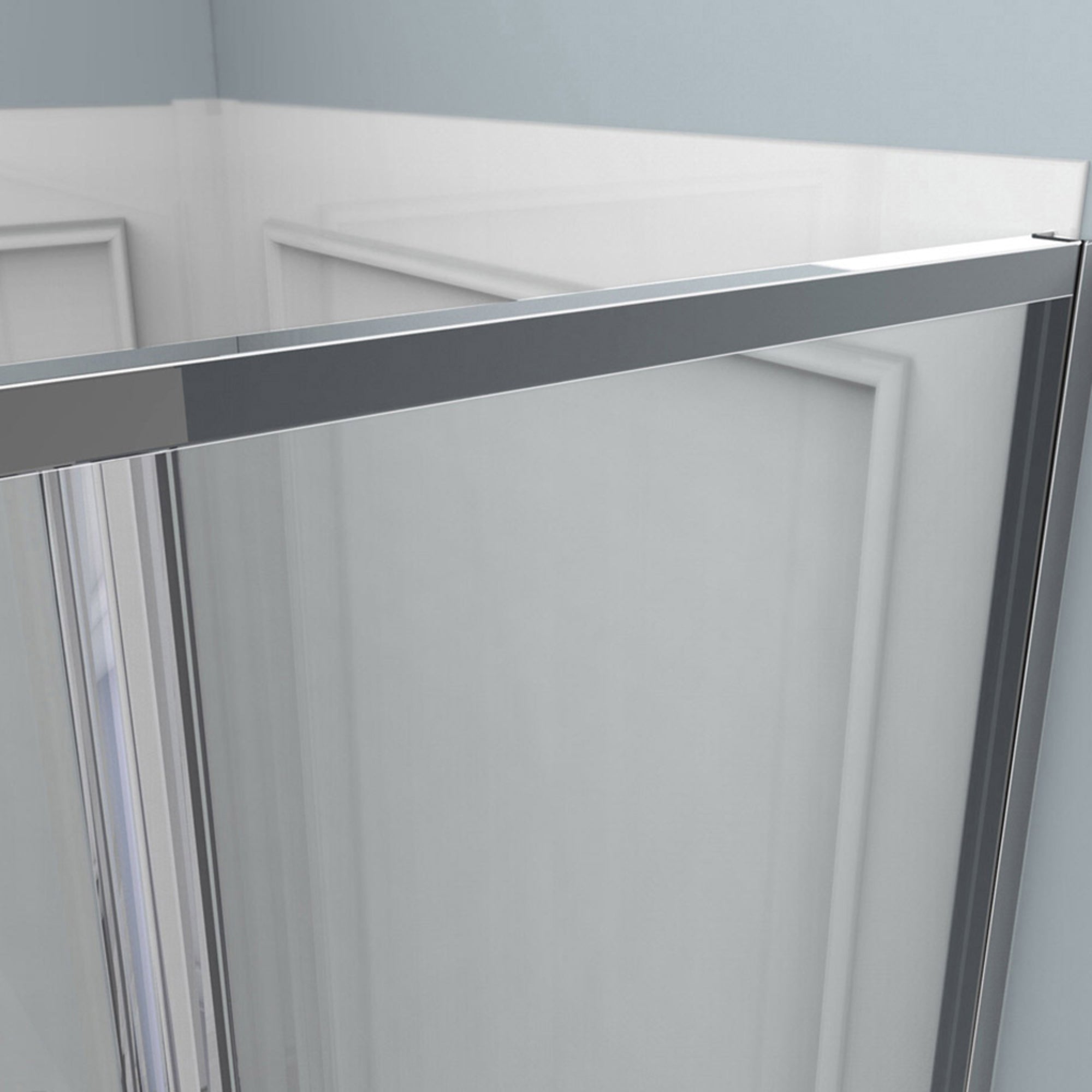

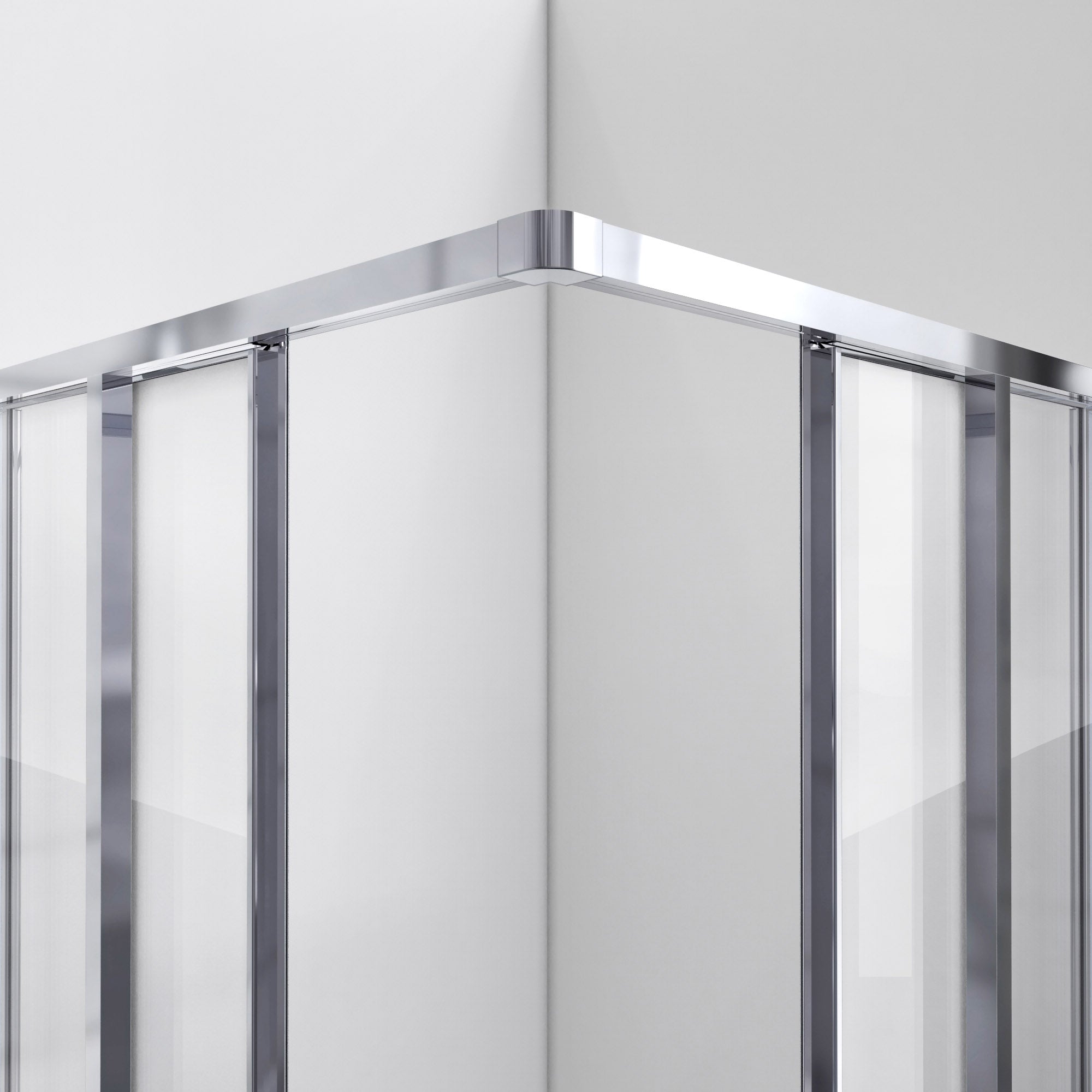

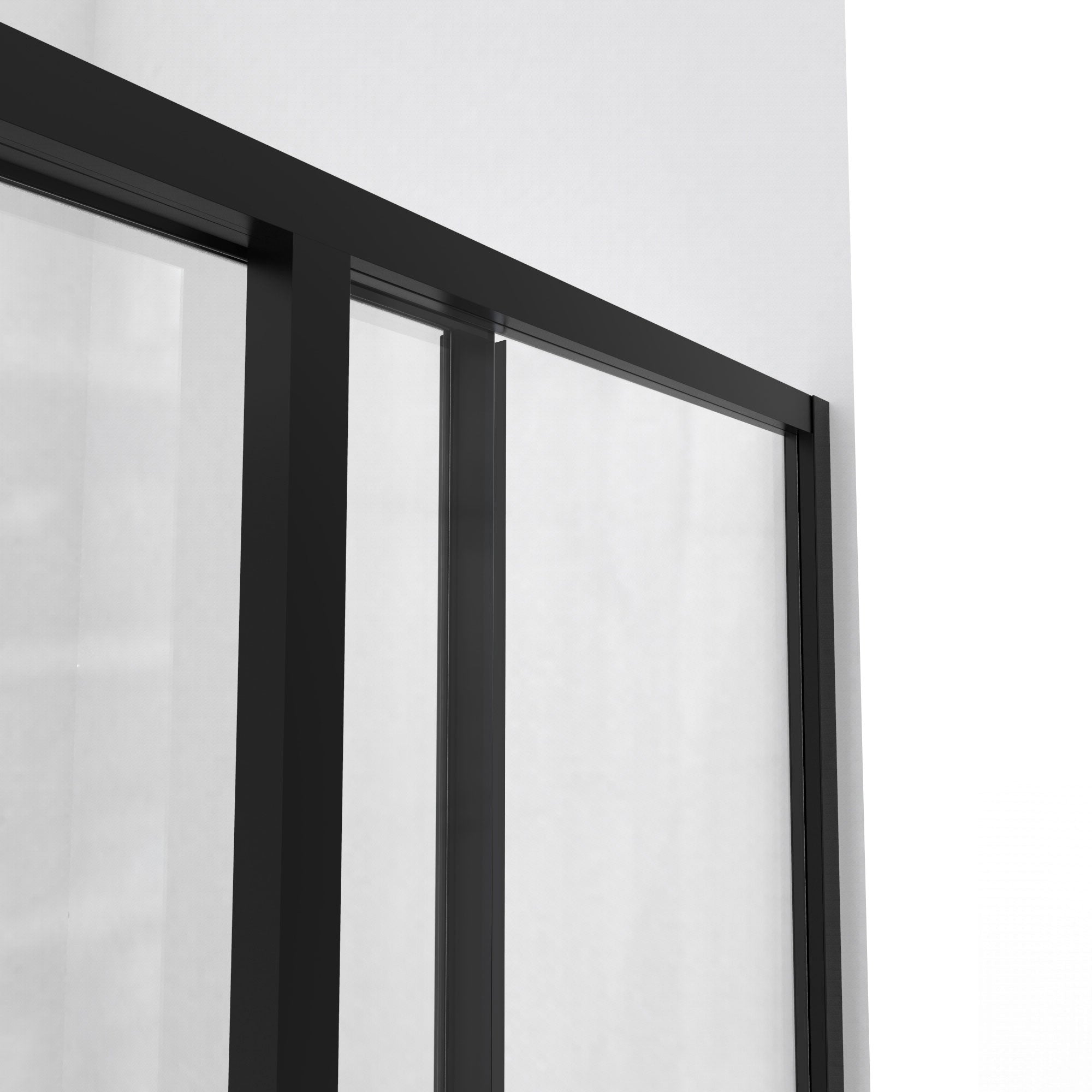

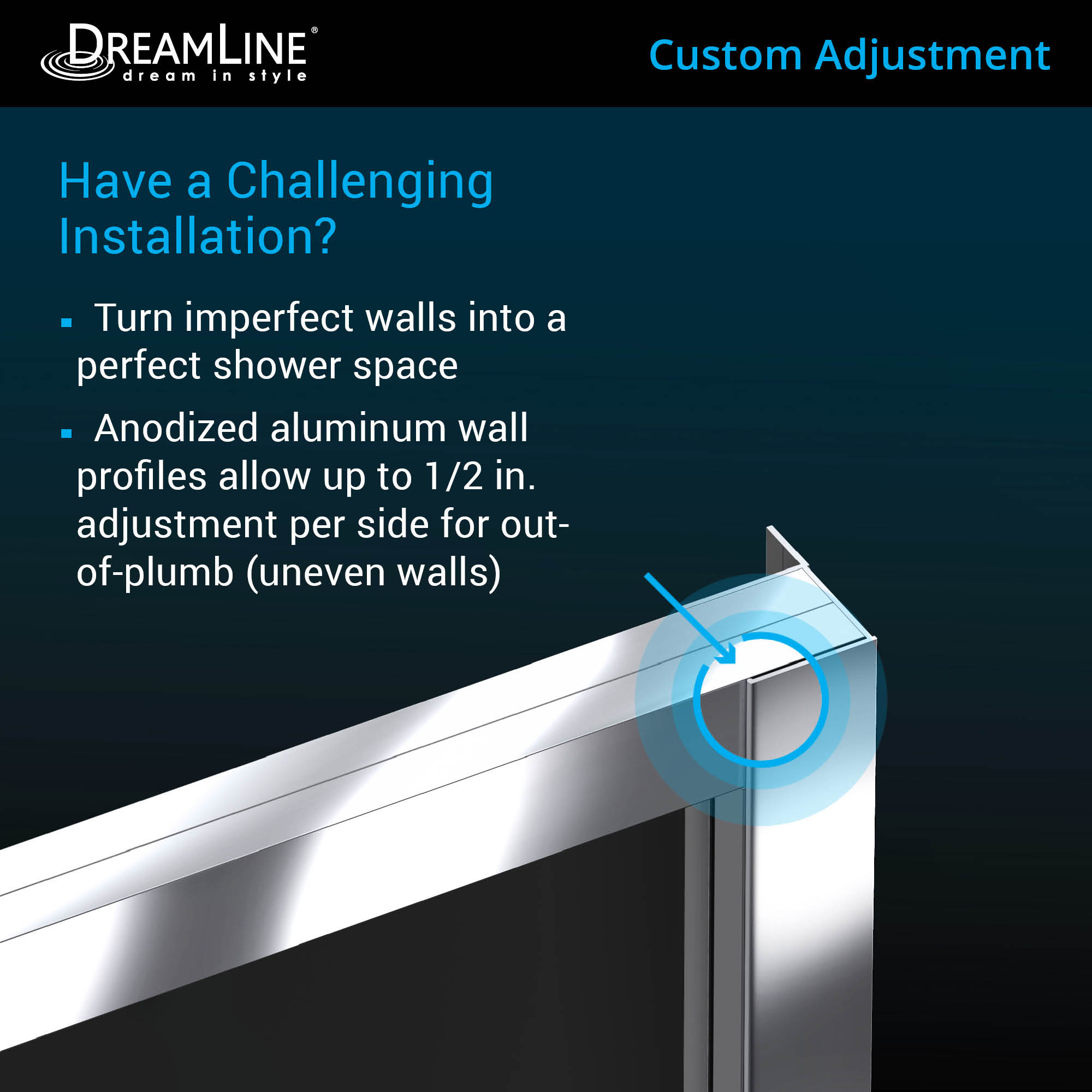

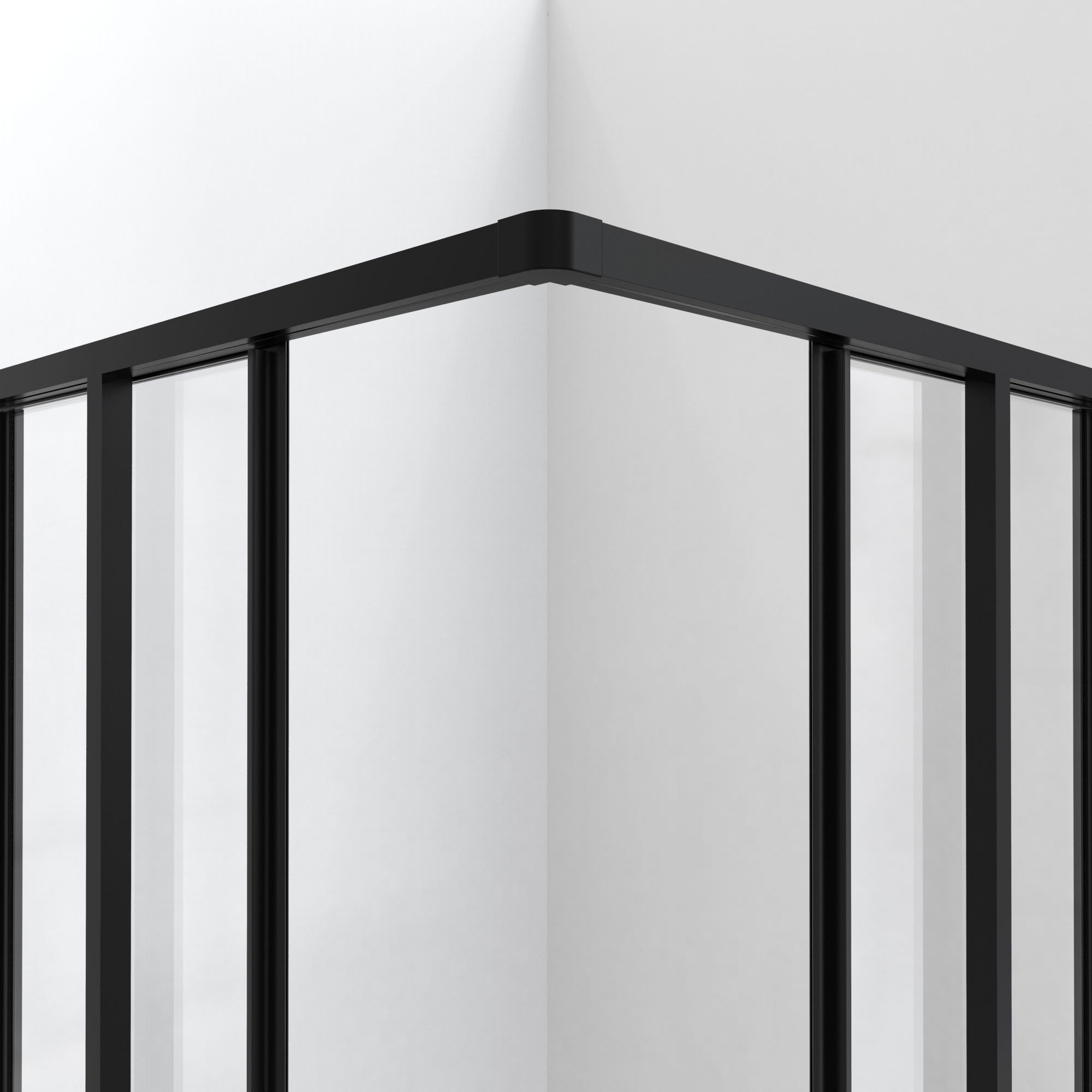

- Anodized aluminum wall profiles allow up to 1/2 in. adjustment per side for out-of-plumb (uneven walls)
- 5/32 in. (4 mm) thick certified clear tempered glass

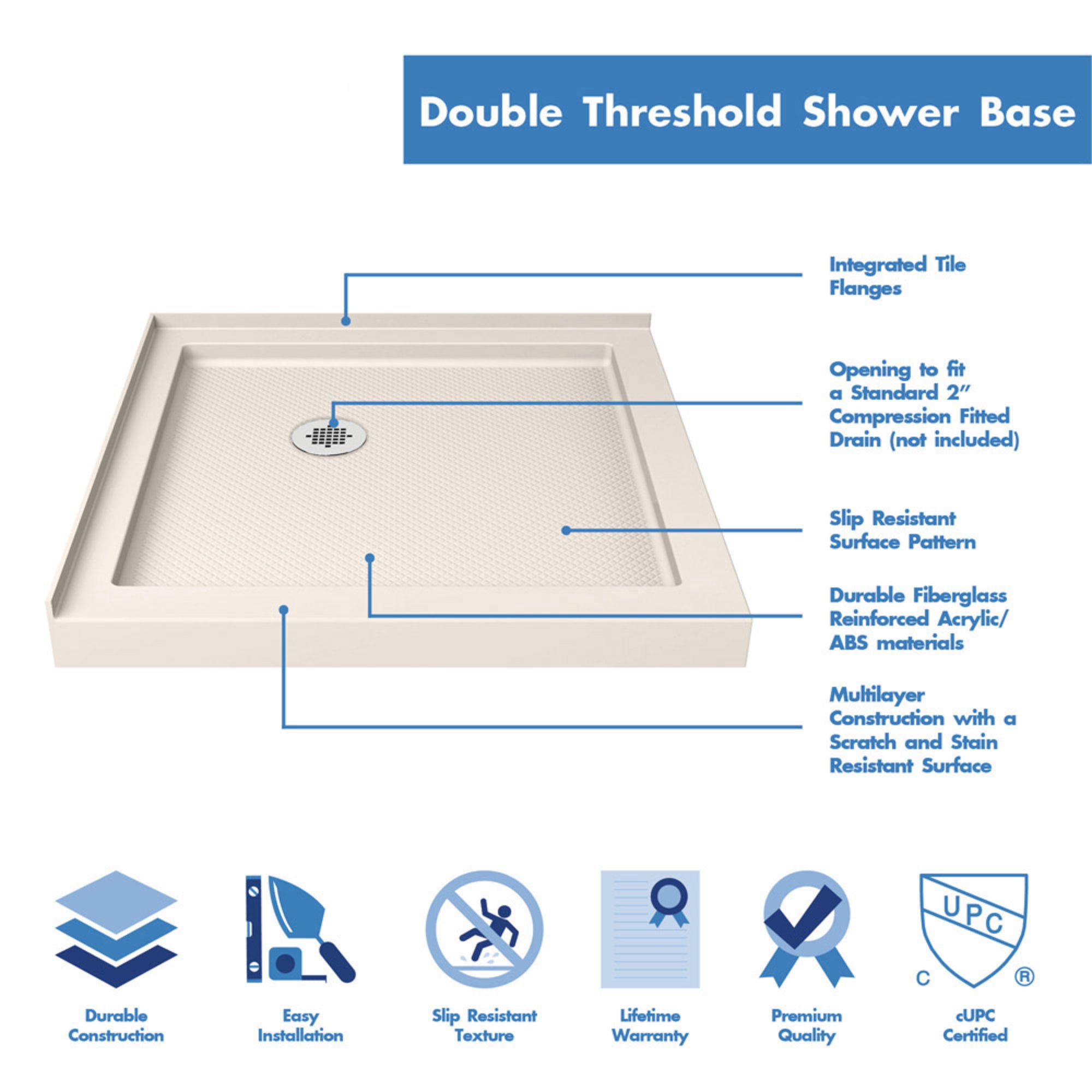

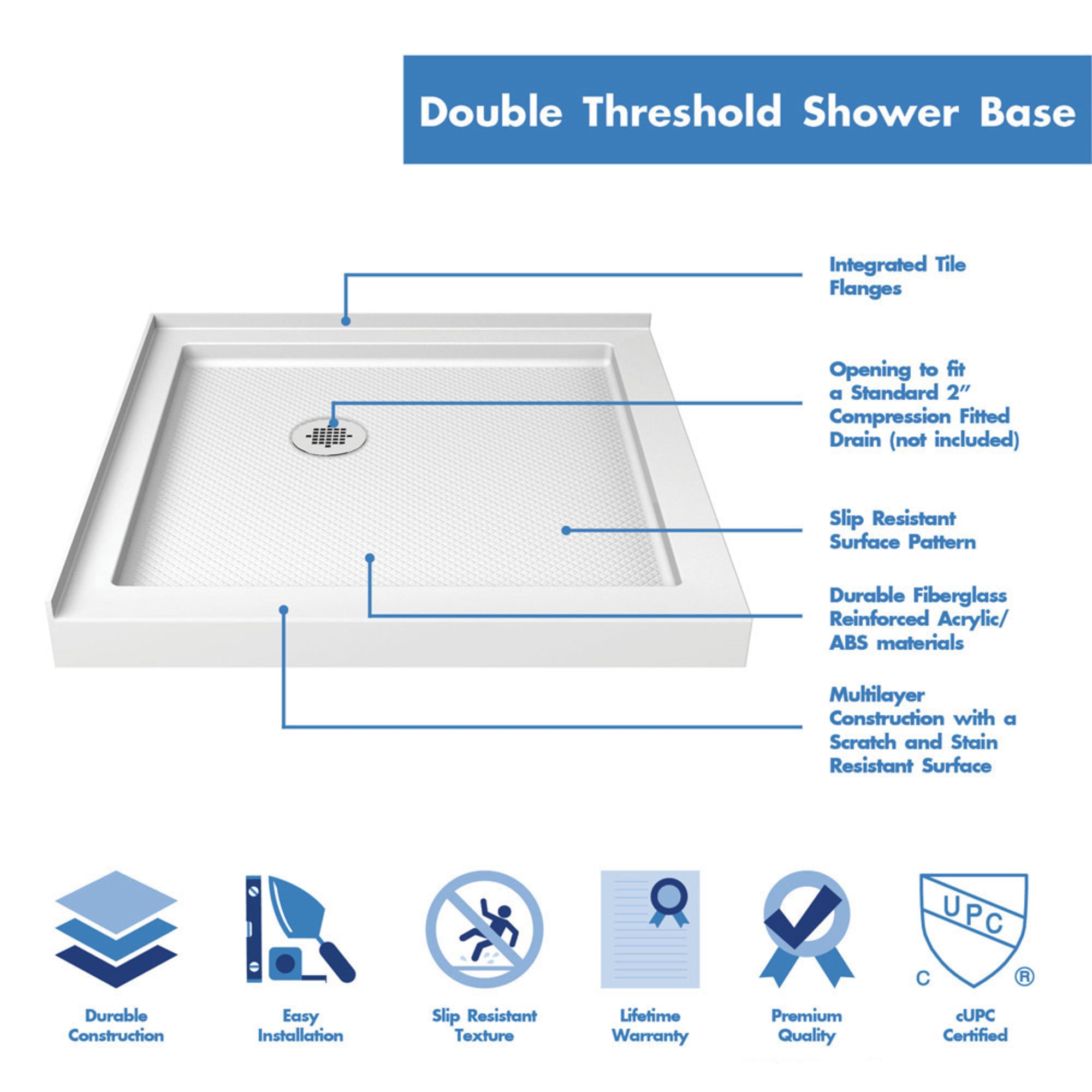

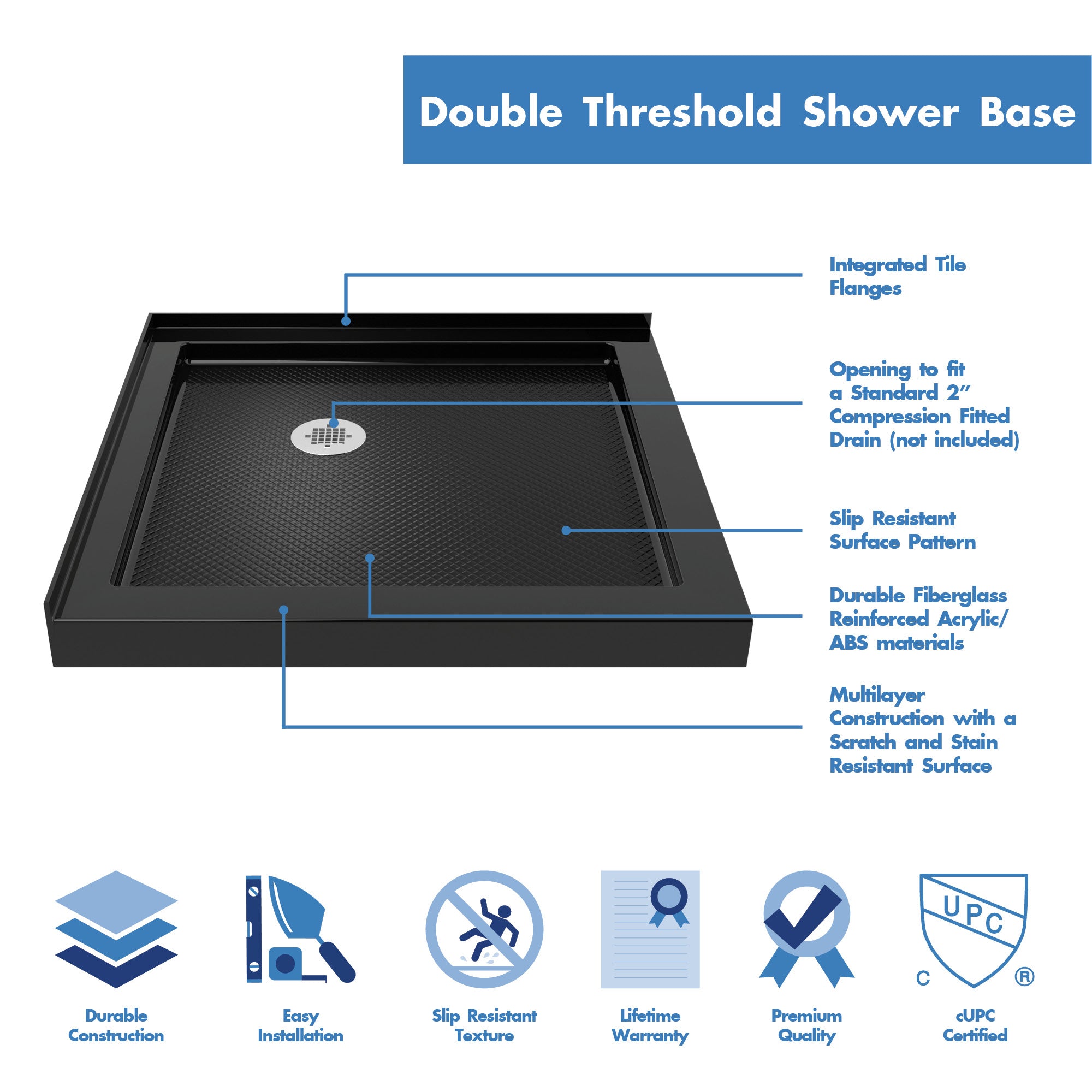

- SlimLine Double Threshold Base: Low profile threshold design for easy entry and exit; Integrated tile flange for leak prevention; cUPC certified

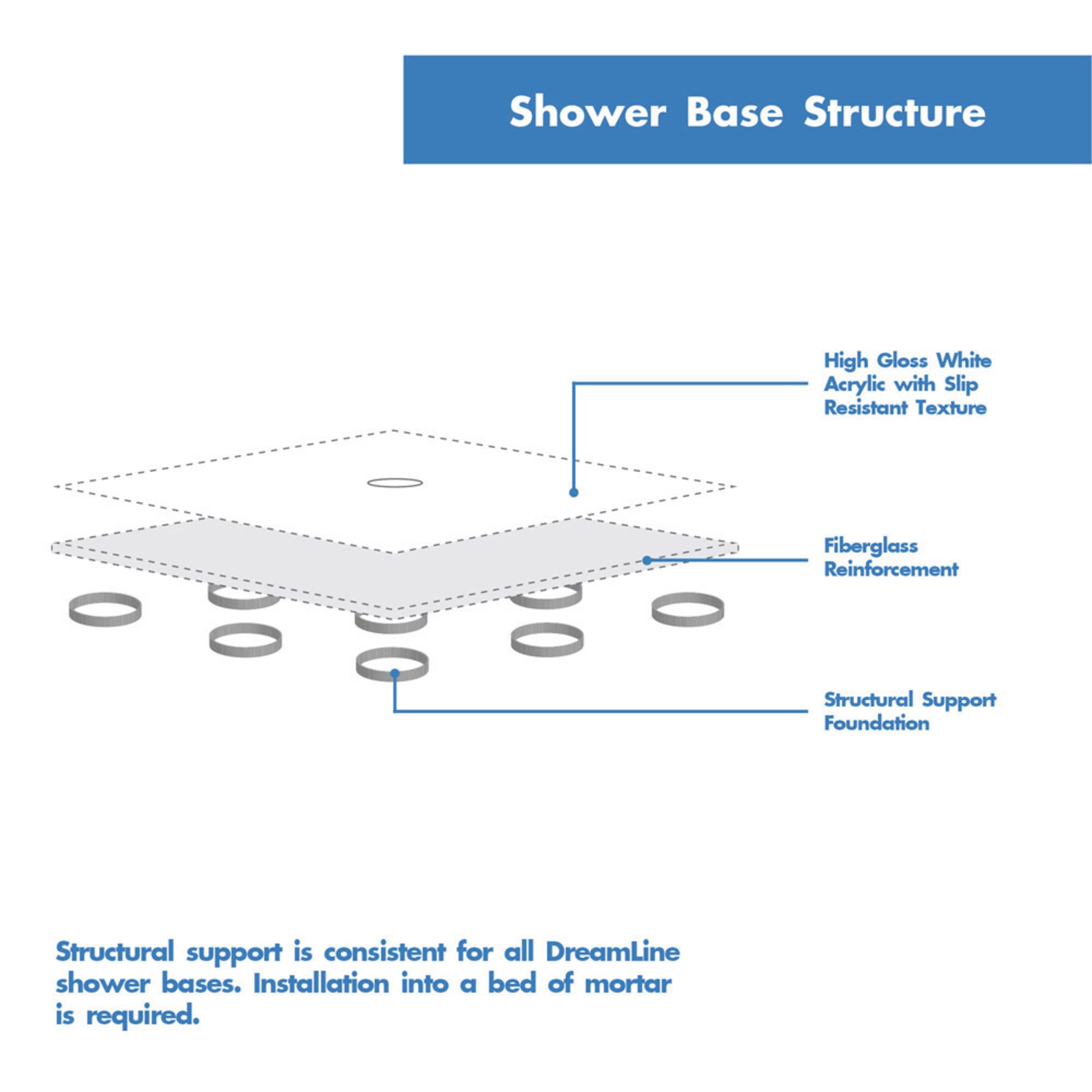

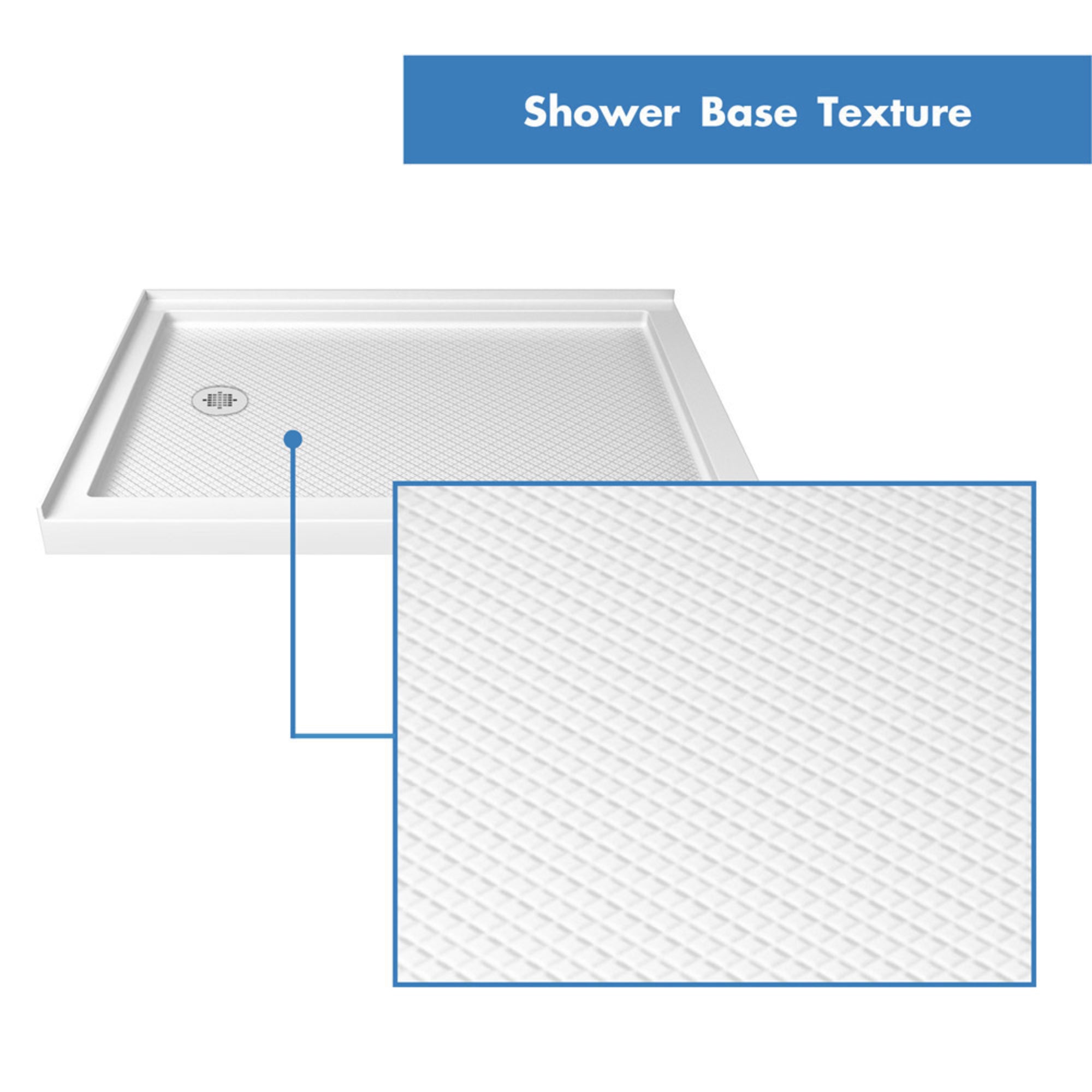

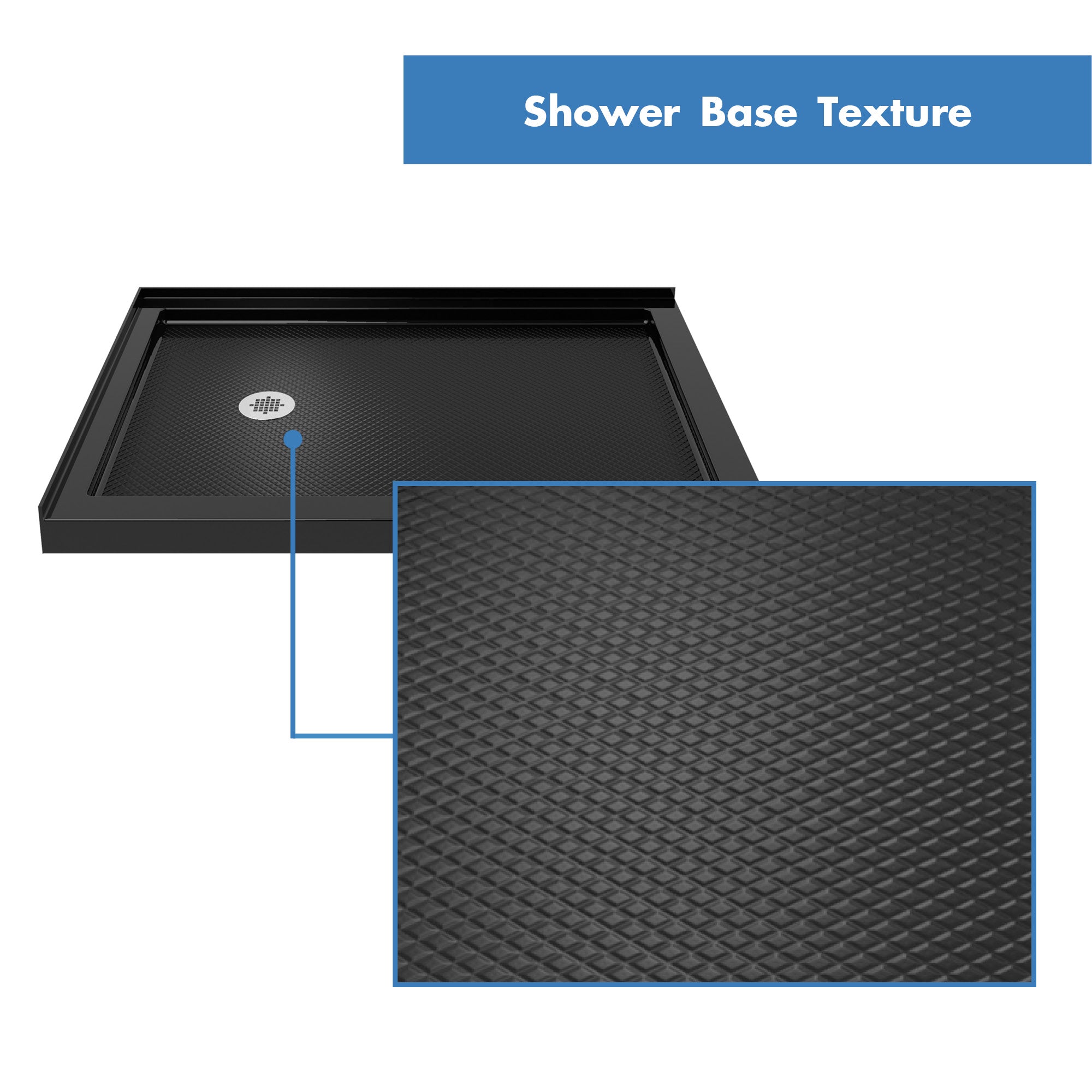

- Glossy acrylic finish is scratch, slip, and stain resistant for safe showering; Reinforced with fiberglass for durability

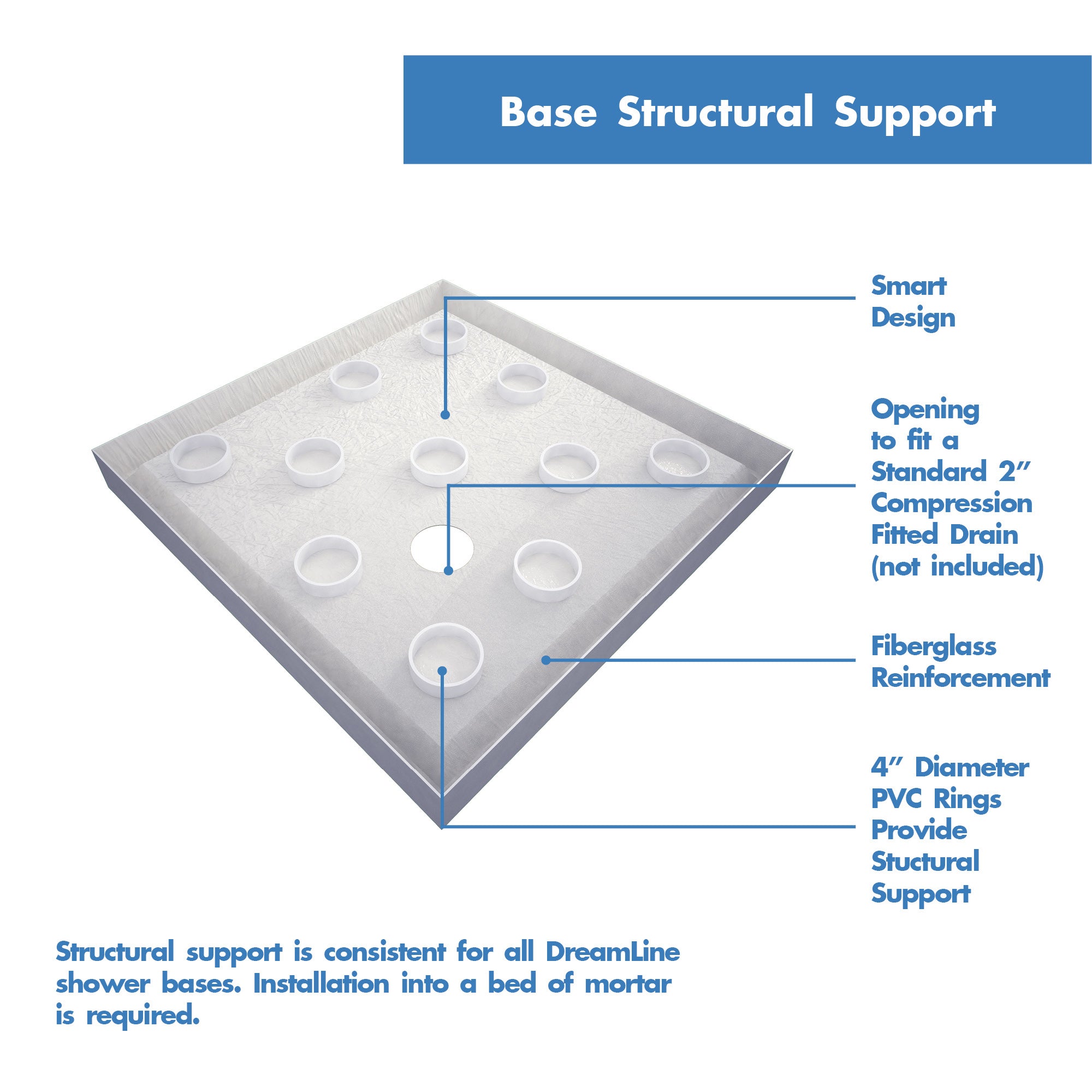

- Drain opening fits any standard 2 in. compression fitted drain; Drain not included; Direct to stud installation;
Specifications:
| Collection | Cornerview |
| Product Depth (in.) | 36 |
| Product Width (in.) | 36 |
| Product Height (in.) | 74 3/4 |
| Materials | Tempered Glass |
| Frame Type | Framed |
| Door Type | Sliding |
| Glass Pattern | Clear |
| Glass Type | Clear |
| ClearMax Glass Treatment | No |
| Glass Thickness (in) | 0.1562 |
| Door Configuration | Reversible |
| Handle Style | Not Applicable |
| Number Of Panels | 2 |
| Walk-In Opening Height | 71 |
| Walk-In Opening Width | 20 3/4 |
| Walk-In Min Width | 20 3/4 |
| Walk-In Max Width | 20 3/4 |
| Adjustable For Out-Of-Plumb | true |
| Maximum Out-Of-Plumb Adjustability | up to 1/2 in. adjustment per side for out-of-plumb |
| Adjustable Width | No |
| Door Panel Width | 17 7/8 |
| Return Panel Width | 34 1/2 |
| Wall Construction | 2 |
| Installation Type | Corner |
| Threshold Type | Double Threshold |
| Base Drain Location | Corner |
| Exterior Bath Shape | Square |
| Drain Diameter | 2 |
