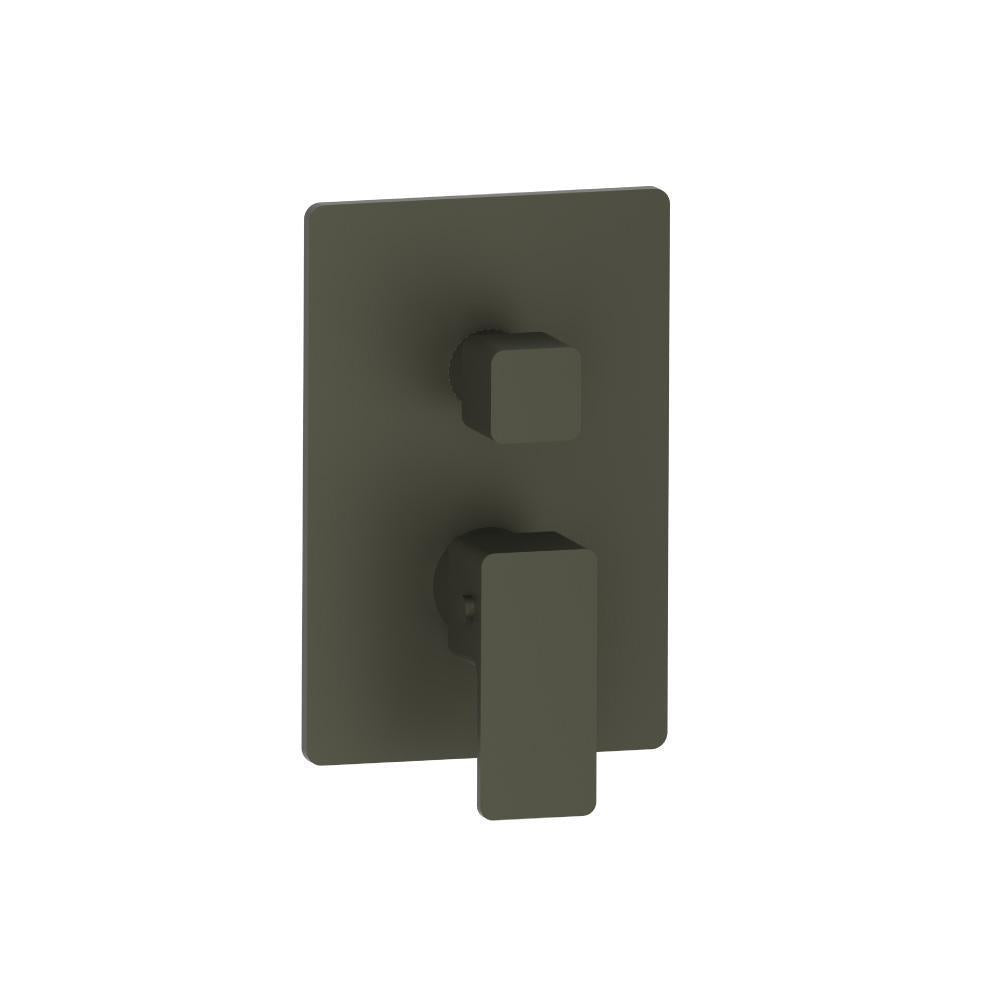

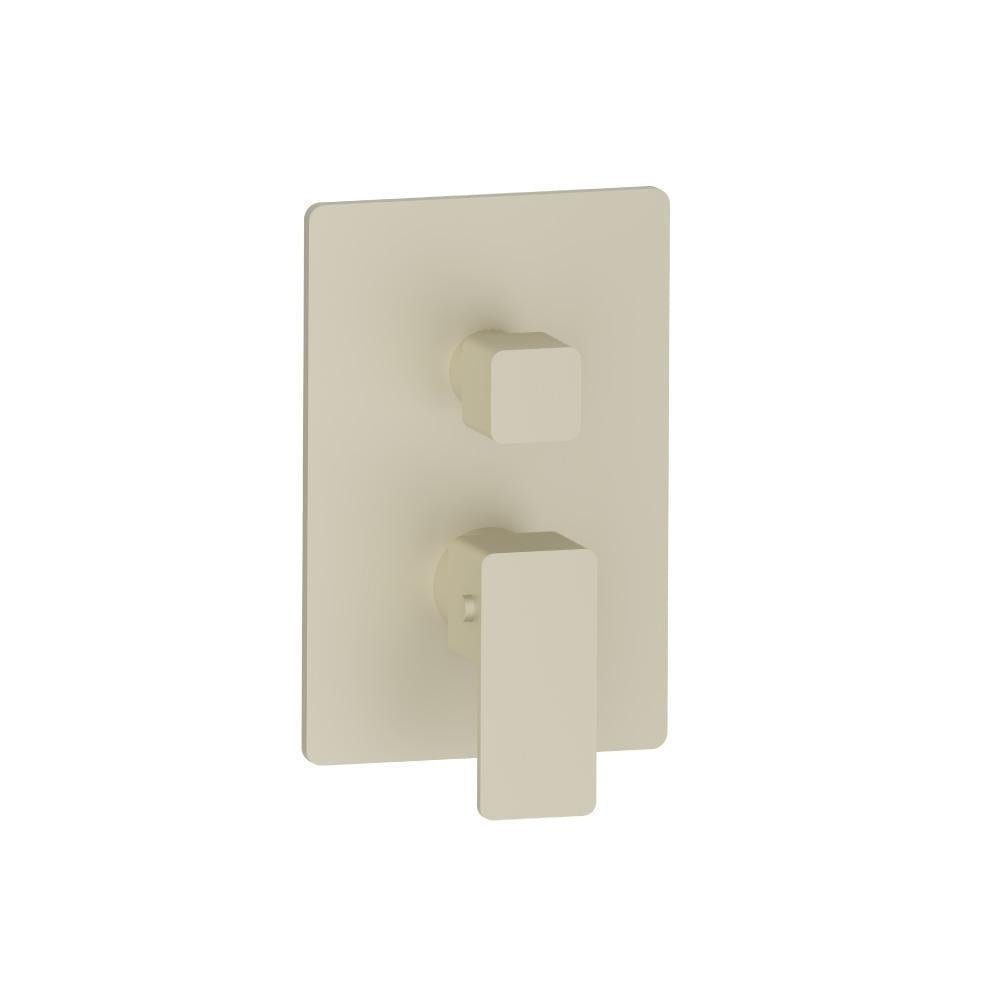

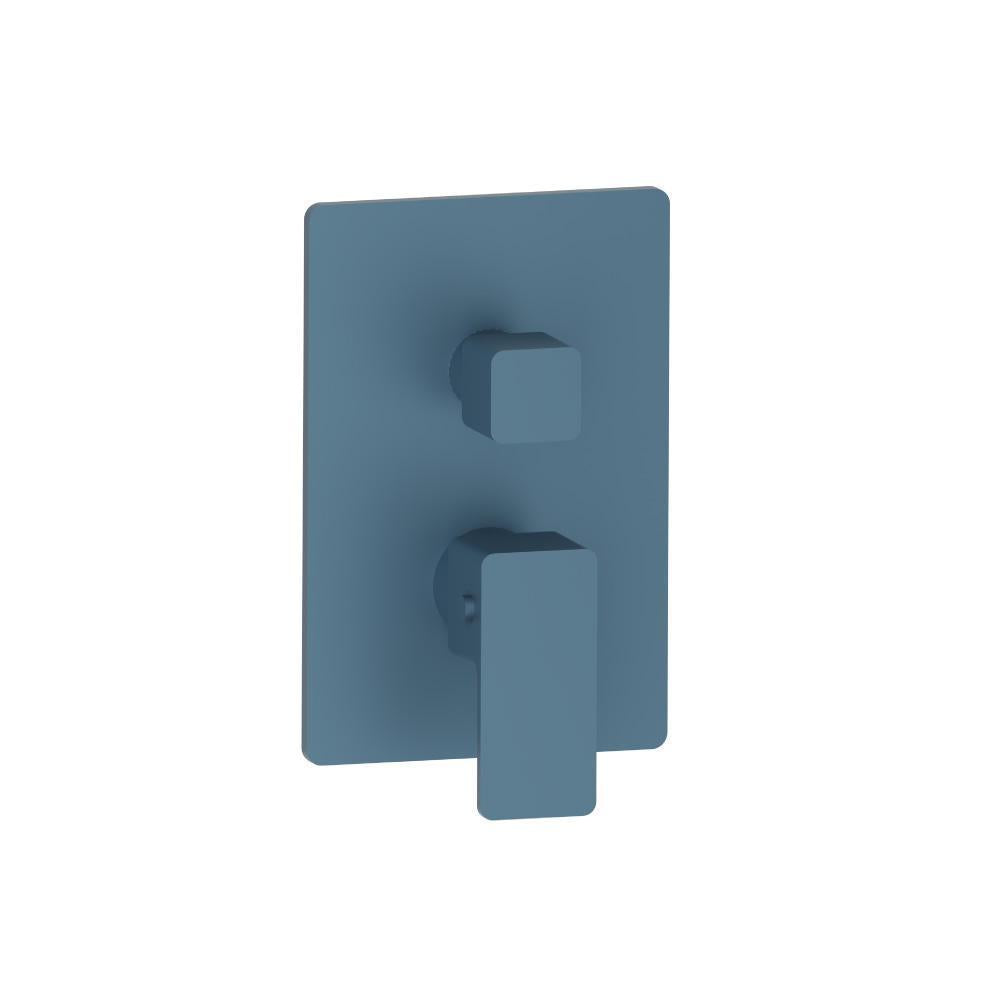

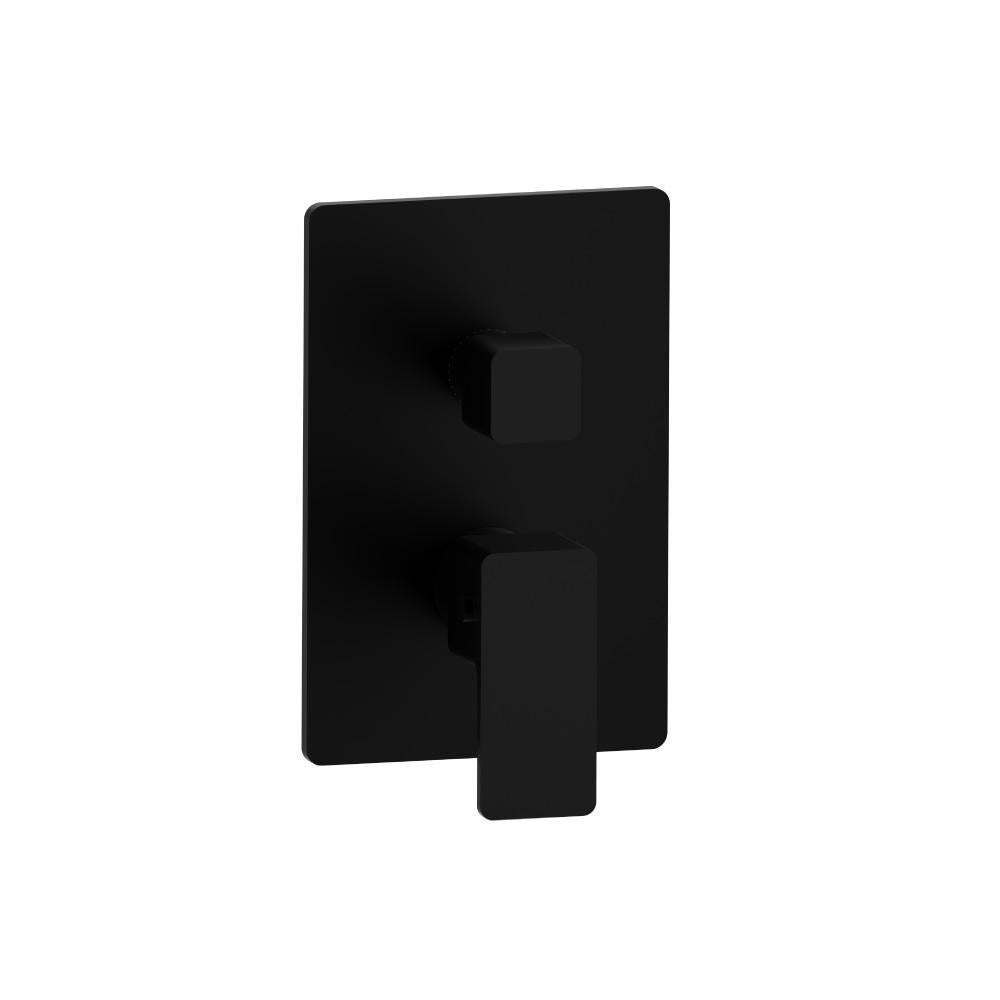

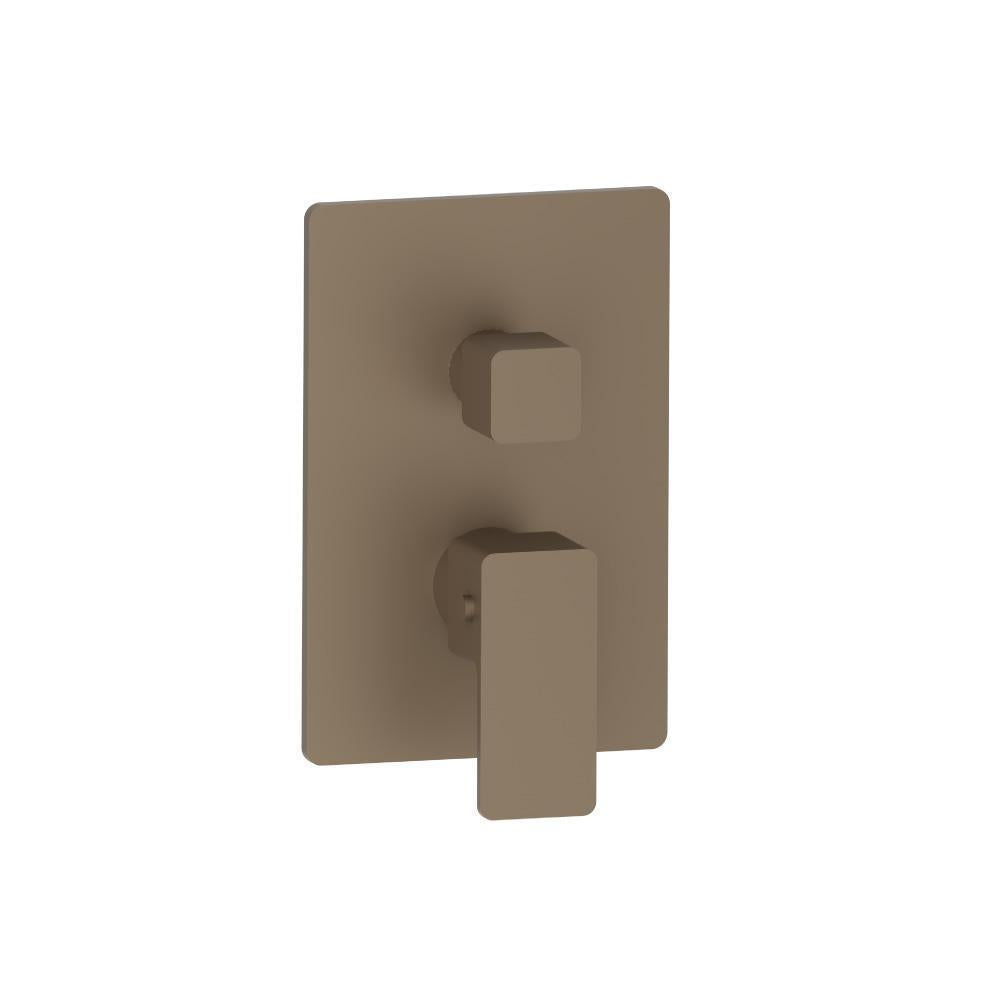

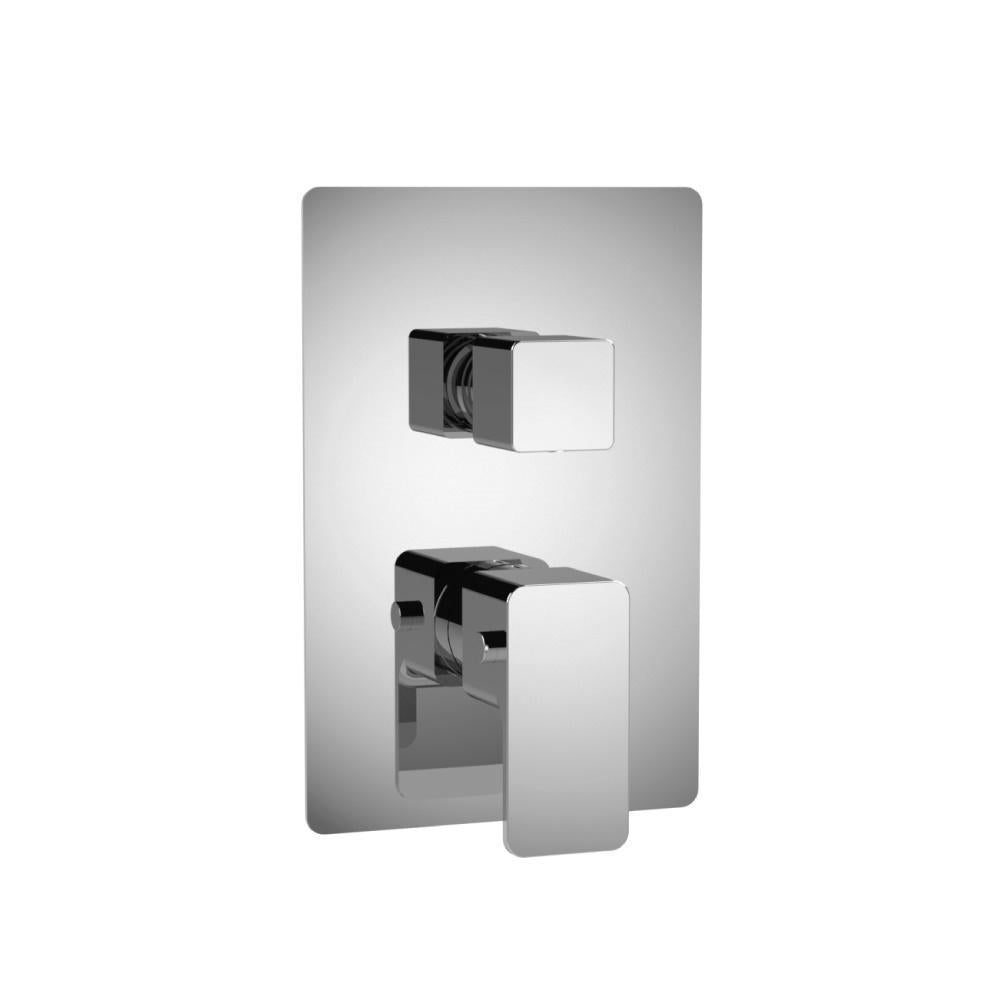

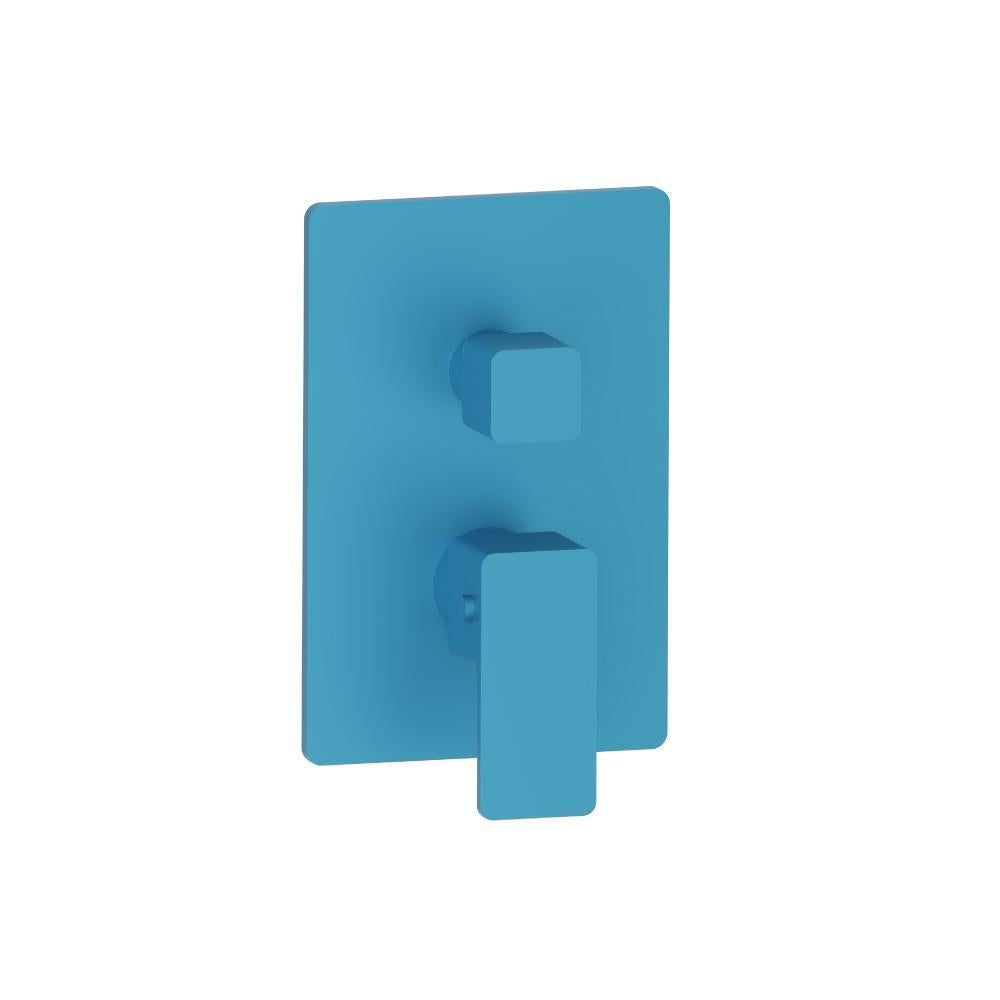

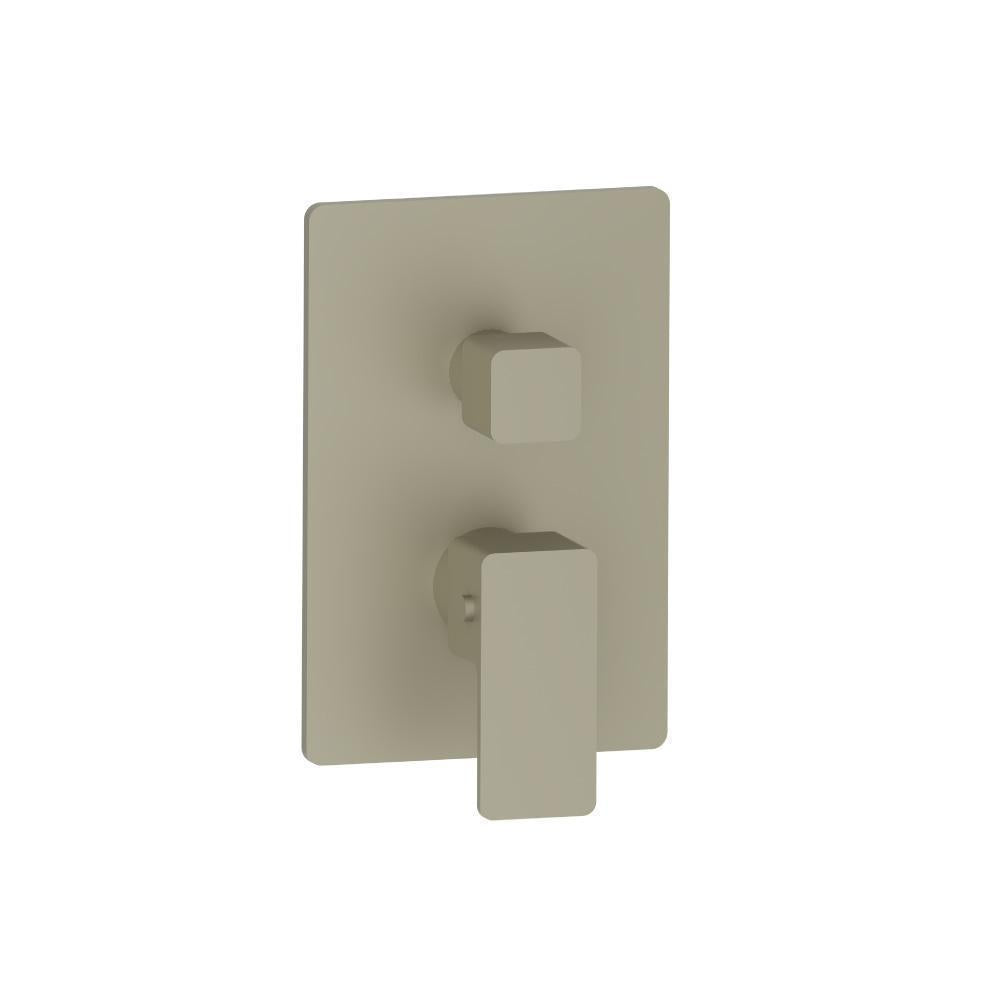

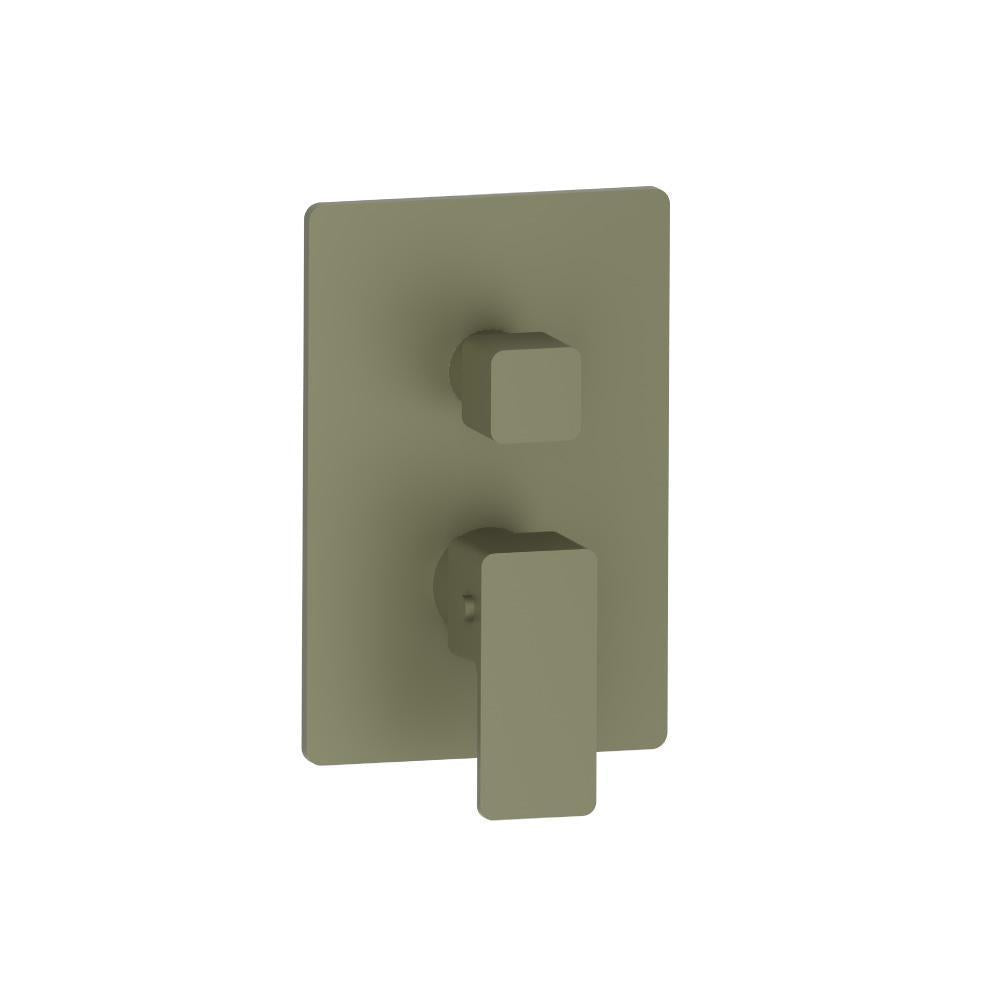

Flusso 196.4102 3/4" Thermostatic Shower Valve With Trim - 1 Output
Flusso 196.4102 3/4" Thermostatic Shower Valve With Trim - 1 Output
Regular price
$932.25
Sale price
$932.25
Regular price
$1,243.00
Shipping calculated at checkout.
🔥 12 sold this week
👀 18 people viewing this product
🛒 6 people added this to cart today
👀 18 people viewing this product
🛒 6 people added this to cart today
💰 Found it cheaper? We will beat most competitor pricing.
📞 Call 732-494-8670 for the best deal
📞 Call 732-494-8670 for the best deal
Available in stock (50)
The 196.4102 Thermostatic valve features 3/4" NPT connections and has 1 water output. There are 2 settings or positions on the top handle of this product. They are as follows:
Position 1 - Output 1 Active Position 2 - OFF - No Water Flow
The bottom handle sets the temperature.
Supply Stops - There are two safety stops at each water inlet to prevent water flow in case of installation and repairs.
Handle Operation - The bottom handle is used to control the temperature of water flowing through the outlet. The volume of water is control by top most handle. The top handle is capable of controlling the volume of water from a trickle to full flow.
As the valve is installed, care should be taken to maintain proper distance from the back of the valve to the finished tile which should be between 2.77” and 3.44” inches [Rough In Spec]. Also the value must be installed straight and not at an angle or upside down. In case, the tile is thicker or valve is installed in the wall is too deep, extension kits are available and can be used for elongating both handles of the valve.
Cut Out Dimensions - The cut out in wall should be 6.49 X 4.44 Inches and no more - this will ensure that the trim plate will cover the cut out hole in the wall.
Trims - The trims comprise of a well finished cover plate and handle knobs. The trim plate is used to cover the wall and has markings for ON/OFF and HOT/COLD. Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, temperature of the water is regulated. Covering this ring is the handle knob which has a push button on the side. In order to adjust the water temperature, one needs to press this button and move the handle to hot or cold direction. Without pressing it, the user will not be able to rotate the handle to the full HOT position - as an anti-scald prevention mechanism. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly.
Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
Position 1 - Output 1 Active Position 2 - OFF - No Water Flow
The bottom handle sets the temperature.
Supply Stops - There are two safety stops at each water inlet to prevent water flow in case of installation and repairs.
Handle Operation - The bottom handle is used to control the temperature of water flowing through the outlet. The volume of water is control by top most handle. The top handle is capable of controlling the volume of water from a trickle to full flow.
As the valve is installed, care should be taken to maintain proper distance from the back of the valve to the finished tile which should be between 2.77” and 3.44” inches [Rough In Spec]. Also the value must be installed straight and not at an angle or upside down. In case, the tile is thicker or valve is installed in the wall is too deep, extension kits are available and can be used for elongating both handles of the valve.
Cut Out Dimensions - The cut out in wall should be 6.49 X 4.44 Inches and no more - this will ensure that the trim plate will cover the cut out hole in the wall.
Trims - The trims comprise of a well finished cover plate and handle knobs. The trim plate is used to cover the wall and has markings for ON/OFF and HOT/COLD. Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, temperature of the water is regulated. Covering this ring is the handle knob which has a push button on the side. In order to adjust the water temperature, one needs to press this button and move the handle to hot or cold direction. Without pressing it, the user will not be able to rotate the handle to the full HOT position - as an anti-scald prevention mechanism. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly.
Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
| Collection | Serie 196 |
| Style | Contemporary / Modern |
| Warranty | Limited Lifetime Warranty. See Warranty page for complete details. |
Features:
- Solid Brass Construction
- Includes Thermostatic Valve - TVH.4101
- With Integral Service Stops
- Single Output
- Extensions Available - TVH.4101E**
Specifications
| Connection Size | 3/4" Female |
| Integrated Volume Control | Yes |
| Valve Included | Yes |
| Valve Type | Thermostatic |
| Installation Type | Wall Mounted |
| Extensions Available | Yes |
| Material | Brass |
| Anti-Scald Ring | Included |
| Supply Stops | Included |
| Temperature Cartridge | TVH.4201-9853 |
