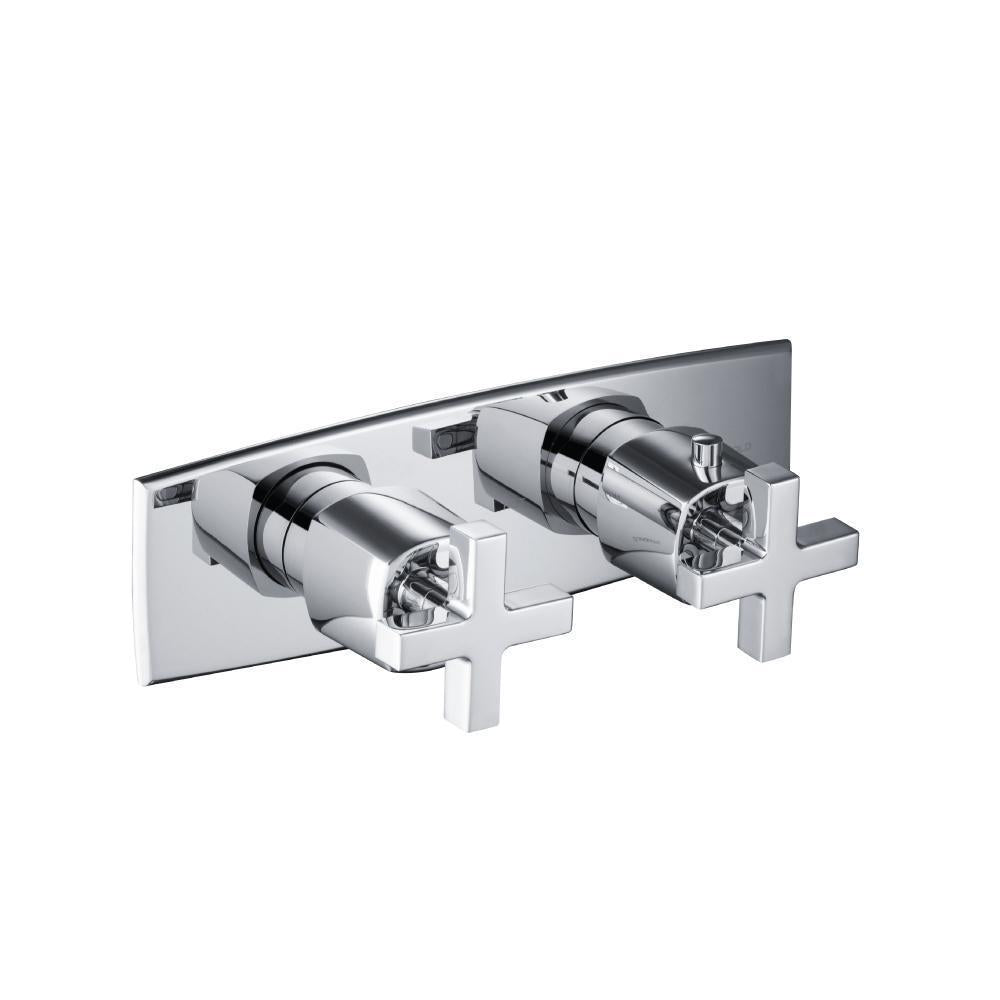

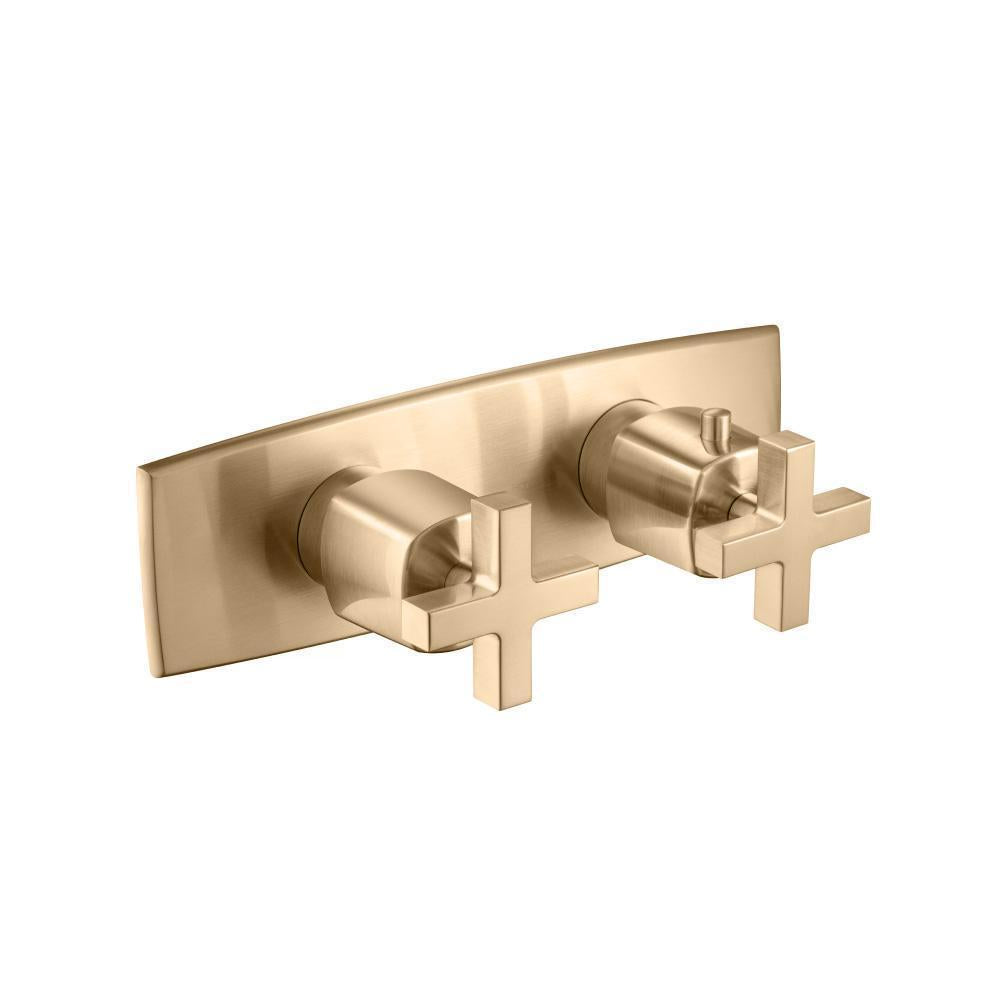

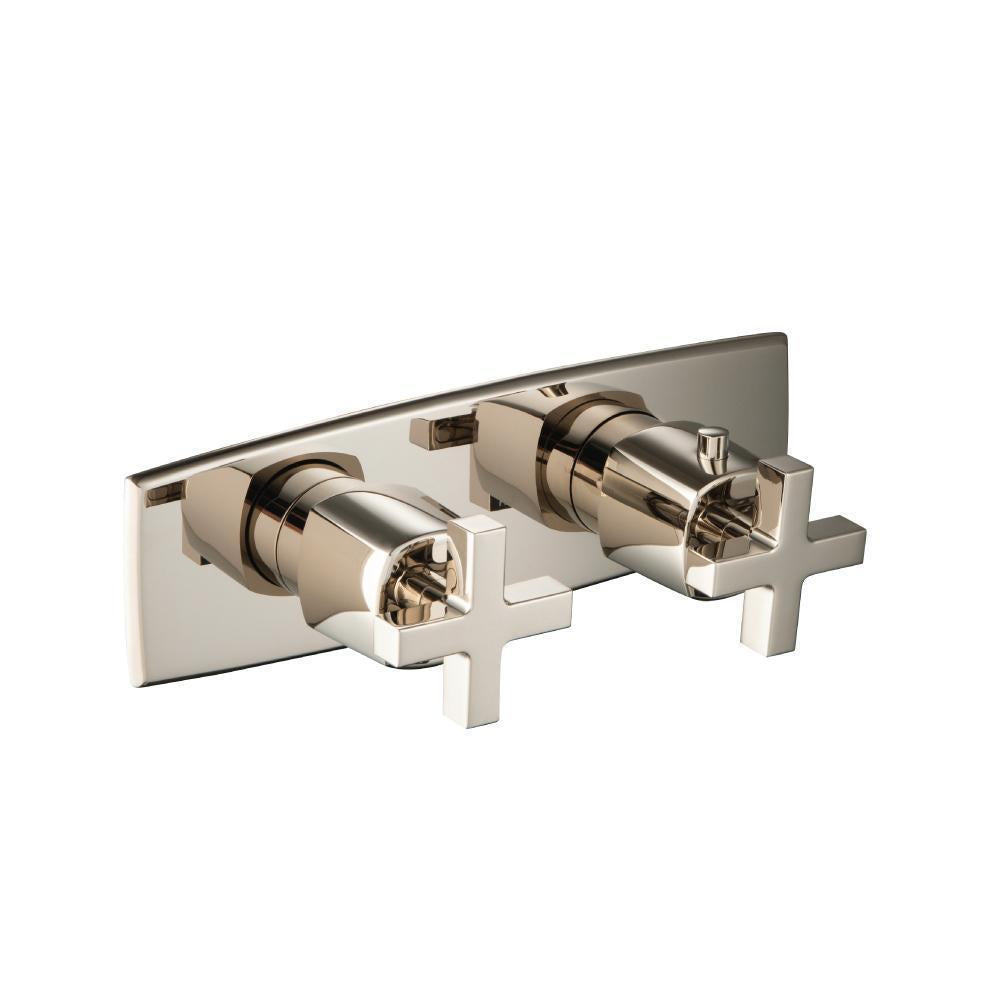

Flusso 240.2693 3/4" Horizontal Thermostatic Shower Valve % Trim - 1 Ouptut
Flusso 240.2693 3/4" Horizontal Thermostatic Shower Valve % Trim - 1 Ouptut
Regular price
$852.75
Sale price
$852.75
Regular price
$1,137.00
Shipping calculated at checkout.
🔥 12 sold this week
👀 18 people viewing this product
🛒 6 people added this to cart today
👀 18 people viewing this product
🛒 6 people added this to cart today
💰 Found it cheaper? We will beat most competitor pricing.
📞 Call 732-494-8670 for the best deal
📞 Call 732-494-8670 for the best deal
Available in stock (30)
The TVH.2693 Thermostatic valve features 3/4? NPT connections and has one water output. The right handle sets the temperature. The left handle controls water volume.
HORIZONTAL OR VERTICAL INSTALLATION - The TVH.2693 can be installed horizontally or vertically.
SUPPLY STOPS - There are two safety stops at each water inlet to prevent water flow in case of installation and repairs.
HANDLE OPERATION - The right handle is used to control the temperature of water flowing through the outlet ports. The left handle is used to turn water on and off and can control the volume of water from full flow to a trickle.
ANTI-SCALD RING - Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, the temperature of the water is regulated. Covering this ring is the handle knob which has a push-button on the side. To adjust the water temperature, one needs to press this button and move the handle to a hot or cold direction. Without pressing it, the user will not be able to rotate the handle to the full HOT position - as an anti-scald prevention mechanism. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a ruSBer mallet might be required) for it to function properly.
VALVE INSTALLATION -As the valve is installed, care should be taken to maintain a proper distance from the back of the valve to the finished tile which should be between 2.77? and 3.44? inches [Rough In Spec]. Also, the value must be installed straight and not at an angle or upside down. In case, the tile is thicker, or valve installed in the wall is too deep, extension kits are available and can be used for elongating both handles of the valve.
CUT OUT DIMENSIONS - The cut out in wall should be 7.89? x 1.89? Inches which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut-out hole in the wall.
TRIMS - The trims comprise of a well-finished cover plate and handle knobs. The trim plate is used to cover the wall. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
HORIZONTAL OR VERTICAL INSTALLATION - The TVH.2693 can be installed horizontally or vertically.
SUPPLY STOPS - There are two safety stops at each water inlet to prevent water flow in case of installation and repairs.
HANDLE OPERATION - The right handle is used to control the temperature of water flowing through the outlet ports. The left handle is used to turn water on and off and can control the volume of water from full flow to a trickle.
ANTI-SCALD RING - Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, the temperature of the water is regulated. Covering this ring is the handle knob which has a push-button on the side. To adjust the water temperature, one needs to press this button and move the handle to a hot or cold direction. Without pressing it, the user will not be able to rotate the handle to the full HOT position - as an anti-scald prevention mechanism. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a ruSBer mallet might be required) for it to function properly.
VALVE INSTALLATION -As the valve is installed, care should be taken to maintain a proper distance from the back of the valve to the finished tile which should be between 2.77? and 3.44? inches [Rough In Spec]. Also, the value must be installed straight and not at an angle or upside down. In case, the tile is thicker, or valve installed in the wall is too deep, extension kits are available and can be used for elongating both handles of the valve.
CUT OUT DIMENSIONS - The cut out in wall should be 7.89? x 1.89? Inches which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut-out hole in the wall.
TRIMS - The trims comprise of a well-finished cover plate and handle knobs. The trim plate is used to cover the wall. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
| Collection | Serie 240 |
| Style | Transitional |
| Warranty | Limited Lifetime Warranty. See Warranty page for complete details. |
Features:
- Solid Brass Construction
- Includes Thermostatic Valve - TVH.2693
- With Integral Service Stops
- Single Output Port
- Extensions Available - TVH.4101E**
Specifications
| Connection Size | 3/4" Female |
| Integrated Volume Control | Yes |
| Valve Included | Yes |
| Valve Type | Thermostatic |
| Installation Type | Wall Mounted |
| Extensions Available | Yes |
| Material | Brass |
| Anti-Scald Ring | Included |
| Supply Stops | Included |
| Temperature Cartridge | TVH.4201-9853 |
| Volume Control Cartridge | TVH.4511-9853 |
| Flow Rate | 13 GPM @ 60 PSI |
| Output Ports | 1 |
| Handle Style | Cross |
Spec Sheet
