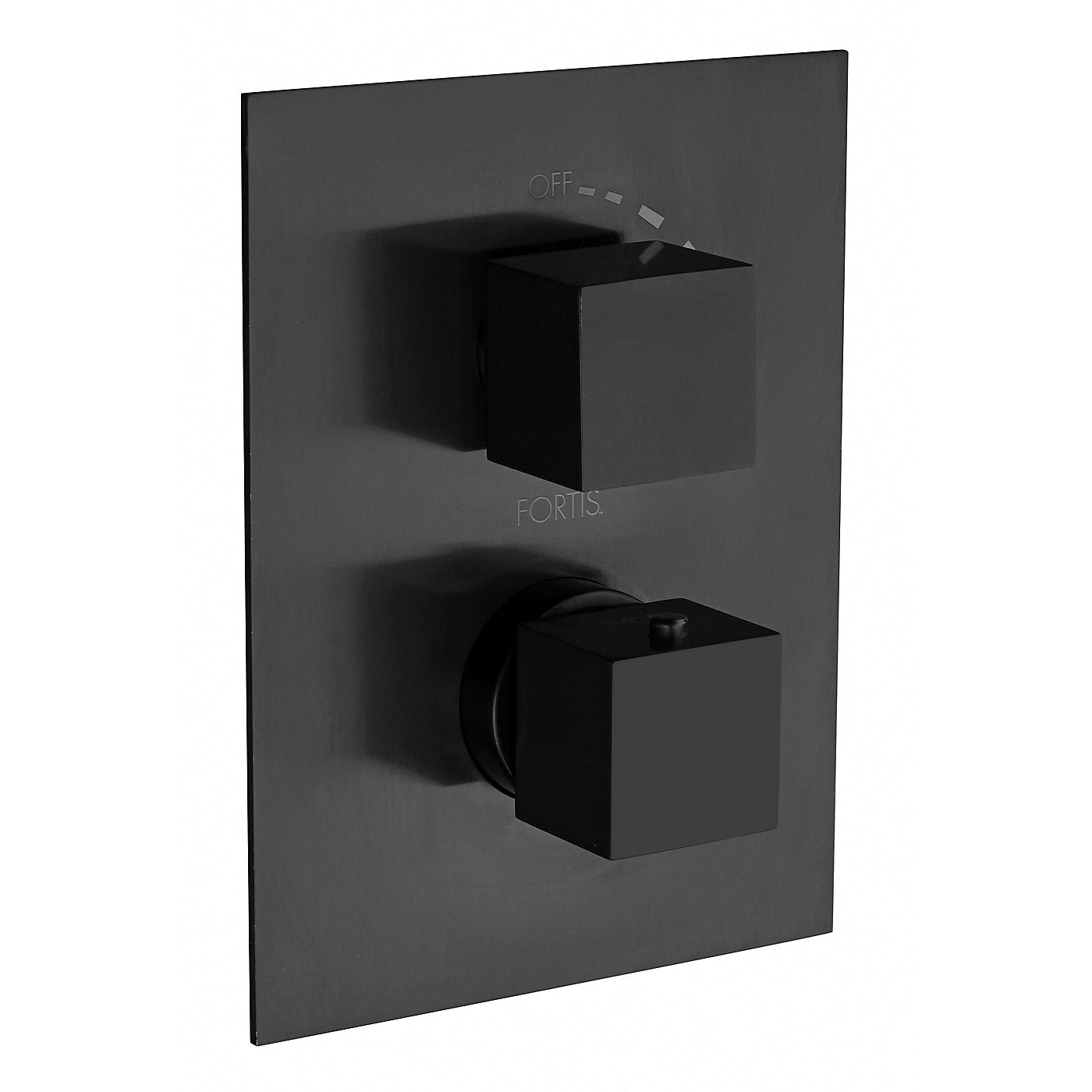

Fortis 1/2" Thermostatic Valve Trim with Volume Control – Square, Matte Black, 84690SQMB

Fortis 84690SQMB 1/2" Thermostatic Valve Trim with Volume Control – Square, Matte Black is a contemporary thermostatic shower trim designed to pair with the VALVE690 rough-in. With bold geometric styling and dual knob controls, this square trim offers independent temperature control and progressive volume control in a compact wall-mounted design that coordinates with Fortis Corsini, Gattinara, and Scala collections.

This trim-only kit includes the finished escutcheon and handles along with a built-in thermo control cartridge, giving you precise temperature regulation when installed over the matching VALVE690 rough valve. The matte black finish adds a dramatic, architectural touch to modern showers while maintaining the performance and safety benefits of a thermostatic system.

Key features

• Trim only: decorative square trim kit with knobs and thermo cartridge; requires separate VALVE690 1/2" thermostatic rough-in valve for installation.
• Thermostatic control: integrated thermo control cartridge maintains a set outlet temperature to help prevent sudden temperature changes.
• Progressive volume control: volume knob allows you to gradually increase or decrease water flow independent of temperature for personalized comfort.
• Independent temperature control: dedicated temperature adjustment lets you dial in and maintain your preferred shower setting.
• 1 outlet: designed to control a single shower outlet (such as a shower head or hand shower) when used with VALVE690.
• Square, contemporary design: sharp lines and square backplate coordinate seamlessly with Corsini, Gattinara, and Scala fixtures.
• Wall-mounted configuration: compact escutcheon keeps the valve area clean and minimal on the finished wall.

Matte Black finish (MB)

• Finish: matte black, providing a rich, low-sheen surface that pairs well with light tile, stone, and glass for strong visual contrast.
• Durability: advanced finish technology helps resist everyday wear, scratching, and tarnish while helping to minimize fingerprints and water spots.
• Design coordination: matches Fortis matte black shower heads, slide bars, and bath faucets to create a cohesive modern bath environment.

Specifications

• Model: 84690SQMB – 1/2" thermostatic valve trim with volume control, square, matte black.
• Type: thermostatic shower valve trim with integrated thermo control cartridge and volume control.
• Valve compatibility: requires Fortis VALVE690 1/2" thermostatic rough-in for installation (sold separately).
• Outlet configuration: 1 outlet (single shower function).
• Controls: dual knob arrangement for separate temperature and volume control.
• Mounting: wall mount.
• Standards: thermostatic trim/valve system designed to comply with ASME A112.18.1 / CSA B125.1 and ASSE 1016T when used with VALVE690.
• Certifications (system): NSF lead-free, CEC compliant, CALGreen compliant, EPA WaterSense (for faucets/flow where applicable), CSA compliant, ADA compliant (with proper installation).

Construction & benefits

• Comfort and safety: thermostatic technology helps maintain a stable outlet temperature, improving comfort and reducing the risk of sudden hot or cold spikes.
• Fine-tuned control: independent temperature and volume adjustment allow you to set exactly how warm and how strong you want your shower, instead of using a single combined handle.
• Easy servicing: cartridge-based design allows service and replacement from the finished side after removing the trim.
• Design flexibility: coordinates with multiple Fortis collections (Corsini, Gattinara, Scala), making it easy to match other shower and lavatory fixtures.

Technical documents

• Maintenance & Installation (PDF)
• Parts Diagram (PDF)

Warranty

• Mechanical warranty: limited lifetime warranty on mechanical parts for original residential purchasers; 1-year for commercial applications.
• Finish warranty: limited lifetime warranty on finishes for residential use; 1-year for commercial.
• See Fortis warranty documentation for full terms, exclusions, and how to obtain service.

Frequently asked questions

Does the 84690SQMB trim include the rough-in valve?

No. This is a trim-only kit that must be installed over the separate Fortis VALVE690 1/2" thermostatic rough-in valve. Be sure to order VALVE690 for a complete system.

How many shower outlets can this trim control?

84690SQMB is designed to control one outlet (such as a primary shower head). For multiple outlets, it is typically used alongside diverters (such as VALVE425 and matching diverter trims).

What collections does this trim coordinate with?

This square thermostatic trim coordinates with Fortis Corsini, Gattinara, and Scala collections, allowing you to match shower heads, slide bars, and lavatory faucets within the same design family.

Is the trim ADA compliant?

When installed at appropriate height and used with the matching thermostatic rough-in, the control configuration is designed to meet ADA guidelines for operability. Always verify local codes and requirements.
