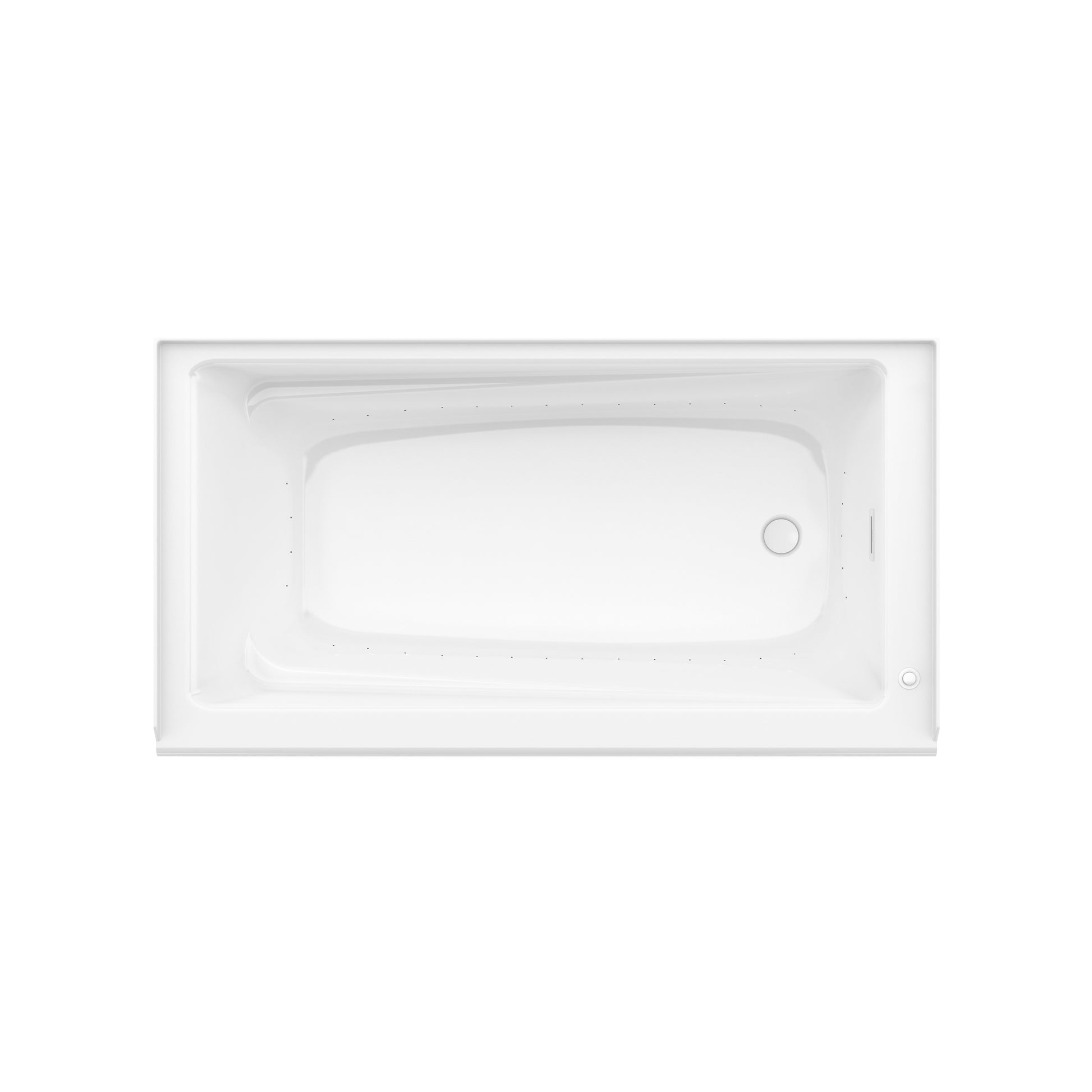

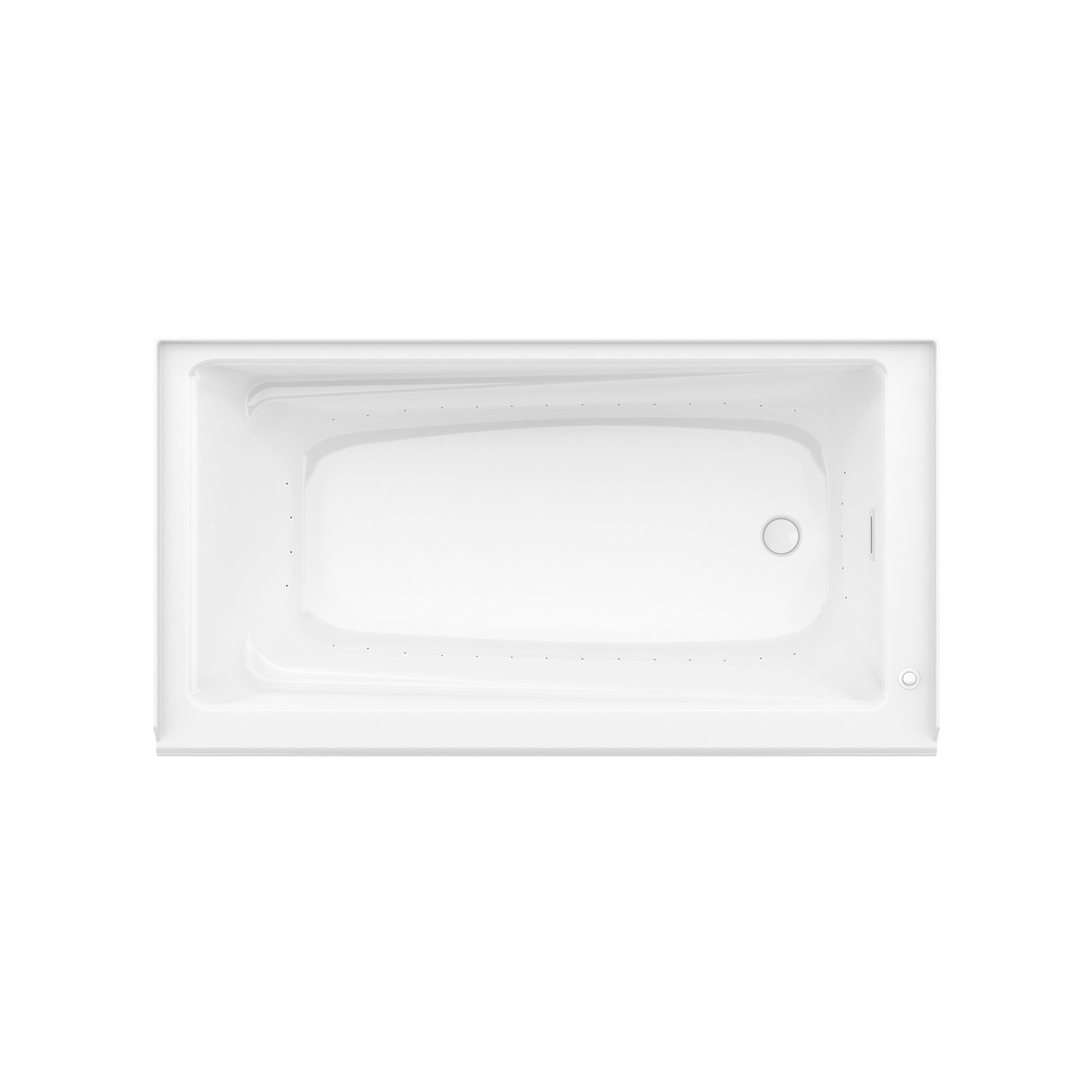

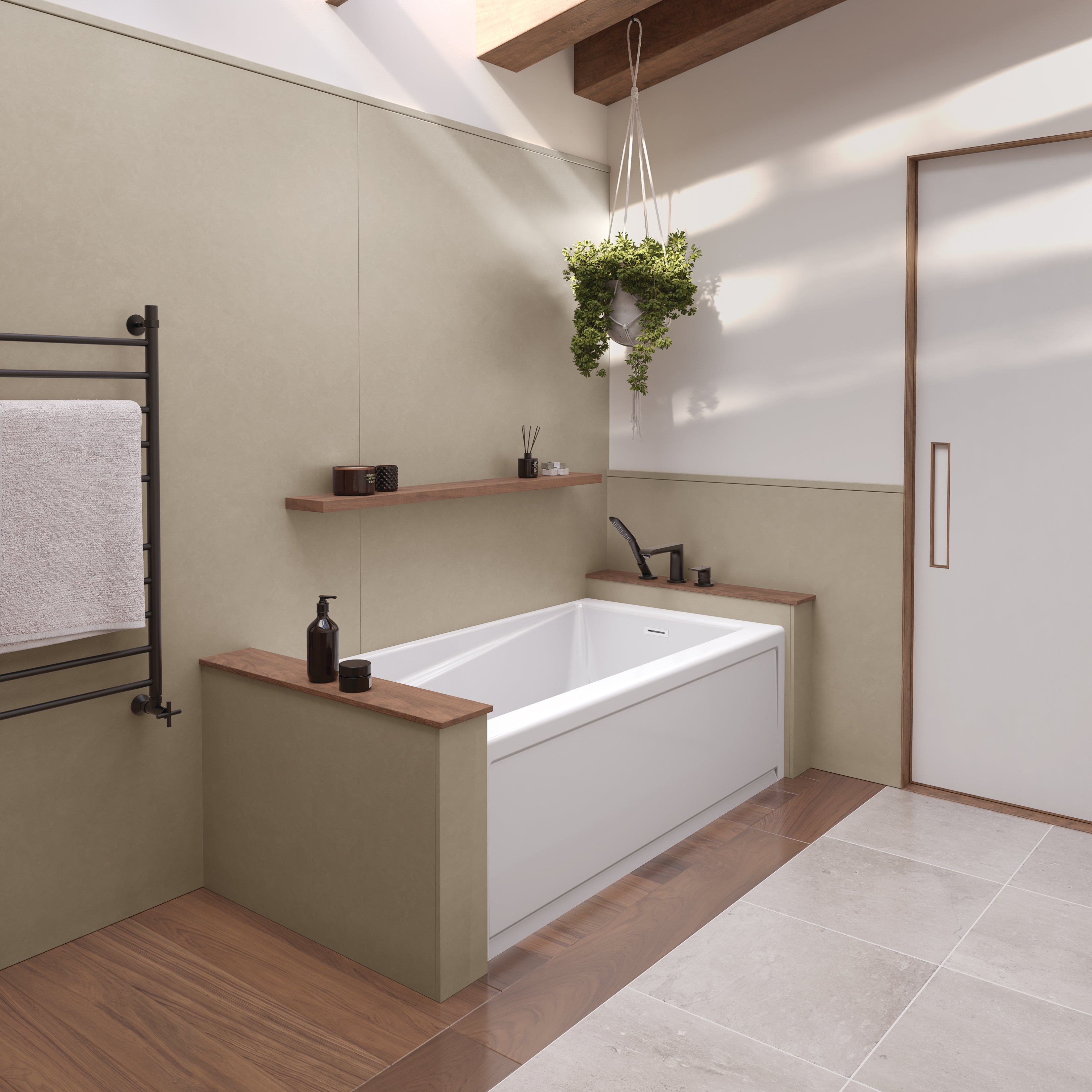

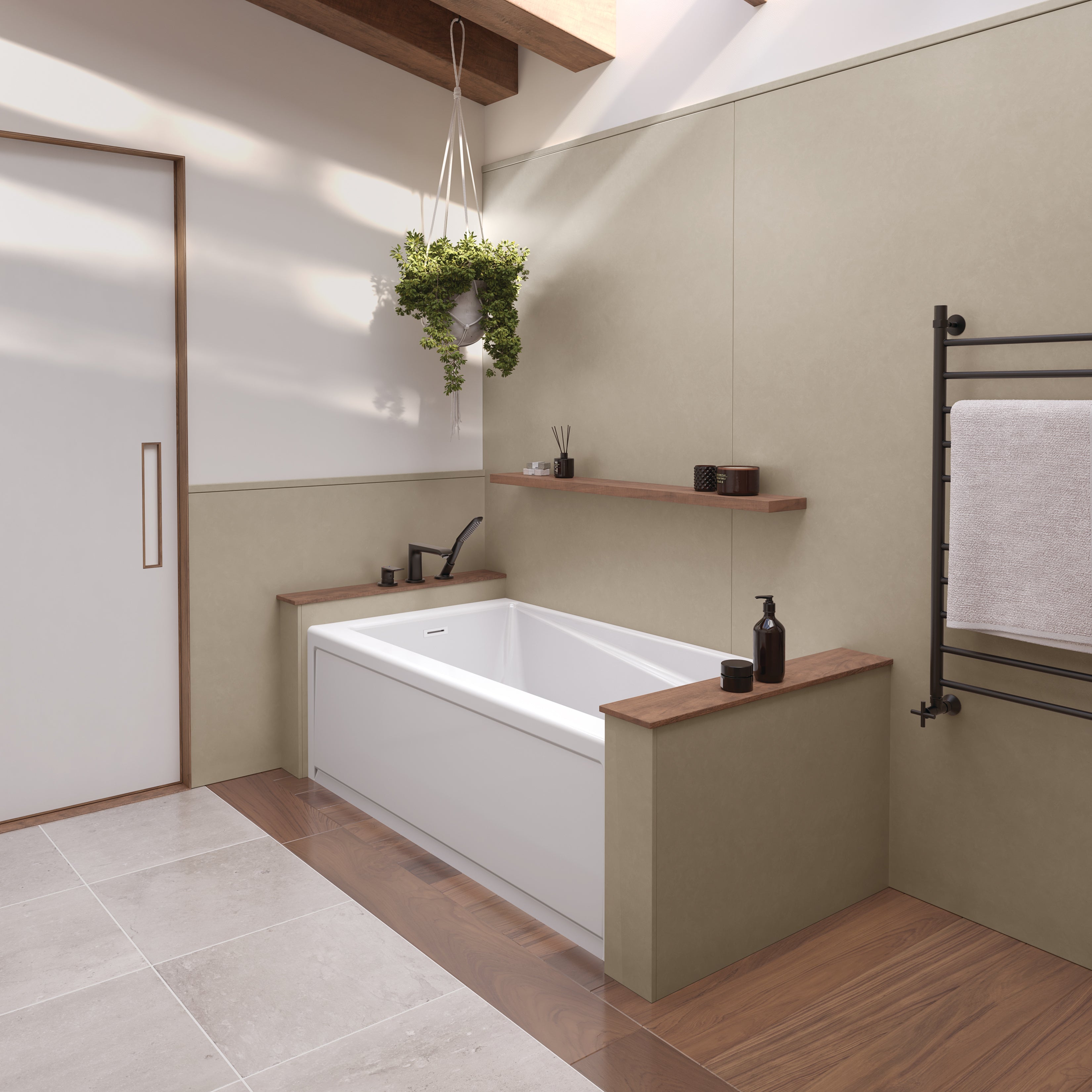

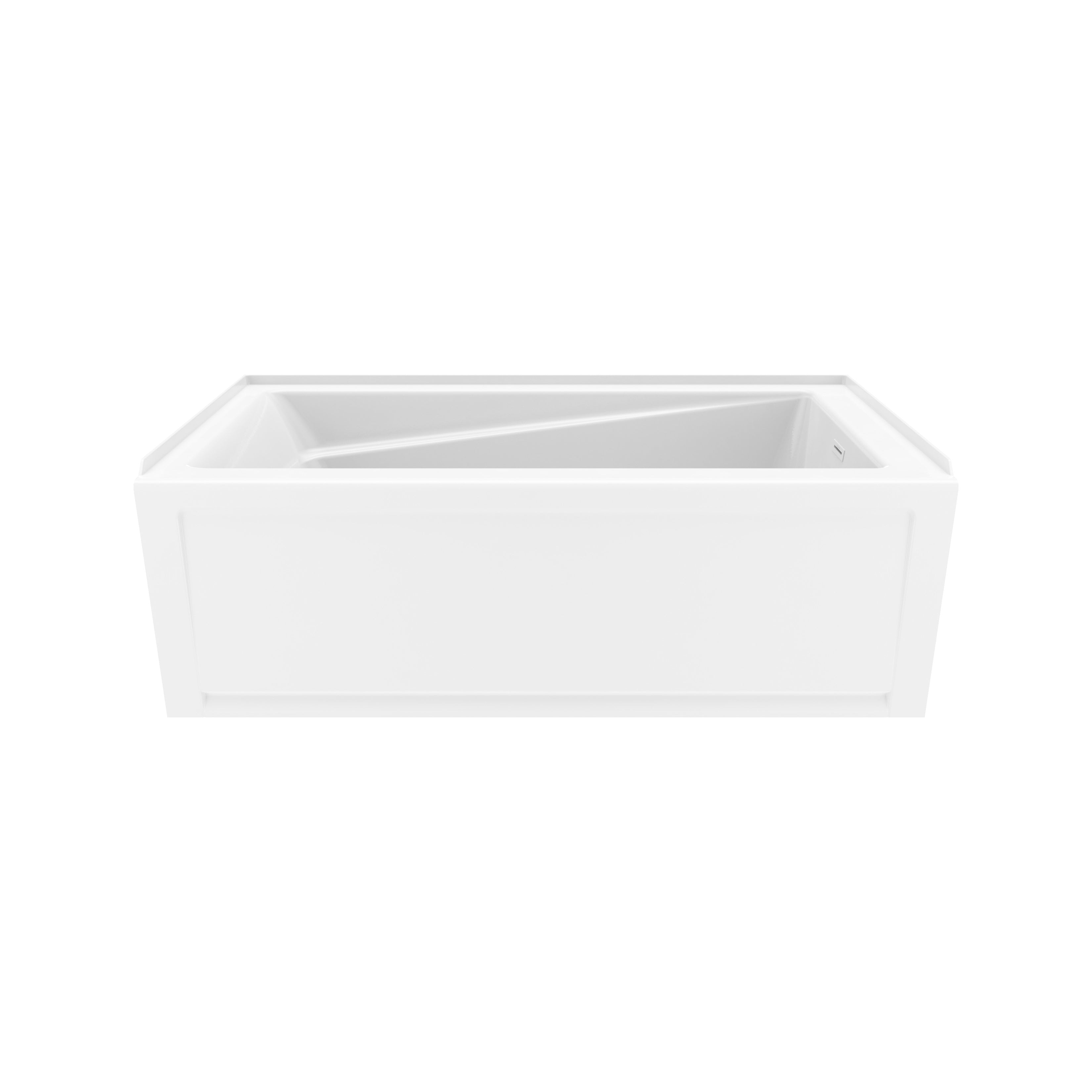

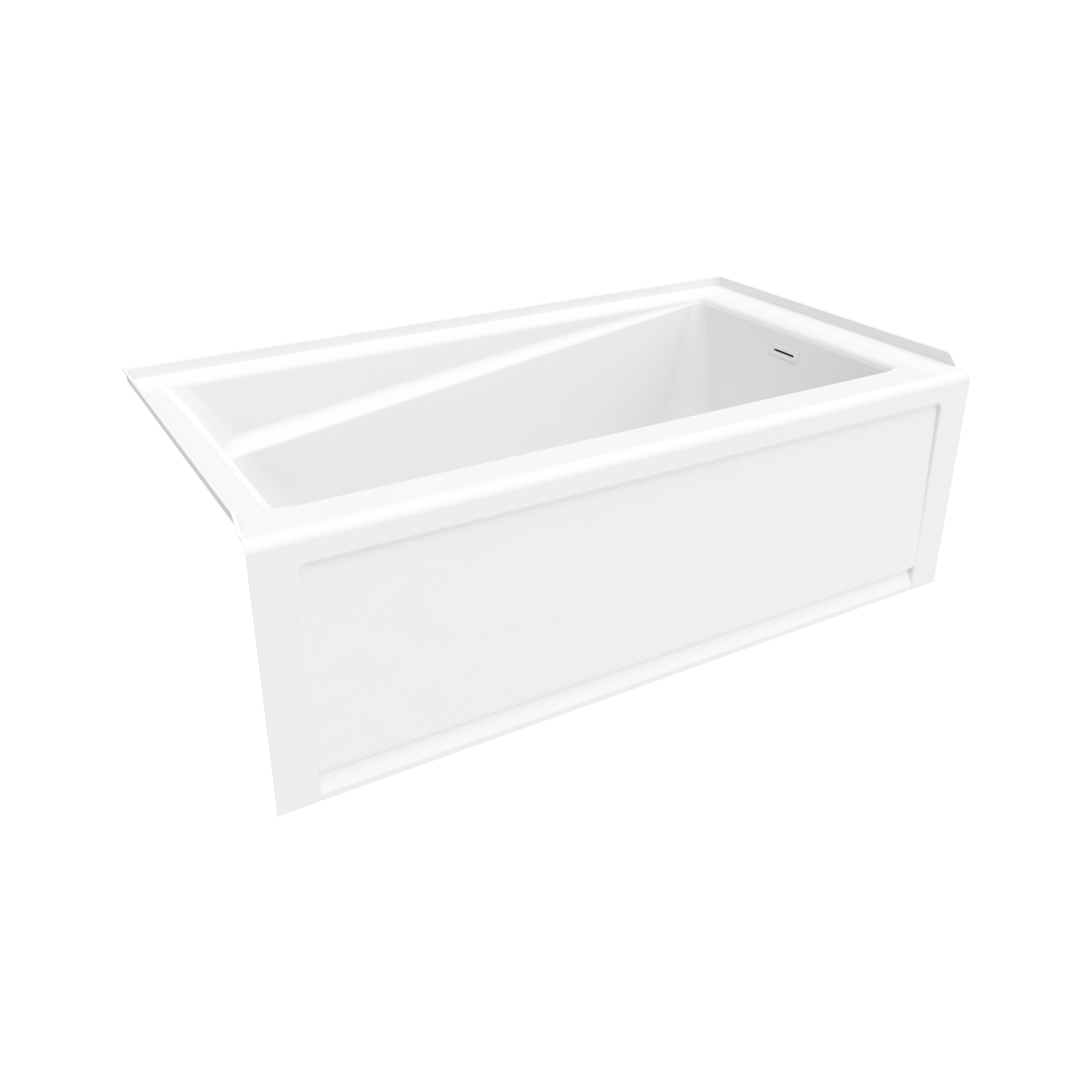

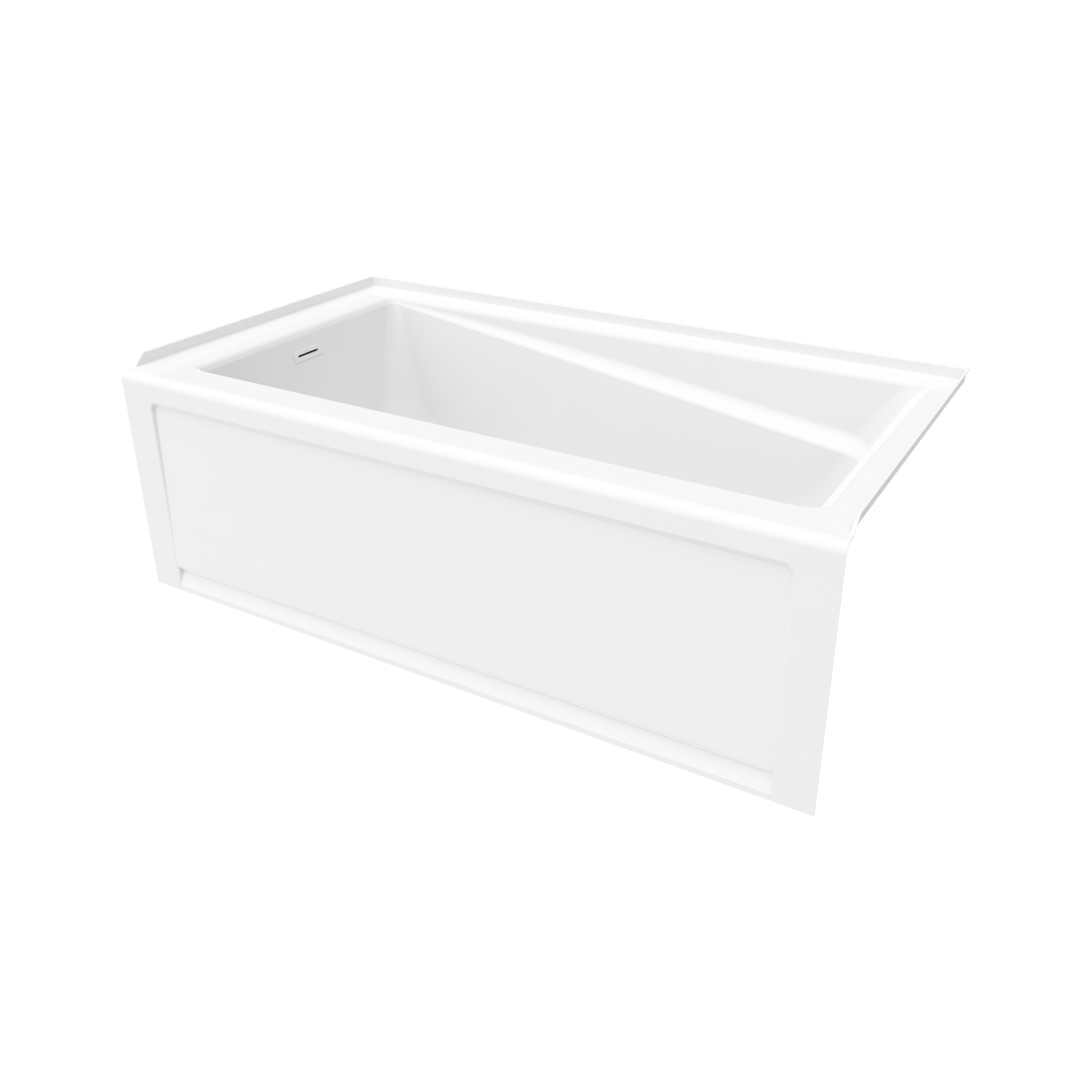

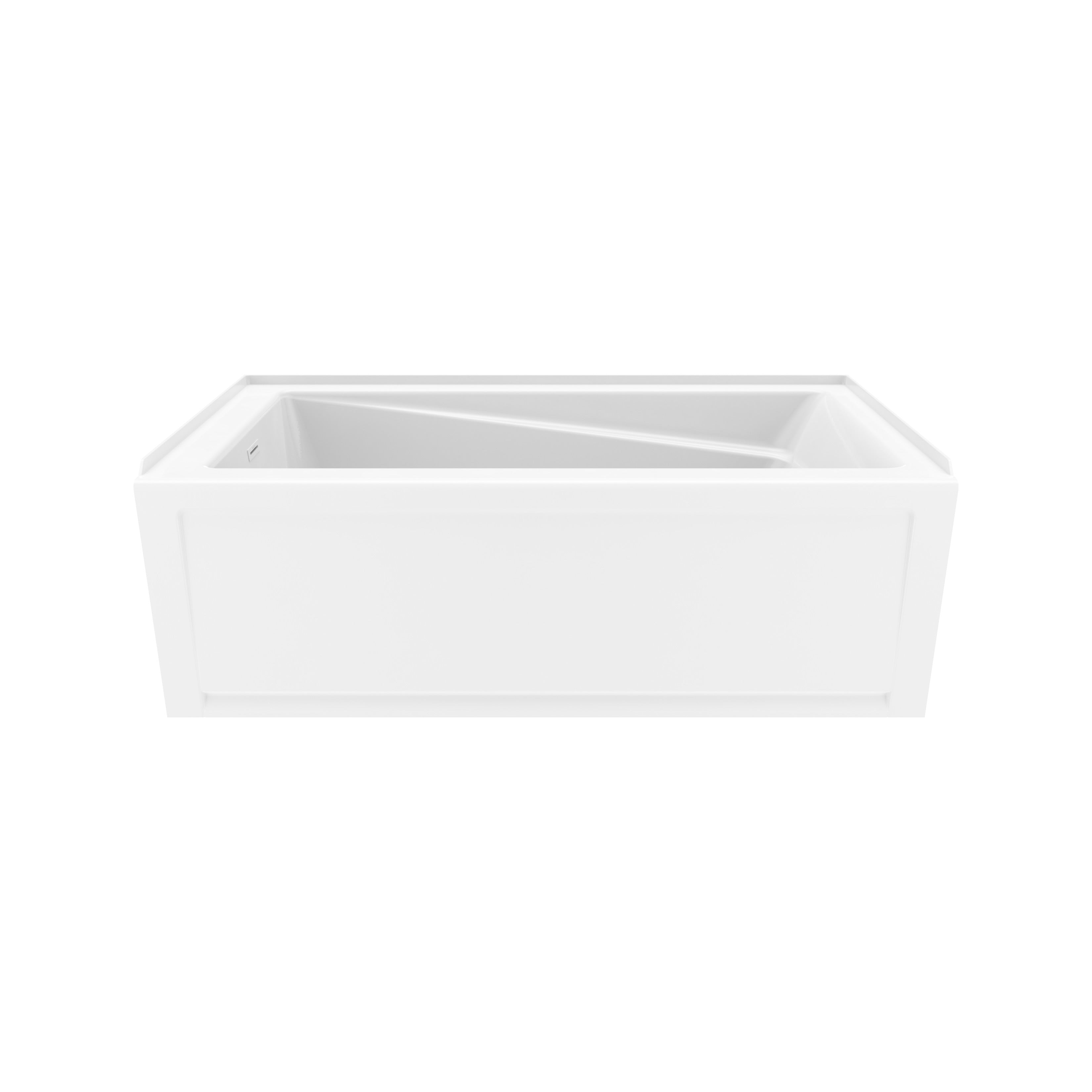

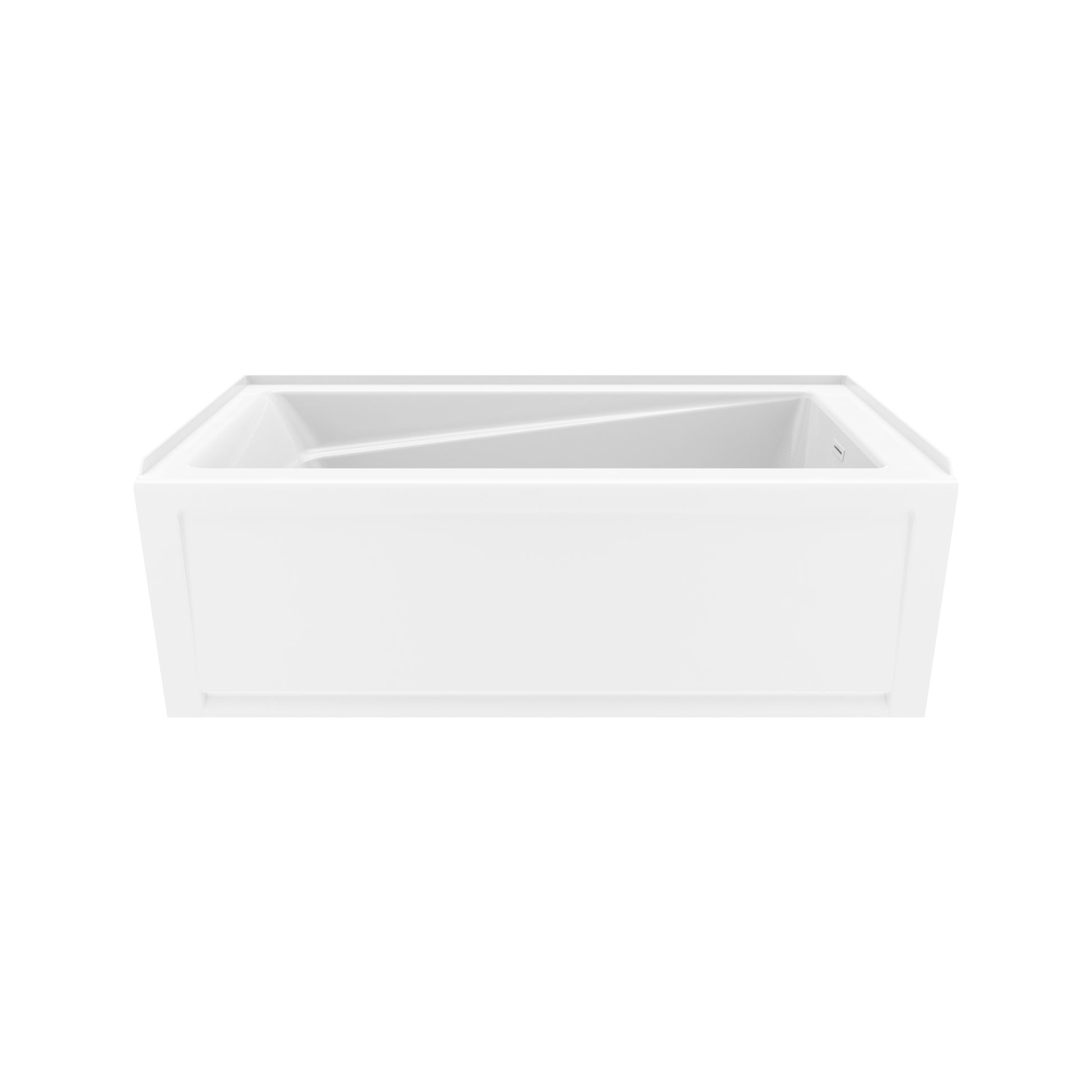

MAAX Exhibit 6032 IFS AFR 107950 Acrylic Alcove Bathtub with Linear Overflow – White

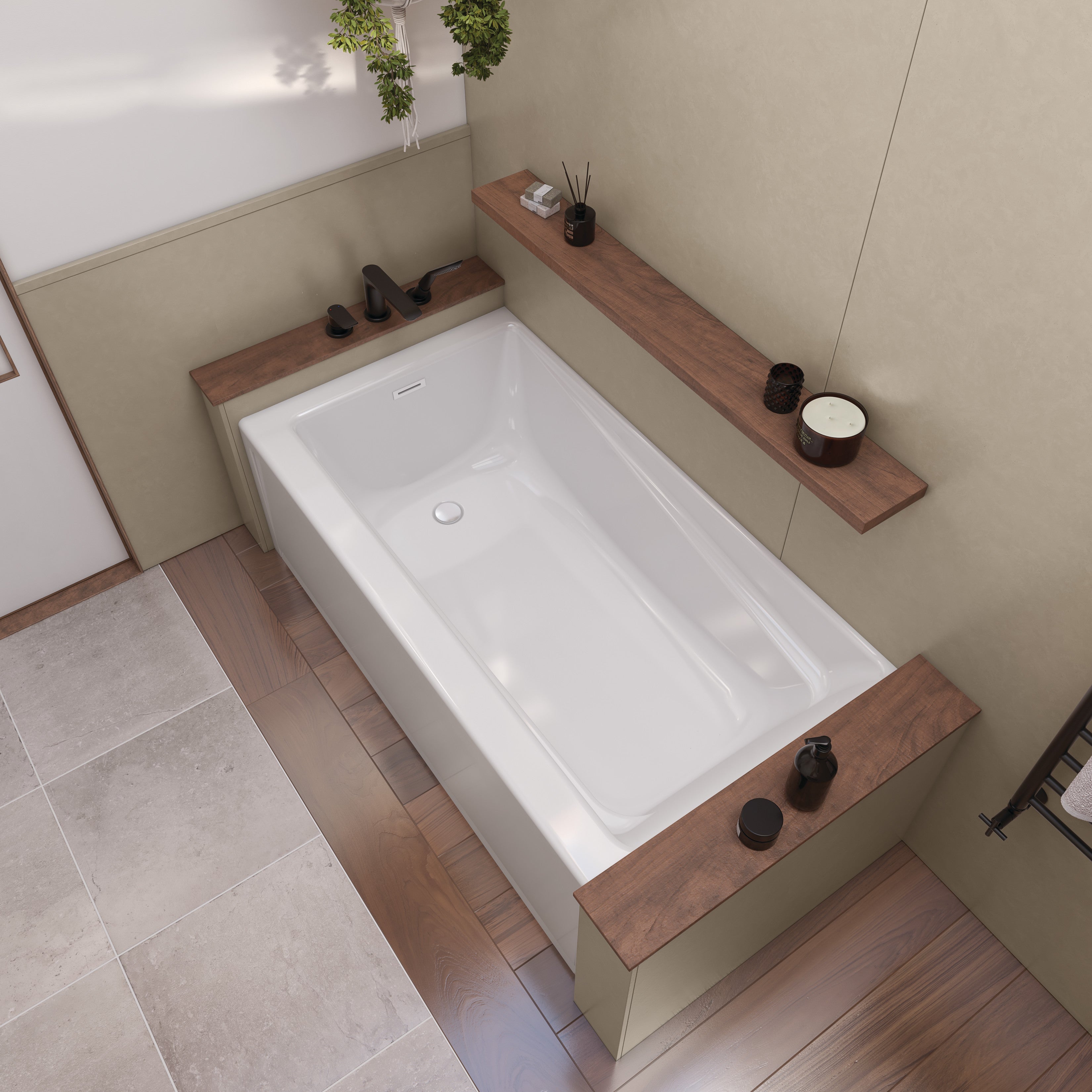

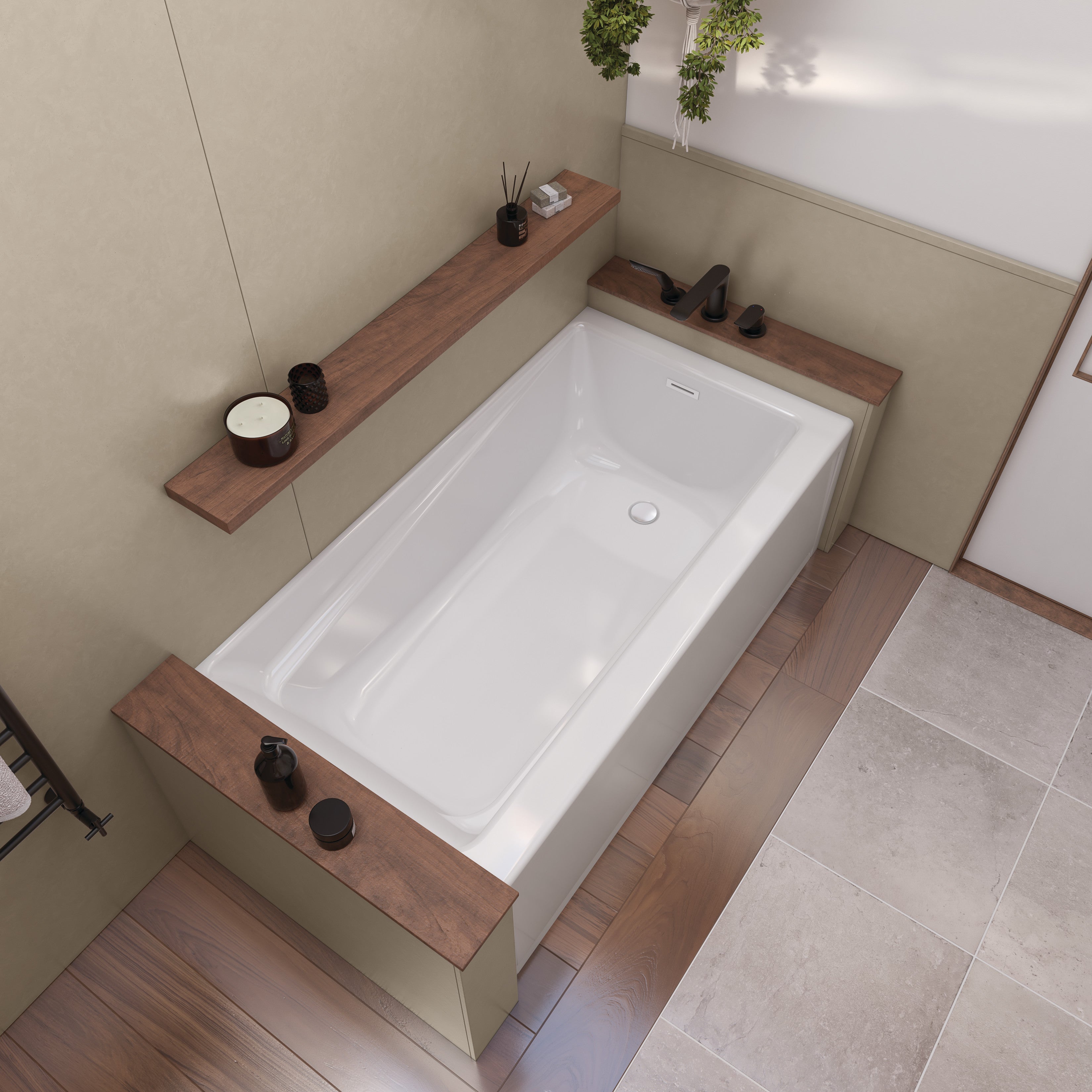

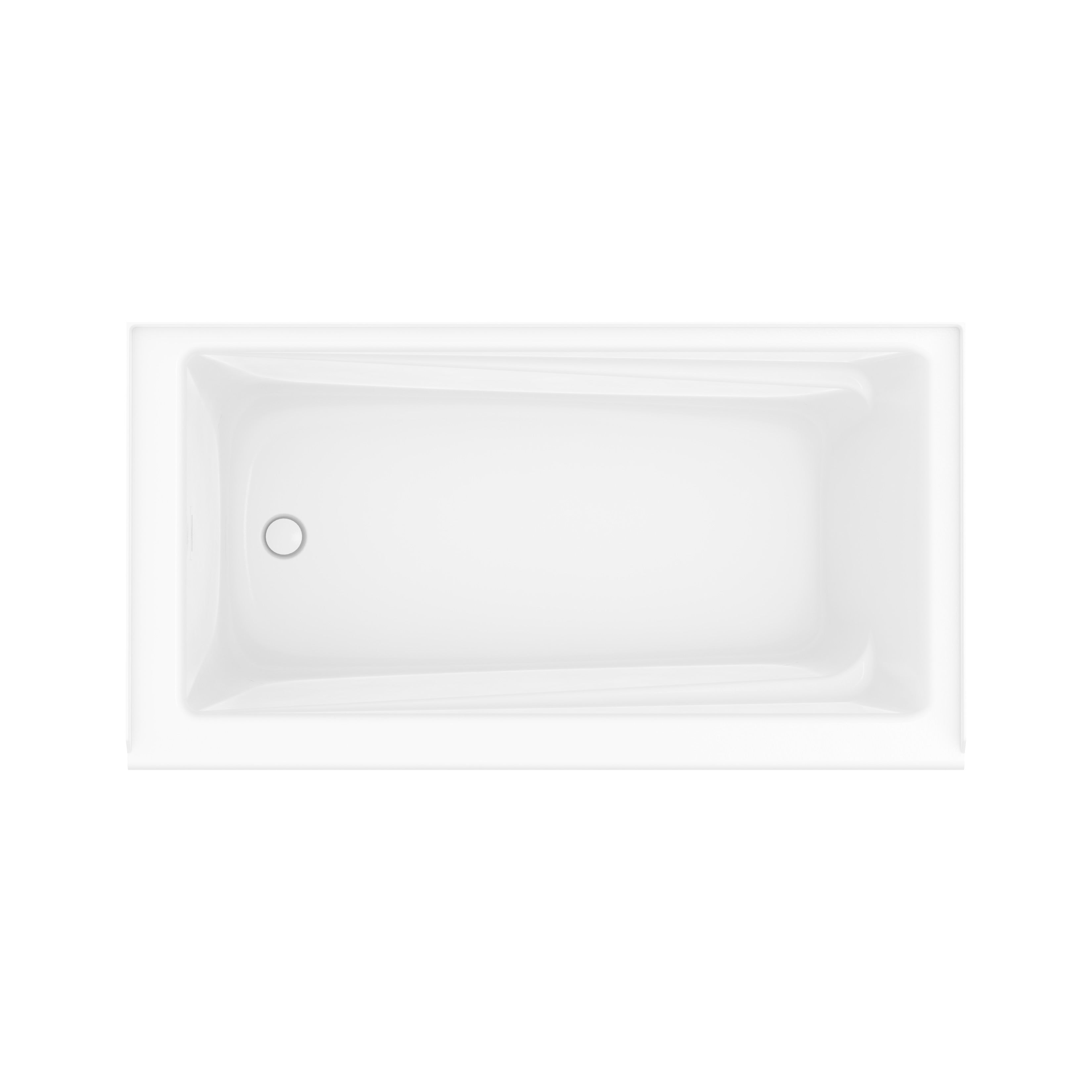

MAAX Exhibit 6032 IFS AFR Acrylic Alcove Bathtub with Linear Overflow is a 60" x 32" (59-3/4" x 32") alcove tub designed for above-the-floor rough (AFR) installations. The integrated linear overflow and included white pop-up drain create a clean, contemporary look while allowing a deeper, more immersive soak.

This model is available in both left-hand and right-hand drain configurations and can be ordered as a simple soaker or factory-prepped for MAAX Microjets, Hydrosens, Aerosens, or combined Hydrosens/Aerosens systems. The textured bottom, integrated tiling flange, and AFR base are engineered for safe, straightforward tub/shower installations.

Key features

• Timeless white acrylic: glossy white acrylic surface that resists stains and complements a wide range of bathroom finishes.
• AFR (Above-the-Floor Rough): raised base allows the drain, waste, and overflow to be roughed in above the subfloor, simplifying installations over slabs or in renovations.
• Linear overflow & drain: pre-installed white linear overflow and matching white pop-up drain for a minimalist look that works with any faucet finish. [web:963]

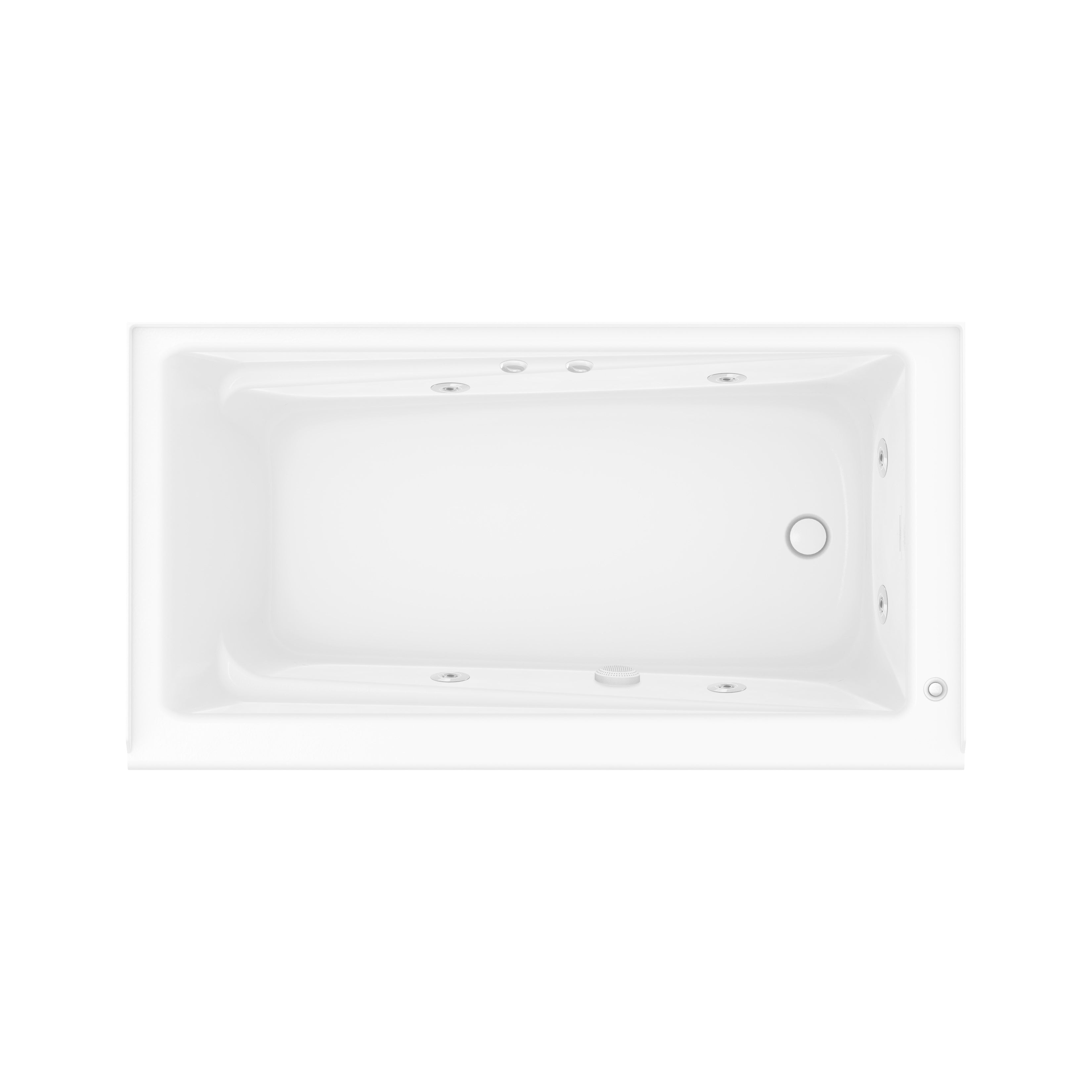

• Left or right drain: available in left-hand and right-hand drain models to suit your plumbing layout.
• Textured bottom: slip-resistant textured floor surface for added safety while standing or entering/exiting the tub.
• Integrated tiling flange: built-in flange around the alcove sides helps prevent water infiltration and eases the installation of tile or wall panels.

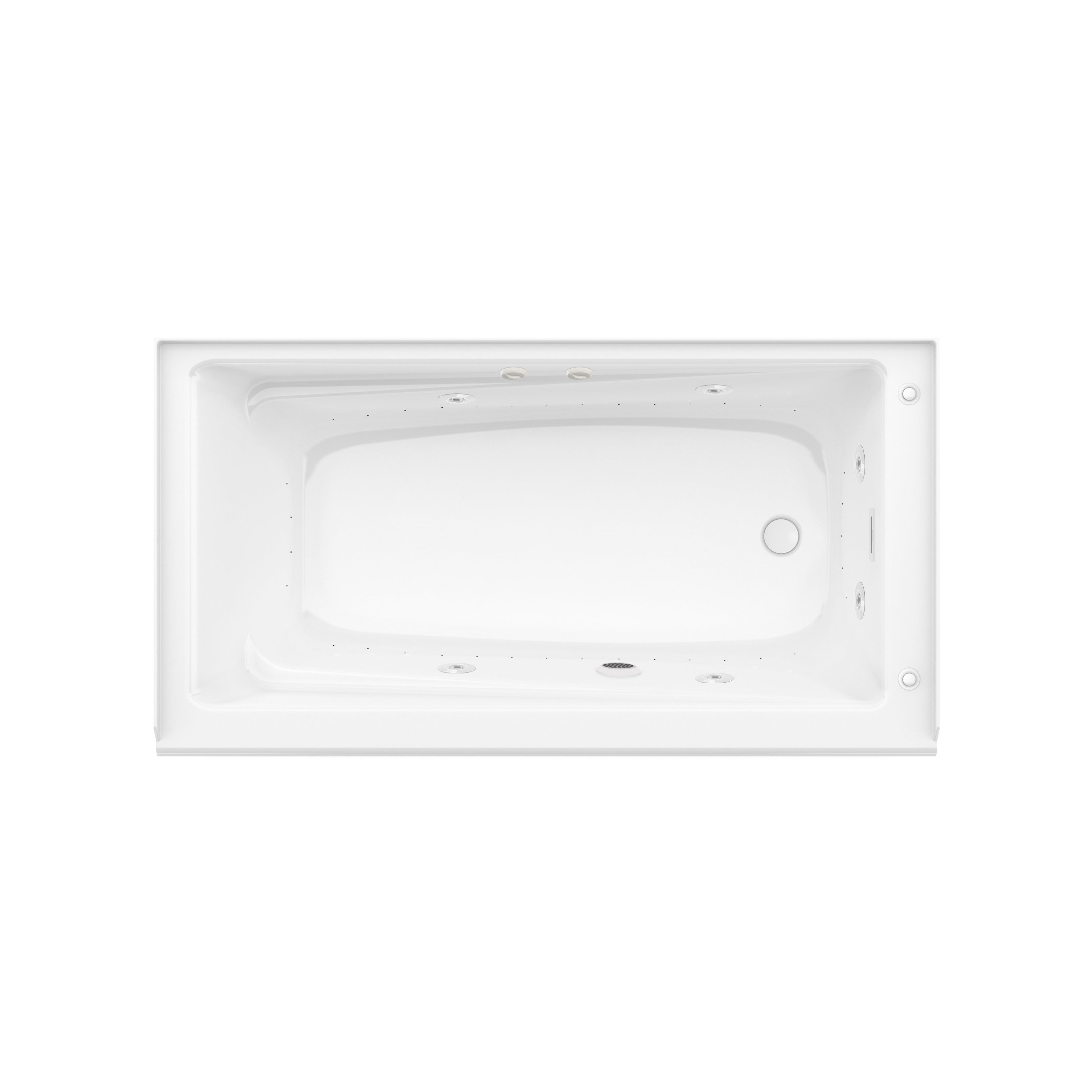

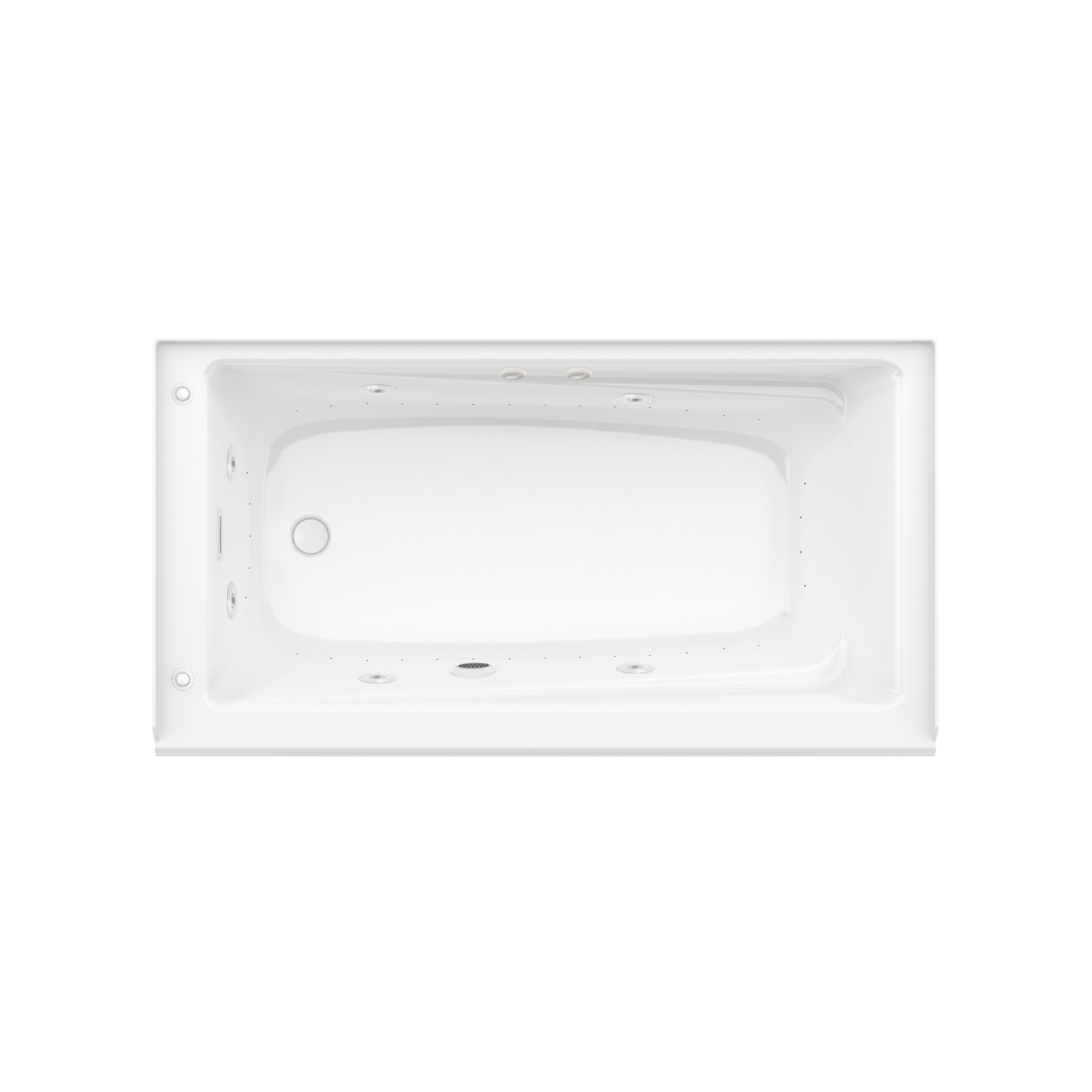

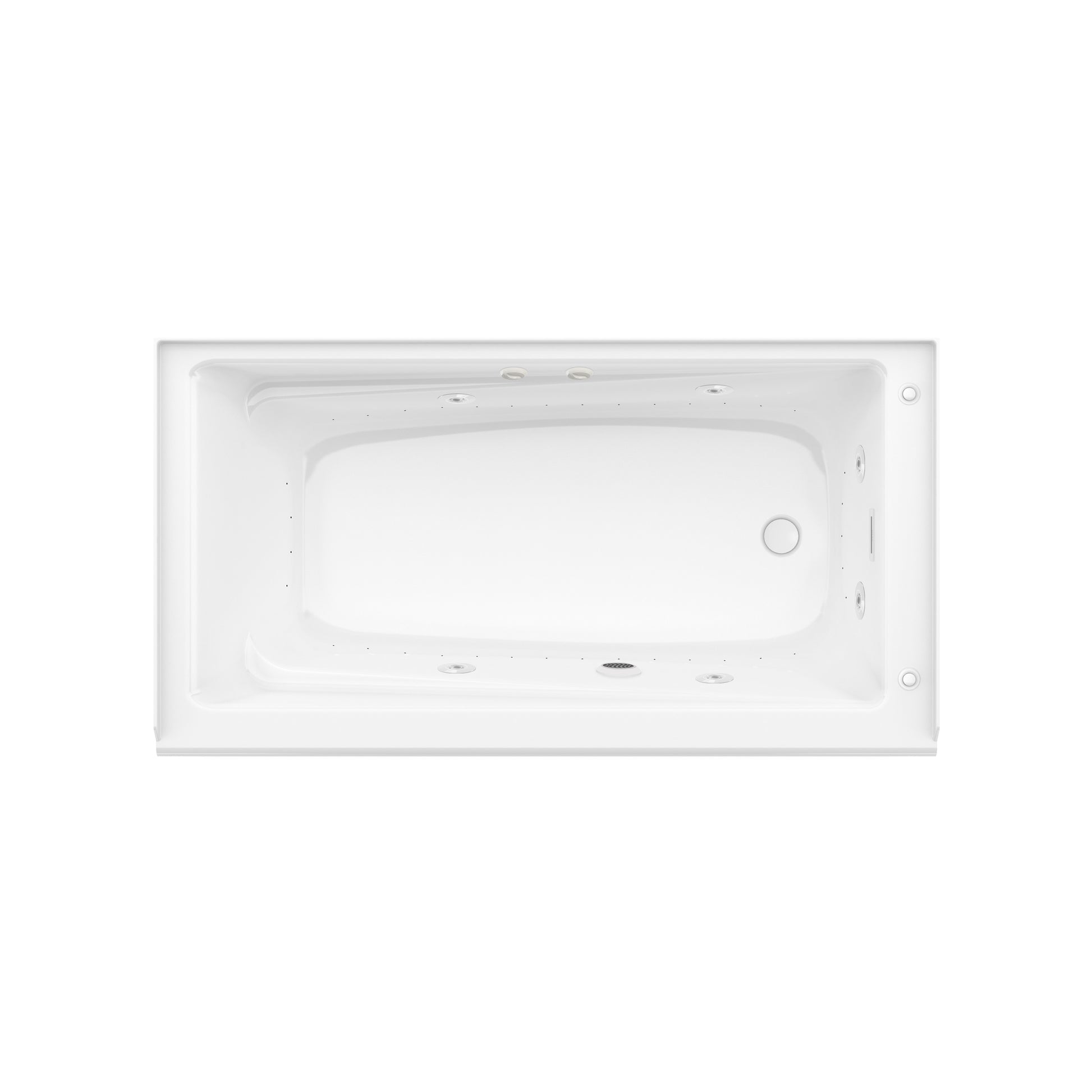

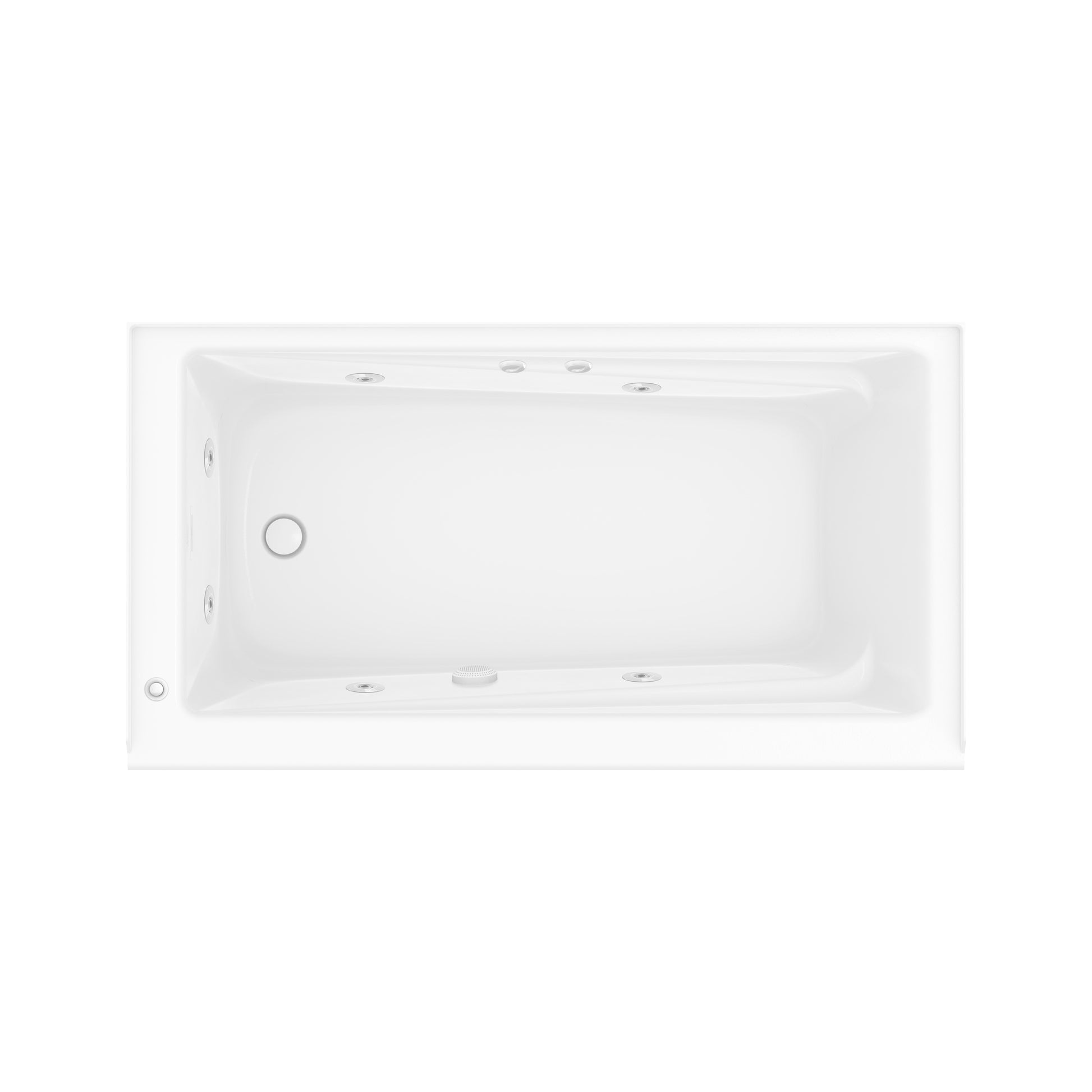

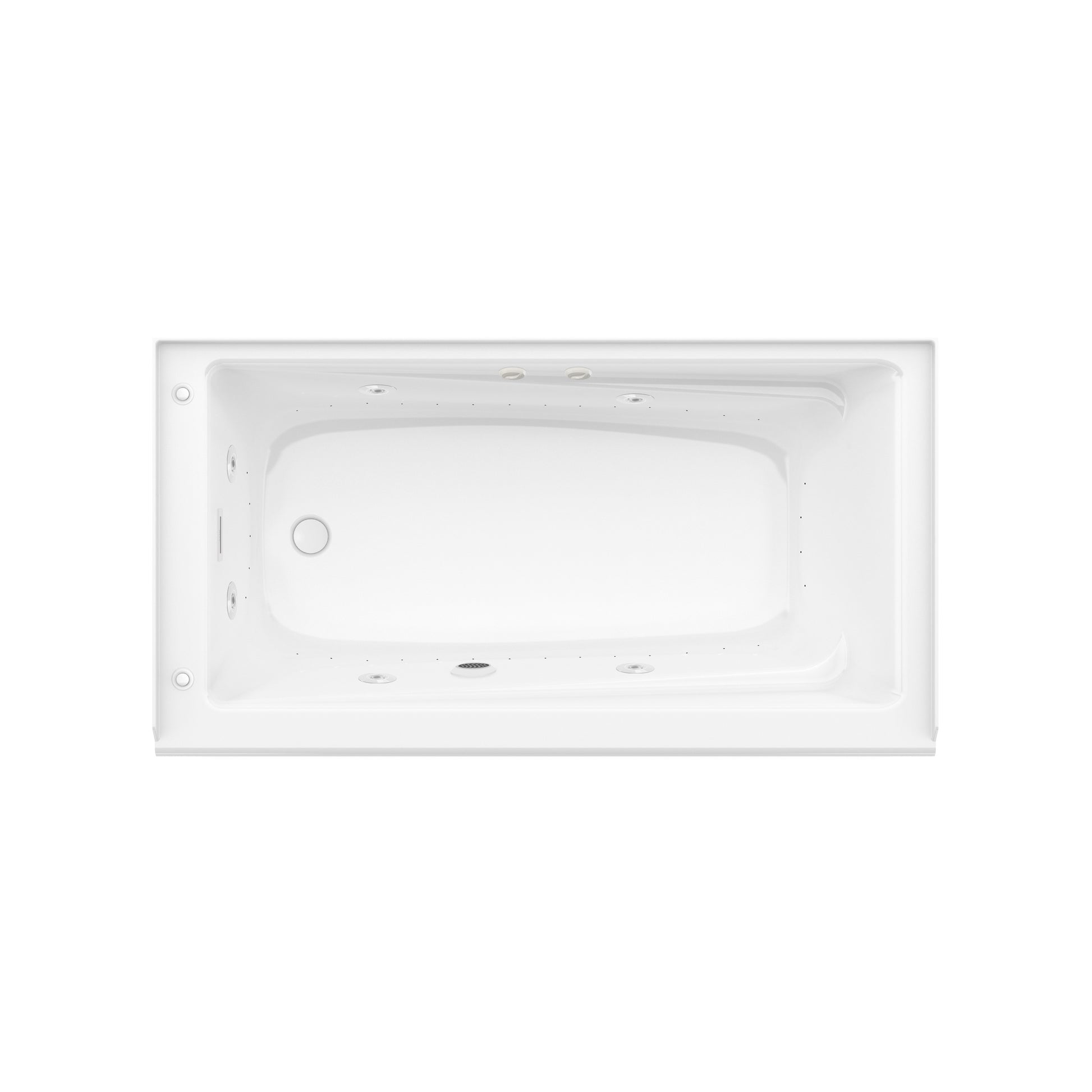

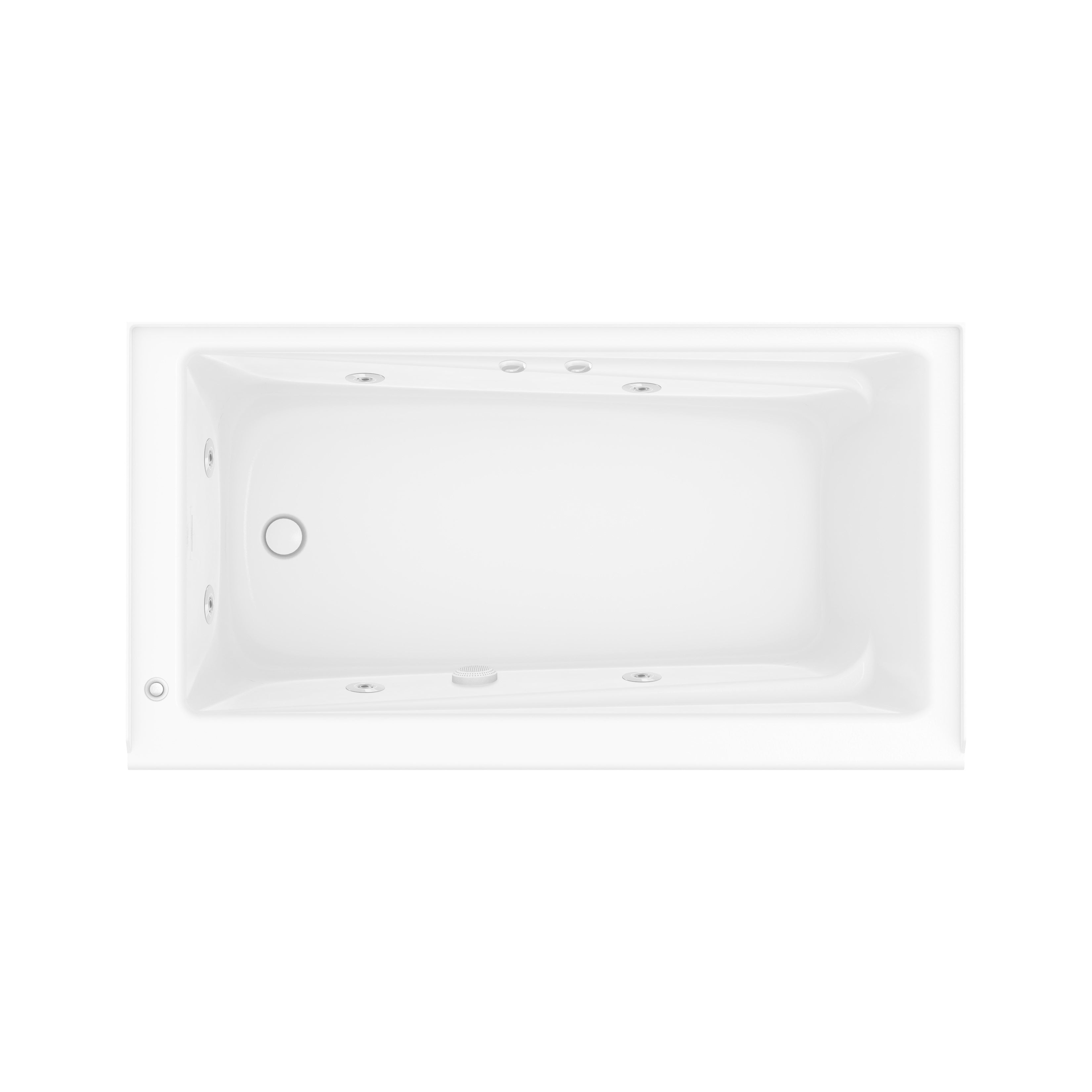

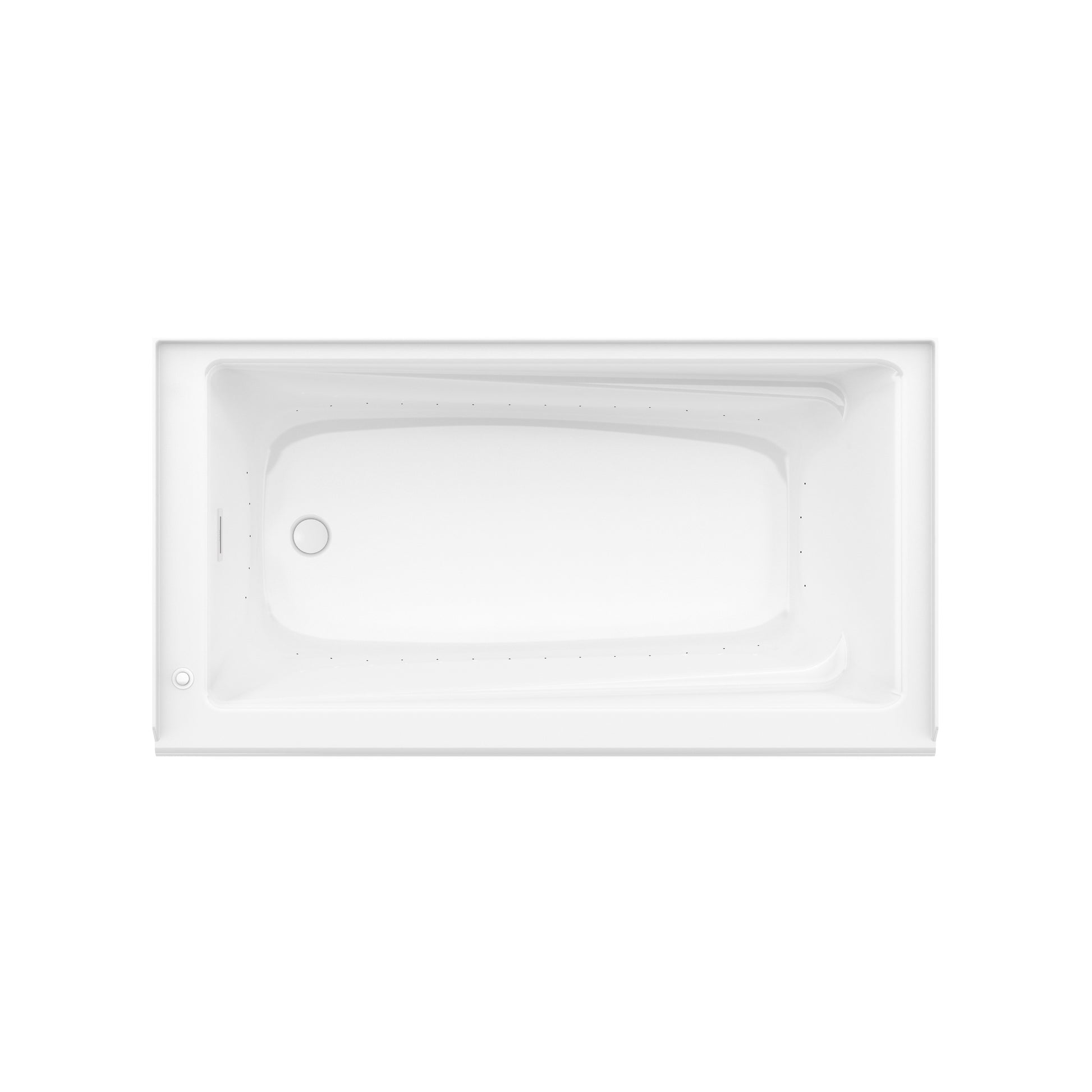

• System-ready options: compatible with MAAX Microjets, Hydrosens, Aerosens, and combined Hydrosens/Aerosens jet systems (select appropriate SKU).
• Utile compatible: designed to work with MAAX Utile wall panels for a faster, cleaner wall installation.
• Long warranty: backed by a 25-year residential warranty and 5-year commercial warranty.

Dimensions & capacity

• Overall size: 59-3/4" L x 32" W x 19-1/2" H.
• Deck width: approx. 4-1/8".
• Bathing well length: approx. 46-1/4".
• Bathing well width: approx. 25-7/8".
• Depth: about 16" to the floor of the bathing well.
• Approximate weight: about 68 lb (shell only).

Construction & installation

• Material: acrylic, with a one-piece alcove design and integral front skirt.
• Installation type: 3-wall alcove with integrated tiling flange and AFR base.
• Armrests: integrated armrest detail for added comfort.
• Door compatibility: maximum door width approximately 59-3/4" for pairing with sliding or pivot shower doors (check door manufacturer’s specs).

What’s included

• Exhibit 6032 IFS AFR acrylic alcove bathtub shell in the selected drain handing and system configuration.
• Pre-installed white linear overflow and matching white pop-up drain.
• Installation guides and technical drawings (available via manufacturer links).

Technical documents

• Installation Guide (PDF)
• CAD File (DWG)
• Technical Drawing – Exhibit 6032 IFS AFR Linear (PDF)

Frequently asked questions

What does “IFS AFR” mean?

“IFS AFR” indicates an Above-the-Floor Rough alcove tub with an integrated front skirt (IFS) and an understructure that allows the drain to be roughed in above the floor, simplifying installation.

What is the difference between left-hand and right-hand drains?

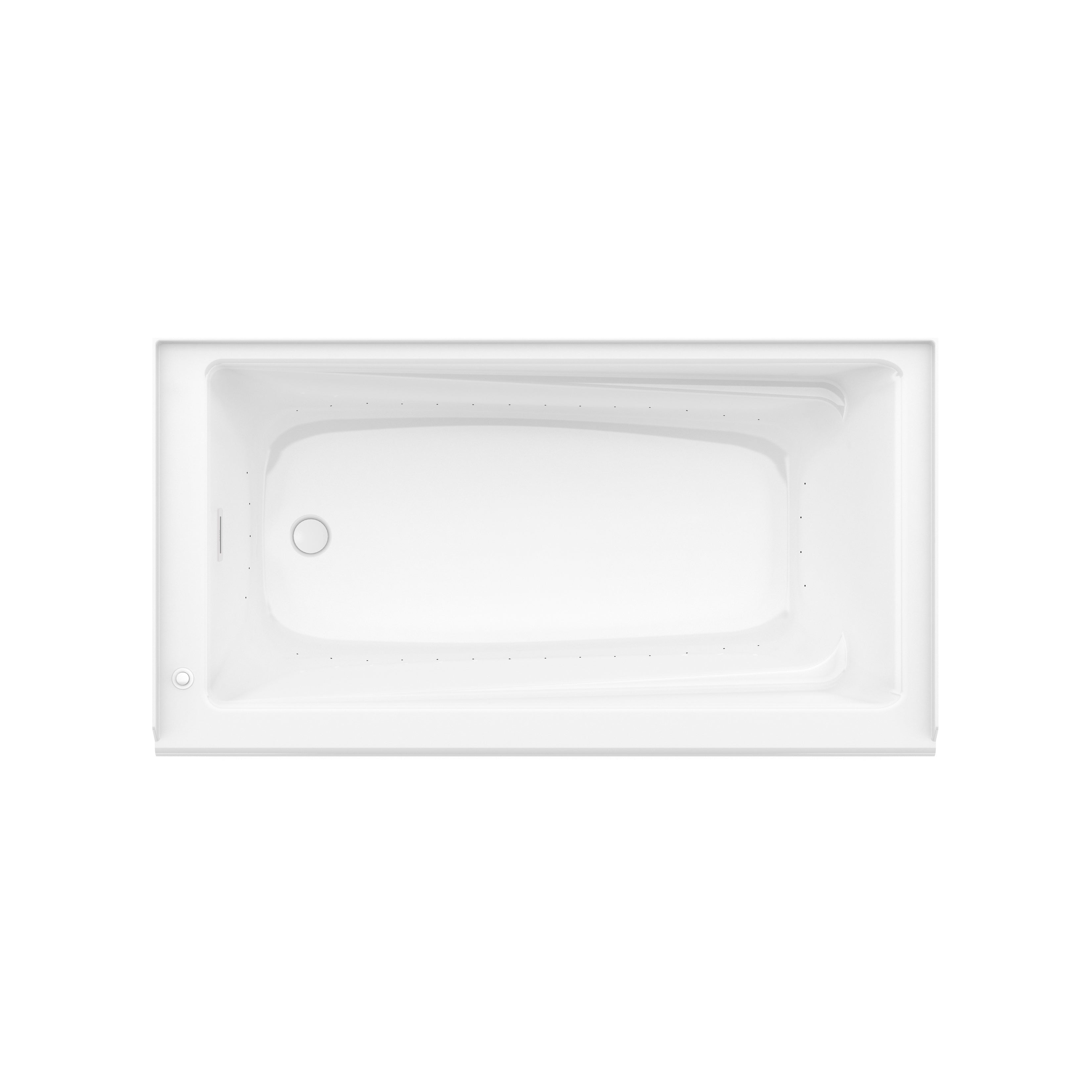

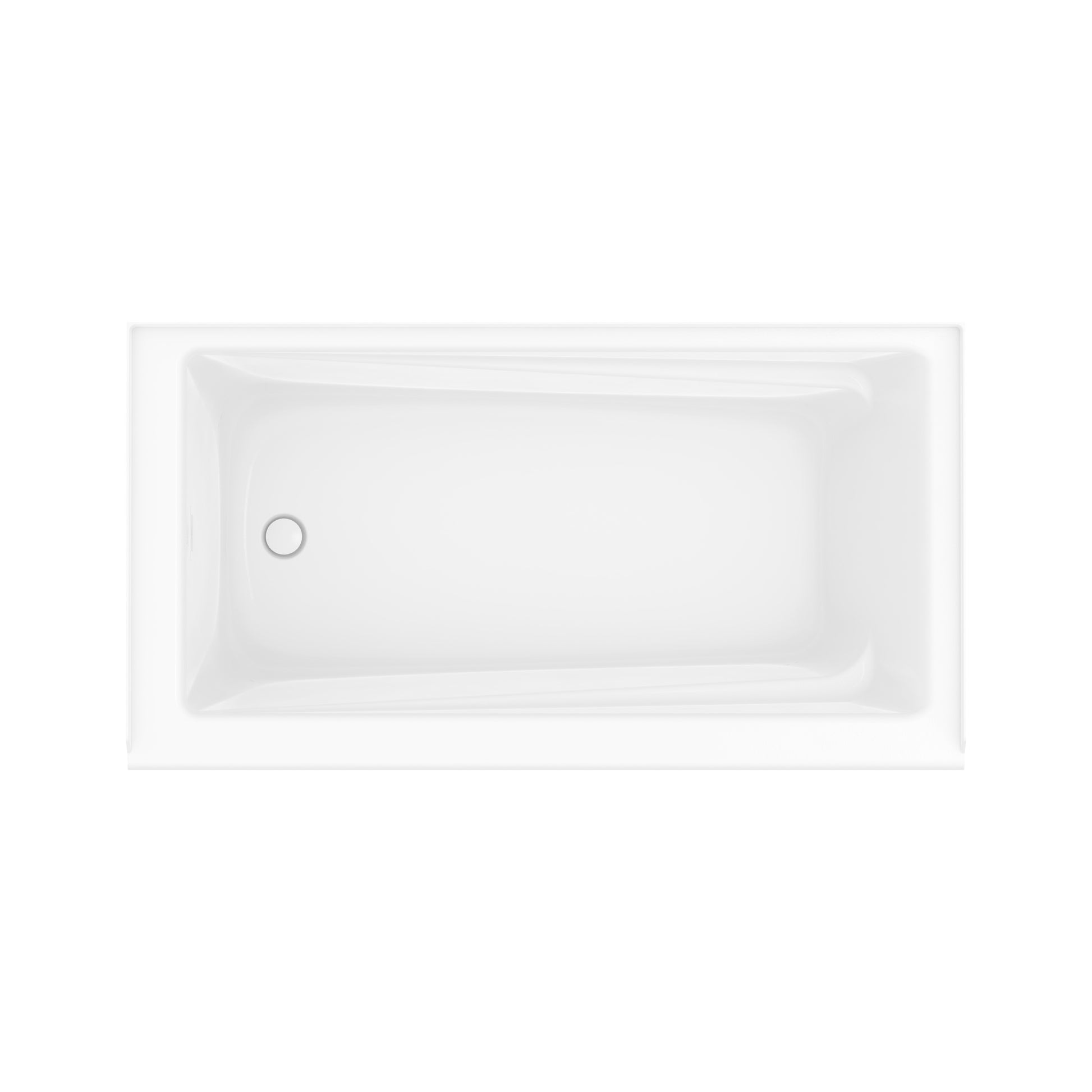

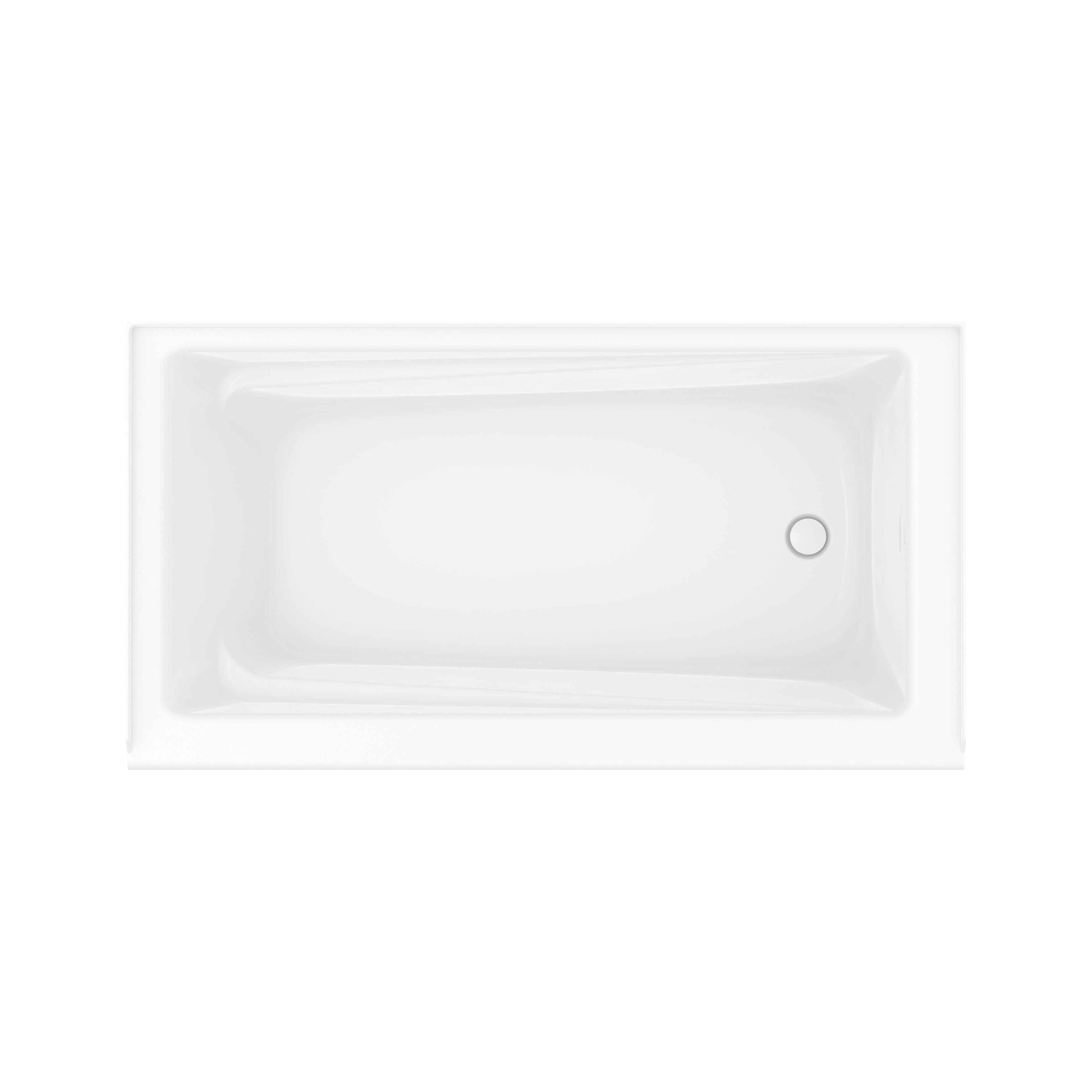

When facing the tub from the room, a left-hand model has the drain and overflow on the left; a right-hand model has them on the right. Choose the version that matches your existing plumbing location.

What do the different SKU endings (000, 001, 003, 096, 097, 103) mean?

These codes identify whether the tub is a soaker only or configured/prepped for MAAX systems such as Microjets, Hydrosens, Aerosens, or combined hydromassage and air systems. Always match the SKU to the desired system.

Can this tub be used with Utile wall panels?

Yes. The Exhibit 6032 IFS AFR is designed to be compatible with MAAX Utile wall systems for a faster alternative to tile.

What is the residential warranty?

The Exhibit 6032 IFS AFR tub carries a 25-year residential warranty and a 5-year commercial warranty when installed and used according to MAAX instructions.
