Mist (Tile-In) Adjustable Delmar Linear Drain 3" High Flow

The Adjustable HF Tile-in Linear Drain Kit allows you to adjust the channel and grate length for a perfect fit. The high-flow 3" outlet ensures fast, efficient drainage.

Key Benefits & Features:

• Cut & Connect On-Site: Size the grate & channel right in the field or connect with joiners and corners for extended / custom layouts.
• Adjustable Outlet: Position the 3? HF outlet anywhere along the channel - ideal for indoor or outdoor spaces.
• Premium Durability: Marine-grade 316 stainless steel that stands up to rust, stains, and daily wear.
• High-Flow Performance: Handles up to 16 GPM per section for fast, reliable drainage.

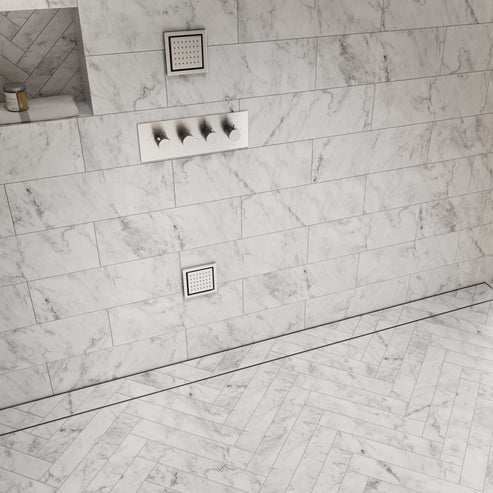

• Low-Profile Base: The flush design integrates into showers, decks, and balconies without added height.

Features:

Experience total flexibility and ultimate creative control by adjusting both the channel length and outlet position on-site, or opt for a custom order tailored to your exact needs.

What’s in the kit?

• 3'' HF Outlet Section
• Channel Section
• Mist (Tile-in) Linear Grate
• 316SS Trims
• Sealant
• Leveling Legs
• SS Threaded Nipple Adaptor
• Grate Lifting Key
• Cutting Blade for grinder

Adjustable Drain Features

Tile Insert Grate

• Accommodates any tile, stone, or flooring material up to 3/8” thick, seamlessly blending with your tile’s design.

Tailored Lengths

• The pre-sloped, low-profile channel provides a base that can be effortlessly adjusted on-site to create any desired length. Multiple kits can be seamlessly connected to achieve your desired result. 90-degree corner available when connecting 2 channels at a 90-degree angle.

Low Profile Base

• Only 1" high, designed with easy installation in mind.

Customize Outlet Location

• With a 3'' outlet, you have the power to select the outlet position on-site, ensuring a precise fit for your layout. The 3'' HF Outlet offers up to 16 GPM with proper slope.

Premium Quality

• Made from marine-grade 316 stainless steel. Resistant to corrosion, perfect for indoor or outdoor use.

Easy to Clean

• Removable grate allows for easy access and quick maintenance. (Refer to cleaning instructions for details.)

Finishes Available

• ST – Satin Stainless

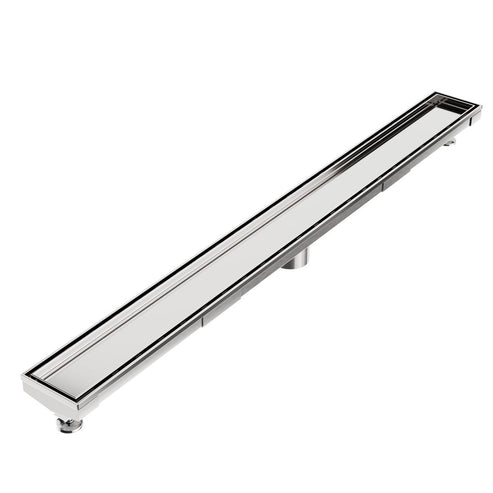

• PS – Polished Stainless

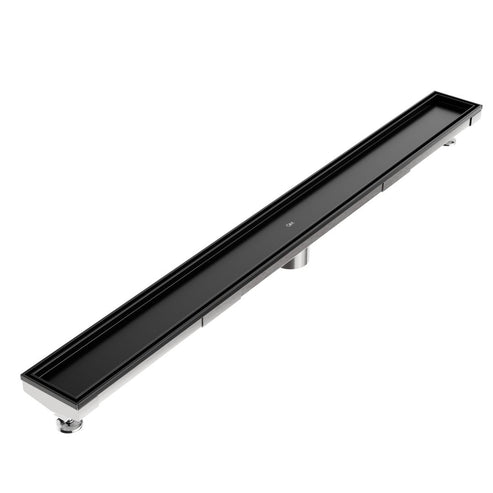

• BK – Matte Black

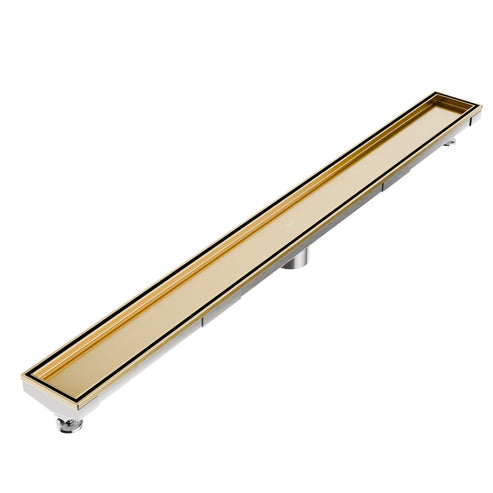

• GD – Satin Gold

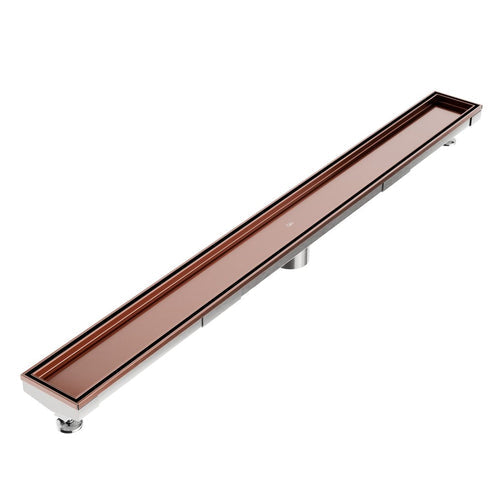

• BZ – Satin Bronze


Simple Installation

• Installation is straightforward with our installer-friendly design. Compatible with standard waterproofing methods. For comprehensive installation guidance, please consult our detailed installation instructions and our installation video.

Sizes Available: 36'', 48'',60'',72'',96''

• Choose the kit with equal or greater size than the desired length; for longer length drains, connect kits with joiners to build the desired length.

Drain Dimensions

• Width: 3.25" Height: 1" (low profile)

Specifications & Installation:

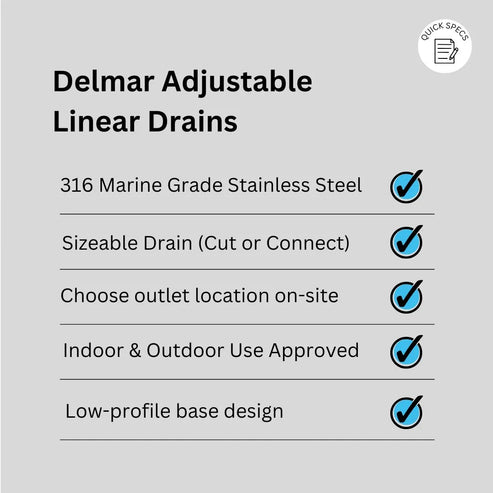

Quick Specs
Dimensions: Width: 3.25" | Height: 1" (low profile)

Resources (PDFS & Videos)

Click below to view and download:

• Mist (Tile-in) Adjustable HF Linear Drain Specifications (PDF)

Download the drain specs PDF with dimensions, materials, SKU numbers, and performance data.

• Delmar Adjustable HF Linear Drain Installation Guide (PDF)

A complete installation guide covering tools, preparation, and waterproofing.

• Delmar Adjustable HF Linear Drain Installation Video

Watch the full video tutorial showing the installation process from start to finish
