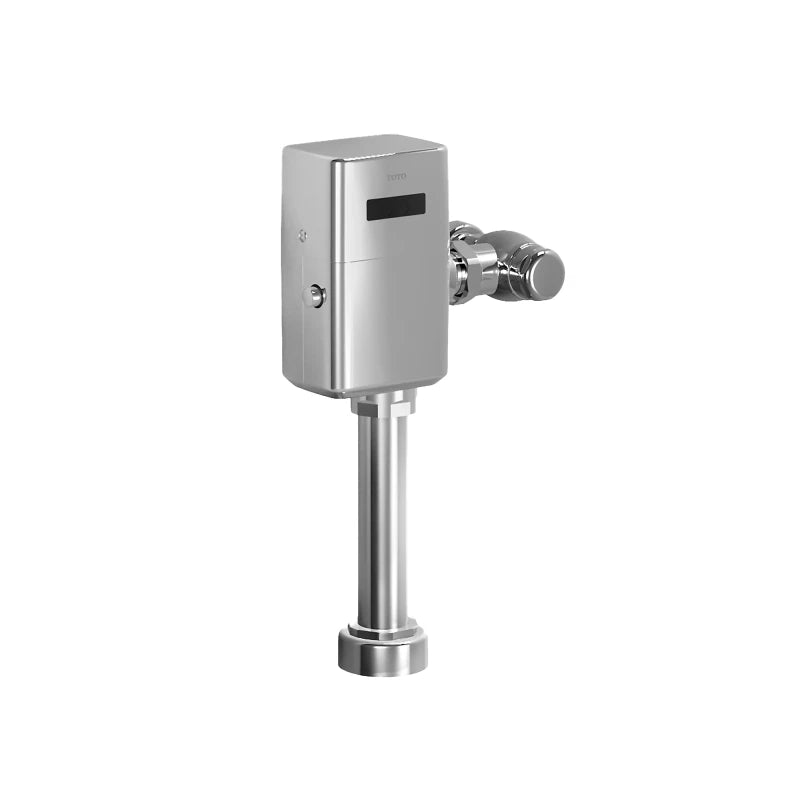

TOTO TET1LB32 EcoPower® Ultra-High-Efficiency Toilet Flush Valve (V.B. Set) - 1.28 GPF
TOTO TET1LB32 EcoPower® Ultra-High-Efficiency Toilet Flush Valve (V.B. Set) - 1.28 GPF
👀 18 people viewing this product
🛒 6 people added this to cart today
📞 Call 732-494-8670 for the best deal
Hurry up, only 10 items left in stock.
The water-powered turbine in the EcoPower flush valve charges the power supply during usage and provides maximum performance in even the most demanding, high-traffic commercial spaces. A special version of this flush valve works with reclaimed water systems.
Features:
- 1.28 GPF
- Self-Powered hydroelectric flush valve system
- No minimum daily usage requirement
- Durable Chrome plated body with tamper-proof screws and solid bronze valve body
- Self-cleaning piston valve with 360 degree filter screen
- Neutral rough-in and adjustable tail piece connection
- True mechanical flush override
- Smart sensor with self-adjusting detection range
- 6 Second detection time to prevent ghost flushing
- For toilet with 1-1/2” top spud inlet
- Exposed flush valve with 1” angle stop and 1-1/2” vacuum breaker set
- Contributes to earning credits in LEED®
- Protects trap seal with a maintenance flush if not used in a 24 hr period
- ADA Compliant
- EPD coated valve body (Reclaimed Water Model)
- Model available for use with Reclaimed Water Systems (See options above)
- See product Spec Sheet (X) version for Reclaimed Water Quality Parameters
Download Data Sheets:
- 3D Drawing
- CAD Drawing
- Revit Model
- Revit Model
- Spec Sheet - TET1LB32
- Spec Sheet - TET1LBi Series
- Spec Sheet - TET1LBX32
- Installation and Owner's Manual -
- IoT Communication Card Installation Manual - EcoPower Exposed Flush Valves (ENG)
- IoT Communication Card Installation Manual - EcoPower Exposed Flush Valves (FRN)
- Lithium Battery Test Summary
- Spare Parts (VB)
- Spare Parts Manual (EFV)
FAQ – TOTO TET1LB32 EcoPower® Ultra-High-Efficiency Toilet Flush Valve
What is the TOTO TET1LB32 EcoPower® Flush Valve?
The :contentReference[oaicite:0]{index=0} TET1LB32 EcoPower® is an ultra-high-efficiency toilet flush valve designed for commercial restroom applications. It delivers powerful, automatic flushing while minimizing water usage and maintenance requirements.
What does EcoPower® technology do?
EcoPower® technology generates electricity using the flow of water inside the system. This allows the flush valve to operate without batteries or external electrical power, reducing long-term maintenance costs.
What is meant by Ultra-High-Efficiency (UHE)?
Ultra-High-Efficiency means the flush valve is engineered to use significantly less water per flush compared to traditional systems while still maintaining strong and reliable waste removal performance.
Where is the TET1LB32 commonly installed?
This flush valve is commonly used in commercial and institutional restrooms such as airports, malls, office buildings, schools, stadiums, and healthcare facilities.
Does this flush valve require batteries?
No, the EcoPower® system is self-sustaining and does not require batteries. It uses water flow to generate the energy needed for automatic flushing operations.
Is the TOTO TET1LB32 touchless?
Yes, it features sensor-activated, touch-free flushing to improve hygiene and reduce the spread of germs in public restrooms.
How does it help save water?
The ultra-high-efficiency design ensures precise water usage per flush, helping facilities significantly reduce water consumption and lower utility costs.
What are the hygiene benefits of this flush valve?
The automatic operation eliminates the need for physical contact, reducing cross-contamination and improving overall restroom cleanliness in high-traffic environments.
Is professional installation required?
Yes, installation should be performed by a licensed plumber familiar with commercial flushometer systems to ensure proper setup and optimal performance.
