TOTO TEU3UA11 EcoPower® Ultra High-Efficiency Urinal Flush Valve 4"x4" - 0.125 GPF (V.B. Set) (Back Spud)

Engineered to require no electricity or routine battery replacement, EcoPower technology is the perfect marriage of hands-free operation, low maintenance, easy installation and ecology.

Features:

• Concealed Flush Valve with 3/4" angle stop and 3/4" Vacuum Breaker Set

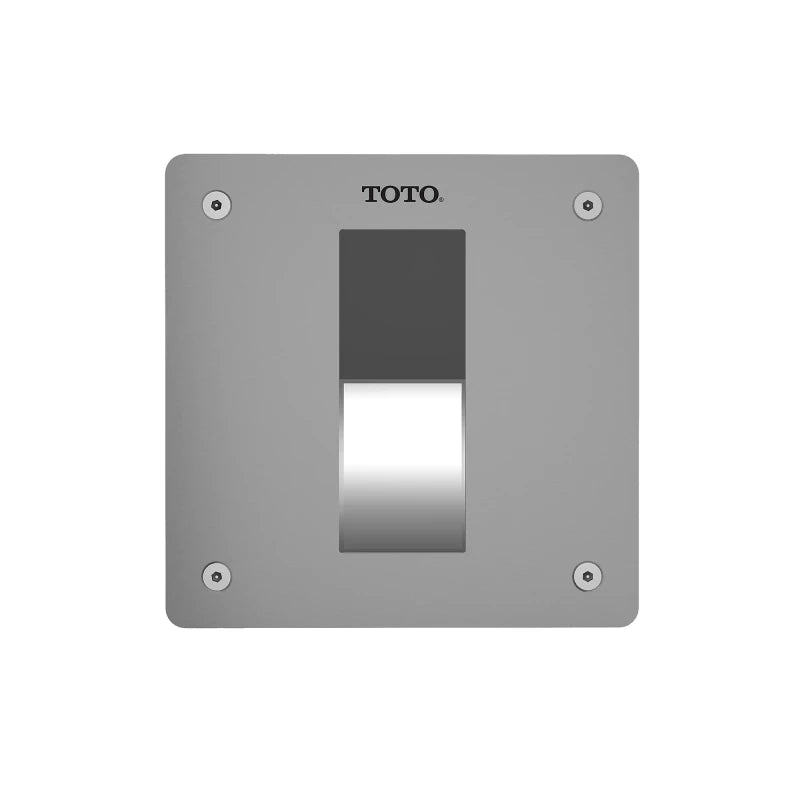

• 4" x 4" Stainless Steel cover plate with tamper proof screws
• Hydropower self-generating system
• 0.125 GPF
• Adjustable tail piece connection
• Neutral rough
• Manual flush override
• Self Adjusting detection range
• 6-second detection time with 3-second flush delay
• Automatic maintenance flush after 12 hours of inactivity
• For Urinal with 3/4" back spud inlet
• ADA Compliant

Download Data Sheets:

• CAD Drawing - TEU3UA (11)(21)
• Revit Model - TEU3UA11
• Spec Sheet - TEU3UA (11)(21)
• Spec Sheet - TEU3UAi Series

Parts and Service Information

• IoT Communication Card Installation Manual - EcoPower Concealed Flush Valves (ENG)
• IoT Communication Card Installation Manual - EcoPower Concealed Flush Valves (FRN)
• Initializing the EcoPower Product
• Installation & Owners Manual - EcoPower Concealed Flush Valves
• Lithium Battery Test Summary
• Spare Parts Sheet (EFV)
• Spare Parts Sheet (VB11)
• Spare Parts Sheet (VB12)

---

TOTO TEU3UA11 EcoPower® Ultra High-Efficiency Urinal Flush Valve 4"x4" – 0.125 GPF – Frequently Asked Questions

What is the TOTO TEU3UA11 EcoPower® Ultra High-Efficiency Urinal Flush Valve?

The TOTO TEU3UA11 EcoPower® Ultra High-Efficiency Urinal Flush Valve 4"x4" - 0.125 GPF is a commercial-grade exposed urinal flushometer designed for maximum water efficiency. It uses EcoPower® self-generating technology to deliver reliable, touchless flushing performance in high-traffic restrooms.

How much water does the TOTO TEU3UA11 use per flush?

The TOTO TEU3UA11 uses only 0.125 gallons per flush (GPF), making it an ultra-high-efficiency urinal flush valve that significantly reduces water consumption and operating costs in commercial facilities.

What is EcoPower® technology in the TOTO TEU3UA11?

EcoPower® technology harnesses the energy of flowing water to generate power for valve operation. This eliminates the need for batteries or external electricity, reducing maintenance requirements and improving sustainability.

What does 4"x4" mean in the TOTO TEU3UA11?

The 4"x4" specification refers to the required wall box size for installation. It ensures proper fit and secure mounting of the flush valve system within the wall structure for exposed installation applications.

Where can the TOTO TEU3UA11 be installed?

The TOTO TEU3UA11 is suitable for commercial restroom environments such as office buildings, airports, hotels, hospitals, schools, shopping centers, stadiums, and other high-traffic public facilities.

Is the TOTO TEU3UA11 suitable for high-traffic restrooms?

Yes, the TOTO TEU3UA11 EcoPower® Urinal Flush Valve is designed for heavy-duty commercial use and provides consistent, reliable performance in demanding restroom environments.

Does the TOTO TEU3UA11 help save water?

Yes, with its ultra-low 0.125 GPF flush rate, the TOTO TEU3UA11 delivers maximum water savings while maintaining effective urinal flushing performance in commercial facilities.

What are the benefits of EcoPower® technology?

EcoPower® eliminates the need for batteries or external power sources, reducing maintenance costs, improving reliability, and ensuring continuous operation in commercial restrooms.

What are the benefits of exposed urinal flush valves?

Exposed flush valves are easier to install and maintain compared to concealed systems. They also allow quick access for servicing while providing durable and reliable performance in commercial environments.

Why choose the TOTO TEU3UA11 EcoPower® Ultra High-Efficiency Urinal Flush Valve?

The TOTO TEU3UA11 offers ultra-low water consumption, EcoPower® self-generating operation, durable commercial-grade construction, and easy maintenance, making it an excellent choice for sustainable restroom systems.
